2023 BMC URS 01 Four

2023 BMC URS 01 Four

BMC
Availability:
Most in stock items ship within 1-3 business days
$5,499.00
(No reviews yet)
Weight:
45.00 LBS
Width:
58.00 (in)
Height:
10.00 (in)
Depth:
32.00 (in)
Current Stock:
Description

There's nothing grizzled about the sleek looks of our lightest, most integrated URS, a bike with all the performance a dedicated gravel rider needs. Its gravel-conquering Premium Carbon frameset boasts ICS and MTT technologies, plus epic practicality from multiple mounts, Gravel+ geometry and large tire clearance. Specced with a SRAM Rival eTap AXS drivetrain and Eagle cassette that ramp up its climbing capabilities, and the DT Swiss G1800 Spline wheelset that roll confidently over the terrain, this gravel bike is your key to outdoor freedom.

Frameset

  • URS 01 premium carbon frame with Micro Travel Technology, Tuned Compliance Concept Gravel
  • MTT suspension fork, 25 mm travel, premium carbon blades
  • URS 01 premium carbon D-shape seatpost

Technical Details

  • Stealth cable management, including hub dynamo and dropper post
  • D-Shape seatpost with D-fender mount
  • Integrated seat clamp
  • Easy access Di2 junction box integrated in downtube
  • Top tube mount
  • 3rd water bottle mount on downtube
  • Hidden fender mounts
  • Rack mounts
  • ASTM level 2

Sizes

S, M, L, XL


Frame Weight**
1050 g

Fork Weight**
550 g

Seatpost Weight**
160 g


Cockpit

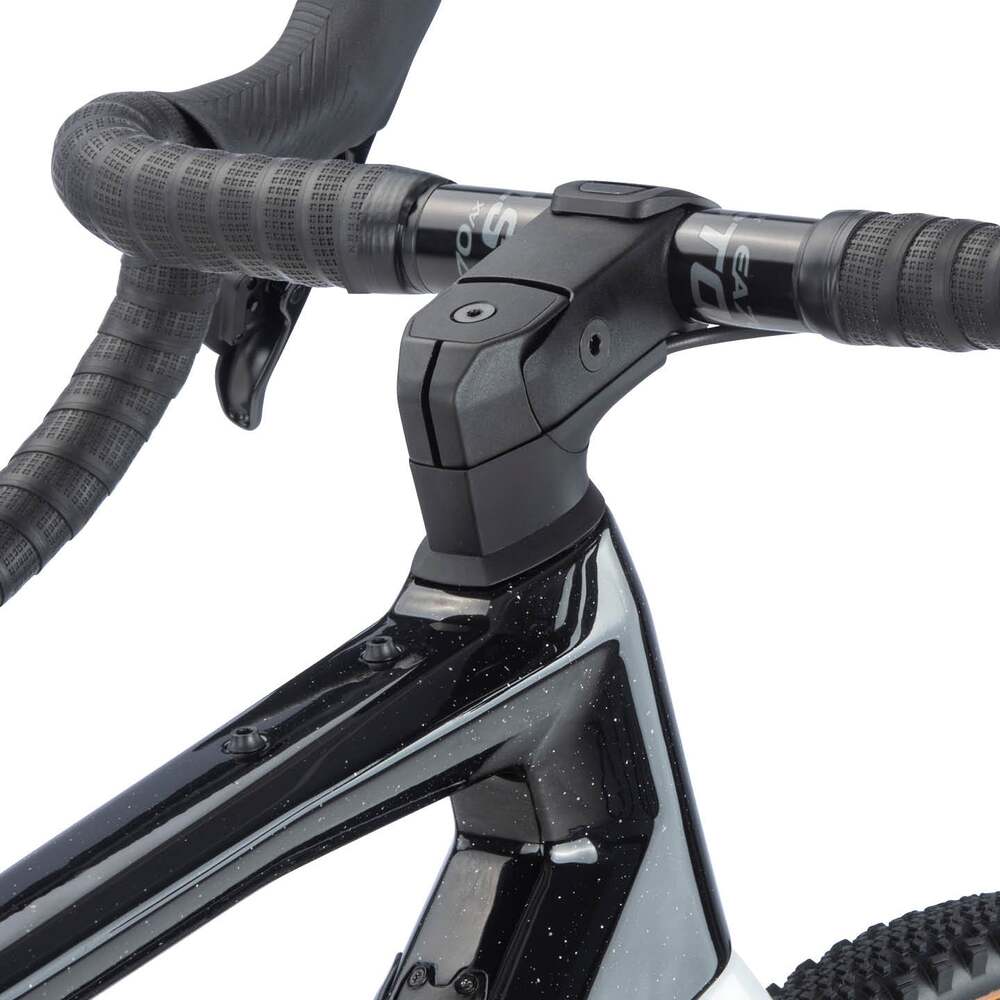

ICS MTT x Redshift Suspension Stem; Easton AX Bars

  • ICS MTT stem with internal cable routing and easy fit adjustment; Easton AX bars
  • Garmin/GoPro integrated computer mount (Wahoo-ready with GoPro-compatible mounts)
  • Handlebar reach/drop: 80/120 mm (Easton AX)
  • ICS MTT stem angle: 0°
  • 330 g (stem)

URS 01 is compatible with any ICS cockpit configuration using the dedicated topcones (ICS Carbon, ICS CArbon Aero, ICS Aero, ICS2, ICS01, ICS01 0 Degrees, ICS MTT Stem).*


Compatibility

Frame, Fork and Seatpost

  • ICS specific fork with tapered steerer, flat mount
  • Compatible with 1x electronic and mechanical groupsets
  • Max chainring: 48T
  • PF86 bottom bracket
  • D-Shape seatpost with D-fender mount
  • Front derailleur: 1x specific frame
  • Replaceable rear derailleur hanger

Brakes

  • Front brake: flat mount, 160 mm rotors minimum
  • Rear brake: flat mount, 160 mm rotors minimum

Wheels and Axles

  • Designed for 40 mm, maximum tire clearance 42 mm (actual measured width)
  • Front thru-axle: 12x100 mm (diameter/frame spacing)
  • Rear: thru-axle: 12x142 mm (diameter/frame spacing)

*Notes about proprietary technology

**Weight for the lightest finish, including complete hardware with size M frames

Additional Information
Frame:
URS 01 Premium Carbon with Micro Travel Technology Tuned Compliance Concept GravelGravel+ GeometryICS Technology Stealth Cable RoutingFender and Rack MountsPF86 Bottom BracketFlat Mount Disc12x142mm Thru-Axle "
Fork:
URS 01 Premium Carbon with Tuned Compliance Concept GravelICS Technology Integrated Brake & Hub Dynamo Routing Fender MountsFlat Mount Disc12x100mm Thru-Axle
Chainwheel:
SRAM RIVAL 1 AXS 38T
Cassette:
SRAM XG 1275 EAGLE 10-52T
Chain:
SRAM Gx Eagle 12 Speed
Rear Derailleur:
SRAM Gx Eagle AXS
Shifters:
SRAM Rival eTap AXS
Brakes:
SRAM Rival eTap AXS HRD - Centerline Rotors (180/160)
Handlebar:
Easton EA70 AX
Stem:
ICS MTT x Redshift Suspension Stem - Integrated Cockpit Design
Seatpost:
URS 01 Premium Carbon D-Shaped Seatpost 0mm Offset
Saddle:
WTB SL8
Hubs:
DT Swiss 370 Spline Disc
Rims:
DT Swiss G1800 Spline - 25mm
Tires:
WTB Raddler - 40mm
Tire Clearance:
42mm (Measured Width)
Weight Limit:
120 Kg
ASTM Classification:
Level 2
Gears:
1x12
