Click for Geometry
2024 Salsa Rangefinder Advent X 27.5+
Salsa
$899.00
(No reviews yet)
Write a Review
Salsa
2024 Salsa Rangefinder Advent X 27.5+
Rangefinder Advent X 27.5+ is a hardtail trail mountain bike that delivers happiness on every stretch of dirt. Our stable trail geometry is designed for a comfortable, confident ride and a 120 mm suspension fork smooths out rocks and roots. Nimble 27.5" wheels with 2.8"-wide tires deliver great grip on a wide range of trail surfaces so you can trust your line on challenging terrain. The microSHIFT Advent X components strike the perfect balance of durability, weight, and ease of use.

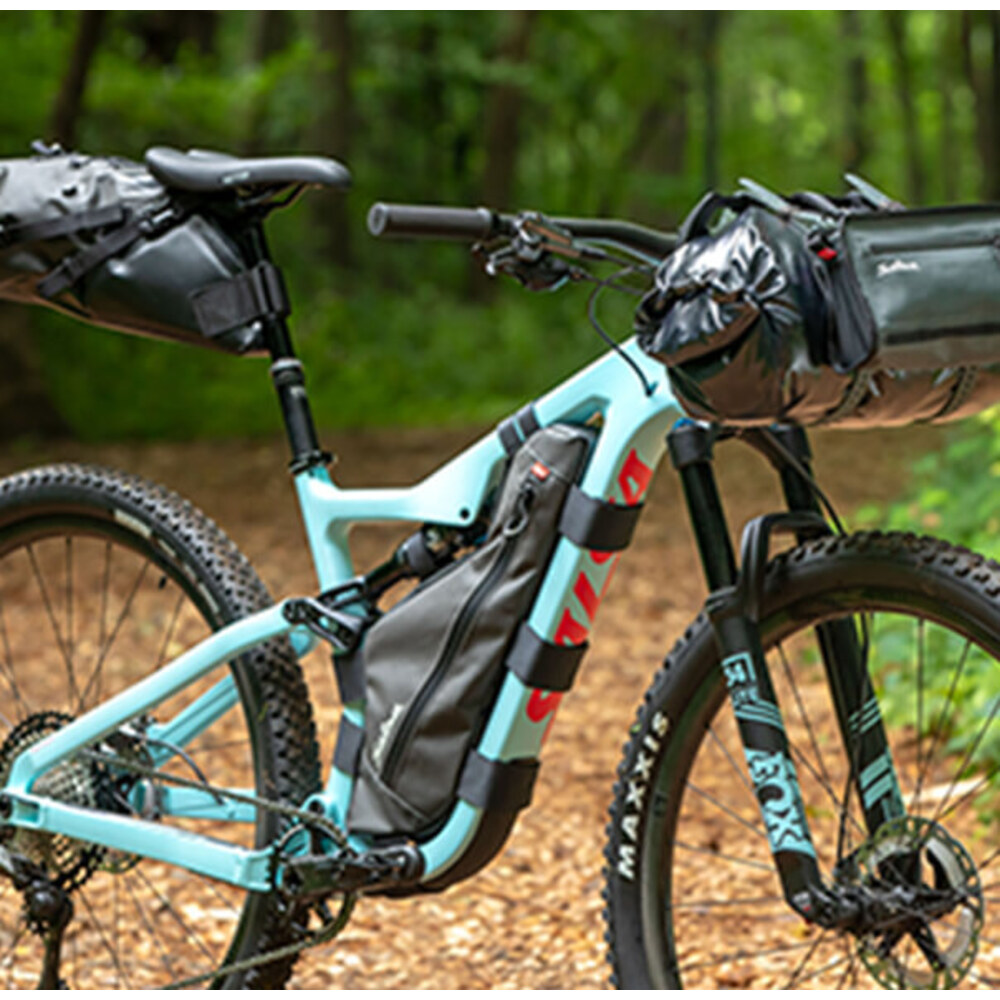

On-Bike Storage
Carry more on your bike and less on your body. Our frames and forks feature mounts for extra bottles, camping gear, and ride accessories.
6061-T6 ALUMINUM TUBE SET
A blend of our proprietary, top-shelf 6061-T6 double- and triple-butted tubing creates a light, responsive, and durable frame with great trail feel
RANGEFINDER TRAIL GEOMETRY
Rangefinder's long top tube, short stem, and 439 mm chainstays provide a stable ride to keep you in control on steep and technical terrain
120 MM OF FRONT SUSPENSION TRAVEL
A 120 mm fork soaks up the trail and a thru-axle keeps the front end stiff for precise handling
CARGO CAPACITY
The Rangefinder frame has two bottle cages on the inside of the frame, an accessory mount on the underside of the down tube, and top tube mounts for use with our EXP Series Direct-Mount Top Tube Bag. Rear rack mounting bosses are also included at the dropouts, and with the addition of a 35.0mm Rack-Lock seatpost collar, a rear rack can be fitted
FULL-LENGTH CABLE ROUTING
Rangefinder can fit both 29" (maximum of 29 x 2.6") and 27.5+ (27.5 x 2.8-3.0") wheels and tires
DUAL WHEEL SIZE COMPATIBILITY
- Frame (Frameset):
- Rangefinder Aluminum
- Fork (Frameset):
- SR Suntour XCM32 Boost, Coil, NLO, DS, 120 mm
- Color (Frameset):
- Silver
- Rear Derailleur (Drivetrain):
- microSHIFT Advent X M6205
- Cassette (Drivetrain):
- microSHIFT Advent X H104 11-48t, 10-speed
- Chain (Drivetrain):
- Shimano HG54
- Crankset (Drivetrain):
- FSA Alpha Drive, 30t, FSA 124.5 mm bottom bracket
- Shifter (Drivetrain):
- microSHIFT Advent X M9605
- Headset (Components):
- FSA Orbit NO.57B 1.5 ZS
- Stem (Components):
- Salsa Guide 31.8, 60 mm, 6d
- Handlebar (Components):
- Salsa Salt Flat 31.8, 750 mm width XS-SM; Salsa Rustler 31.8, 800 mm width M-XL
- Seatpost (Components):
- Salsa Guide 30.9, 0 offset
- Saddle (Components):
- WTB Volt Medium, Steel, 142 x 265 mm
- Front Wheel (Wheels):
- Shimano MT400 Center Lock 15 x 110 mm TA hub, WTB ST i40 32h 27.5" rim
- Rear Wheel (Wheels):
- Shimano MT200 Center Lock 10 x 141 mm QR hub, WTB ST i40 32h 27.5" rim
- Tires (Wheels):
- Maxxis Rekon 27.5 x 2.8", EXO, Wire Bead (not tubeless compatible)
- Complete Bike Weight (Weight):
- 33 lb (with tubes, no pedals) for Medium
- Fork Offset:
- 46 mm
- Seatpost:
- 30.9 mm
- Bottom Bracket:
- 73 mm BSA, threaded
- Crankset (Max Ring):
- Boost 148 52 mm chainline only (32t max)
- Rear Brake (Rotor):
- 74 mm post mount (160-180 mm rotor)
- Rear Spacing:
- 141 x 10 mm QR
- Derailleur Hanger:
- FS2361
- Fender Mounts:
- No
- Design Wheel/Tire Sizes:
- 27.5 x 2.8-3.0"
- Alternate Wheel/Tire Sizes:
- 29 x 1.9-2.6"
- Suspension Fork Length (Travel):
- 100-130 mm
- Headset, Upper:
- ZS44
- Headset, Lower:
- ZS56
- Seatpost Collar:
- 35.0 mm
- Dropper Compatible (Routing):
- Yes (internal)
- Top Tube Mounts:
- Yes, compatible with Salsa EXP Series Top Tube bag.
- Rear Rack Mounts:
- Yes. Salsa Post-Lock seatpost collar required.
- Water Bottle Mounts:
- 2
- Grips (Components):
- Salsa File Tread
- Downtube Accessory Mounts:
- 1
- Brakes (Drivetrain):
- Shimano MT200 OR Tektro M520
- Rotors (Drivetrain):
- Shimano RT10 Center Lock rotors (160 mm)
