2024 BMC Timemachine 01 DISC ONE - Stealth 24-new-image 1

2024 BMC Timemachine 01 DISC ONE - Stealth

BMC
Availability:
Most in stock items ship within 1-3 business days
$9,499.00
(No reviews yet)
Weight:
45.00 LBS
Width:
58.00 (in)
Height:
10.00 (in)
Depth:
32.00 (in)
Current Stock:
Adding to cart… The item has been added
Description

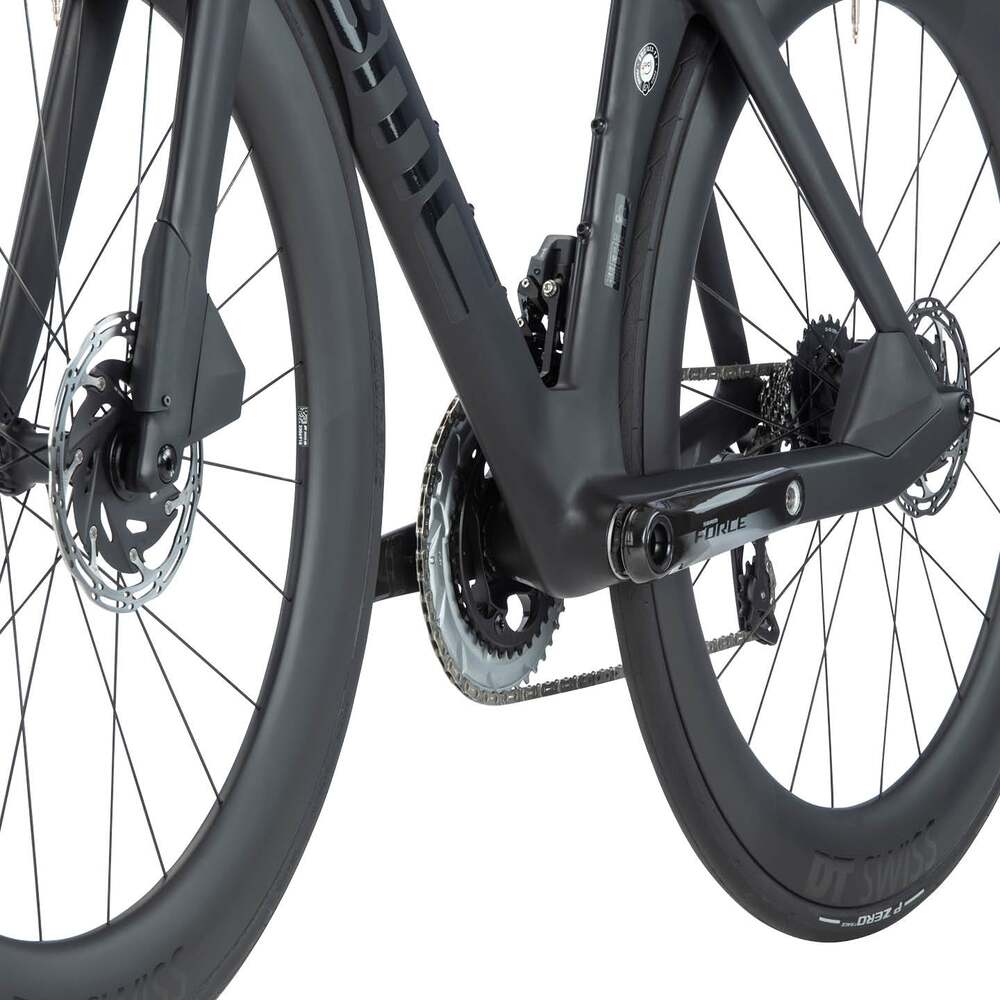

The Timemachine 01 DISC is the latest evolution of our all-conquering, drag-defying race machine. Its highly sophisticated aerodynamics, adjustability and component integration ensure you can perform at your best. The Vmax Aero Design Premium Carbon frame includes aero disc caliper covers, sliding dropouts, rear storage, a dual position seatpost and our Flat Cockpit with Profile Design T4+ Carbon extensions. Its SRAM Force eTap AXS 12-speed groupset and 62mm DT Swiss ARC 1650 Carbon wheelset are geared for speed on this time trial and triathlon bike.

Specification

  • SRAM Force eTap AXS Drivetrain
  • DT Swiss ARC 1650 Carbon Wheelset
  • P2P Flat Cockpit, BMC Aero Post

Vmax Technology

P2P x subA: The formula for high-performance cycling - Position-to-Perform maximizes the bike's adjustability to your riding position, while SubA innovation creates an incredibly fast frame profile.

Dual-Mount Seatpost

Two optional seatpost mounting positions allow for 71° - 81° effective seat tube angles.

SubA Aero Hinge-fork

The fully integrated 3rd generation hinge-fork ensures a lean frontal profile, seamlessly integrated brake caliper, and a revolutionary new cockpit mounting system that promotes both form and function.

Caliper Covers

Integrated covers optimize the airflow around disc brake calipers and rotors, improving aerodynamic performance on the Timemachine 01 DISC.

Click for Geometry

Click for Timemachine Assembly Manual

Additional Information
Frame:
Timemachine 01 Disc Premium Carbon with Vmax Aero Design and P2P Positioning SyStem | Internal Di2 Battery Mount | PF86 Bottom Bracket | Rear Storage | BoxAero Caliper Cover | Sliding Dropouts | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:
Timemachine 01 Disc Premium Carbon with Vmax Aero Design Hinge Design | Aero Caliper Cover | Flat Mount Disc | 12 x 100mm Thru-Axle
Handlebar:
BMC Flat Cockpit | Profile T4+ Carbon Extensions
Seatpost:
Timemachine 01 Premium Carbon V-Max Aero Seatpost
Saddle:
Fizik Mistica Mg
Brake Levers / Calipers:
SRAM S-900 Aero HRD Disc Brake
Rotors:
SRAM Centerline X
Rotor Size (F/R):
160 / 160mm
Rims:
DT Swiss ARC 1650 Carbon Disc | 62mm
Hubs (F/R):
DT Swiss ARC 1650 Disc
Tires:
Pirelli P Zero Race | 26mm
Tire Clearance:
27mm
ASTM Classification:
Level 1
System Weight Limit:
110kg
