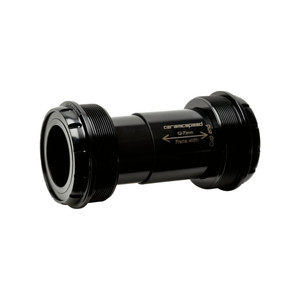

2024 Ceramic Speed T47/68 Outboard Bottom Bracket for SRAM DUB - Black image

2024 Ceramic Speed T47/68 Outboard Bottom Bracket for SRAM DUB - Black

Ceramic Speed
Availability:
Most in stock items ship within 1-3 business days
$379.00 - $479.00
(No reviews yet)
Weight:
2.00 LBS
Width:
10.00 (in)
Height:
10.00 (in)
Depth:
8.00 (in)
Current Stock:
Adding to cart… The item has been added
Description

The T47 threaded bottom bracket shell utilizes an oversized interface of PF30 and EVO386, but with the benefit and peace of mind of a threaded interface. T47/68 places the bearings outside the width of the frame and is compatible with 68mm wide T47 Outboard frame designs. T47 is a standard created by custom frame builders. Its threaded, has an inner diameter of 47mm, and is 68mm wide. It has the design benefits of being oversized and wide, but also the practical benefits of threads.

The cups have CeramicSpeed bearings pressed in. There are two bearing options. The Standard Bearing has CeramicSpeed Balls and hardened-steel races. The Coated Bearing has the same balls running on a 3-micron thick coating placed on top of those hardened-steel races for greater durability and less friction still.

This BB is compatible with 68mm frames.

In the box:

  • 2 cups with CeramicSpeed Bearings installed
  • 2 dustcovers
  • Spacer-tube
  • 4 x 1mm spacers
  • 4 x 3mm spacers
  • All Round Grease
  • Decal

Product Highlights

Lowestfriction

Optimizedpower transfer

Longest Product Lifetime

High resistance to contamination and corrosion

Click for Bottom Bracket Compatibility Matrix

Click for Spacer Overview

Additional Information
Discipline:
Road and Tri
Net weight:
123.0 g
Gross Weight:
176 g
BB Type:
T47 68mm
Crank Diameter:
28.99
Crank Brand:
SRAM
Crank Width:
85.2
