2025 BMC Teammachine R 01 Frameset - Arctic Silver/Neon Red
BMC
$94,076.18
(No reviews yet)
Write a Review
BMC
2025 BMC Teammachine R 01 Frameset - Arctic Silver/Neon Red
- From dreams to racing: Build your carbon road bike and conquer your ultimate racing goals with precision and speed, whether in the mountains or on tarmac.
Born for Glory, Forged for Victory. From the towering peaks of the Swiss Alps to the legendary pave of the Spring Classics, this Teammachine R 01 frameset provides the base for a true racing machine that embodies resilience and precision. Crafted alongside Red Bull Advanced Technologies, it's more than a race bike frameset - it's a statement. The racing bike machine that results from this is built to conquer the road and dominate the peloton.

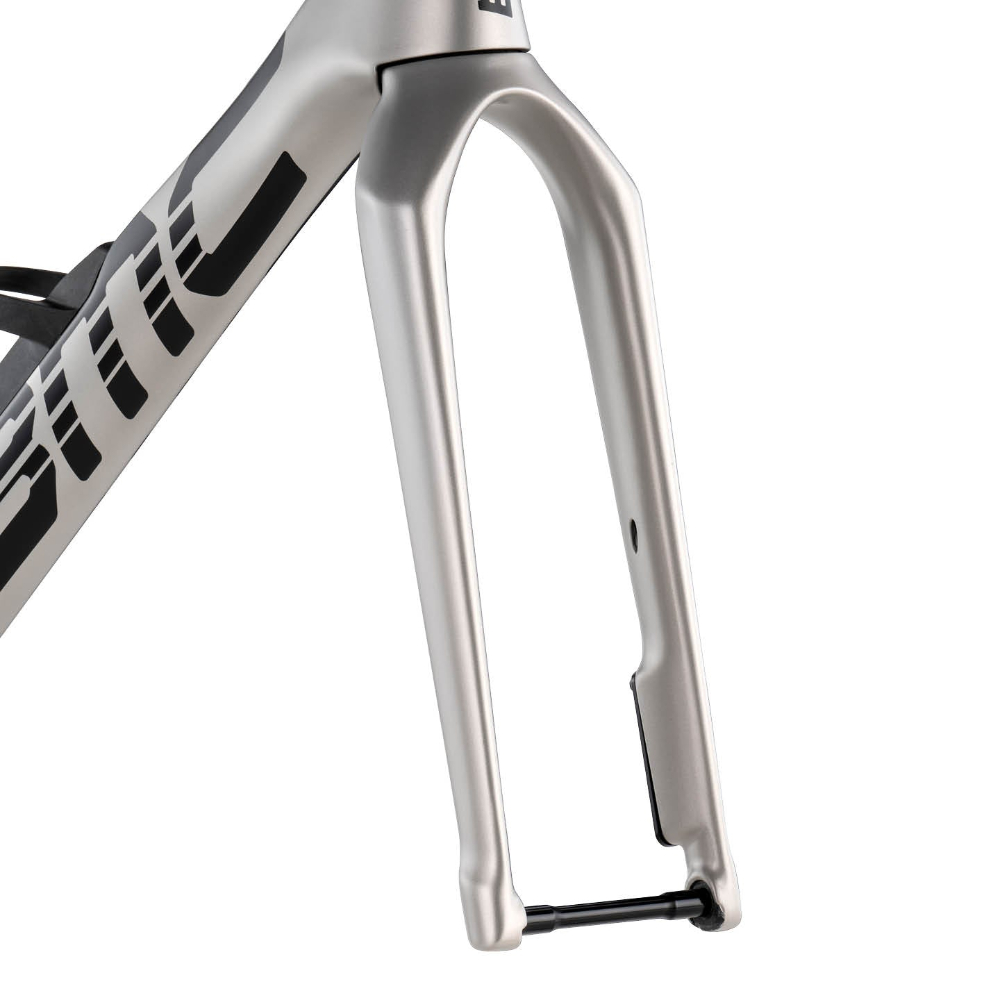

Halo Fork
The ultrawide fork legs are unlike anything else seen in the peloton and help keep turbulent air, created by the front wheel, away from the frame.

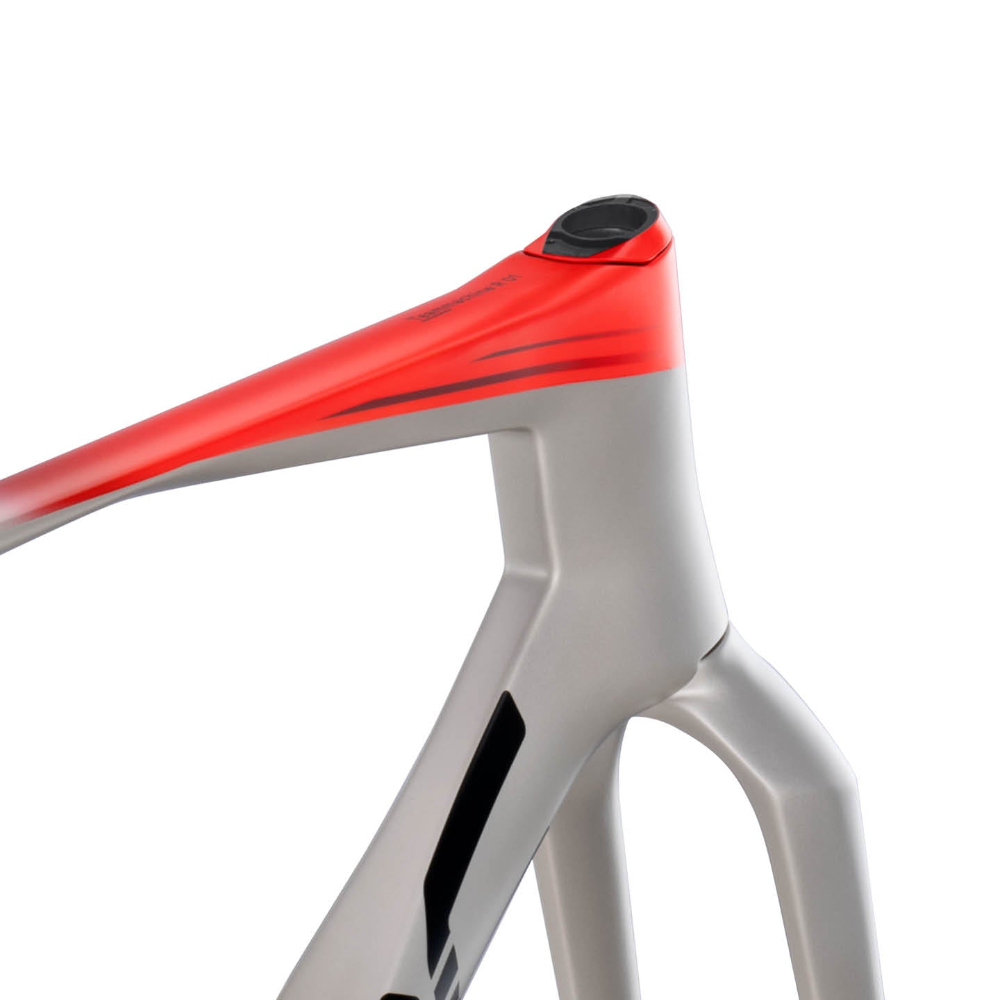

Integrated Cockpit System (ICS)
The aesthetic simplicity and innovative functionality of the Integrated Cockpit is the epitome of Swiss engineering and design. ICS keeps shifter wires and brake lines in their place: out of sight.

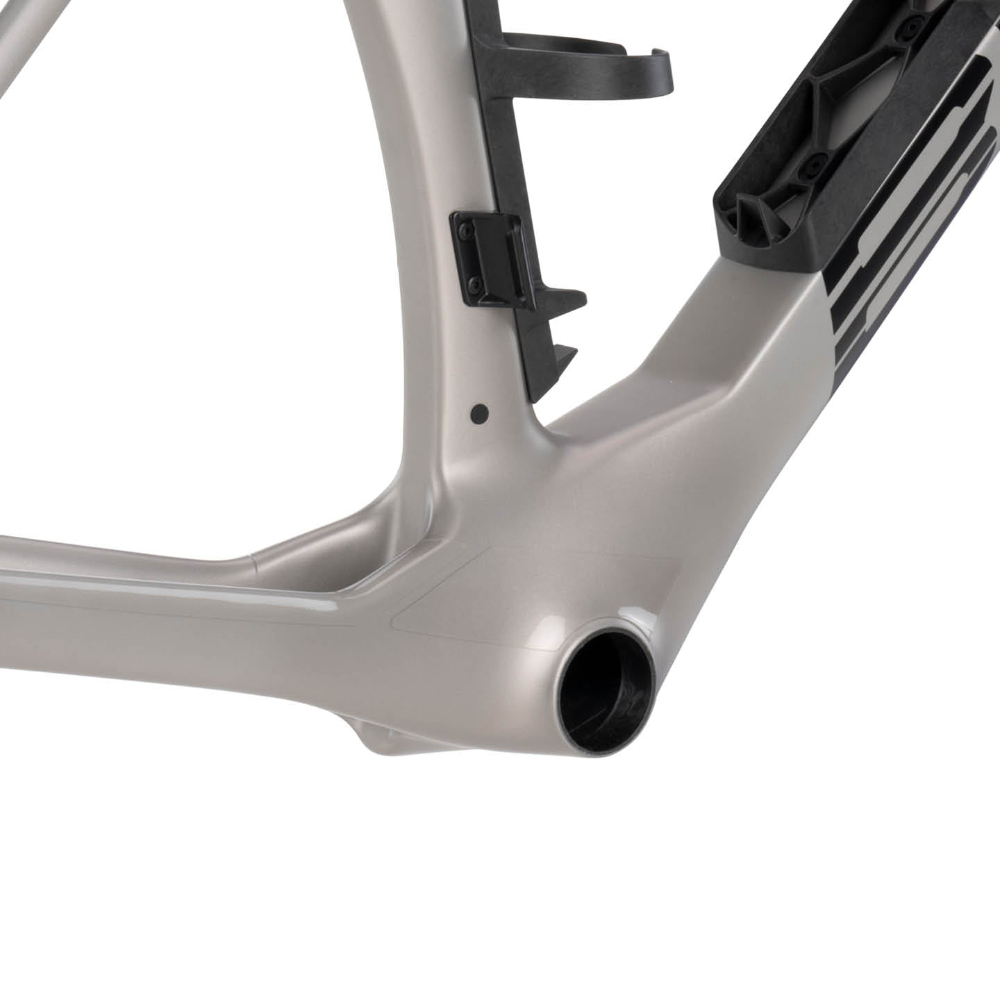

Deep Bottom Bracket Area
We call it the "Mariana Bottom Bracket" because it's the deepest bottom bracket we have ever made on a road bike and this perfectly optimizes the surface area for cleaner airflow.

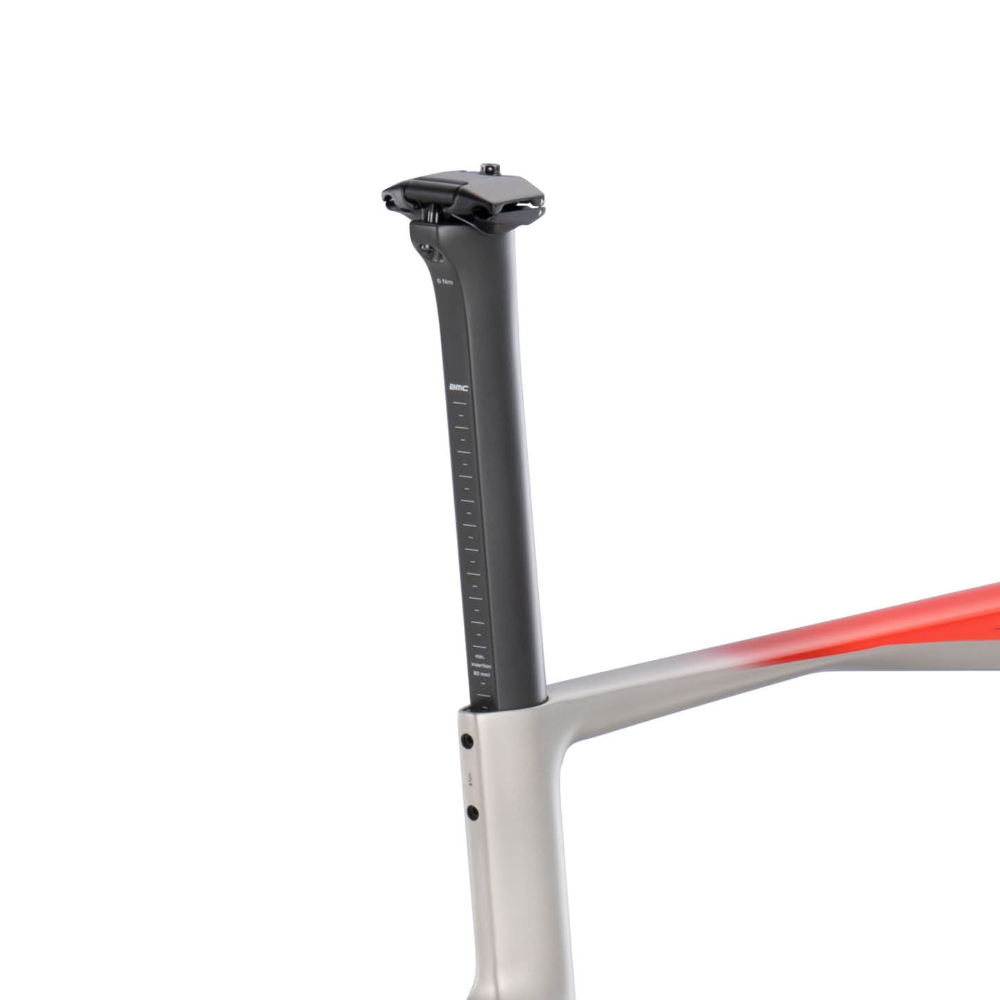

All-new Seatpost
The new seatpost is slimmer, deeper, more compliant, and lighter than ever. With the new seatpost clamp mechanism now easier to access and maintain, including an integrated number plate holder making it the smartest way to get race-ready.
- Frame:
- Teammachine R 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle
- Fork:
- Teammachine R 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
- Seatpost:
- Teammachine R 01 Premium Carbon Seatpost | 10mm Offset
- Tire Clearance:
- 30mm
- ASTM Classification:
- Level 1
- System Weight Limit:
- 110kg
- General Product Safety Regulation (GPSR):
- Safety Instructions GPSR (EU), Responsible Person (GPSR (EU)) (repeated references to Safety Instructions and Responsible Person under GPSR (EU))
- Weight without Pedals:
- 1.895kg | Size 54 with all accessories
- In the Box:
- Aerocore Bottle Cages | Shimano Direct Mount RD hanger and Classic SRAM/Shimano RD hanger | High and low ICS top cones, 3x10mm spacers, 2x3mm spacers
