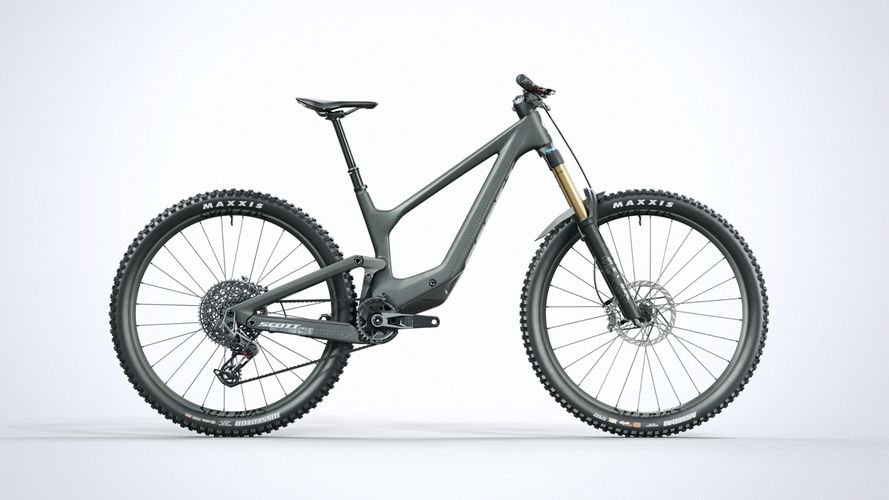

2025 Scott Ransom 920 Bike - 293026

Introducing the all-new SCOTT Ransom. Our latest version of Ransom was uncompromisingly engineered for maximum downhill performance and an all-time confidence inspiring ride. Killer geometry paired with a supernatural suspension kinematic result in a bike that doesn’t take “no” for an answer. Don’t hold yourself hostage, ride Ransom.

Features

• Ransom Carbon HMF-Alloy Frame
• RockShox Zeb Select+ 170mm Fork
• FOX FLOAT X Nude, TracLoc, 170mm
• SRAM NX Eagle 12 Speed
• SRAM DB8 4 Piston Disc Brakes
• Maxxis EXO+/DD Tires

INTEGRATED SUSPENSION TECHNOLOGY

The all-new Ransom features our Patented Integrated Suspension system in unison with a 6-Bar Linkage. The resulting kinematic allows for maximized downhill capabilities and stability all the while maintaining its status as an efficient pedaler.

VERSATILITY

With versatility being the key for todays' riders, adaptability is an integral part of the bike's DNA to ensure the ride experience can be tailored to personal preferences or different racetrack conditions. This includes adjustable head angle, wheel size compatibility (mullet) and advanced shock compatibility.

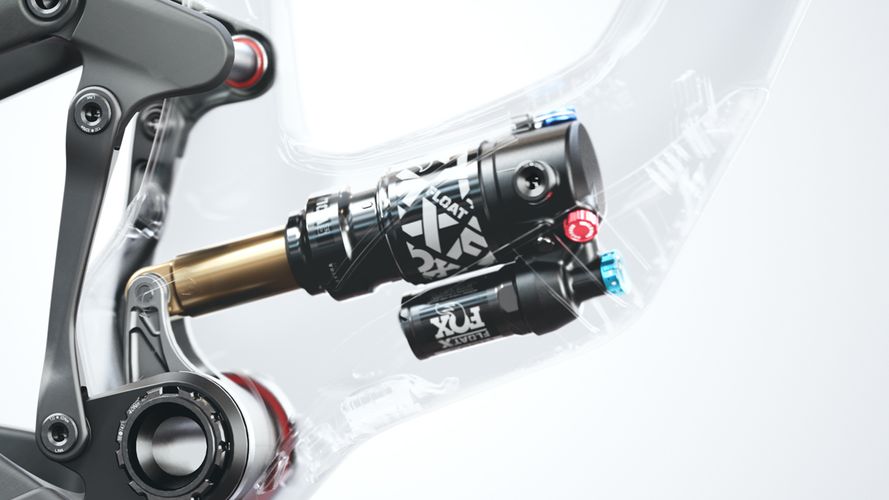

NUDE SUSPENSION

The Ransom platform features our NUDE Suspension technology with the Float-X NUDE shock from FOX paired with fork options that favor more adjustability. When you pedal up to have the most fun on the way down, you want a shock that gives you full factory performance when things point downwards, but also a shock that won’t slow you down when you need to ride back up. This is where the Float-X NUDE shines.

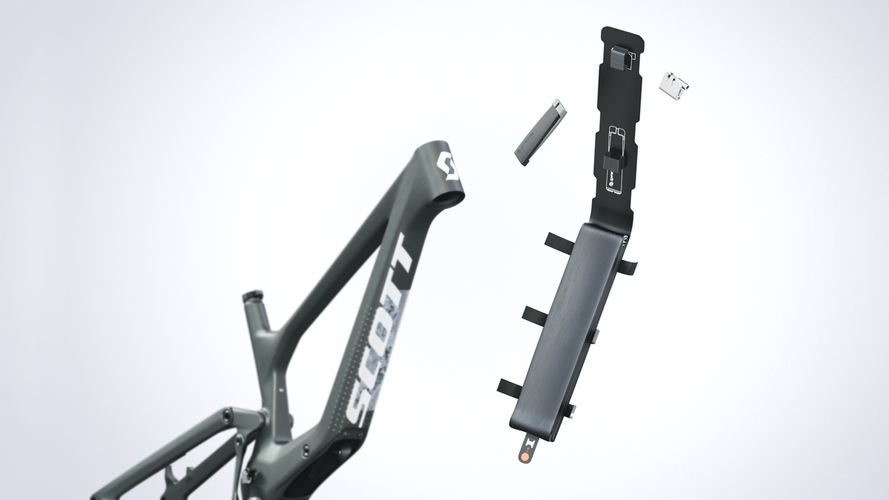

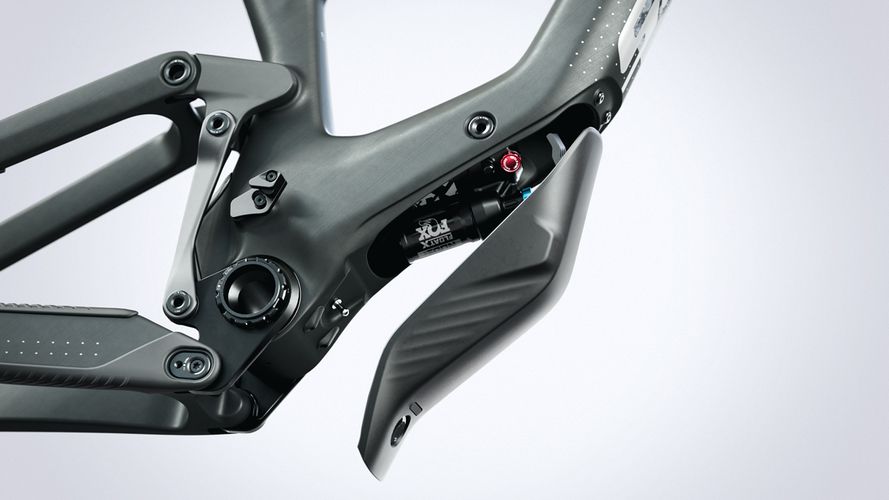

INTERNAL STORAGE

The easy access to the inner frame frees further possibilities: Fully integrated in the down tube is the Syncros Matchbox Kit, which contains a Spare tube, Tire levers, Chain Tools and Multitool; This very clean and functional solution is easy to pull out and stow again ensuring one always has the most necessary.

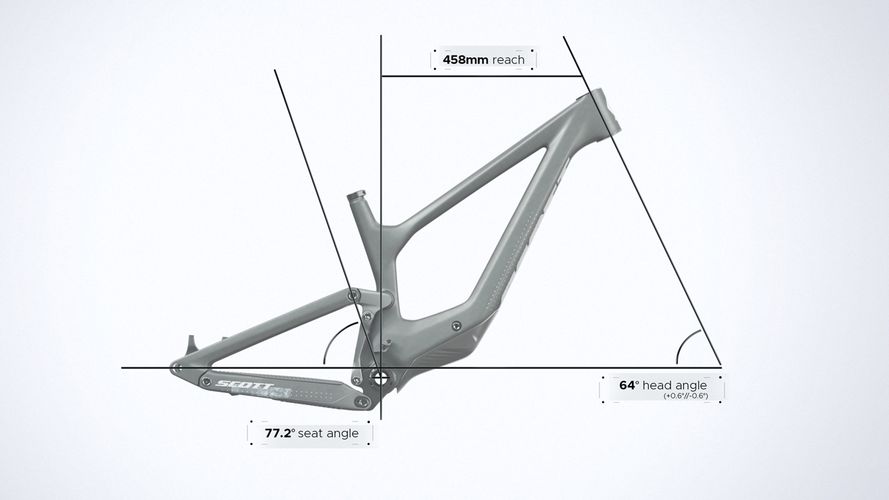

GEOMETRY

The Ransom features a modern enduro geometry combining various aspects for a confidence inspiring ride in the roughest and fastest DH sections, but without compromising the bike’s agility and precision when needed in tight corners and on technical terrain.

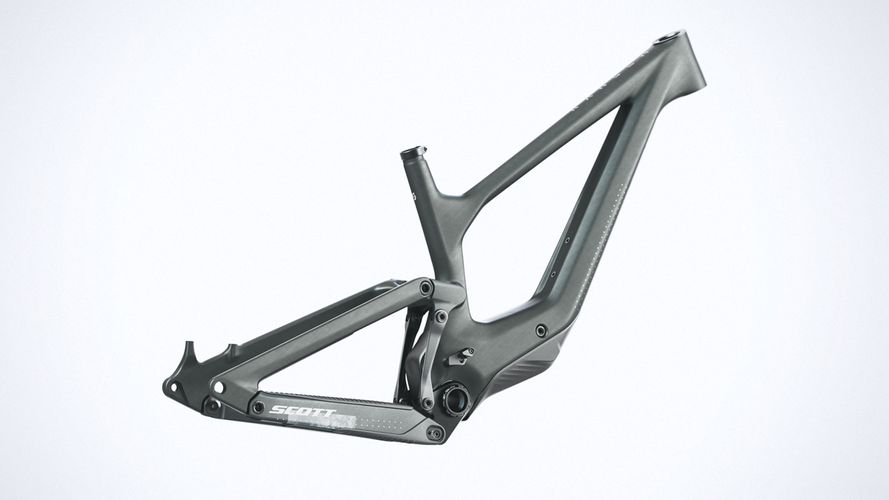

FRAME CONSTRUCTION

Developed as a bike for demanding gravity use, the Ransom's frame features meticulously engineered structural strength and even load distribution througout, resulting in a strong bike with outstanding riding characteristics.

Specifications

Frame

• Ransom Carbon HMF Mainframe with Alloy 6061 Swingarm
• Integrated Suspension Technology
• 6 Link kinematic / Adjustable head angle
• Syncros Cable Integration System
• BB92 / UDH Interface / 12x148mm with 55mm Chainline / MX Ready

Fork

• RockShox Zeb Select+ Charger 3
• HSC - LSC - LSR adjustable / 15x110mm Maxle stealth axle
• 42mm offset / Tapered Steerer
• / 170mm travel

Rear Derailleur

• SRAM NX Eagle 12 Speed

Shifters

• SRAM SX Eagle Trigger

Crankset

• SRAM X1 1000 Eagle DUB Boost
• 32T / Chainline 55mm

BB-Set

• SRAM DUB PF integrated / shell 41x92mm

Chain

• SRAM CN SX Eagle

Cassette

• SRAM NX / PG1210 / 11-50 T

Brakes

• SRAM DB8 4 Piston Disc

Rotor

• SRAM Centerline Rotors F&R 200mm

Handlebar

• Syncros Hixon 2.0 Alloy 6061 D.B.
• Size S & M 12mm Rise / Size L & XL 20mm Rise / back sweep 8° / 780mm
• Syncros Endurance lock-on grips

Seatpost

• Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm
• S size 140mm / M size 180mm / L & XL size 210mm

Seat

• Syncros Tofino 2.0
• Crmo Rails

Headset

• Syncros - Acros Angle adjust & Cable Routing HS System
• +-0.6° head angle adjustment
• ZS56/28.6 – ZS56/40 MTB

Wheelset

• Syncros Revelstoke 2.5 6 Bolt
• F: 15x110mm
• R: 12x148mm Boost
• 30mm Tubeless ready rim 28Hr
• Syncros Axle w/Removable Lever with Tool

Front Tire

• Maxxis Assegai / 2.5" / 60TPI Foldable / EXO+ / TR / 3C Maxx Gripp

Rear Tire

• Maxxis Dissector / 2.4" / 120TPI Foldable / DD/ TR / 3C Maxx Terra

Approx. weight in KG

• 16.4 (Tubeless setup without Matchbox IS)

Approx. weight in LBS

• 36.16 (Tubeless setup without Matchbox IS)

Max. System Weight

• 128kg
• The overall weight includes the bike, the rider, the equipment, and possible additional luggage.

H'stem

• Syncros AM 2.0
• Syncros Cable Integration System
• 4° rise / 6061 Alloy / 31.8mm / 40mm

Accessories

• Syncros IS Matchbox Kit / Syncros Multi-tool Matchbox 8

Extras

• RS Zeb Fender

Rear Shock

• FOX FLOAT X NUDE EVOL Piggy Back Trunnion / SCOTT custom w. travel / geo adj.
• 3 modes: Climb-Ramp Control-Descend
• Custom large Air volume / Comp & Reb. Adj.
• Travel 170-130-Climb / T205X65mm / Bearing Hardware

Remote System

• TracLoc Technology
• Rear Suspension & Dropper Remote
• 3 Rear Suspension modes

Chainguide

• SCOTT custom
