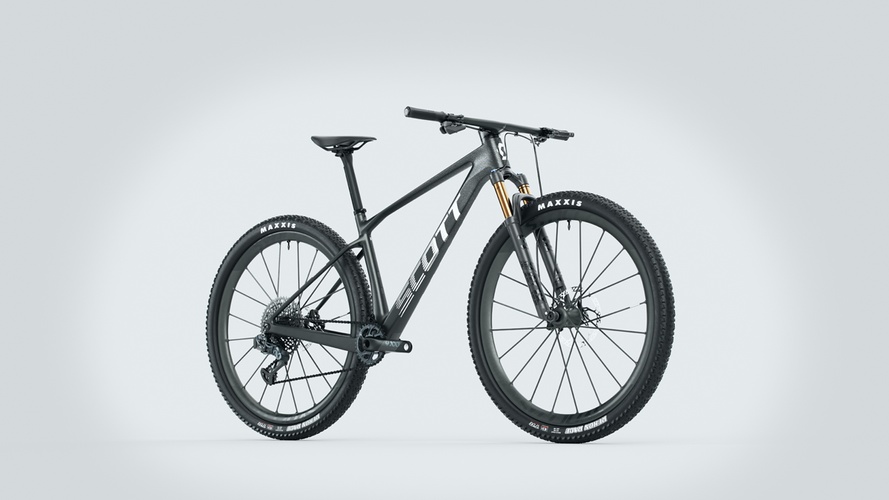

2025 Scott Scale 940 black Bike

Balancing the Scale's DNA, we've created a whole new breed in the world of hardtail mountain bikes. A racing inspired geometry, coupled with a straightforward and sharp design provides the all-new Scale 900 line with its distinctive character and aggressive look - a bike that proudly flaunts its definitive characteristics. This rig is ready for just about anything, are you?

Features

• Scale Carbon HMF Frame
• RockShox Judy 100mm Fork
• RideLoc 2 Remote
• SRAM NX-SX Eagle 12 Speed
• Shimano Disc Brakes
• Schwalbe Smart Sam Tires

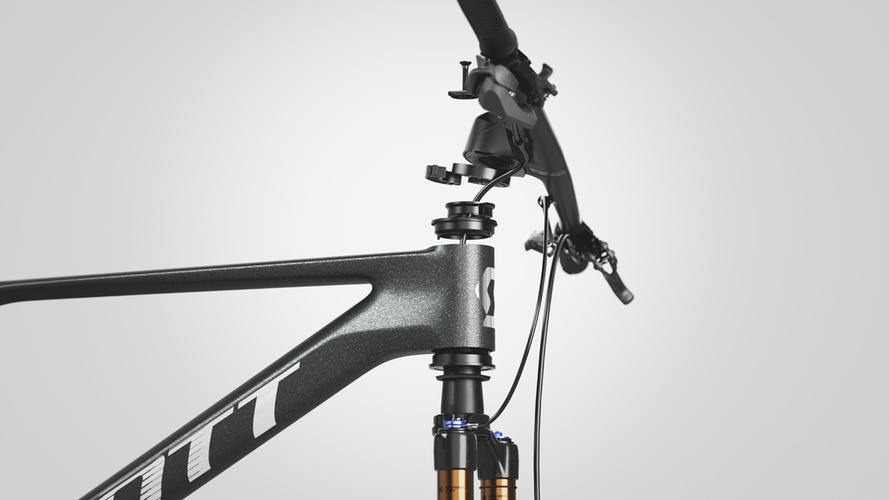

Adjustable Head Angle

With the new Scale RC, you can adjust the head angle by 0.6 degrees slacker or steeper. This can be done without cutting cables or bleeding brakes. All you must do is disassemble the bar, rotate the headset cups 180 degrees, and reassemble.

Design

The new Scale's design was uncompromisingly subjected to our pursuit of perfection and drive for pure efficiency, strictly following the guiding principle of "Form follows Function". In our search for the ultimate, yet most simple construction, we've centered the design around the essentials by balancing the bike's DNA in order to create a whole new breed of XC bike. The result is a straightforward and clear design, which provides the all-new Scale with its distinctive character and aggressive look: a bike that proudly shows off its characteristics.

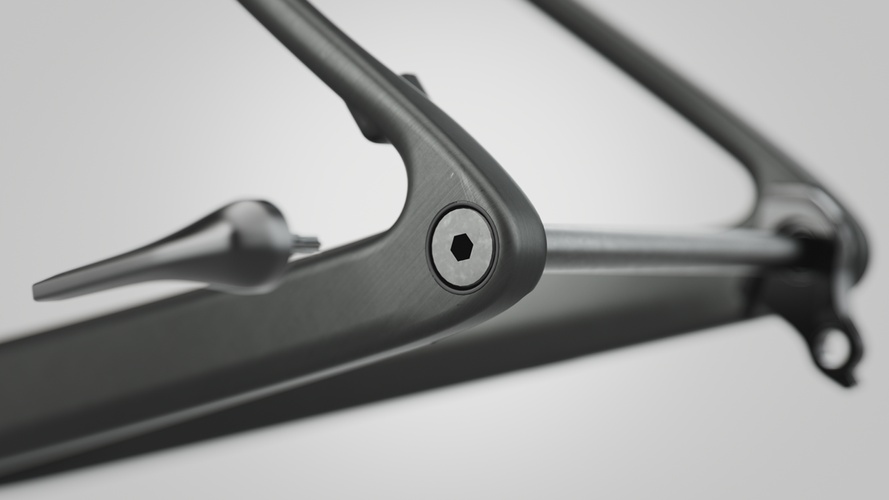

Hollow Dropout Construction

The dropout features an advanced, hollow construction, which allows the axle head to clamp against the inner surface of the dropout and leaves the
head flush with the surface. This enables the lightest possible construction approach and a clean looking design from the outside. While being able to directly shave off 7.5g with the new dropout construction, the optimized design favors a narrower construction of the rear triangle area, which in turn enables a reduction of 20g in this area of the frame (HMX-SL).

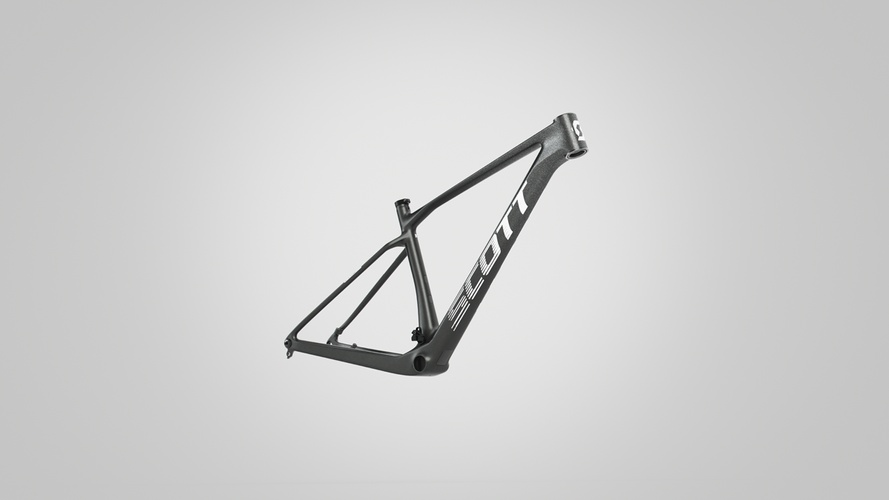

Monocoque Construction

The new Scale RC's monocoque construction enables a production using only one mold for the main section of the bike, the front triangle. Applying our carbon expertise, the new Scale therefore consists of only 3 separate pieces molded together. This directly translates into an increased level of efficiency due to the reduced number of junctions required therefore decreasing weight while keeping the superior stiffness - something we're always aiming for with hardtail race bikes. With the full frame constructed as a system, the monocoque design enables the frame to handle forces as a whole.

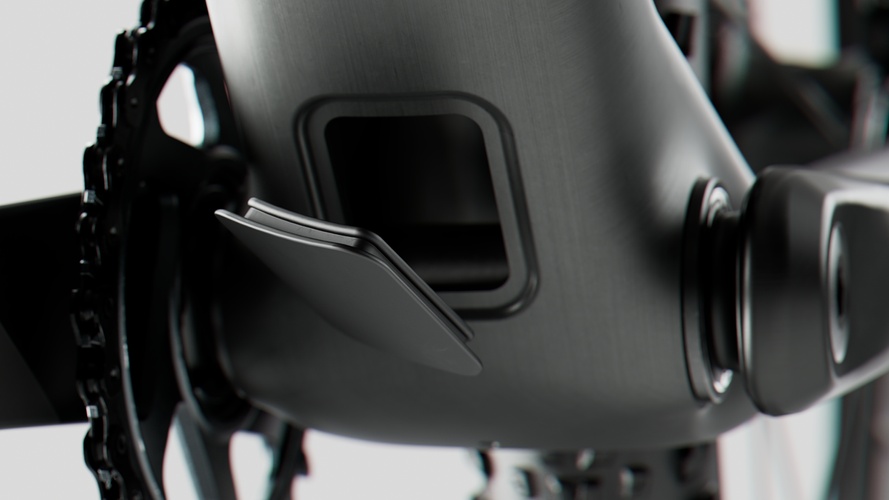

Service Door

A little service door, which is accessible through a downtube cover, allows easy access to the interior of the frame without the need to remove the Bottom Bracket. Frame maintenance is made easy with regards to cable routing.

Specifications

Frame

• Scale Carbon HMF
• Adjustable head angle / Syncros Cable Integration System
• Advanced Shock & Standing Damping System
• BB92 / UDH Interface / 12x148mm with 55mm Chainline

Fork

• RockShox Judy Silver TK Solo Air
• 15x110mm QR axle / 42mm offset / Tapered Steerer
• Reb. Adj. / Lockout / 100mm travel

Rear Derailleur

• SRAM NX Eagle 12 Speed

Shifters

• SRAM SX Eagle Trigger

Crankset

• SRAM SX Eagle DUB
• 55mm CL / 32T

BB-Set

• SRAM DUB PF 92 MTB Wide / shell 41x92mm

Chain

• SRAM CN SX Eagle

Cassette

• SRAM SX-PG1210 / 11-50 T

Brakes

• Shimano MT200 Disc Brake

Rotor

• Shimano SM-RT10 CL / 180/F and 160/R

Handlebar

• Syncros Alloy 6061
• T shape Flat / 9° / 740mm
• Syncros Performance XC lock-on grips

Seatpost

• Syncros / 31.6x400mm

Seat

• Syncros Belcarra Regular 2.5

Headset

• Syncros - Acros Angle adjust & Cable Routing HS System
• +-0.6° head angle adjustment
• ZS56/28.6 - ZS56/40 MTB

Front Tire

• Schwalbe Smart Sam 29x2.35" / Active line

Rear Tire

• Schwalbe Smart Sam 29x2.35" / Active line

Approx. weight in KG

• 12.7 (with tubes)

Approx. weight in LBS

• 28 (with tubes)

Max. System Weight

• 128kg
• The overall weight includes the bike, the rider, the equipment, and possible additional luggage.

H'stem

• Syncros Alloy 6061
• oversized 31.8mm / 1 1/8" / 6° angle

Spokes

• Stainless Black 15G / 1.8mm

Hub (Front)

• Formula CL-811 / 15x110mm

Hub (Rear)

• Formula CL-3248 / 12x148mm

Rims

• Syncros X-30SE / 32H / 30mm
• Tubeless ready

Remote System

• SCOTT RideLoc 2 Remote
