2024 Enve G23 Wheelset

The original purpose-built gravel race wheelset, made for high-speed, big elevation, off road pursuits.

Product Details

• Intended Use: Gravel
• Inner rim width: 23mm
• Recommended Tire Size: 33c - 45c
• Tubeless Optimized; Tube Compatible
• Starting at $2,550

LIGHTNESS AND WIDTH

We set out to create a wheel that would maximize speed, fun and reliability while riding out-there terrain. At only 330 grams, the G23 is the lightest 700c tubeless rim ENVE produces. This makes for instant acceleration and endless ascending capability. The wide and shallow rim geometry gives a compliant ride quality over chatter, and allows for use with a wide range of tire sizes. Big tires = big grip, which gives the G23 confidence-inspiring descending capability over its road-oriented siblings.

TIRE SAVING TECH

With an inner rim width of 23mm, the G23 is designed to be paired with gravel treads between 35 and 45mm. Tires in these widths provide control and traction that optimize the experience of gravel riding endeavors. Many tires in this spec however do not offer much by way of pinch-flat protection. The forward-looking G23 uses our Wide Hookless Bead anti-flat technology to combat ride-ending pothole encounters. Wide beads provide a larger, more forgiving surface during bottom outs, protecting the tire from the dreaded pinch-flat. This technology means you can ride the tire pressures you want, confidently, without limitations.

TUBELESS DOMINANCE

G series wheels are intended for tubeless applications and feature a molded bead-lock to ensure that your tires will remain secure and sealed to the rim over even the roughest terrain. Despite minimum PSI markings to the contrary, many riders are experimenting with pressure setting in the 20s, thanks to the bead-lock and Wide Hookless Bead technologies.

Simply put, the G23 exceeds the performance and ride quality demands of serious mixed surface cyclists. Armed against pinch flats, with a tough, relentless but refined character, it is the king of the road, path and trail.

Beyond the range of your trail bike and the capabilities of your road bike there is terrain littered with a contradicting challenge-mountain bike toughness and road machine efficiency. It requires a wheel with the ride quality to make long days on the road invigorating and inspire absolute confidence everywhere else.

Enter the G23.

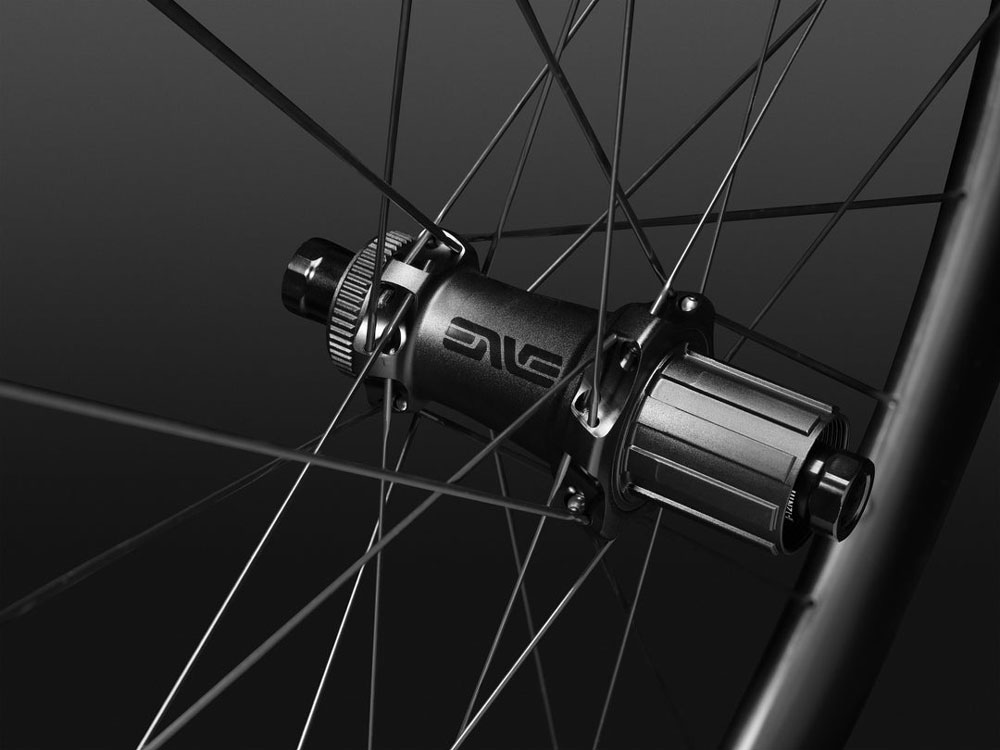

Innerdrive Premium Road Hub

Featured in all SES and G Series wheels is the ENVE Premium Straight Pull hub, an all-new, 100% ENVE drive mechanism. Oversized steel ratchets are positioned inboard and over the bearings, reducing stress on the axle and bearings while ensuring positive and reliable engagement. Key benefits of the INNERDRIVE™ Premium hub include:

• Weight Savings: The new ENVE INNERDRIVE™ Premium straight pull hub offering delivers 60 grams of weight savings over ENVEs previous generation hub offering.
• Four Engagement Options: Interchangeable ratchets allow riders to tune their rides for their personal performance needs. Whether it be maximizing efficiency, response, or reliability, we have a solution. Ratchet options include: 40 tooth, 60t, 80t, 100t.
• Consistent Spoke Lengths: The all-new straight-pull hubshell allows for the use of a single spoke length for any given rim diameter, creating an easy user experience for service and maintenance.
• Anti-twist Spoke Hole: To further improve the quality of the wheel build, spoke tension consistency, and to prevent spoke damage during wheel build, an anti-twist feature has been included to prevent the spoke from twisting during wheel build or while riding.
• Silent Spoke Crossings: The straight-pull hubshell puts space between each spoke ensuring that your ENVE wheelset cannot experience spoke creak.

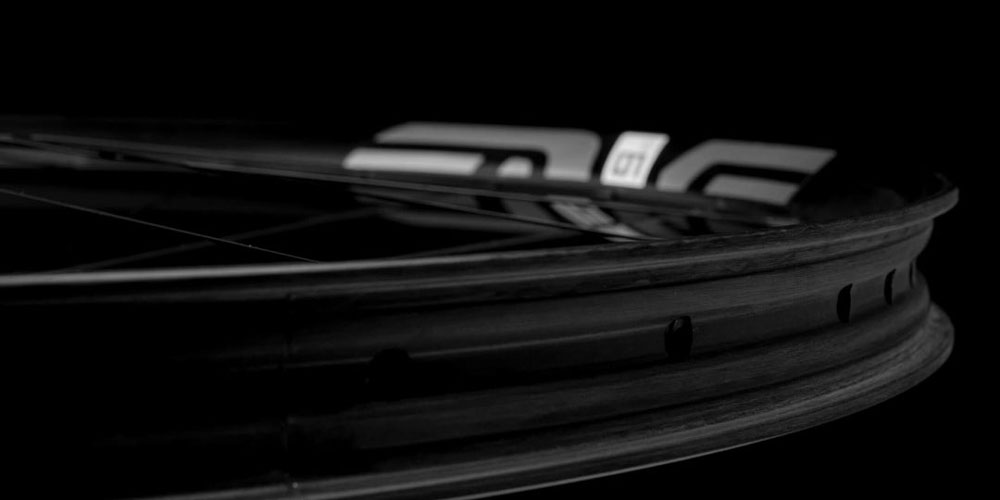

WIDE HOOKLESS BEADS

As carbon rims have become hookless and increasingly more durable, we have transitioned from rim failures to tire failures. Wearing a tire tread down to the casing is a thing of the past as most tires are lucky if they survive 50 miles of aggressive riding over obstacle laden terrain. While destroying an expensive tire on a weekly basis isnt affordable, its a complete interruption of flow, and an utter buzzkill with a flat tire, regulated to the side of the trail.

ENVEs wide hookless bead is the result of 2 years of carbon mountain bike rim development to address this above scenario. The result is a rim shape that features a wider leading edge of the hookless bead. This broad surface creates a more forgiving platform on which the tire can bottom out, and proves extremely effective in reducing the likelihood of "pinch" or "snake-bite" style flat.

In addition to greatly improving tire performance and reliability, the wide hookless bead design beefs up the leading edge of the rim and allows for greater impact resistance.

ENVE Wide Hookless Bead (Patent Pending) delivers:

• 60% improvement in pinch flat resistance over other hookless rims
• Ability to run lower tire pressure and improve traction and rolling resistance
• The option to run lighter weight tires if desired
• A more forgiving buffer between rim and trail
• Greater impact resistance

MOUNTAIN STRONG, ROAD FAST

ENVEs patented Molded Spoke Hole Technology offers a variety of benefits that ultimately result in a more durable and reliable carbon fiber rim and wheel. Visit Why ENVE for more details.

At ENVE, product strength and durability are always top design priorities. Heres a glimpse into the G Series toughness and the standard by which all other gravel wheels will be judged.

G SERIES IMPACT STRENGTH COMPARISON

• Tested to ENVE mountain impact standard
• Rated for unsuspended to lightly suspended bikes under the assumptions that technical terrain and obstacles are negotiated at lower speeds than mountain bike
• Mountain strong, but not ENVE mountain strong.
• While these wheels are stronger than many mountain bike wheels in the market, they rate just below the elevated impact strength of our new M Series

HIGH VOLUME

G23 = 700c x 23mm Internal Rim Width x 35 - 45mm tires

Riders looking for maximum versatility, speed and efficiency will gravitate towards the G23 paired with a 40mm tire. Theres a reason this is the most popular tire size in gravel right now.

APPLICATION SPECIFIC DESIGN & SHAPE

We demand lightweight for big elevation and long days in the saddle. We dream of floating up climbs, over obstacles and away from the pack. The G Series are the lightest tubeless rims we have ever produced.

The "bell" like shape of the G23 and G27 rim models is a lighter weight execution of our wide hookless bead and creates a rim section extremely capable of energy absorption and damping.

Weights

Click for Dimension
