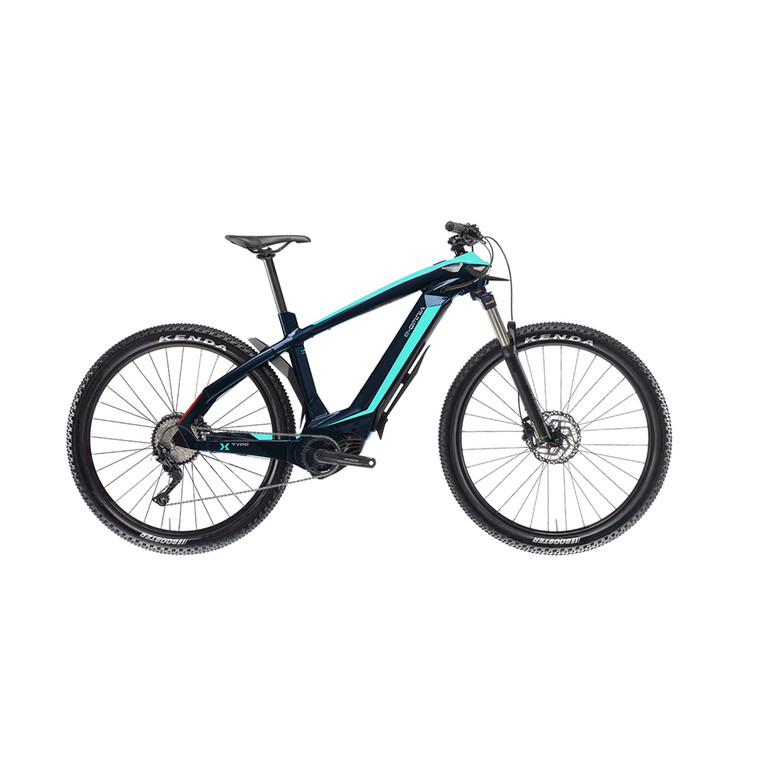

2025 Bianchi E-Omnia X Type Deore 1X11
FRAME
e-Omnia X Type HT Alu 29", 120mm front suspended, 1.5" tapered HT, seatpost diam.31,6mm, integrated seat clamp, PM 180mm dropout thru axle 12x148mm, internal cablerouting inside DT, sizes 43,48,53 (MD; LG; XL)
FORK
Suntour XCR34 AIR Boost LOR DS 29" 120mm
HEADSET
Fsa NO.55R/558 1.5"
SHIFTERS
Shimano Deore SL-M5100-R 1x11sp
REAR DERAILLEUR
Shimano Deore RD-M5100 1x11s
CRANKSET
FSA CK-320/IS Die cast AL crank 165 mm ISIS blackFSA E-BIKE CHAINRING 34T STEEL FOR 104BCD SPIDERFSA W0147 1x Steel Spider BCD104/Steel/ED/ CL 53mmFSA ISIS CrMo M15 crank arm bolts ML054FSA STEEL CHAINRING BOLTS ML084(bolt)×4 +ML163(nut)×4
BOTTOM BRACKET
Included w/motor unit
CHAIN
Kmc e11T EPT, 11sp, EPT finish
CASSETTE
Shimano CS-M5100-11, 11sp, 11-51T
BRAKES
SHIMANO BR-MT410
ROTOR
Shimano SM-RT10, diam. 180mm
WHEELS
Velomann ST30 TCS 2.0 29", 30mm 29", 32 hole drilling, Disc Only
TIRE
Kenda Booster 29x2.6, 30tpi
STEM
Velomann +/-0°, 1.1/8", diam. 31,8mm, 55mm for 15,17,19,21" w/ decals
HANDLEBAR
Velomann Rise, width 740mm, diam.31,8mm, 9° backsweep, 15mm rise,DB Alloy 6061-T6
GRIPS / EXTENSIONS
T-One Rock T-GP34
SEATPOST
Velomann, lenght 350mm for 17'' size and 400mm for 19,21'', diam.31,6mm, 0mm seatback, AL2014 shaft
SADDLE
Velomann 2058DRN, 140mm width, Steel rails black, PVC soft touch
BRAKELEVERS
Shimano BL-MT401
MOTOR
BOSCH PERFORMANCE LINE CX 250W 85NM
BATTERY
BOSCH POWERTUBE 500WH
REARHUB
SHIMANO FH-MT400-B for CenterLock, 32h 12X148mm BOOST, 8/9/10/11 speed body
FRONTHUB
HB-MT400-B for Center Lock, 32holes, thru axle 15X110mm
MUDGUARDS
BIANCHI CUSTOM MUDGUARDS
FRONTLIGHT
INTEGRATED CUSTOM FRONT AND SIDE LIGHT MADE W/SPANNINGA
REARLIGHT
Spanninga integrated rear lights
