2025 Enve Mog image

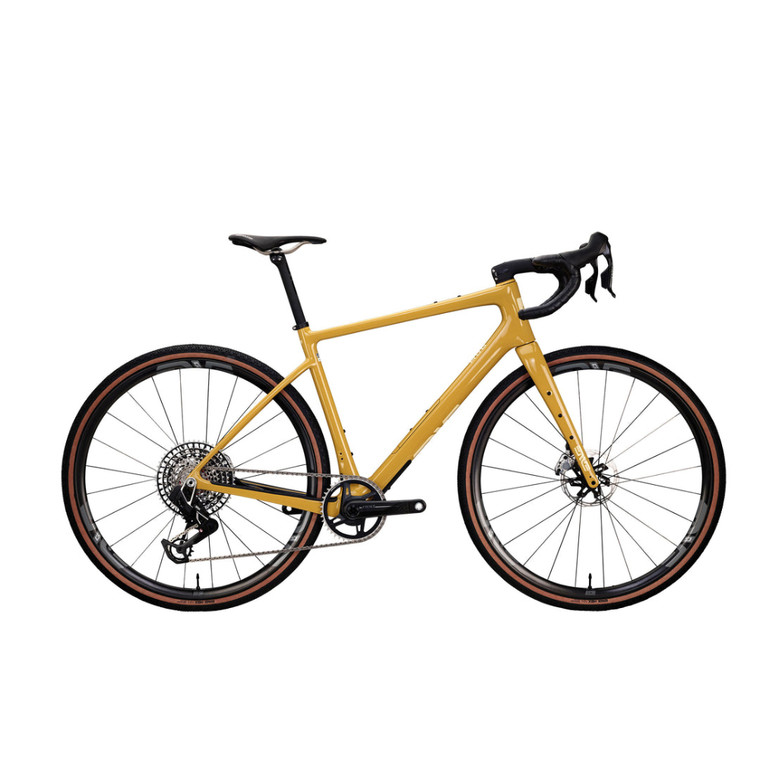

2025 Enve Mog

ENVE
Availability:
Most in stock items ship within 1-3 business days. Inventory updates frequently and may not reflect real-time stock. If your item is not available we will contact you and issue a prompt refund.
$4,100.00
(No reviews yet)
Weight:
0.00 LBS
Current Stock:
Adding to cart… The item has been added
Description

Full of capability and overflowing with versatility, the MOG delivers a world of possibilities ranging from adventure to race, and everything between. With abundant tire clearance, storage solutions, and performance geometry, the MOG has it all, and more.

The MOG is typically sold as a chassis-only, including the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, begin by selecting your frame size, stem length, handlebar width, handlebar model, and seatpost type depending on your riding style and preferences.

Product Details

  • Frame weight: 950 grams (56cm, painted, no hardware)

Frame Specifications

  • Frame Material: ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat-Mount Disc, Threaded T47 BB, Internal Routing, Fender Compatible
  • Fork Material: ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat-Mount Disc, Internal Routing, Fender Compatible
  • Target Application: Gravel Racing/Riding/Exploration/Adventure
  • Sizes (cm): 49, 52, 54, 56, 58, 60
  • Fork Rake: 57, 55, 53
  • Fork Axle to Crown: 395mm
  • Frame Size/Fork Rake: 49cm/57, 52cm/57, 54cm/55, 56cm/55, 58cm/53, 60cm/53
  • Frame Weight: 950g +/- 2% (Size 56, Painted, No Hardware)
  • Headset: ENVE Integrated IS52/IS52 Internal Drop-In
  • Headset Bearing: 1.5" IS52 Upper and Lower
  • Seat Post Diameter: 27.2
  • BB Type: T47 Inboard Bearing
  • Brake Mount: Flat Mount
  • Brake Rotor Compatibility: F: 160/180, R: 140/160 (Adapters Required)
  • Front Axle: 12x100 (Total Length: 122, TP:1.5, TL:15)
  • Rear Axle: 12x142 (Total Length: 168, TP:1.0, TL:14)
  • Minimum Tire Size : 700 x 36c
  • Optimal Tire Size: 700 x 40c-44c
  • Maximum Listed Tire Clearance: 700 x 50c
  • Frame Routing: ENVE IN-Route Internal
  • Water Bottle Capacity: 3
  • Top Tube Mounts: Yes
  • Fender Mount Compatible: Yes
  • Wheel Size: 700C (650b Not Recommended)
  • Color : Pantone 7528C (Equivalent to Sand)

Compatibility

Component Compatibility

   Handlebars      Gravel, SES AR, Compact, SES Aero Road
   Stem    ENVE Aero, IN-Route System (80, 90, 100, 110, 120, 130)
   Seatposts    ENVE Seatpost 27.2 300mm/400mm x 0mm Offset/25mm Offset - G Series Dropper Post 27.2

Drivetrain Compatibility

   Shimano Mechanical 1x    Yes
   Shimano Mechanical 2x    Yes
   Shimano Electronic Di2 (1x/2x)     Yes
   SRAM Mechanical 1x    Yes
   SRAM Mechanical 2x    No (MOG requires continuous housing for FD)
   SRAM AXS (1x/2x)    Yes
   Campy Mechanical 1x    Yes
   Campy Mechanical 2x    No (MOG requires continuous housing for FD)
   Campy Electronic EPS    Not Compatible

Brake Rotors

   Fork    Fork is 160mm or 180mm with adapter.
   Frame     Rear brake/frame is 140mm or 160mm with adapter.

 What's Included

  Package   PN   Description
      Frame
      Fork (Rake is Frame Size Dependent)
  Installed On Fork    200-2009-008   Front Axle
  Installed On Frame    000-0050-951   Rear Axle
  Installed On Frame     UDH Rear Derailleur Hanger and Bolt
  Installed On Frame   100-5004-901   Front Derailleur Mount and Screws (M5x0.8x12mm Flat Head Hex, SS)
  Installed On frame   000-0050-903   M5 Button Head Accessory Bolts (M5x0.8x13mm, Button Head)
  Installed On Frame   000-0050-946   Fender Mount Set Screws (M5x0.8x10mm)
  Installed On Frame   100-5003-902   MOG Chainstay Protector Kit and Screws (M4x0.7x12mm Flat Head)
  Installed On Frame   100-5004-024   MOG Downtube Guard
  Installed On Frame   100-5006-XXX   Frame Door and Latch (Frame Color Dependent)
  Installed On Frame   100-5004-017   Cargo Bay Door Gasket
  Installed On Frame   100-5004-904   Cargo Bay Door Hardware
  Installed On Frame   100-5004-032   Cargo Bay Latch Anti-Friction Sticker
  In Bag   100-5004-905   ENVE Seatpost Collar (27.2) and Bolt (M5x0.8x17mm w/Washer, Ti)
  In Bag   100-5004-906   6mm Cable Routing Hole Plug
  Di2 Wire Cable Grommet
  Blank Cable Grommet
  Shift Housing Cable Grommet
  In Bag   100-5003-901   Seatpost Clamp Kit
  In Bag   100-5003-015   Headset Kit
  In Bag   100-5004-XXX   Top Headset Bearing Cover (Frame Color Dependent)
  In Bag   200-0000-032   Fork Compression Plug
  In Bag   100-5004-027   Cargo Bay Storage Bags (2)
  In Bag   100-5004-028   Cable Management Strap
  In Bag     Owner's Manual
  In Bag     Torque Wrench (Includes Extra Accessory Bits)
  In Bag     Frame Finishing Kit (Cable Sheathing, Heat Shrink, Padded Foam)

The MOG checks all the boxes for what a modern gravel bike should be. Versatility through design with an abundance of tire clearance, fitting up to a 700c x 50 mm tire, in addition to in-frame storage with the Cargo Bay's use of the down tube's open space. Rack mounts on the fork provide additional options for the weekend bikepacking getaway while not hindering the MOG's performance in any way.

Like the Melee road bike, the MOG is available as a "Chassis Only" which includes the frame, fork, headset, handlebar, stem, and seatpost. Through an ENVE retailer, the bar, stem and seatpost are selected a la carte to ensure that you get the exact fit spec you need from the start.

The MOG can be built with four handlebar options that include the Gravel Bar, SES AR Bar, Compact Road Bar, and SES Aero Bar. Additionally, the choice of a dropper seatpost or fixed seatpost ensures you build the MOG best suited to your riding needs. Select your choice of ENVE wheels and drivetrain components for the complete build through your local ENVE Ride Center or retail partner.

Click for Geometrical Chart
