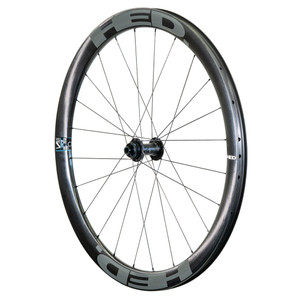

2025 HED Vanquish

Vanquish // V45 & V62

Designed by the same minds and handmade by the same hands that created the Vanquish Pro series, this wallet-friendly option offers the same aerodynamic rim profile and performance edge as our pro line at a price point that saves room in the budget for a few equally fast kits.  Going fast is about drag reduction AND predictability.

FEATURES:

• Handmade in the USA
• Rim depth options of 45mm and 62mm
• 22.4mm Internal Width, 30.9mm External Width Rims
• HED GP Performance Centerlock Disc Brake Hubs
• Tubeless Compatible

Vanquish 45 Specifications

Vanquish 45 Overview:

• Intended Use: Road Race/All-Road
• Tubeless Compatible
• Inner rim width: 22.4mm
• Optimal Tire Size: 28c

Rim Specs:

• Rim Weight 453g
• Internal Width: 22.4mm
• External Width: 30.9mm
• Depth: 45mm
• Hole Count: 24
• ERD (Includes Washers): 555

Wheelset Build:

Hubs:

• Front Hub: 12x100mm axle. Centerlock
• Bearing: EZO Japan 6902RS x 2
• Rear Hub: 12x142mm axle. Centerlock.
• Freehub: 4 pawl: 13 degree engagement.
• Bearing: EZO Japan 6902RS x 4

Spokes: Sapim Sprint, hooked

Wheelset Weights:

• Front: 757g
• Rear: 896g
• Wheelset:1653g ± 30g

Vanquish 62 Specifications

V62 Overview:

• Intended Use: Road Race / TT / Triathlon
• Tubeless Compatible
• Inner rim width: 22.4mm
• Optimal Tire Size: 28c

Rim Specs:

• Rim Weight 518g
• Internal Width: 22.4mm
• External Width: 31.1mm
• Depth: 62mm
• Hole Count: 24
• ERD (Includes Washers): 524

Wheelset Build:

Hubs:

• Front Hub: 12x100mm axle. Centerlock brake
• Bearing: EZO Japan 6902RS x 2
• Rear Hub: 12x142mm axle. Centerlock brake
• Freehub: 4 pawl: 13 degree engagement.
• Bearing: EZO Japan 6902RS x 4

Spokes: Sapim Sprint, hooked

Wheelset Weights:

• Front: 789g
• Rear: 930g
• Wheelset: 1719g ± 30g

Includes

• Tubeless Tape (applied from factory)
• Tubeless Valves

Technical Notes

1. For all types of bicycle wheels, a hard strike on the rim is likely to result in rim damage. At the point of impact, an aluminum rim will dent, and a carbon rim may delaminate – both are unsafe conditions that require rim replacement.

2. Tire pressure = 80psi MAX

3. We do NOT recommend hanging a bike equipped with Vanquish wheels from hooks – this can damage the carbon skin and will not be covered under warranty.

Data Sheet

Click for Tire Pressure Chart
