The Alcatraz 1 is the entry level into the Matt Jones matrix, the base to which, if they wish, the rider can build from and personalize the best dirt jump bike possible. At home boosting your local 6-pack, ripping up the pump track, or hitting the local skate park, the Alcatraz 1 allows you to take care of business in a solid and reliable package.
The Series 3 aluminum frame is built for hard knocks and stiff enough for lightning-fast acceleration. Short chainstays make manuals easy whilst little details like ambidextrous cable routing means you can run your brake on the left or right of the bars. There’s a suspension-corrected CrMo fork to keep the angles as Matt designed, front and rear Tektro disc brakes, Vee Tire rubber and plenty of bombproof Marin components. Best of all, it’s available in two frame sizes, regular and long.
- Wheel Size: 26"
- Frame: Aluminum
- Color: Blue/Blue Fade

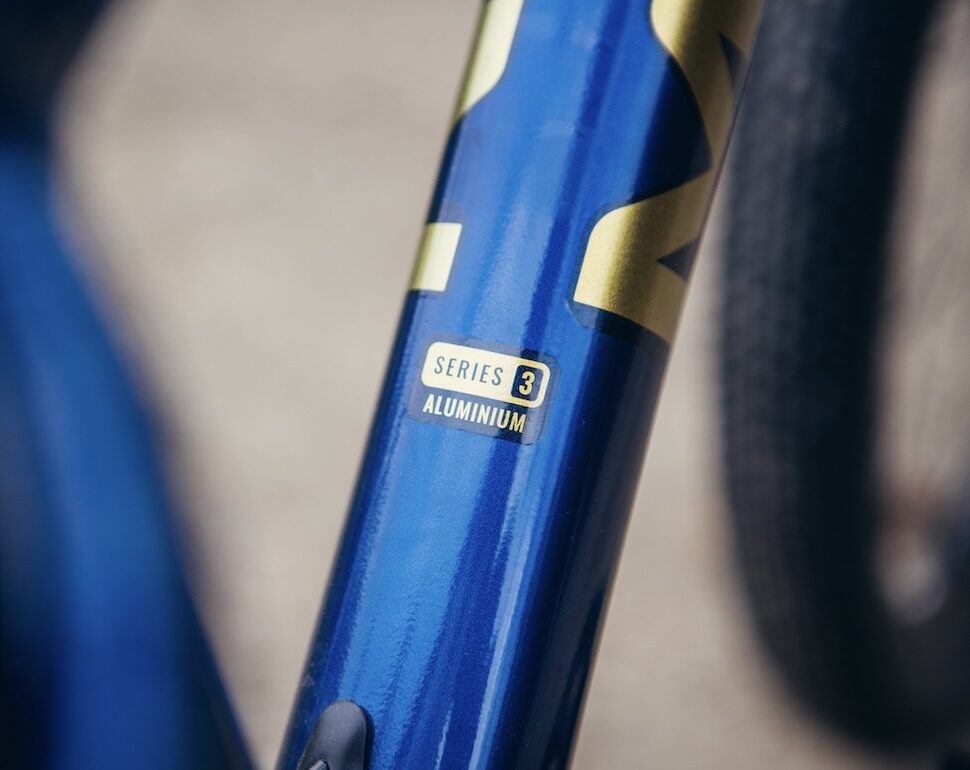

SERIES 3 ALUMINUM FRAME
The Alcatraz features a 6061 Series 3 alloy frame, with a burly double butted tubesets for the best ride quality and stiffness, tapered headtubes for maximum strength on big jumps, and horizontal drop out with slotted IS disc brake tabs.

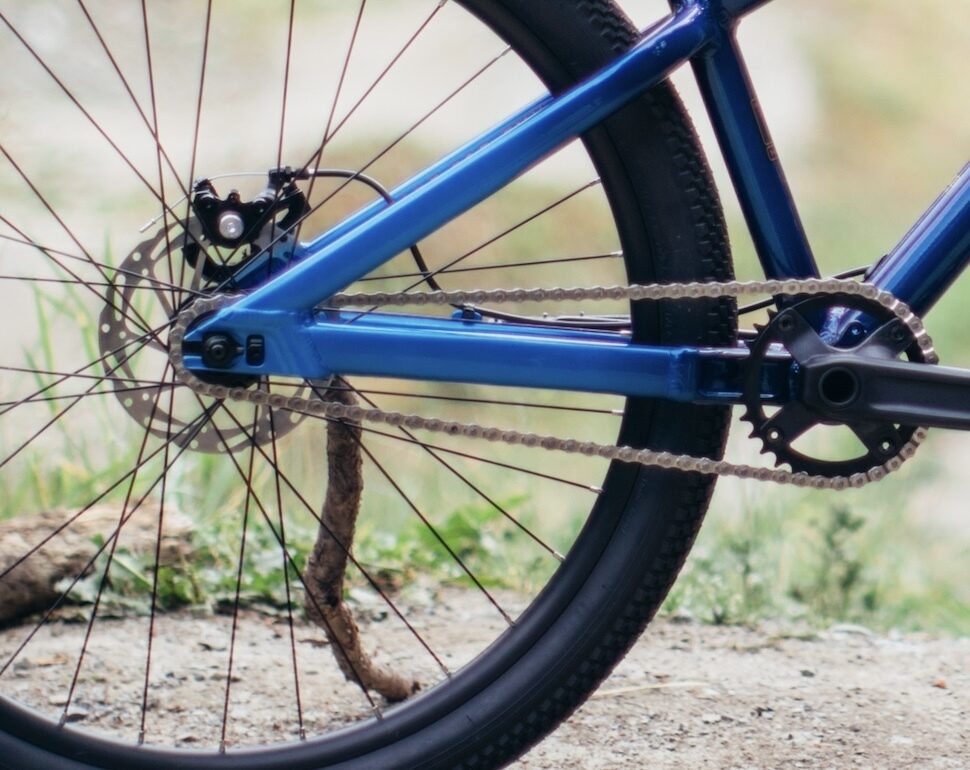

SHORT CHAINSTAYS
Chainstay lengths are optimized at 395mm to make sure you can have the shortest possible, giving you the ability to pop a wheelie or manual anywhere at anytime.

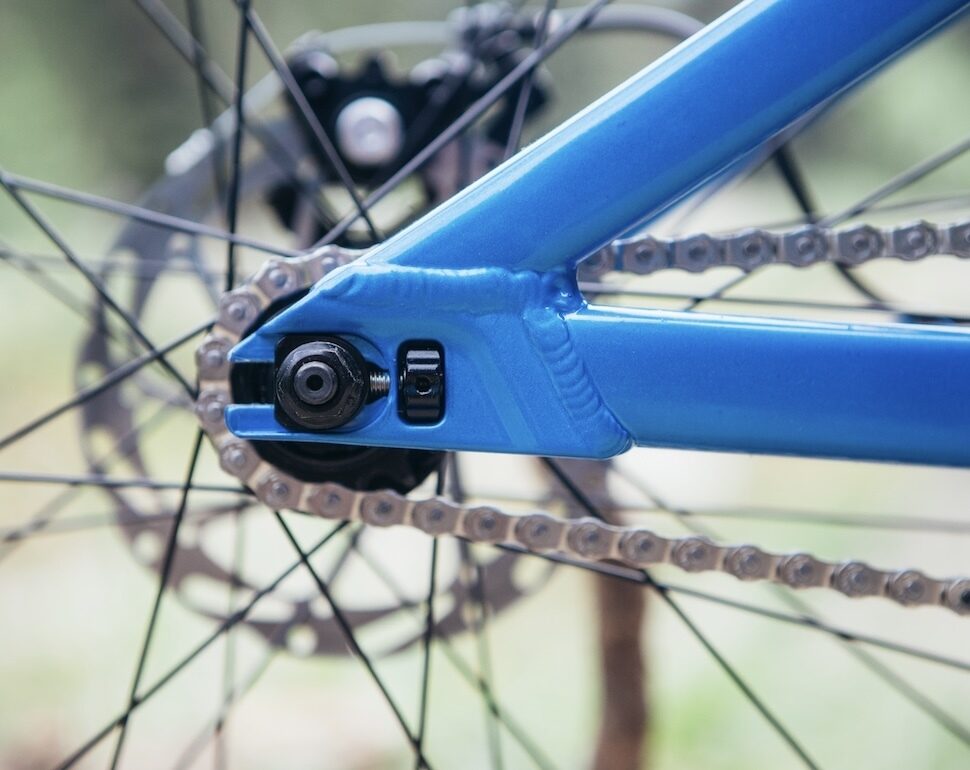

135X10MM HORIZONTAL DROPOUTS
The Alcatraz features 135x10mm horizontal single speed only dropouts - the standard in dirt jump technology for axle and dropout strength.
AMBIDEXTROUS INTERNAL ROUTING
The location of the internal routing port allows for the rear brake to be located on the left or right hand side of the handlebars.
- Frame:
- Series 3 6061 Aluminum, 26 Wheels, 135x10 mm Horizontal Single Speed Dropouts, 73 mm Threaded BB, ISCG 05 Tabs"
- Fork:
- Marin Series 2 CroMo 26, Suspension Corrected, 100x9 mm Dropouts
- Rims:
- Marin Custom Extrusion, 27 mm Inner, Pinned Joint
- Hub, Rear:
- Forged Alloy, 135x10 mm, Bolt-On, Quad Sealed Bearings, Disc, 32H
- Hub, Front:
- Forged Alloy, Bolt On 3/8 Axle, 100 mm Spacing
- Tires:
- Vee Tire Co. XCV 26x2.25, LSG Compound, Wire Bead"
- Crankset:
- Marin Forged Alloy, Alloy 32T Chainring, 104 mm BCD
- Bottom Bracket:
- External Sealed Cartridge Bearings
- Brake, Front:
- Tektro MD-M280 Mechanical Disc 160 mm Rotor
- Brake, Rear:
- Tektro MD-M280 Mechanical Disc 160 mm Rotor
- Brake Levers:
- Tektro CL-330TS Alloy
- Handlebar:
- Marin Riser, 6061 Double Butted Aluminum, 31.8 mm at center bulge, 38 mm Rise, 750 mm Width, 4º Up, 9º Back
- Stem:
- Marin 3D Forged Alloy, 31.8 mm clamp, 40 mm extension
- Grips:
- Marin MTN, Closed End
- Headset:
- FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8 x 1 1/2";Seatpost=Marin Alloy, 30.9 mm"
- Saddle:
- Marin DJ Saddle
- Pedals:
- Alloy Platform
- Chain:
- KMC HL-1
- Cassette:
- 14T Single Speed Cog
- Spokes:
- 14g Black Stainless Steel
- Extras:
- Marin Chain Tension Device
