2025 Marin Bobcat Trail 4

Marin
Availability:
Most in stock items ship within 1-3 business days
$859.00
(No reviews yet)
Weight:
60.00 LBS
Width:
58.00 (in)
Height:
10.00 (in)
Depth:
32.00 (in)
Current Stock:
Adding to cart… The item has been added

HARDTAIL TRAIL RIDING

AGGRESSIVE SINGLETRACK

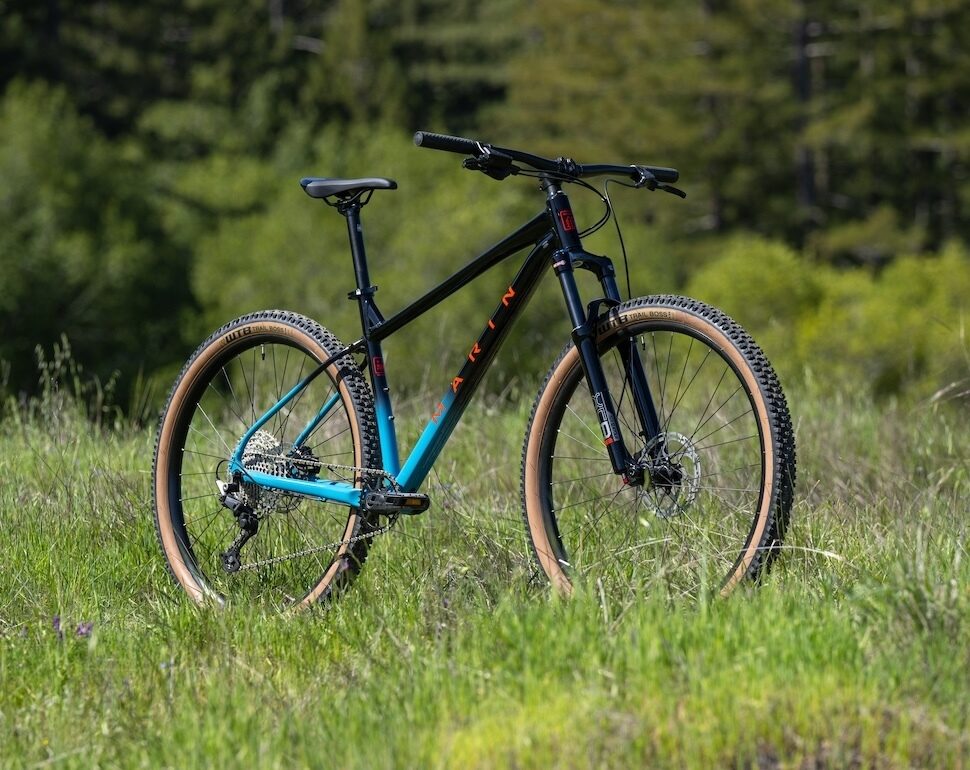

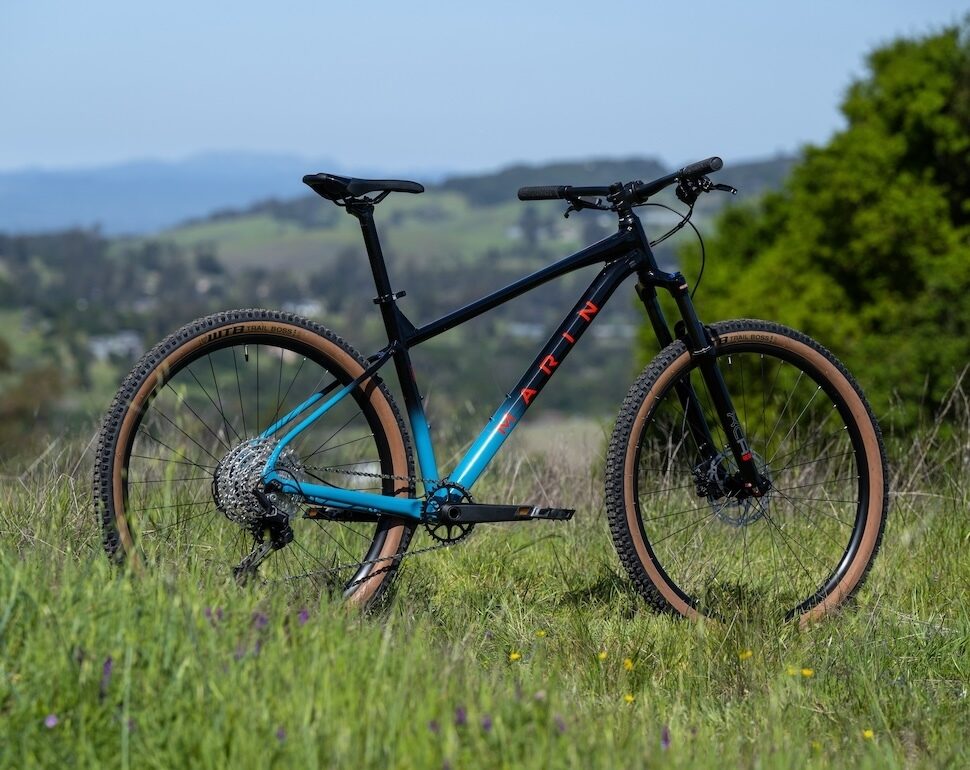

The Marin Bobcat Trail 4 is our mid-level Bobcat, packing plenty of fun into a bang-for-bike package. Very much a legit MTB, the Bobcat 4 is stacked with quality kit for off-road adventures and includes an SR/Suntour fork, Shimano CUES wide-range 10-speed shifting and Tektro hydraulic brakes. Like all Bobcats, it’s built around a fast, comfy and fun Series 2 aluminum frame and is available in 27.5" or 29" wheels, depending on frame size.

  • Suspension: SR/Suntour XCM HLO-DS
  • Wheel Size: 29", 27.5"
  • Frame: Aluminum
  • Color: Gloss Blue, Gloss Black/Purple

Key upgrades from the Bobcat Trail 3

  • SR/Suntour XCM HLO-DS fork
  • Shimano CUES 1x 10-speed drivetrain
  • WTB Trail Boss Comp tires

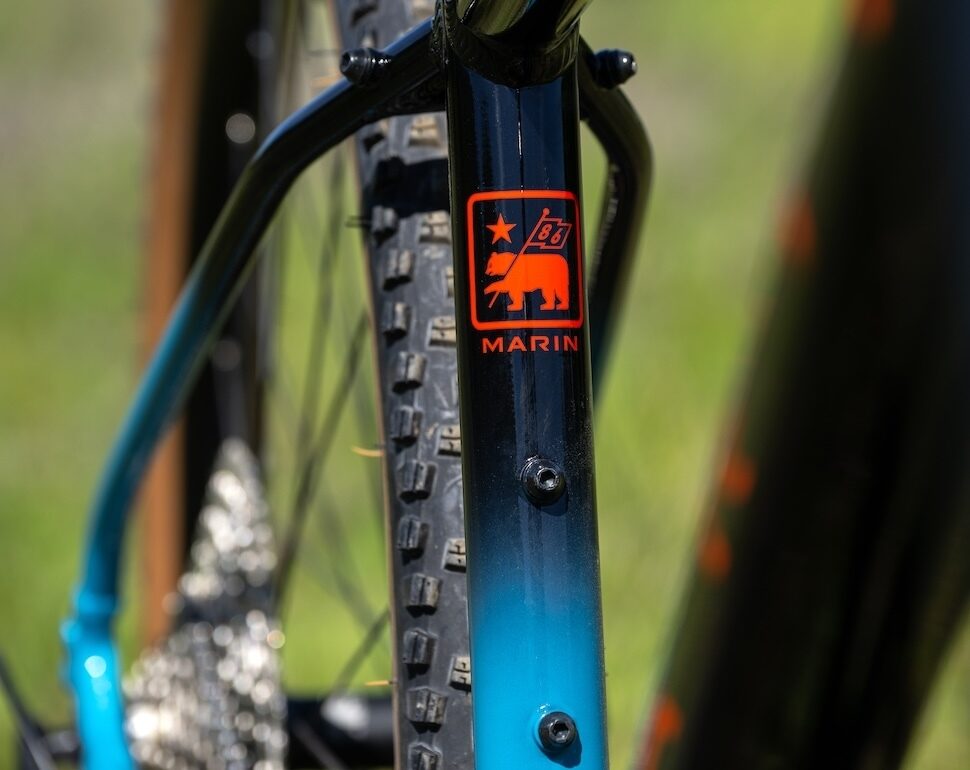

SERIES 2 ALUMINUM FRAME

The Bobcat Trail has a Series 2 aluminum frame that features double butted 6061 tubing, internal cable routing, and forged 135mm open dropouts that ensure a stiff and light frame package. Available with 27.5" (S/M frames) or 29" (M/L/XL frames) wheels, depending on size and preference.

29" OR 27.5" WHEELS

The Bobcat Trail has a growing wheel size strategy for the best fit and performance with the choice of 27.5" or 29" platforms on the size M, 27.5" wheels on sizes XS and S, and 29" wheels on sizes L, XL, and XXL.

TRAIL GEOMETRY

All Bobcat Trail models feature Marin Trail geometry, featuring a long-ish reach, low standover, slack head tube, and steep seat tube angles, giving riders confidence and predictable handling to have a blast on the trail.

FASTBACK SEATSTAY DESIGN

Fastback seatstays add vertical compliance without sacrificing power transfer, and feature rack mounts for extended trail adventures.

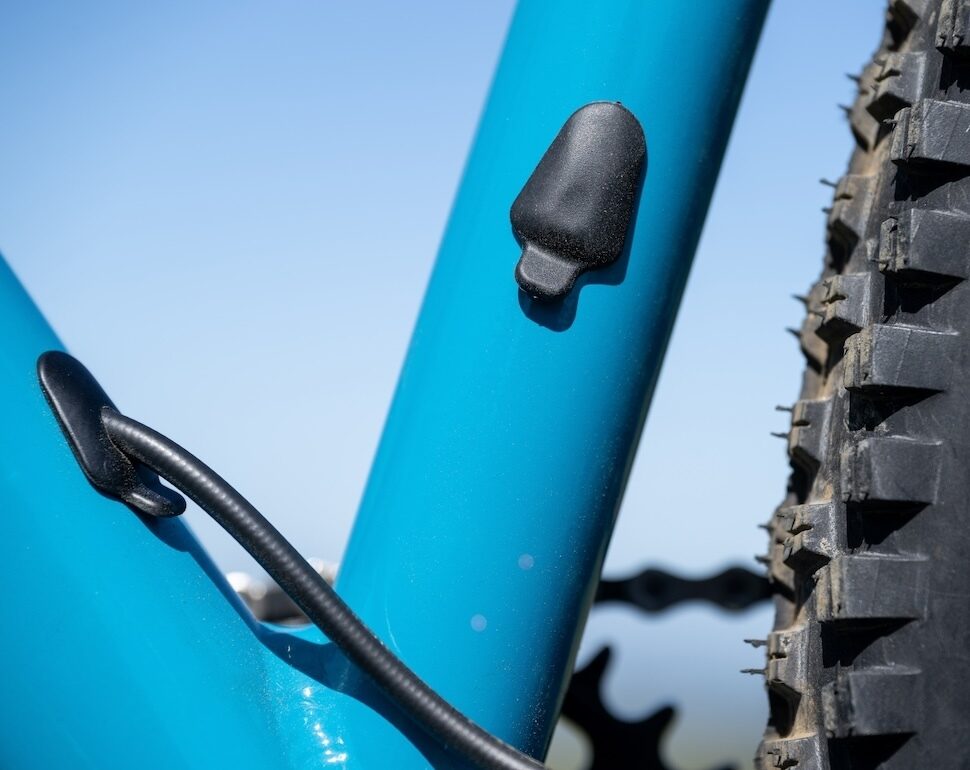

INTERNAL DROPPER COMPATIBLE

Bobcat Trail models have a 30.9mm seatpost and internal cable routing ports for future dropper post compatibility.

Click for Geometry

Click for Owner's Manual

Frame:
Series 2 6061 Aluminum, 27.5 or 29 Wheels, Low Standover, 68 mm BB shell, 141 mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing"
Tires:
WTB Trail Boss Comp, 27.5/29x2.25, Wire Bead
Shift Lever:
Shimano CUES 10-Speed
Crankset:
Alloy Crank, Steel Narrow-Wide Chainring, 32T
Bottom Bracket:
Sealed Cartridge Bearings, Square Taper
Brake Levers:
Tektro M280 Hydraulic
Handlebar:
Marin 31.8 Riser, 12 mm Rise, 780 mm Width
Stem:
Marin Alloy, 31.8 mm Clamp, 45 mm
Grips:
Marin MTB, Closed End
Headset:
FSA No.10-P
Seatpost:
Marin Alloy, 30.9
Saddle:
Marin MTB
Pedals:
Nylon Platform
Chain:
KMC LG
Cassette:
Shimano CUES CSLG300, 10-Speed, 11-48T
Spokes:
14g Black Stainless Steel
Front Suspension:
SR/Suntour XCM HLO-DS, 120 mm Travel, Hydraulic Lockout, 46 mm Offset
Rim:
Marin Aluminum Double Wall, 25 mm Inner, Pinned Joint, Disc Specific
Hub Rear:
Forged Alloy, Disc, 32H
Hub Front:
Forged Alloy, 32H
Derailleur Rear:
Shimano CUES U6000GS, w/Clutch
Brakes Front:
Tektro M280 Hydraulic Disc, 180 mm Rotor
Brakes Rear:
Tektro M280 Hydraulic Disc, 160 mm Rotor
