2025 Marin DSX 1 - Grey image

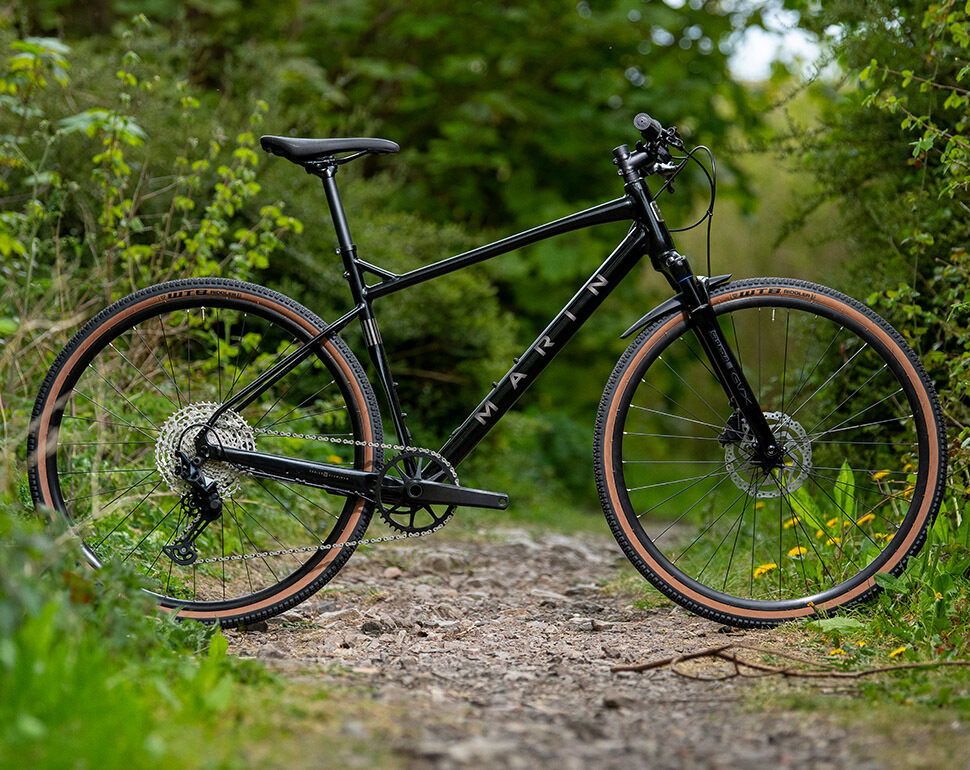

2025 Marin DSX 1 - Grey

Marin
Availability:
Most in stock items ship within 1-3 business days
$999.00
(No reviews yet)
Weight:
60.00 LBS
Width:
58.00 (in)
Height:
10.00 (in)
Depth:
32.00 (in)
Current Stock:
Adding to cart… The item has been added
Description

LONG DISTANCE MIXED SURFACE COMMUTING

GRAVEL RIDING

ADVENTURE ON AND OFF-ROAD RIDING

Hopping up to a higher-spec Series 3 aluminum frame, the Marin DSX 1 has a whole heap of upgrades over the base spec version. Bolt-thru axles add stiffness and a carbon fork drops the weight and adds even more mounting points for bikepacking bags. There’s also an 11-speed 1X Shimano Deore drivetrain, WTB Riddler tires, Tektro hydraulic brakes and plenty of reliable Marin components.

  • Wheel Size: 700C
  • Frame: Aluminum
  • Color: Grey

Key upgrades from the DSX

  • Series 3 aluminum frame w/thru axles
  • Full carbon fiber fork
  • Wide-range Shimano Deore 11-speed drivetrain

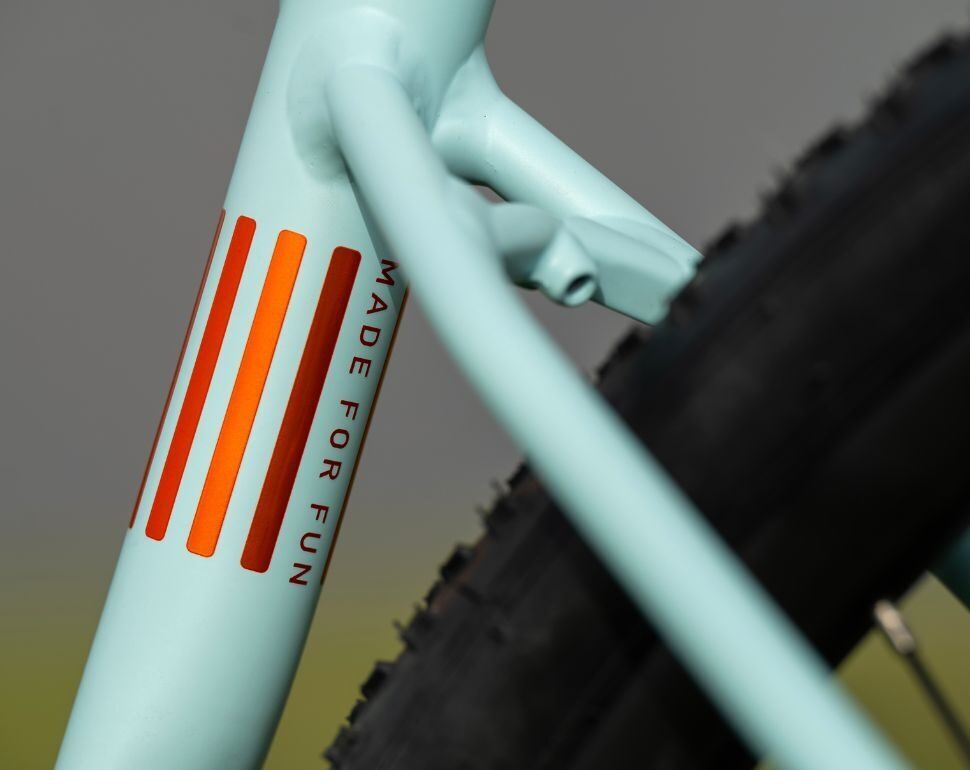

SERIES 3 & SERIES 2 FRAMES

The DSX FS, 2, and 1 feature a butted and formed Series 3 6061 aluminum frame with internal routing, 142x12mm thru-axles, flat mount disc brakes, and rack and fender eyelets. The DSX (base) model utilizes a Series 2 6061 aluminum frame with internal cable routing, and rack and fender eyelets.

TIRE CLEARANCE

The DSX comes stock with 700x45mm tires, with room for 700x50mm rubber.

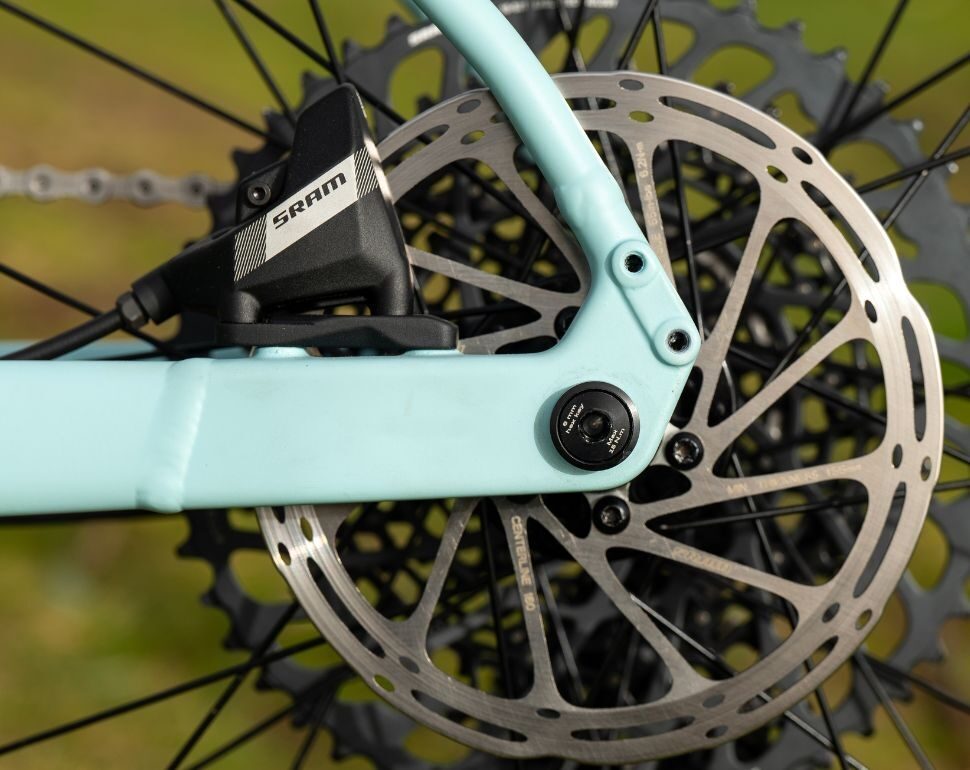

DISC BRAKES

The DSX features the latest flat mount disc brake standard for smooth, controlled stopping in all conditions with minimal maintenance.

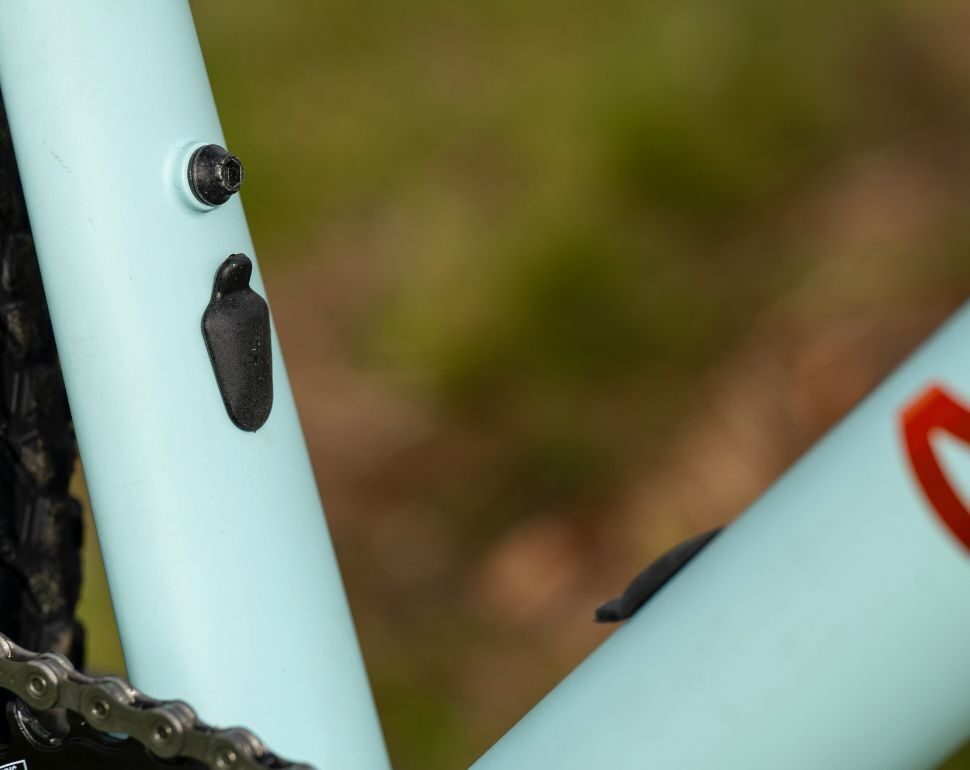

DROPPER POST ROUTING

Dropper posts are quickly becoming standard fare for gravel racers and riders that spend significant time on rough surfaces, and the DSX features internal dropper post routing for easy upgrades.

Click for Geometry

Click for Owner's Manual

Additional Information
Frame:
Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12 mm Thru-Axle
Fork:
Marin Full Carbon w/ Tapered Steerer, 12 mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Tires:
WTB Riddler, 700Cx45 mm
Shift Lever:
Shimano Deore, SLM5100, 11-Speed
Crankset:
Forged Aluminum, 42T Steel Narrow Wide Chainring
Bottom Bracket:
Sealed Cartridge
Brake Levers:
Tektro Hydraulic
Handlebar:
Marin MiniRiser
Stem:
Marin 3D Forged Alloy
Grips:
Marin MTB
Headset:
FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8 x 1 1/2""
Seatpost:
Marin Alloy
Saddle:
Marin DSX
Pedals:
Nylon Platform
Chain:
KMC X11
Cassette:
Shimano, CSM5100, 11-Speed, 11-51T
Extras:
Bolt-On Thru-Axles F and R
Rim:
Marin Aluminum Double Wall, 21 mm Inner, Disc Specific
Hub Rear:
Forged Aluminum Alloy, 142x12 mm, Disc, 32H
Hub Front:
Forged Aluminum, 100x12 mm, 32H
Derailleur Rear:
Shimano Deore, RDM5100, 11-Speed
Brakes Front:
Tektro HD-R280 Flat Mount Hydraulic Disc, 160 mm Rotor
Brakes Rear:
Tektro HD-R280 Flat Mount Hydraulic Disc, 160 mm Rotor
Spokes Nipples:
14g Black Stainless Steel
