2025 Marin DSX FS - Dark Teal/Gold
Marin
$1,599.00
(No reviews yet)
Write a Review
Marin
2025 Marin DSX FS - Dark Teal/Gold
LONG DISTANCE MIXED SURFACE COMMUTING
GRAVEL RIDING
ADVENTURE ON AND OFF-ROAD RIDING
Is it a gravel bike? Is it a mountain bike? We’ve got no idea - we just know that it’s a whole mountain of fun. The Marin DSX FS breaks the gravel bike mold even further by adding a 60mm SR/Suntour front suspension fork for hard-charging, off-road adventures. There’s also a 12-speed 1X Shimano SLX drivetrain, Vee Tire Co tires, Shimano hydraulic brakes and plenty of reliable Marin components.
- Suspension: SR Suntour GVX LOR
- Wheel Size: 700C
- Frame: Aluminum
- Color: Dark Teal/Gold
Key upgrades from the DSX 2
- SR/Suntour GVX LOR suspension fork with 60mm travel & air spring
- Shimano SLX 12-speed drivetrain
SERIES 3 & SERIES 2 FRAMES
The DSX FS, 2, and 1 feature a butted and formed Series 3 6061 aluminum frame with internal routing, 142x12mm thru-axles, flat mount disc brakes, and rack and fender eyelets. The DSX (base) model utilizes a Series 2 6061 aluminum frame with internal cable routing, and rack and fender eyelets.
TIRE CLEARANCE
The DSX comes stock with 700x45mm tires, with room for 700x50mm rubber.

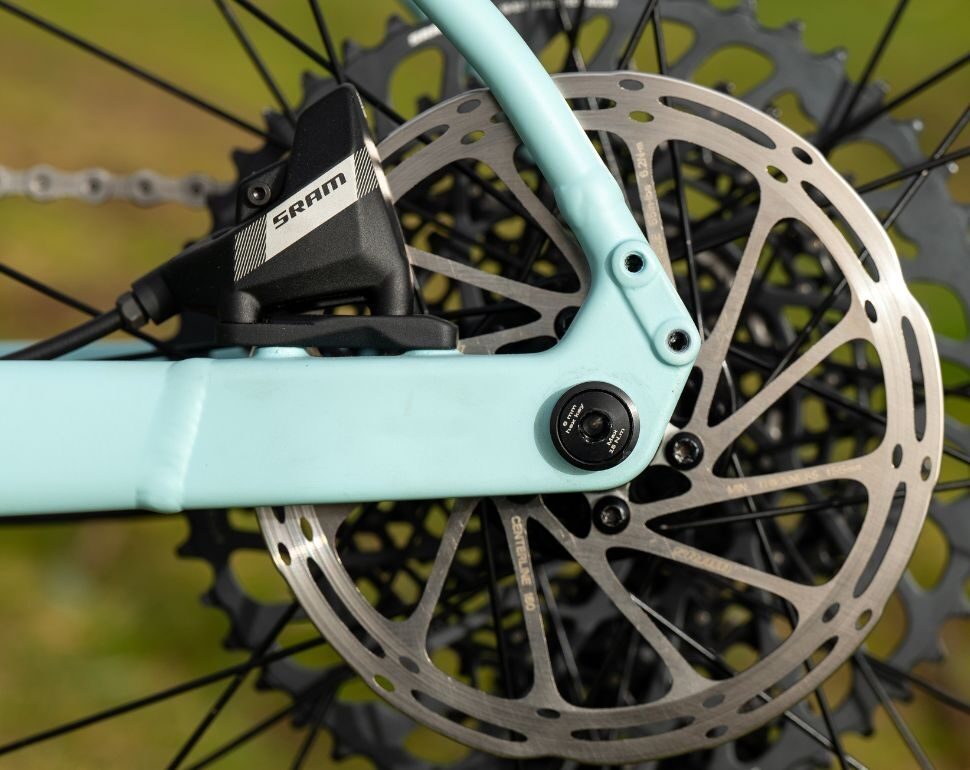

DISC BRAKES
The DSX features the latest flat mount disc brake standard for smooth, controlled stopping in all conditions with minimal maintenance.

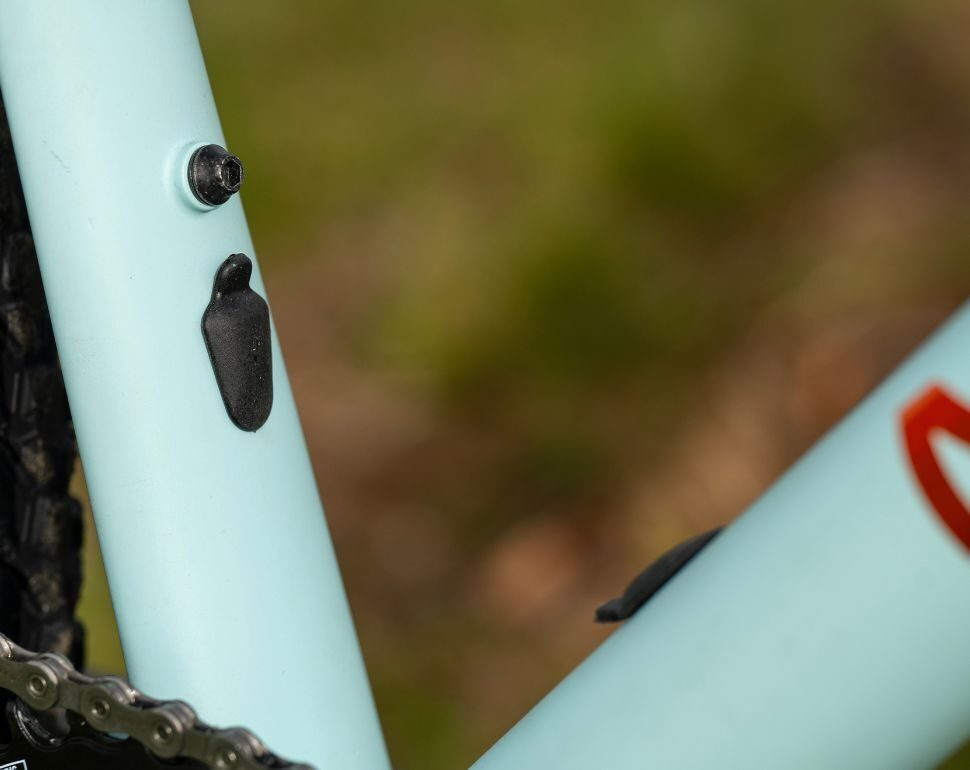

DROPPER POST ROUTING
Dropper posts are quickly becoming standard fare for gravel racers and riders that spend significant time on rough surfaces, and the DSX features internal dropper post routing for easy upgrades.
- Frame:
- Series 3 DSX, Supension Adjusted Geometry, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12 mm Thru-Axle
- Fork:
- SR/Suntour GVX LOR, 60 mm Travel, Air Spring, Rebound Adjust, Lockout, Integrated Fender Mounts
- Rims:
- Marin Aluminum Double Wall, 21 mm Inner, Disc Specific, Tubeless Compatible
- Hub, Rear:
- Forged Aluminum, 142x12 mm, 32H
- Hub, Front:
- Forged Aluminum, 100x12 mm, Disc, 32H
- Spoke, Nipples:
- 14g Black Stainless Steel
- Tires:
- Vee Tire Co., QuikStyk, 700x45,Folding Bead, Tubeless Compatible
- Derailleur, Rear:
- Shimano SLX, RD7100, 12-Speed
- Shift Lever:
- Shimano Deore, SLM6100, 12-Speed
- Crankset:
- Forged Aluminum, 42T Steel Narrow Wide Chainring
- Bottom Bracket:
- Sealed Outboard Bearing
- Brake, Front:
- Tektro HDR285 Flat Mount Hydraulic, 160 mm Rotor
- Brake, Rear:
- Tektro HDR285 Flat Mount Hydraulic, 160 mm Rotor
- Brake Levers:
- Tektro Hydraulic
- Handlebar:
- Marin Mini Riser
- Stem:
- Marin 3D Forged Alloy
- Grips:
- Marin MTB
- Headset:
- FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8 x 1 1/2""
- Seatpost:
- Marin Alloy
- Saddle:
- Marin DSX
- Pedals:
- Nylon Platform
- Chain:
- KMC X12
- Cassette:
- SunRace, 12-Speed, 11-51T
- Extras:
- Bolt-On Thru-Axles F and R
