2025 Marin Fairfax E - Gloss Silver/Charcoal/Blue

Our critically acclaimed and best-selling Fairfax has gone electric. The all-new Fairfax E brings the power to scoot you along with 40Nm of torque from the rear hub, quietly and seamlessly adding a boost to your pedaling. The 340Wh battery is cleanly integrated into the Series 2 aluminum frame's downtube, while a Shimano 8-speed Altus drivetrain provides plenty of gearing range. Finally, hydraulic disc brakes from Tektro allow for controlled and comfortable stopping power in all conditions.

• Wheel Size: 700C
• Frame: Aluminum
• Color: Gloss Silver/Charcoal/Blue

Features:

• Certificate: UL 2489, EN15194
• System: Bafang rear hub motor
• Max torque: 40Nm
• Max assisted speed: Class 1, 20MPH (USA), 25 km/h rest of world
• Battery capacity: 340Wh
• Range: 19-62 miles / 30-100km*
• Rider app: Bafang Go

* Based on rider weight, terrain, climate and level of assistance used.

** Note: carrier does not conform to EN ISO 11243:2016 standards and is NOT designed for use with a child carrier.

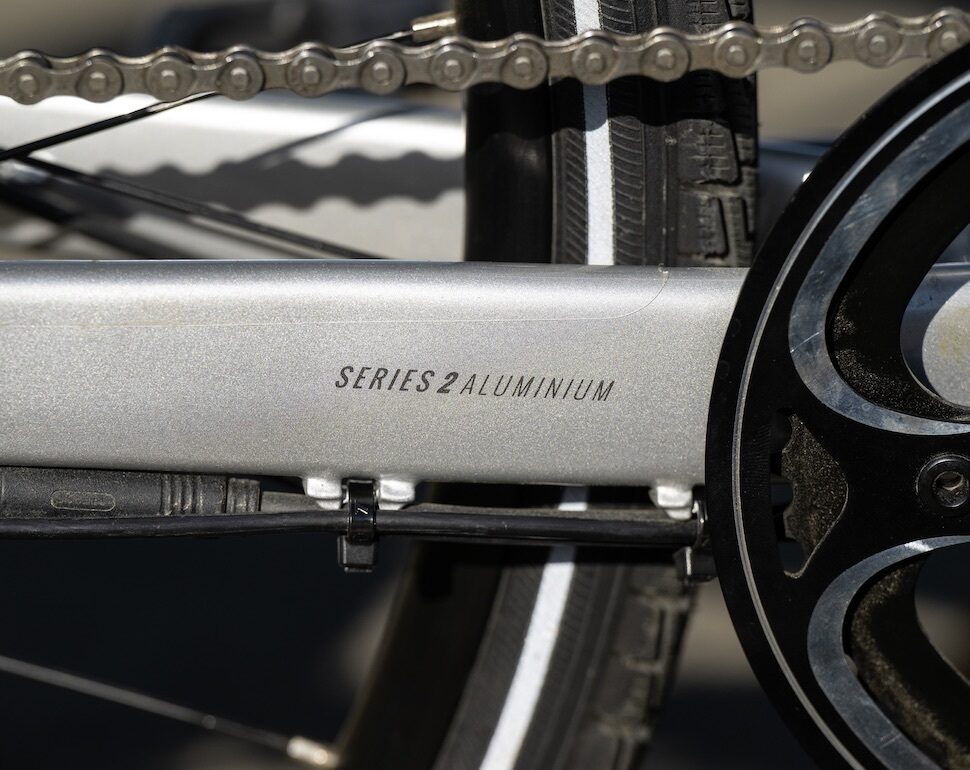

SERIES 2 FRAME

The Series 2 ebike fitness frame features 6061 aluminum tubing with an internal battery and internal cable routing, forged dropouts with rack and fender mounts and an integrated kickstand mount.

ELECTRIC DRIVETRAIN

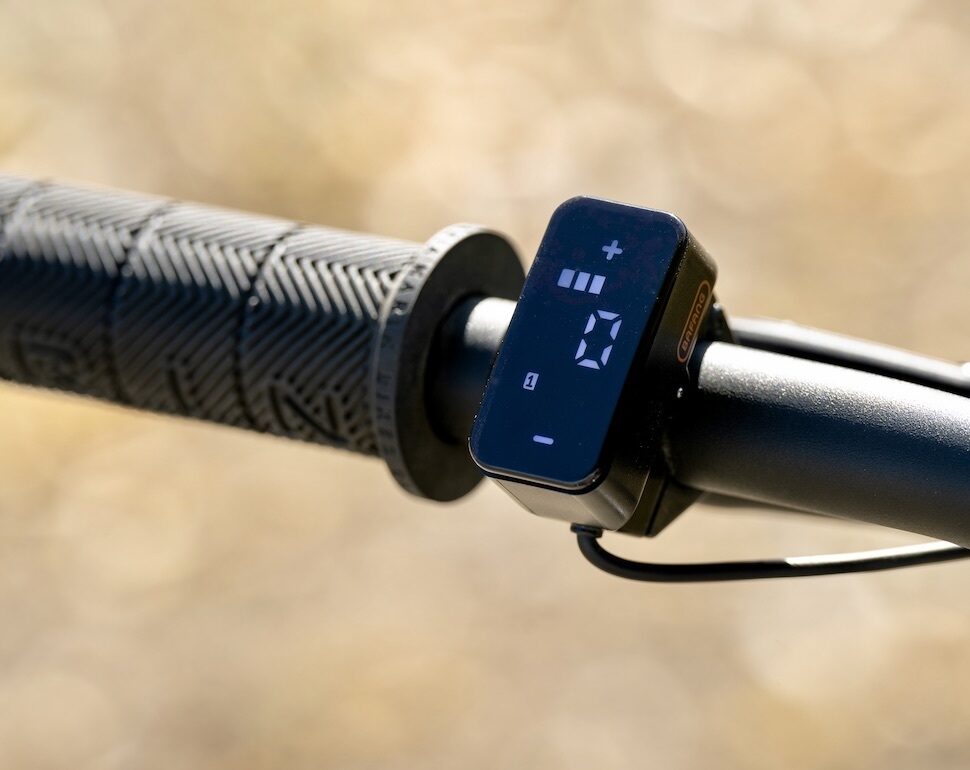

The Bafang rear hub motor provides 40Nm of torque in a compact and tidy package, and delivers top assisted speeds of 20mph, 32km/h (North America), and 25km/h for the rest of the world. Five levels of assist, accessed via a handlebar-mounted controller, means that riders can quickly dial in the level of assistance that best meets their needs and riding style. The controller also doubles as a display, showing speed, battery charge state, and assist level selected. The Bafang Go app supports real-time access to ride data, real-time access to human health data such as heartbeat and calorie data, and access to navigation steering and traffic tips.

INTERNAL BATTERY

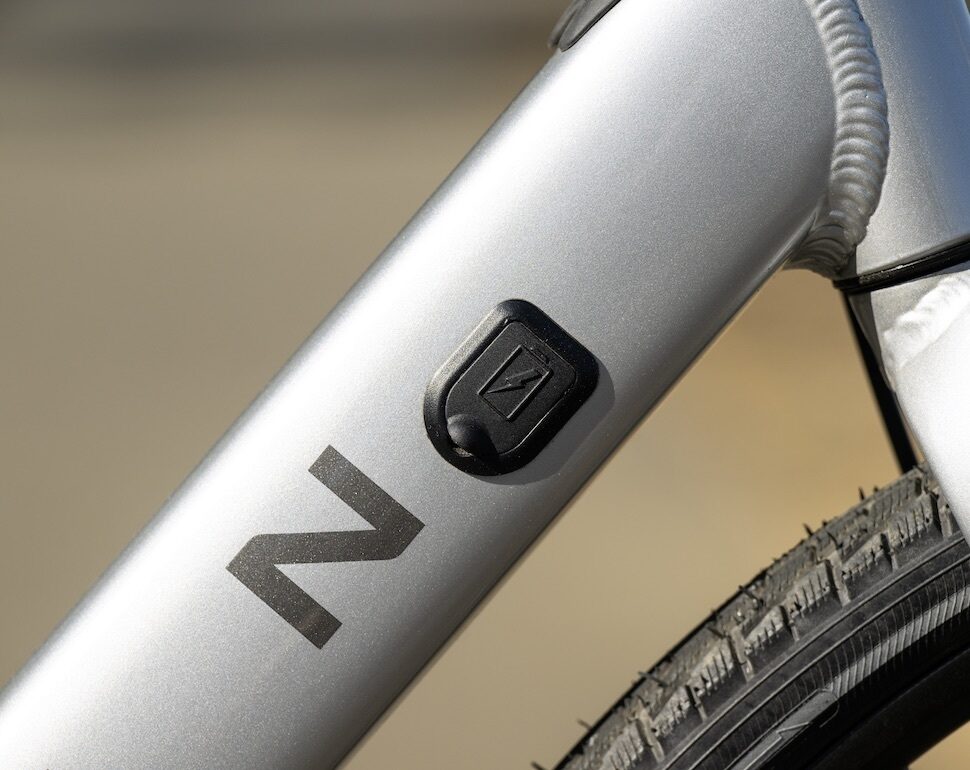

The 340Wh in-tube battery is neatly integrated into the Fairfax E's downtube, protected and giving the bike a sleeker look. The charging port is easily accessible, under a weather-resistant cover.

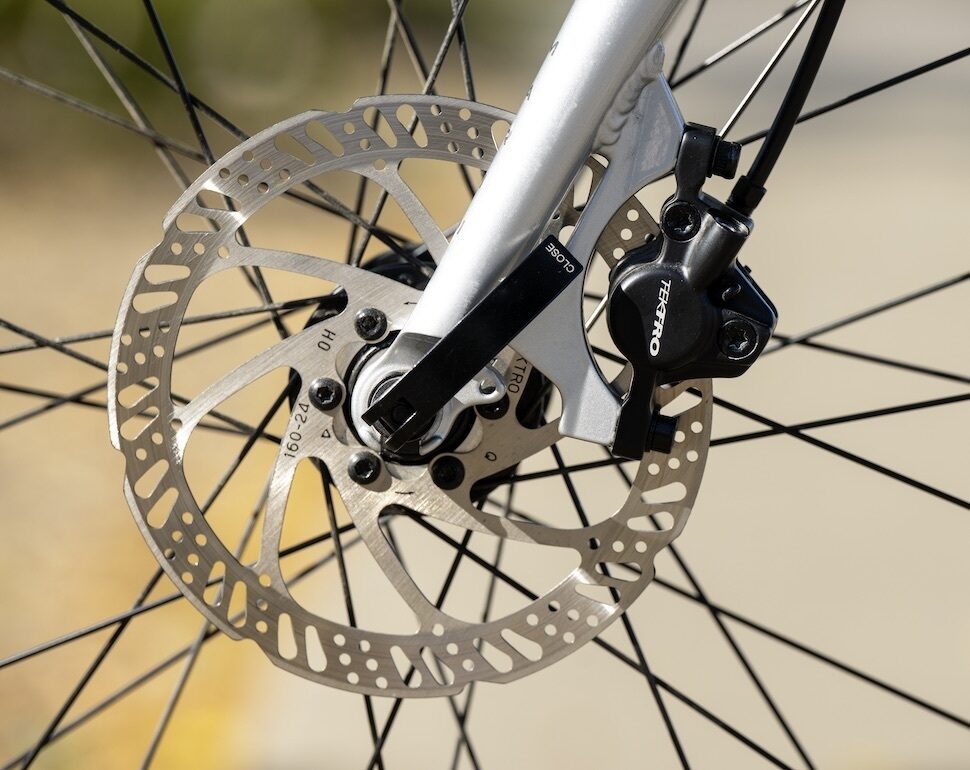

HYDRAULIC DISC BRAKES

Hydraulic disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.

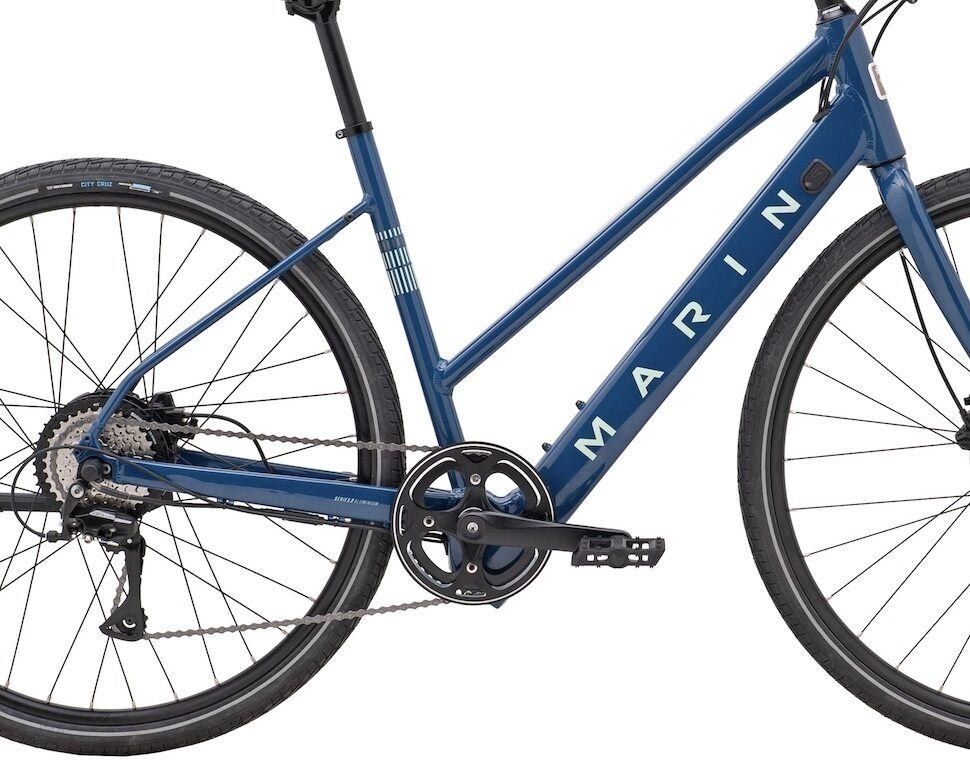

STEP THROUGH DESIGN

The Fairfax E ST features a step-through frame design with a lowered toptube for easier mounting and dismounting.

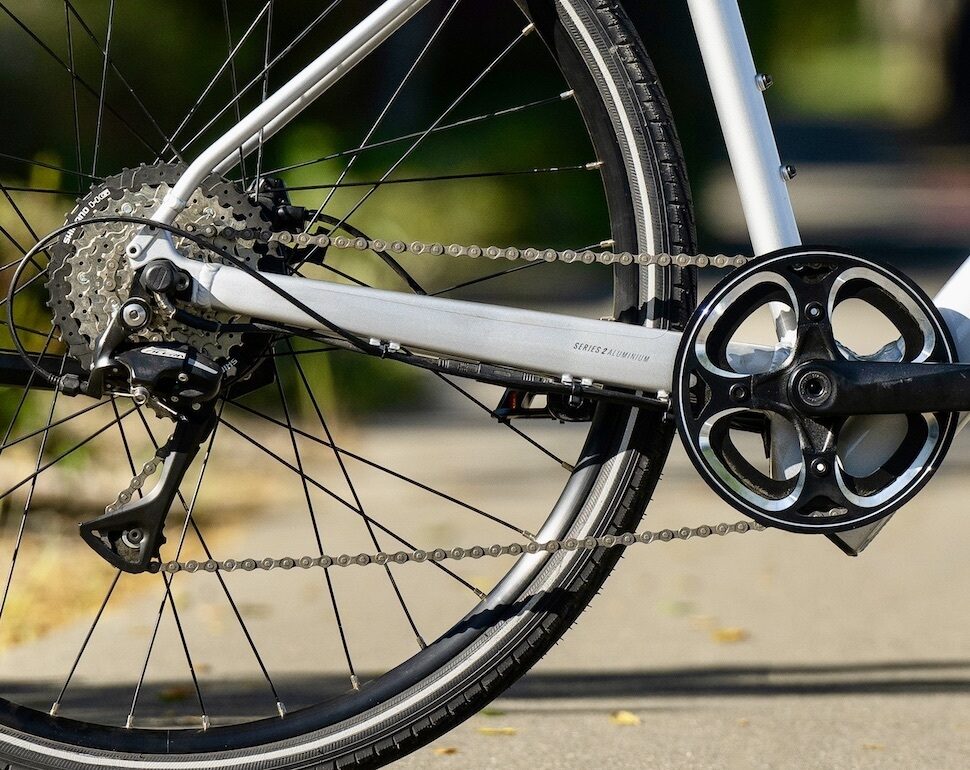

SHIMANO DRIVETRAIN

Shimano's stalwart Acera 8-speed drivetrain smoothly and reliably glides between the gearing.
