2025 Marin Gestalt 1 - Gloss White
Marin
£902.25
(No reviews yet)
Write a Review
Marin
2025 Marin Gestalt 1 - Gloss White
The Marin Gestalt takes you Beyond Road.
Tarmac and trail, rough roads and muddy commutes, bike packing, touring and adventure. Daily trips and weekend escapes are all within the Gestalt’s wheelhouse, with no stopping when the asphalt turns to dirt.
A cut above the entry-level Gestalt, the Gestalt 1 steps up to a Series 3 aluminum frame and full carbon fiber fork, all while still keeping the value high and the price tag low. WTB Exposure 36mm wide tires, 2x9-speed Shimano Sora drivetrain, Tektro mechanical disc brakes and plenty of quality Marin components all add up to bags of value and heaps of fun.
- Wheel Size: 700C
- Frame: Aluminum
- Color: Gloss White
Key upgrades from the Gestalt
- Series 3 Beyond Road frame w/highly formed & butted custom tubeset
- Marin full carbon fork
- Shimano Sora 2x9 drivetrain
- Tektro mechanical disc brakes

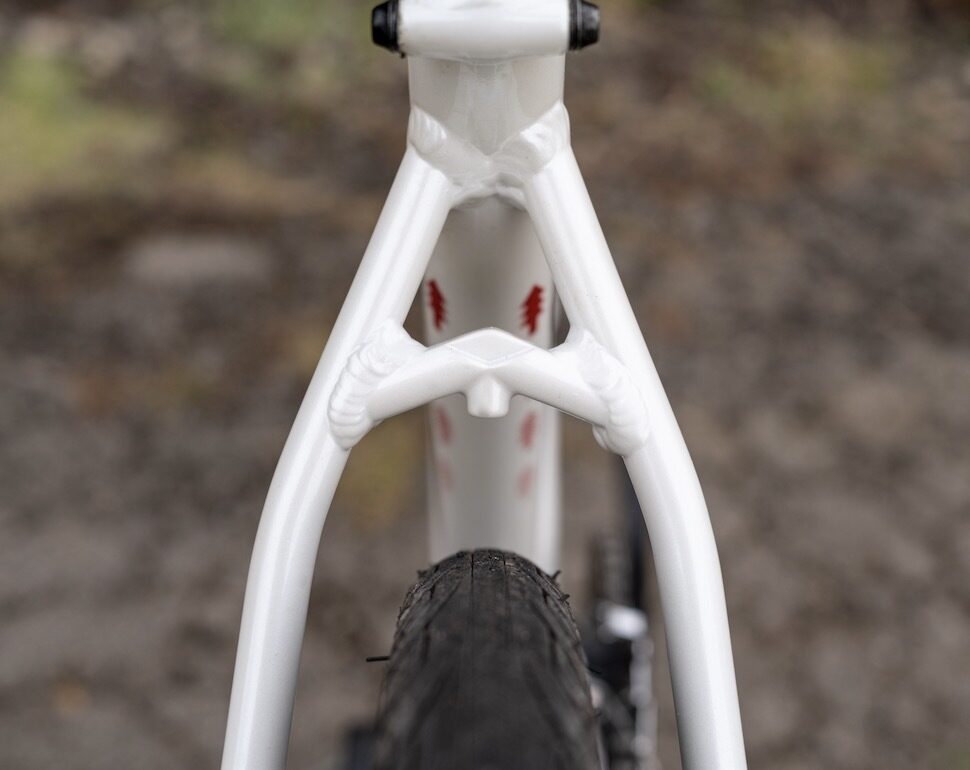

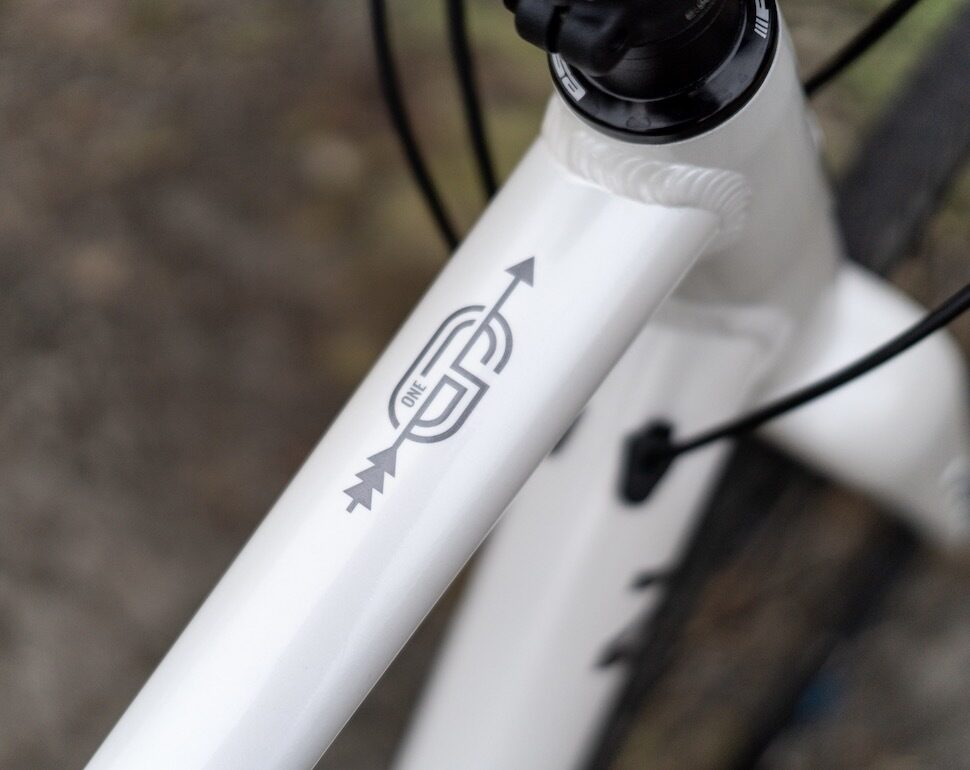

SERIES 2 OR 3 FRAME
The Gestalt features a butted and formed Series 2 6061 aluminum frame with internal routing, disc brakes, and rack and fender eyelets. Series 3 frames add thru-axles and a tapered headtube.
TIRE CLEARANCE
Gestalt frames and forks have clearance for up to 700Cx45 tires.
BEYOND ROAD GEOMETRY
Beyond Road Geometry offers a blend of endurance road handling with enhanced stability for off pavement use.

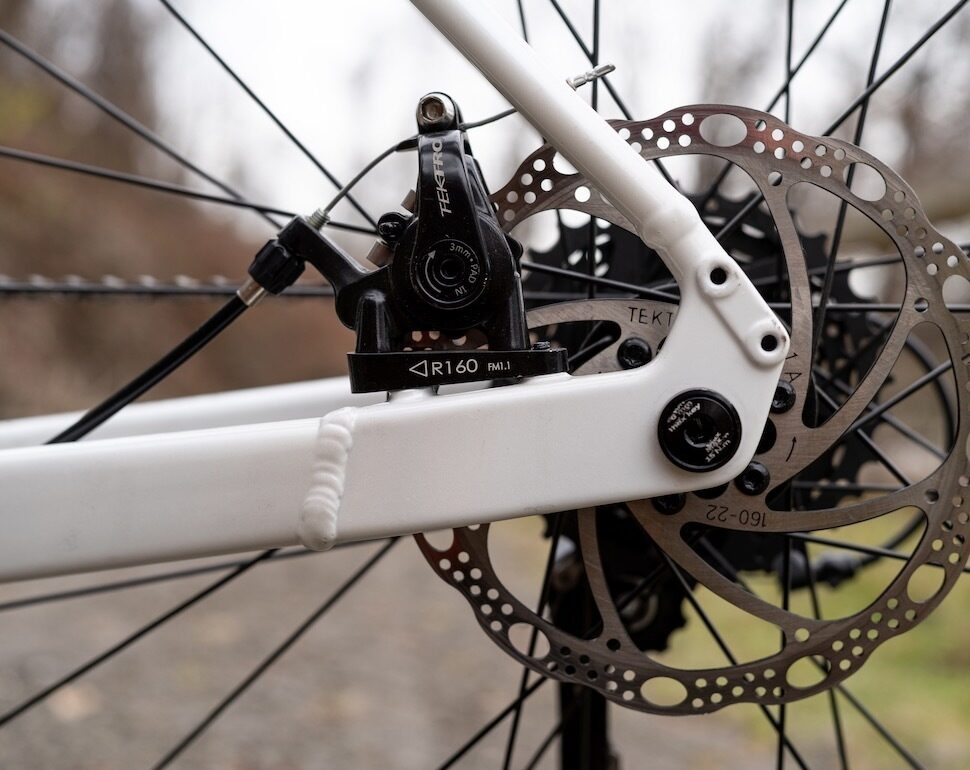

DISC BRAKES
Disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.
- Frame:
- Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12 mm Thru-Axle
- Fork:
- Marin Full Carbon w/ Tapered Steerer, 12 mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
- Rims:
- Marin Aluminum Double Wall, 21 mm Inner, 22 mm Tall, Disc Specific, Tubeless Compatible
- Hub, Rear:
- Forged Aluminum Alloy, 6-Bolt Disc, 32H
- Hub, Front:
- Forged Aluminum Alloy, 32H
- Spoke, Nipples:
- 14g Black Stainless Steel
- Tires:
- WTB, Exposure Comp, 700x36
- Derailleur, Rear:
- Shimano Sora 9-Speed
- Derailleur, Front:
- Shimano Sora
- Shift Lever:
- Shimano Sora 2x9-Speed
- Crankset:
- Shimano R345 Octalink Compact, 50/34T
- Bottom Bracket:
- Shimano Octalink V2 Cartridge
- Brake, Front:
- Tektro MD-C550 Dual Piston Road Mechanical, 160 mm Rotor
- Brake, Rear:
- Tektro MD-C550 Dual Piston Road Mechanical, 160 mm Rotor
- Brake Levers:
- Shimano w/ Integrated Shifters
- Handlebar:
- Marin Butted Alloy, Compact 12º Flared Drop
- Stem:
- Marin 3D Forged Alloy
- Grips:
- Marin Perforated Tape
- Headset:
- FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8 x 1 1/2""
- Seatpost:
- Marin Alloy, 27.2 mm
- Saddle:
- Marin Beyond Road Concept
- Pedals:
- Marin Oso OEM Nylon Platform
- Chain:
- KMC X9
- Cassette:
- SunRace 9-Speed, 11-32T
