2025 Marin Gestalt X10 - Gloss Grey/Teal
Marin
$1,399.00
(No reviews yet)
Write a Review
Marin
2025 Marin Gestalt X10 - Gloss Grey/Teal
Marins hard-charging, rough-and-rowdy take on what gravel and adventure bikes can do.
The Gestalt X models are built with a longer wheelbase, a slacker head angle, low-slung frame, wide bars, short stem, big and chunky tires with room for up to 50mm on 700c or 54mm with a 650b wheelset, all designed to improve handling when the trail turns technical.
Our premium, butted and formed Series 3 alluminium construction, braze-in internal cable routing, impressive tyre clearance and genuinely beyond-road geometry, make the Gestalt X models are our most off road capable drop bar bikes we've ever made.
Is it a gravel bike? Is it a drop bar mountain bike? Is it a bikepacking bike? Yes to all of the above! Who cares about definitions and pigeonholes? All you need to know is that the XR stands for eXtra Rad!
- Wheel Size: 700C
- Frame: Aluminum
- Color: Gloss Grey/Teal
SERIES 3 ALUMINUM FRAME
The Gestalt X features a butted and formed Series 3 6061 aluminum frame with progressive Beyond Road geometry, internal routing, 142x12mm thru-axles, flat mount disc brakes, and rack and fender eyelets.
BEYOND ROAD GEOMETRY
The Gestalt X takes our Beyond Road Geometry to the next level of aggressive road and dirt exploration with a blend of endurance road handling and mountain bike sensibilities. Frames now follow mountain bike sizing norms (S, M, L, XL), and the longer/lower/slacker style found on dirt-oriented bikes, with 67.5° head tube angles, and short stem/wide bar combos.

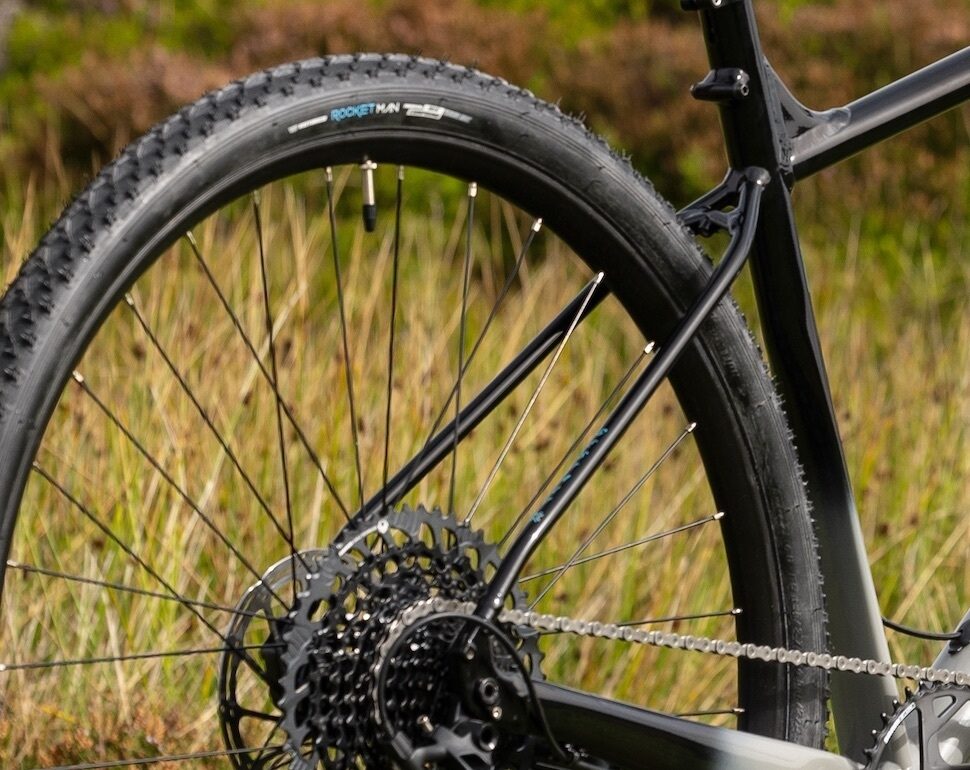

TIRE CLEARANCE
The Gestalt X frame and fork now has clearance for up to up to 700Cx50 or 650Bx54 Road Plus.

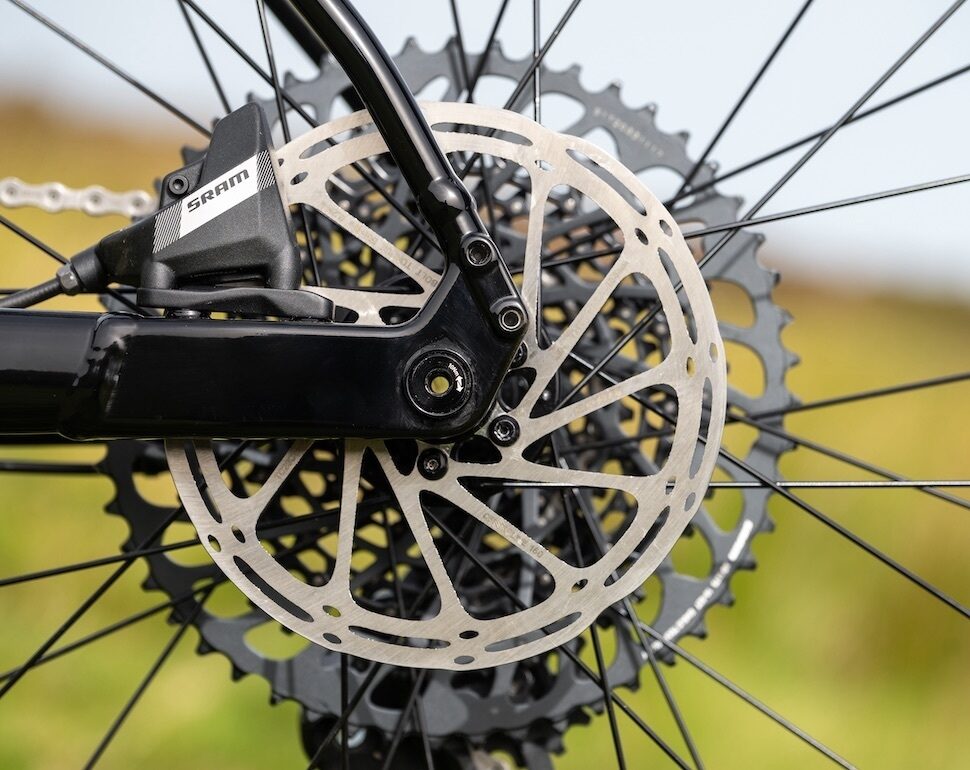

DISC BRAKES
The Gestalt X features the latest flat mount disc brake standard for smooth, controlled stopping in all conditions with minimal maintenance.

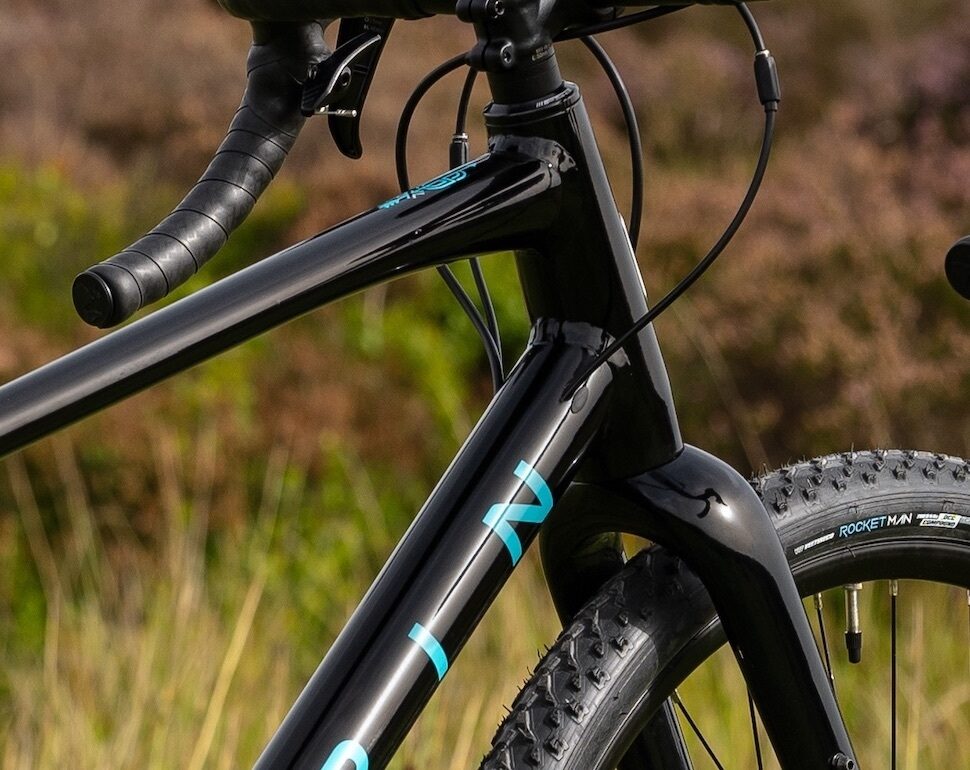

BRAZE-IN CABLE ROUTING
New braze-in cable/hose routing is seek and clean and rattle-free.
- Frame:
- Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12 mm Thru-Axle
- Fork:
- Marin Full Carbon w/ Tapered Steerer, 12 mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
- Rims:
- Marin Aluminum Double Wall, 25 mm Inner, 18 mm Tall, Disc Specific
- Hub, Rear:
- Forged Aluminum Alloy, Disc, 32H
- Hub, Front:
- Forged Aluminum Alloy, 32H
- Spoke, Nipples:
- 14g Black Stainless Steel
- Tires:
- Vee Tire Co., Quickstyx, 700x45, Tubeless Compatible
- Derailleur, Rear:
- microSHIFT SWORD 10-Speed Wide-Range
- Shift Lever:
- microSHIFT SWORD, 10-Speed
- Crankset:
- Forged Alloy 1x10, Hollow CrMo Spindle, Narrow Wide 42T
- Bottom Bracket:
- External Sealed Cartridge Bearings
- Brake, Front:
- Tektro MD-C500 Dual Piston Road Mechanical Disc, 160 mm Rotor
- Brake, Rear:
- Tektro MD-C500 Dual Piston Road Mechanical Disc, 160 mm Rotor
- Brake Levers:
- microSHIFT SWORD
- Handlebar:
- Marin Butted Alloy, Compact 16º Flared Drop
- Stem:
- Marin 3D Forged Alloy
- Grips:
- Marin Shock Absorbing Perforated Tape
- Headset:
- FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8 x 1 1/2""
- Seatpost:
- Marin Alloy, 27.2 mm
- Saddle:
- Marin Beyond Road Concept
- Chain:
- KMC X10
- Cassette:
- microSHIFT SWORD 10-Speed, 11-48T
- Extras:
- Bolt-On Thru-Axles F and R
