2025 Marin Quake - Purple/Violet Fade

The return of the legendary Quake, blurring the lines between for bike park laps, DH laps or freeride ripping - you choose. The all-new Quake has benefited from an intense development cycle where top riders have provided invaluable feedback over multiple generations of development samples.

During this time, it has proven both solid and capable by some of the best riders in the sport at some of the most demanding events including Darkfest and Hardline, and some of toughest and most challenging tracks. Matt Jones has personally competed at both Hardline events aboard pre-production and production iterations.

With a spec list chosen for performance and longevity - Rock Shox Boxxers up front, new Vivid coil out back, super-sharp Maven brakes, and not forgetting the built in frame adjustability, we make no excuses for being bold with the new Quake, which really is - Built To Send!

• Suspension: RockShox Boxxer/Vivid Coil Ultimate DH
• Wheel Size: Mixed 29", 27.5"
• Frame: Aluminum
• Color: Purple/Violet Fade

FRAME & TRAVEL

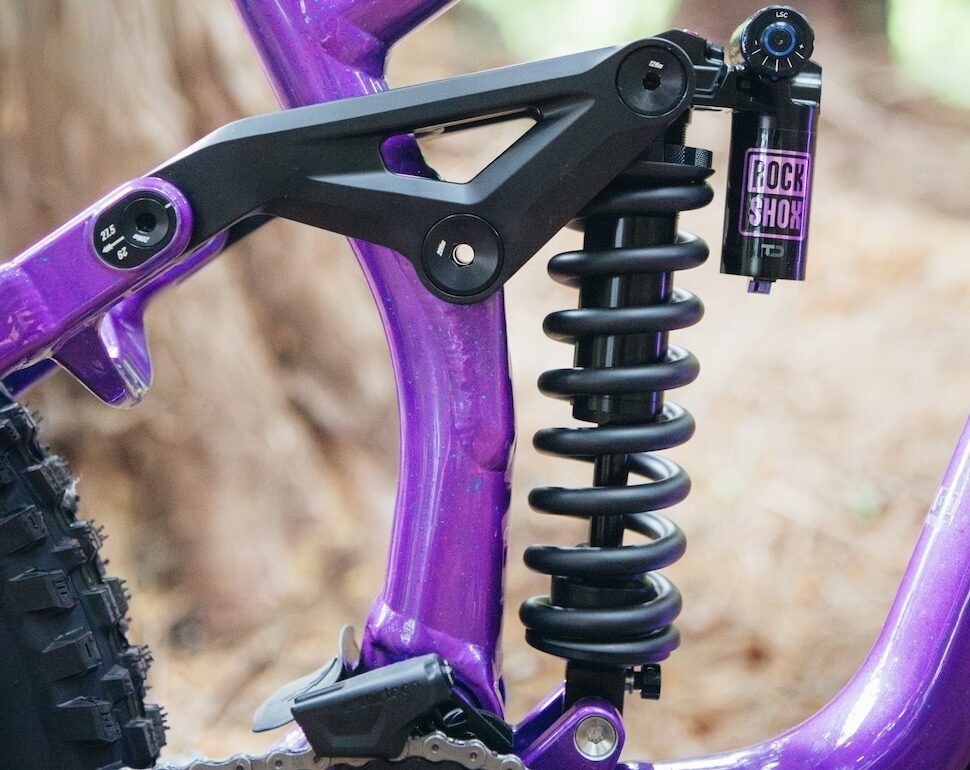

The Series 4 Aluminum frame features the MultiTrac 2 LT suspension platform with 180mm travel. MultiTrac 2 LT shifts the rear pivots to the chainstay, ensuring that the suspension performance matches our design goals. The benefits of relocating the rear pivot points from the seatstay to the chainstay reduces anti-rise, allowing for better chassis control while braking, more mid-stroke support, and better feel at bottom out. Furthermore, relocation of the pivots provides the added benefit of allowing for adjustable chainstay lengths and bottom bracket heights.

FLIP CHIPS

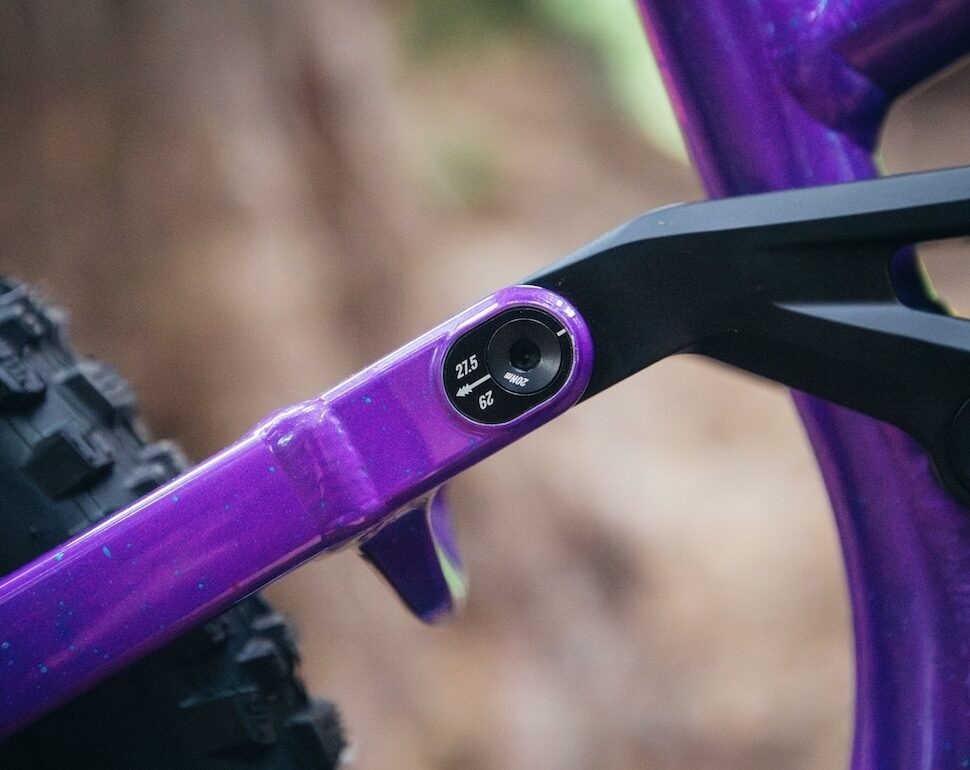

Integrated flip chips allow the rider to quickly and easily choose from multiple configurations, based on terrain and equipment preference. Chainstay length and bottom bracket height can be set to low BB/long CS, or high BB/short CS. Those who prefer to run the Quake with a 29" rear wheel instead of the stock 27.5" can change the position of the seatstay chips to accommodate the larger diameter rear wheel.

PROTECTION

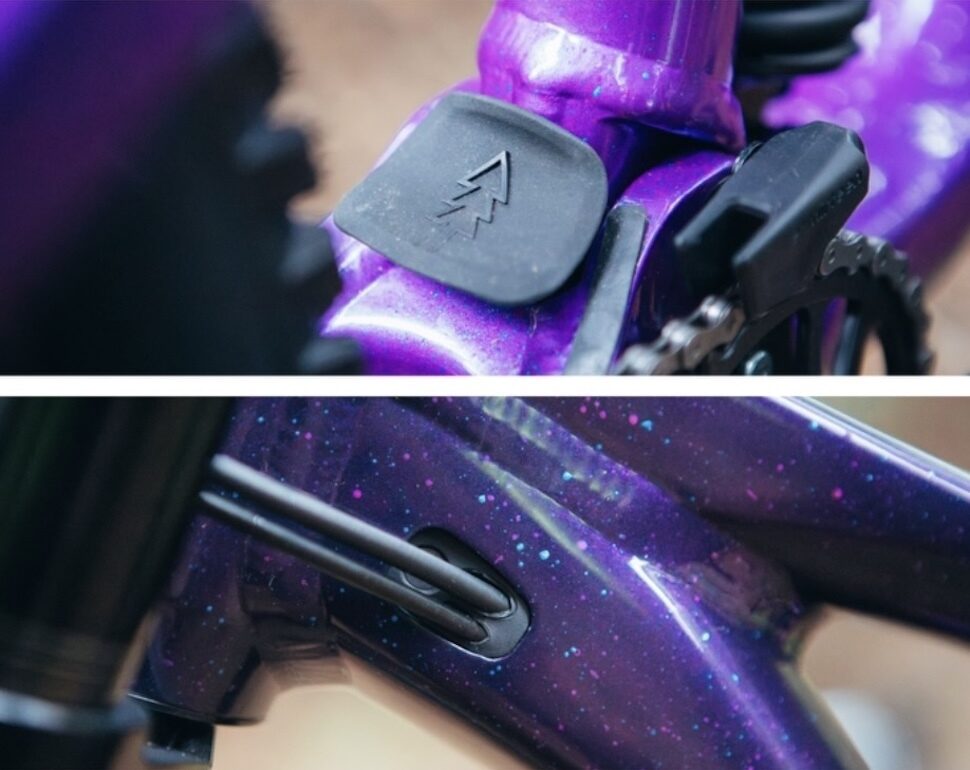

Chainstays and seatstays are protected with durable rubber guards to minimize noise and protect paint finishes, and a mudflap positioned over the lower suspension pivot keeps spray and muck off the bearings. There's an integrated lower downtube guard and an upper downtube shuttle pad to protect the frame when hanging over a tailgate. Cable ports are of an all-new design and keep the frame innards sealed. These ports use rubber membranes punctured during initial assembly and seal around the housing or hose once inserted.

HEADTUBE AND HEADSET COMPATIBILITY

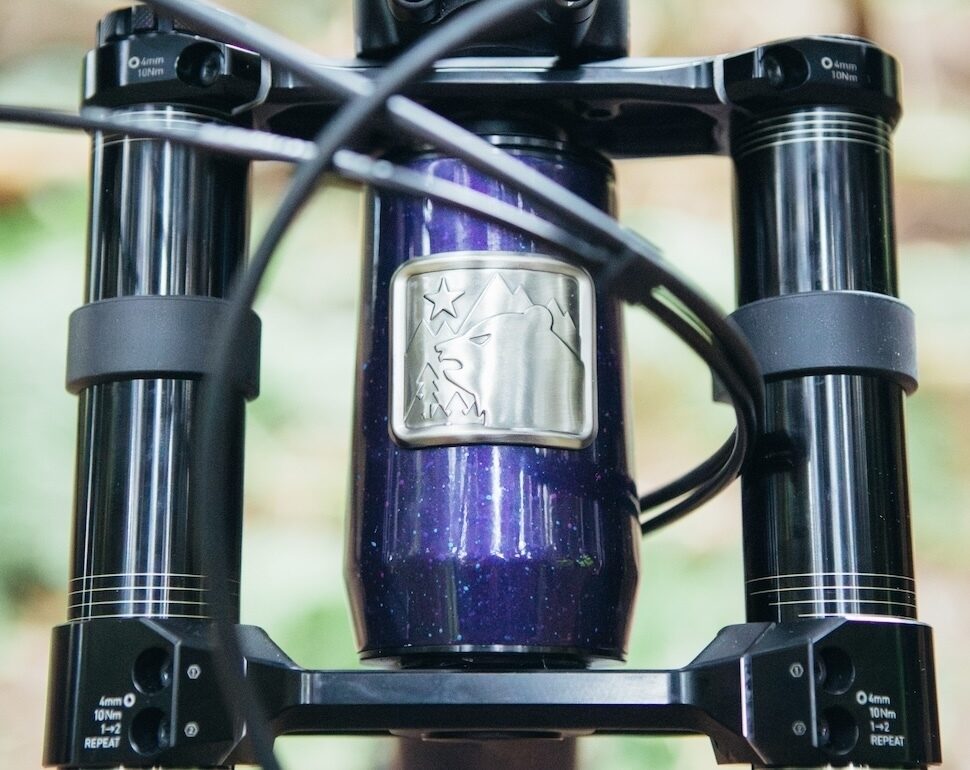

The Quake’s headtube is a 56ZS (56mm diameter, zero stack) to maximize aftermarket headset options for reach and headtube angle adjustments. Furthermore, the frame is also compatible with most appropriate single crown forks, with 29" or 27.5" front wheels. Riders who switch to 27.5" wheels need to use a 10-15mm external lower cup for 180-190mm single crown or 200mm dual crown forks.
