2025 Marin Rift Zone E XR - Red/Black
Marin
₽647,921.40
(No reviews yet)
Write a Review
Marin
2025 Marin Rift Zone E XR - Red/Black
XR stands for EXTRA RAD. We turned the Rifty E up another notch with this one - RockShox Lyrik Ultimate fork and Super Deluxe Ultimate Shock, SRAM GX Eagle T-Type drivetrain, next-gen Shimano EP801 motor, SRAM Code 4-piston brakes and Vee Tire Co rubber. And the cherry on top? SRAM AXS wireless shifting and a wireless RockShox Reverb dropper post. Our highest spec, highest tech Rifty E ever.
- Suspension: RockShox Lyrik Ultimate/RockShox Super Deluxe Ultimate
- Wheel Size: 29"
- Frame: Aluminum
- Color: Red/Black
Key upgrades from the Rift Zone E2
- SRAM GX AXS T-Type
- RockShox Lyrik Ultimate/Super Deluxe Ultimate suspension
- SRAM Code Bronze 4-piston brakes
- RockShox Reverb AXS dropper post
Features:
- Certificate: EN15194
- System: Shimano Steps EP801
- Max torque: 85Nm
- Max assisted speed: Class 1, 20MPH (USA/NZ), 25 km/h rest of world*
- Battery capacity: 630Wh
- Range: 19-50 miles / 30-80km
- Rider app: Shimano E-TUBE RIDE
* Based on rider weight, terrain, climate and level of assistance used.
** Note: carrier does not conform to EN ISO 11243:2016 standards and is NOT designed for use with a child carrier.

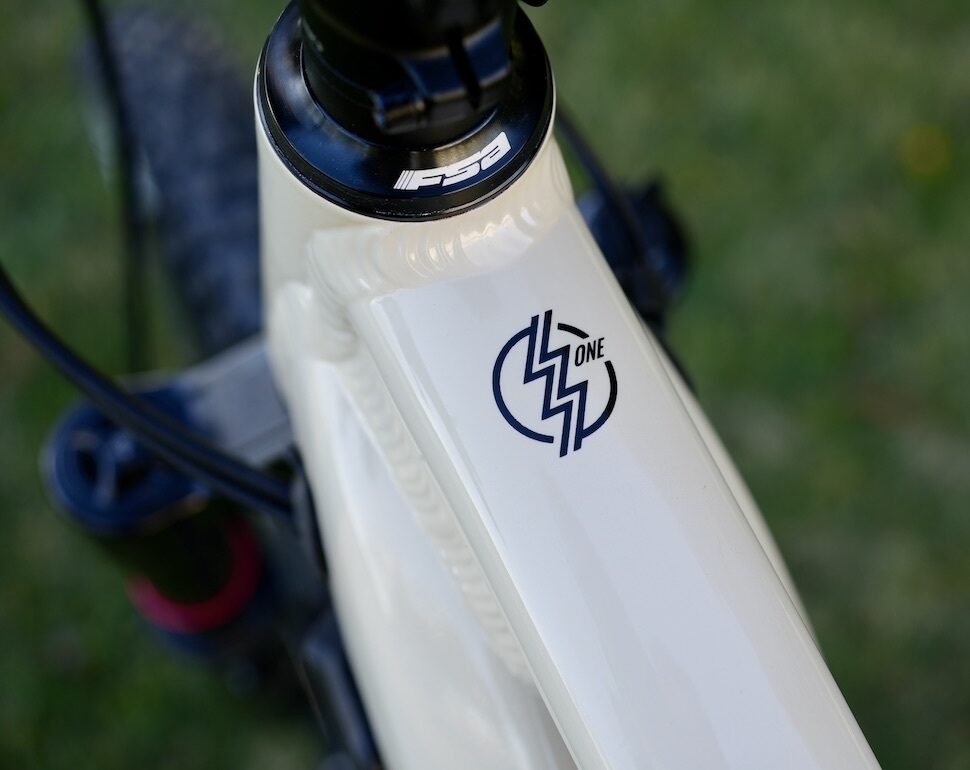

SERIES 4 ALUMINUM FRAME
Rift Zone E models are built upon our Series 4 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers, compatible with modern coil or air shocks.

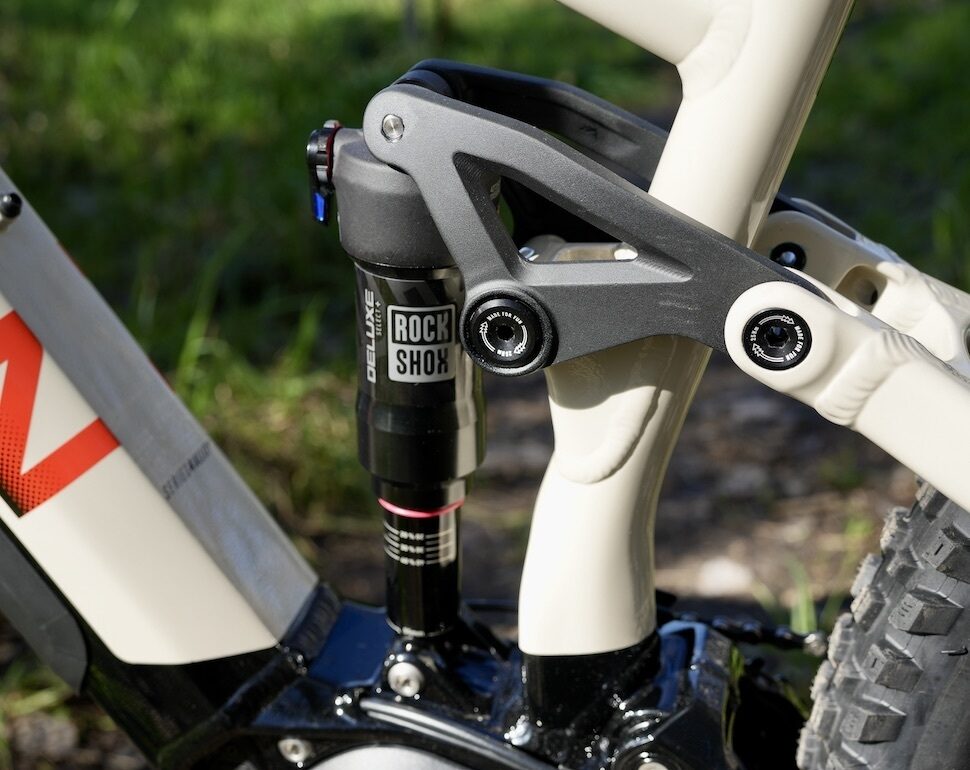

MULTITRAC SUSPENSION
The Alpine Trail E features the same great, proven MultiTrac suspension technology, but optimized for the Shimano STEPS system, with 140mm of suspension for the best on-trail experience.

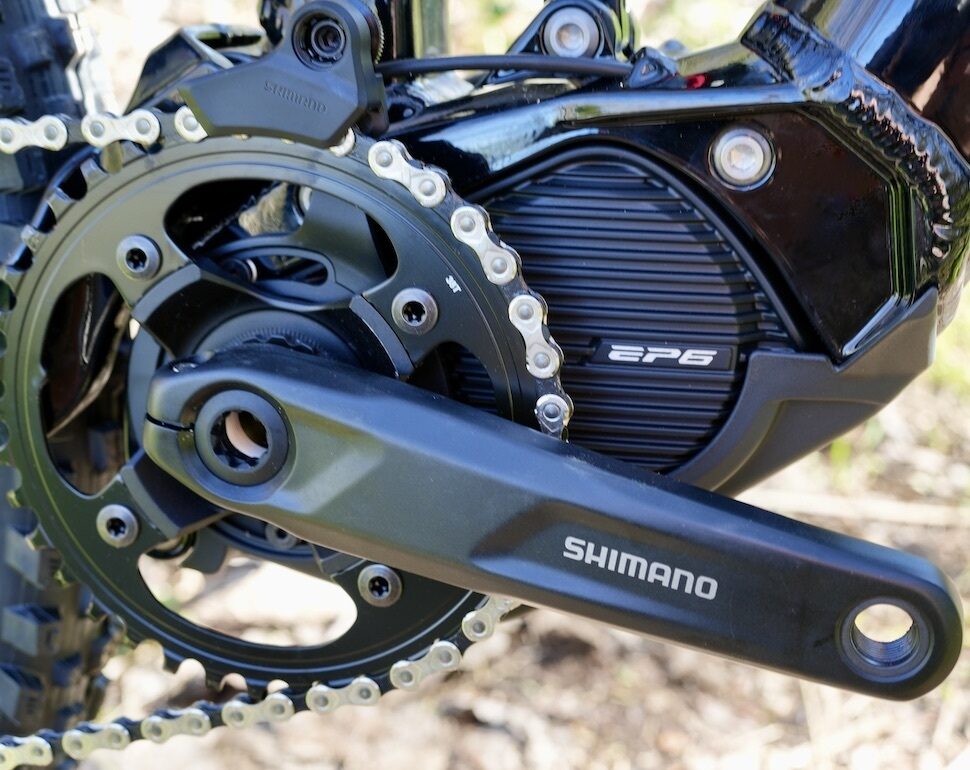

SHIMANO STEPS
Shimano’s STEPS system is both powerful and lightweight, with the mid-drive motor down low to help ensure that the Rift Zone E performs like the analog version, but with a 250W boost. Three levels of power give riders options to balance electric power, speed and range. Electric assist up to 20mph in the US, 25km/h in Europe.
- Frame:
- Series 4 Alloy, 140 mm MultiTrac Suspension, Integrated Battery/Charging Port, 148 mm Rear Thru-Axle, Built-in Rear Speed Sensor
- Fork:
- RockShox Lyrik Ultimate, 150 mm Travel, 29, 110x15 Maxle Stealth, 42 mm Offset
- Rims:
- Marin Aluminum Double Wall, 29 Diameter, 29 mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible
- Tires:
- Vee Tire Co. Attack HPL, 29x2.5, Top 40 Tubeless Compatible, Overide E-Specific Casing
- Shift Lever:
- SRAM AXS POD
- Crankset:
- Shimano XT M8150, 160 mm Length, 38T Steel SRAM Chainring
- Brake Levers:
- SRAM Code Bronze Stealth
- Handlebar:
- Marin Trail, 35 mm Clamp, 7000 Alloy Bar, 800 mm Length, 20 mm Rise, 5 Degree Up, 8 Degree Back
- Stem:
- Marin CNC, 35 mm Length, 35 mm Bar Bore
- Grips:
- Marin Grizzly Lock On
- Headset:
- FSA No 57, Sealed Cartridge Bearings, 1 1/8 x 1 1/2"
- Seatpost:
- Rock Shox Reverb AXS with POD remote, Size S: 125 mm, Size M: 150 mm, Size L/XL: 170 mm
- Saddle:
- Marin eMTB
- Pedals:
- Marin MTB Plastic
- Chain:
- SRAM GX
- Cassette:
- SRAM CS-XS-1275, 10-52T
- Battery:
- BT-EN806 Internal 630Wh
- Range, Charging Time:
- 15-43 miles (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 11 Hours (estimated, under ideal conditions)
- Spokes:
- 14g Black Stainless Steel
- Extras:
- Shimano CS-EM800 Chain Guide, Shimano Battery Charger EC-E6002, 2A
- Hub Rear:
- Formula DC-711, 110x15, 6-Bolt, 32H
- Hub Front:
- Formula DCL-3482, 4 Sealed Bearings, 148x12, XD Driver, 32H
- Derailleur Rear:
- SRAM GX AXS
- Brakes Front:
- SRAM Code Bronze, 4-Piston Hydraulic Disc, 203 mm HS2 Rotor
- Brakes Rear:
- SRAM Code Bronze, 180 mm HS2 Rotor w/ Bolt on Speed Sensor
- Motor:
- Shimano EP801, 250W, 85Nm
- Display:
- Shimano SC-E600
- Switch:
- SW-EN600L Left Hand Switch for Assist Mode Change
- Shock:
- RockShox Super Deluxe Ultimate, 210x55, 25 mm x M8 Hardware, Custom Tune
