Click for Geometry
2025 Marin San Quentin 29" 3 - Gloss White/Black/Red
Marin
$1,799.00
(No reviews yet)
Write a Review
Marin

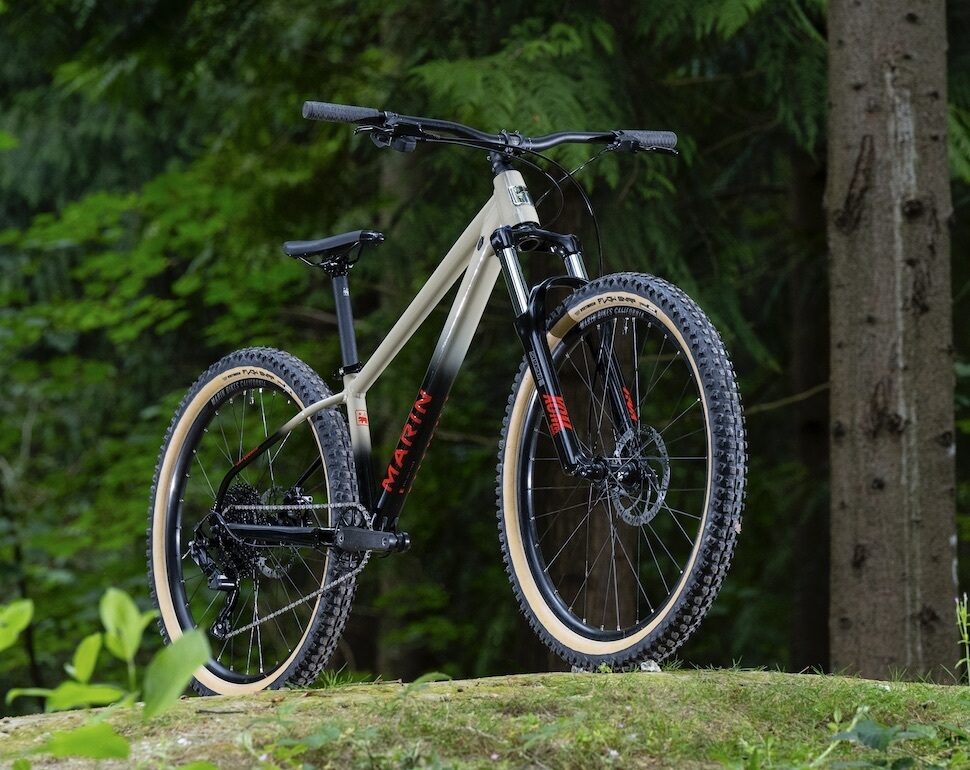

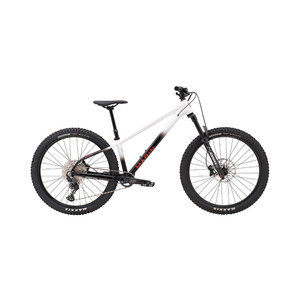

2025 Marin San Quentin 29" 3 - Gloss White/Black/Red
Dirt jump DNA with all the speed and roll-over of 29" wheels. The San Quentin 3 29 is the top dog in the SQ 29 family. We’ve worked tirelessly to create the very best-specced San Quentin 29 ever but still kept the price tag down to earth and in reach of everyone. Marzocchi Z2 fork? Check. TRP 4-piston brakes and 12-speed drivetrain? TranzX dropper post? You got it. FSA cranks, Maxxis rubber and plenty of kick-ass Marin kit? Abso-freakin-lutely.
- Suspension: Marzocchi Bomber Z2
- Wheel Size: 29", 27.5"
- Frame: Aluminum
- Color: Gloss White/Black/Red
Key upgrades from the San Quentin 2 29"
- Marzocchi Bomber Z2 fork
- Shimano Deore wide-range 12-speed drivetrain
- TRP Slate Evo 4-piston brakes
- Maxxis Assegai tubeless compatible tires

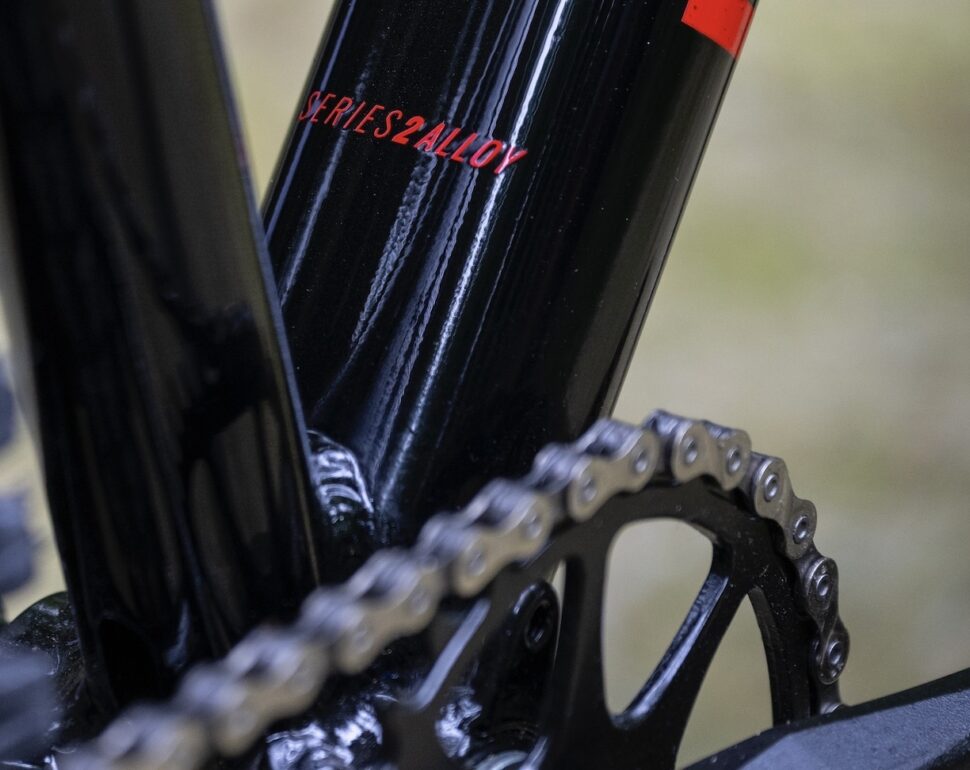

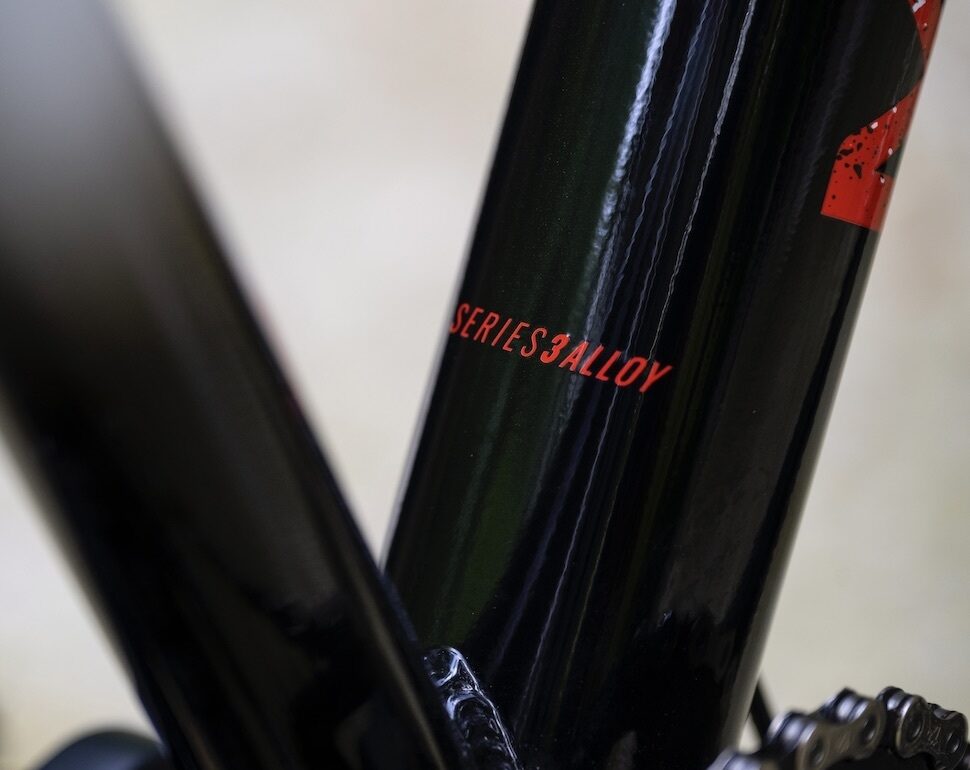

SERIES 3 AND 2 ALUMINUM FRAMES
The San Quentin 1 features a Series 2 aluminum frame, with tapered head tubes, 3D forged drop outs, IS brake mounts, and semi-internal cable routing. The San Quentin 2 and 3 feature Series 3 aluminum frames, with more advanced tube forming, more complex dropouts, post mount disc tabs, full internal cable routing, and a boost 148mm thru-axle.

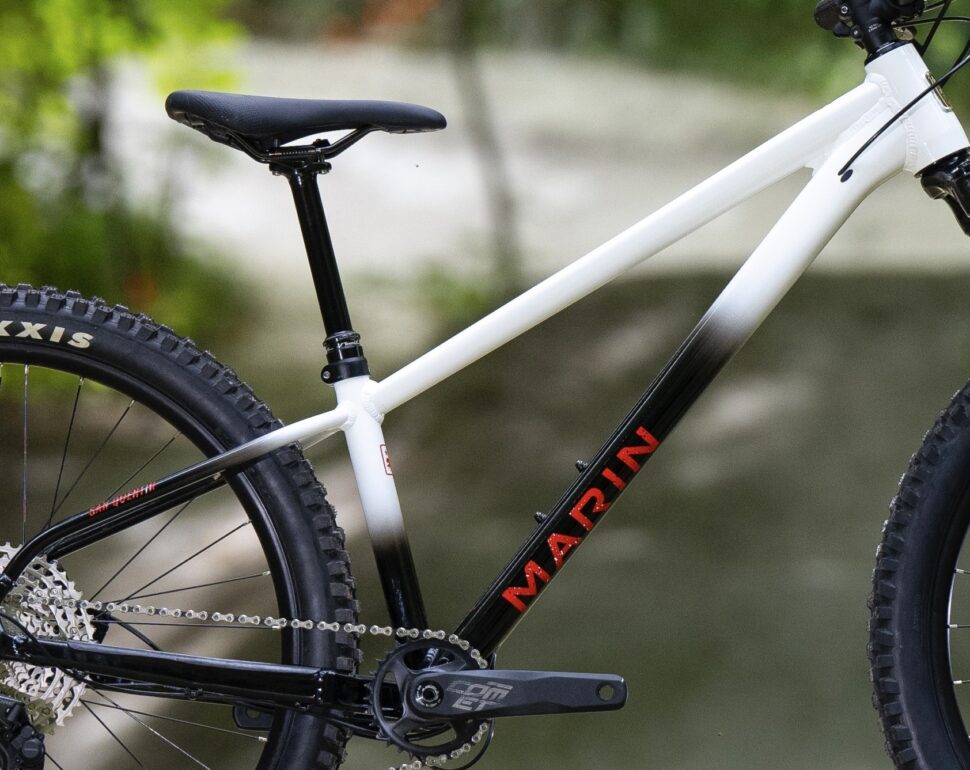

DIRT JUMP INSPIRED FRAME STYLE
Taking cues from the Alcatraz, the San Quentin line up provides all the benefits of the DJ style with massive stand over, slick frame tubes, and a sexy paint job.
MODERN TRAIL GEOMETRY
The slack head tube angle paired with a steep seat tube angle create a ride that will fly uphill with perfect front wheel precision but then descend like it’s on rails. The balanced rider position thanks to the steep seat tube puts your weight between the wheels for impressive climbing and handling on flats, while the slack front end and short rear center help to pull you through the rough descents and corners with an intuitive feel.
ISCG TABS
San Quentin 2 and 3 models feature ISCG 05 tabs for easy chain retention device installation for rowdier riders.
- Frame:
- Series 3 6061 Aluminum, Double Butted, Internal Cable Routing, 12x148 mm Thru-Axle, 73 mm Threaded BB
- Tires:
- Maxxis Assegai, 29 x 2.5 MAXX TERRA, EXO Casing, Tubeless Compatible
- Shift Lever:
- Shimano Deore, 12-Speed, SL-6100IR
- Crankset:
- FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
- Bottom Bracket:
- FSA MegaExo 73 mm BSA
- Brake Levers:
- TRP Slate EVO, I-Spec EV Compatible
- Handlebar:
- Marin Mini-Riser, 6061 Double Butted Aluminum, 780 mm Width, 28 mm Rise, 5º Up, 9º Back
- Stem:
- Marin 3D Forged Alloy, 35 mm
- Grips:
- Marin Grizzly Lock On
- Headset:
- FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8 x 1 1/2";Seatpost=TranzX, YSP23JL, 1x Remote, Size S 125 mm Travel, Size M 150 mm Travel, Size L-XL 170 mm Travel, 30.9 mm"
- Saddle:
- Marin Speed Concept
- Pedals:
- Marin Nylon Flat
- Chain:
- KMC X-12 Silver and Black
- Cassette:
- SunRace, MicroSpline, 10-51T
- Spokes:
- 14g Black Stainless Steel
- Front Suspension:
- Marzocchi Bomber Z2, 110x15 mm Boost Spacing, 140 mm Travel, Kabolt Axle, 44 mm Offset
- Rim:
- Marin Aluminum Double Wall, Disc Specific, 29 mm Inner, Sleeved Joint, 32H, Tubeless Compatible
- Hub Rear:
- Shimano HB-MT410B, 148x12 mm, MicroSpline Freehub Body
- Hub Front:
- Shimano HF-MT410B, 110x15 mm, 32H
- Derailleur Rear:
- Shimano Deore, SGS
- Brakes Front:
- TRP Slate EVO, 4-Piston Hydraulic, Resin Pads, 203 mm Rotor
- Brakes Rear:
- TRP Slate EVO, 4-Piston Hydraulic Disc, 180 mm Rotor
