2025 Marin San Rafael DS1 - Gloss Black/Silver
MarinFITNESS RIDING
MIXED SURFACES AND TERRAIN
TOWN AND COUNTRY COMMUTING
Stay active, have fun and get from A to B with Marin’s San Rafael DS1
The San Rafael DS1 is lightweight, comfortable and packed with modern, reliable components. It’s made for exploring your local rail-trail, cruising to work, for the grocery-run or for keeping in shape. Efficient on the road, comfortable on the dirt tracks. Whatever, whenever.
It has a Series 2 Dual Sport aluminum frame, a shock-absorbing SR/Suntour NEX suspension fork, reliable Shimano gearing, grippy Kenda Kahn 700C tires and even mechanical disc brakes so you’ll always be in control.
- Suspension: SR Suntour NEX
- Wheel Size: 700C
- Frame: Aluminum
- Color: Gloss Black/Silver

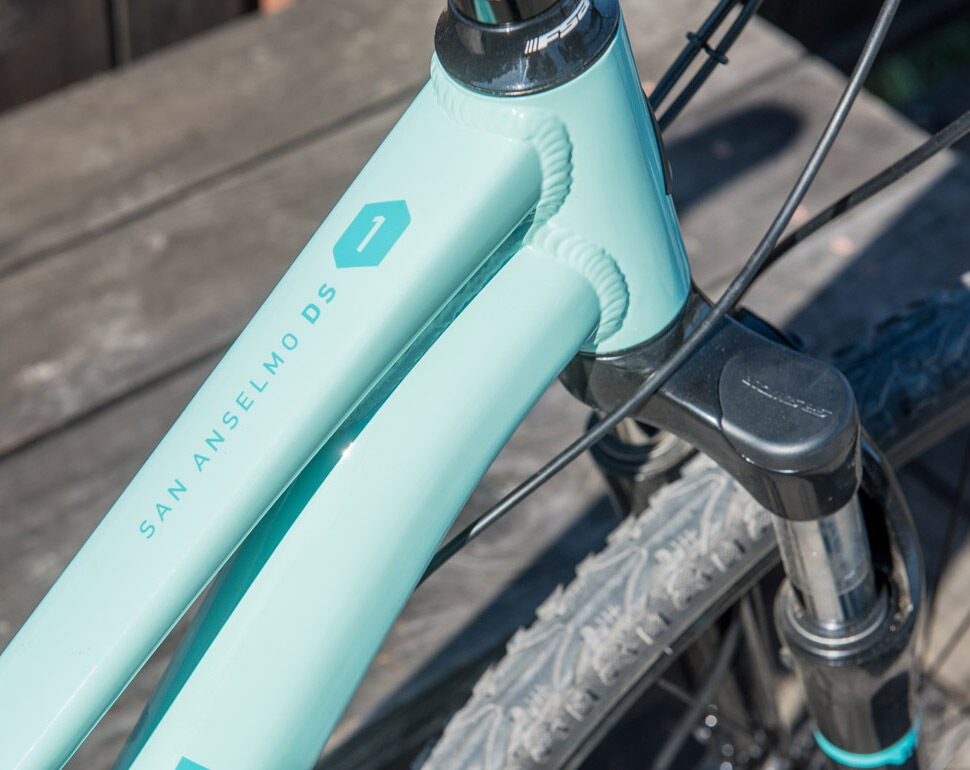

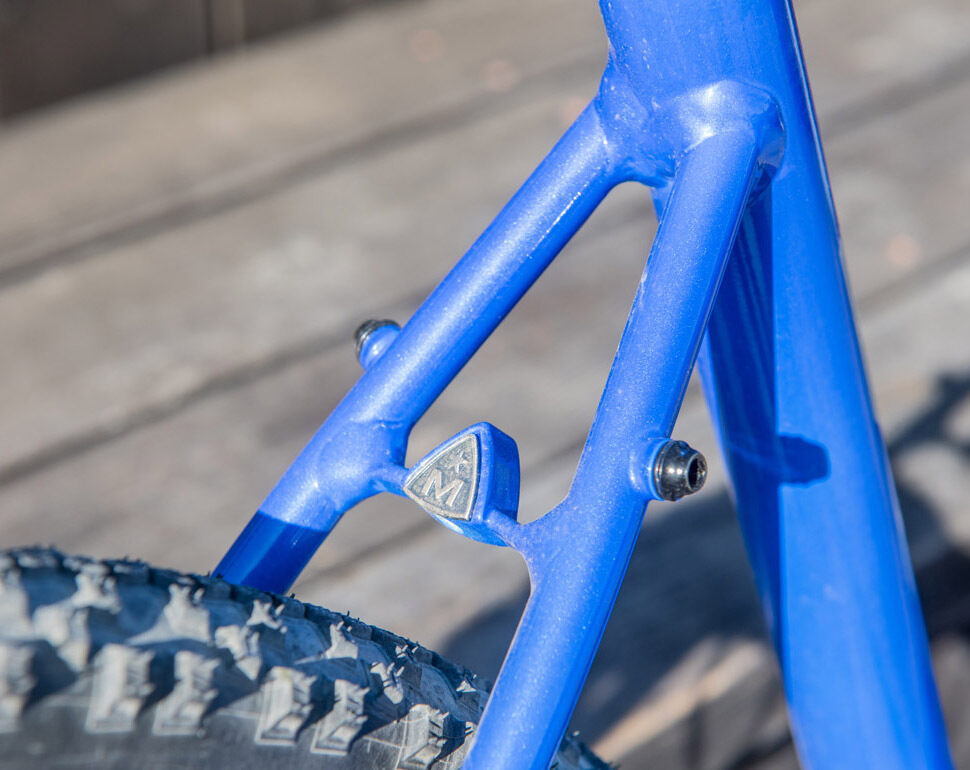

SERIES 2 ALUMINUM FRAME
The San Rafael and San Anselmo have a Series 2 6061 butted and hydroformed aluminum frame with disc brakes, rear rack and fender mounts, a 63mm travel suspension fork, and 700C wheels
WOMEN’S FIT GEOMETRY
The San Anselmo features Women’s Fit Geometry to better fit female riders with components like women’s specific saddles, narrower bars, and short reach brake levers.

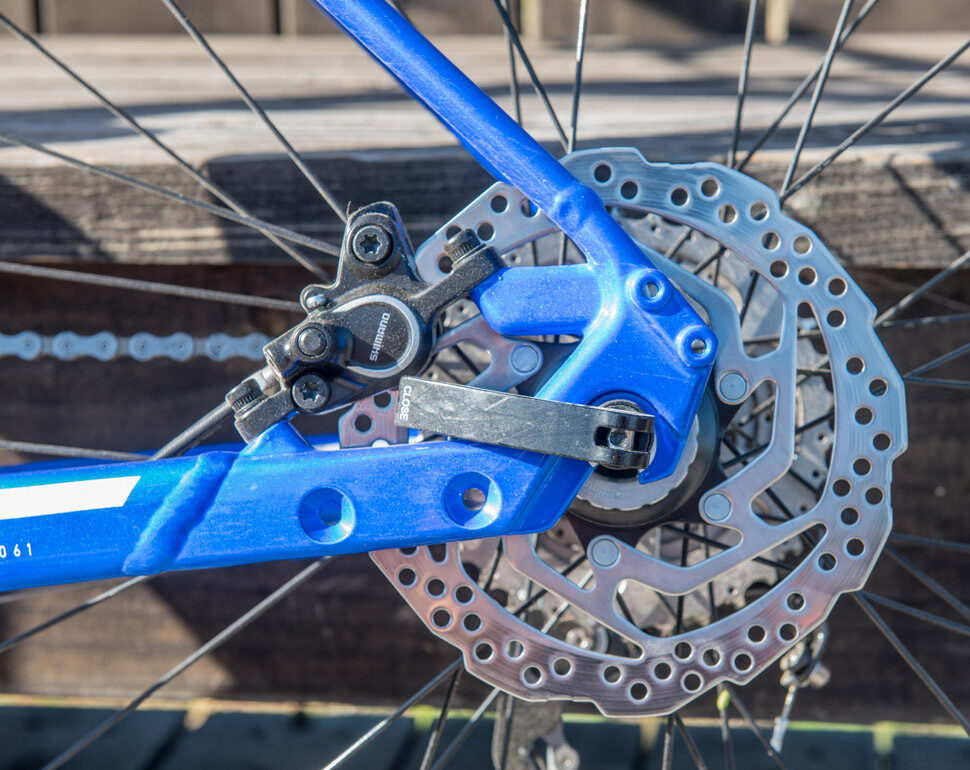

DISC BRAKES
Hydraulic disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.
- Frame:
- Series 2 Dual Sport, 6061 Aluminum, 700C Wheels, Disc Brake
- Fork:
- SR/Suntour NEX, 63 mm Travel, Preload Adjustment
- Rims:
- Marin Aluminum Double Wall
- Hub, Rear:
- Forged Aluminum Alloy, 32H
- Hub, Front:
- Forged Aluminum Alloy, 32H
- Spoke, Nipples:
- 14g Stainless Steel
- Tires:
- Kenda Kahn, 700Cx40 mm
- Derailleur, Rear:
- Shimano Tourney, 7-Speed
- Derailleur, Front:
- Shimano TY710
- Shift Lever:
- Shimano EF500 Shifter/Brake Lever Combo, 2x7-Speed
- Crankset:
- Forged Alloy Crank, 46/30T, Ring Guard
- Bottom Bracket:
- Sealed Cartridge Bearings, Square Taper
- Brake, Front:
- Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160 mm Rotor
- Brake, Rear:
- Clark's CMD-23 Mechanical Disc, 160 mm Rotor
- Brake Levers:
- Shimano w/ Integrated Shifters
- Handlebar:
- Marin Alloy Riser
- Stem:
- Marin Alloy, 31.8 mm Clamp
- Grips:
- Dual Density Ergonomic
- Headset:
- FSA No.10-P
- Seatpost:
- Marin Alloy, 27.2 mm
- Saddle:
- Marin Fitness Plush
- Pedals:
- Dual Sport Platform
- Chain:
- KMC Z8
- Cassette:
- SunRace 7-Speed, 11-34T
