2025 Marin Stinson E ST - Gloss Silver/Black/Red

Our renowned Stinson comfort bike, now with a boost. The Stinson E takes all the beloved features of the standard model, but delivered with a smooth and powerful 250W rear hub motor to transform the fun and stylish bike into an amazing experience for everything from bike path cruising to daily commuting.

The ST model features a step-thru frame for an even easier riding experience.

• Wheel Size: 27.5"
• Frame: Aluminum
• Color: Gloss Silver/Black/Red

Features:

• Certificate: UL 2849 EN15194
• System: Bafang rear hub motor
• Max torque: 40Nm
• Max assisted speed: Class 1, 20MPH (USA), 25 km/h rest of world
• Certificate: EN15194
• Battery capacity: 340Wh
• Range: 19-62 miles / 30-100km*
• Rider app: Bafang Go

* Based on rider weight, terrain, climate and level of assistance used.

** Note: carrier does not conform to EN ISO 11243:2016 standards and is NOT designed for use with a child carrier.

SERIES 1 FRAME

The Stinson E features a Series 1 6061 aluminum frame with exceptionally low standover, disc brake mounts, and rack and fender eyelets and high-volume 27.5" wheels. Stinson ST models further lower the standover height with a step-through frame design. Both versions incorporate the battery into the downtube for clean looks and added security.

ELECTRIC DRIVETRAIN

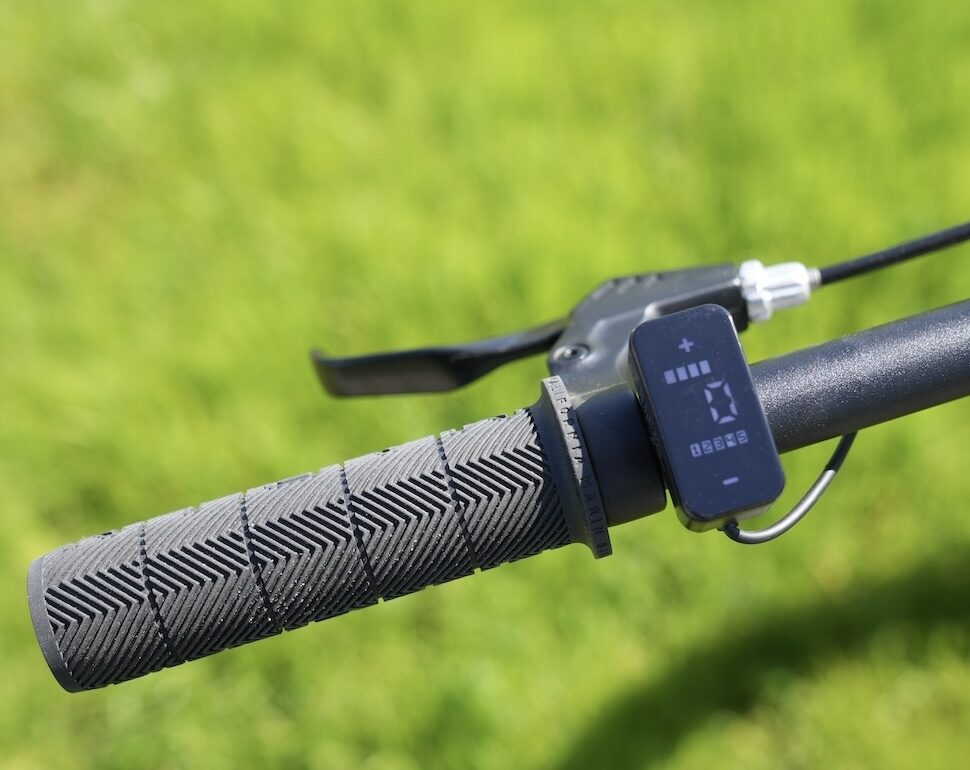

The Bafang rear hub motor provides 40Nm of torque in a compact and tidy package, and delivers top assisted speeds of 20mph, 32km/h (North America), and 25km/h for the rest of the world. Five levels of assist, accessed via a handlebar-mounted controller, means that riders can quickly dial in the level of assistance that best meets their needs and riding style. The controller also doubles as a display, showing speed, battery charge state, and assist level selected. The Bafang Go app supports real-time access to ride data, real-time access to human health data such as heartbeat and calorie data, and access to navigation steering and traffic tips.

INTERNAL BATTERY

A new feature for the model family, the 340Wh in-tube battery is neatly integrated into the Stinson E's downtube, protected and giving the bike a sleeker look. The charging port is easily accessible, under a weather-resistant cover.

DISC BRAKES

Disc brakes provide smooth, controlled stopping in all conditions.

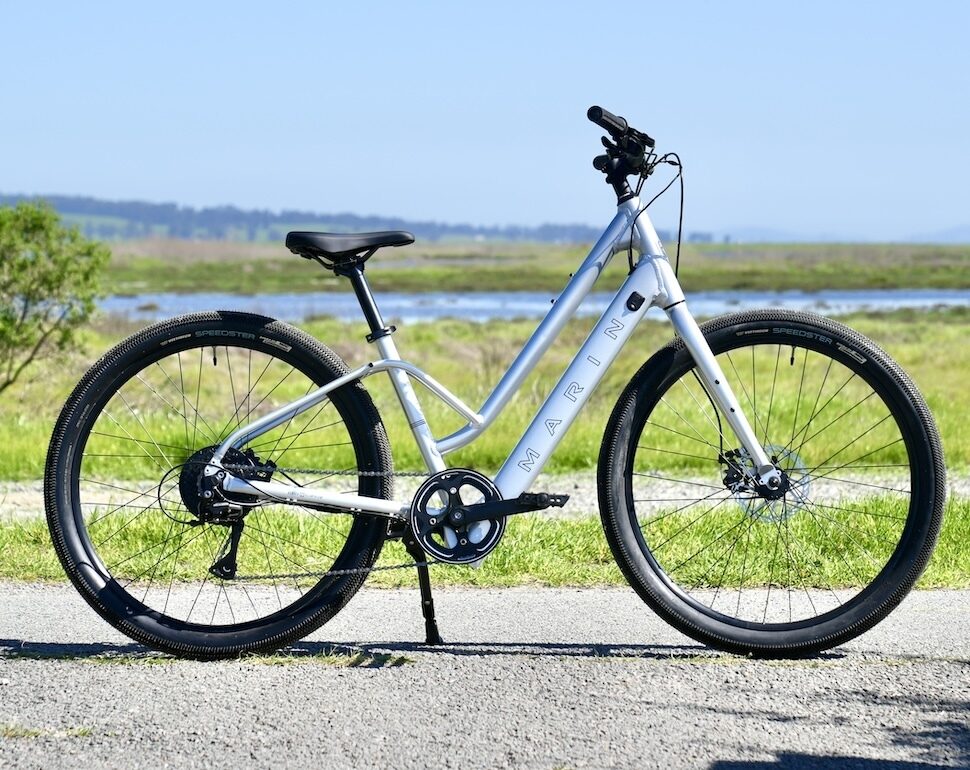

STEP THROUGH DESIGN

The Stinson E ST features a step-through frame design with a lowered toptube for easier mounting and dismounting.

SHIMANO DRIVETRAIN

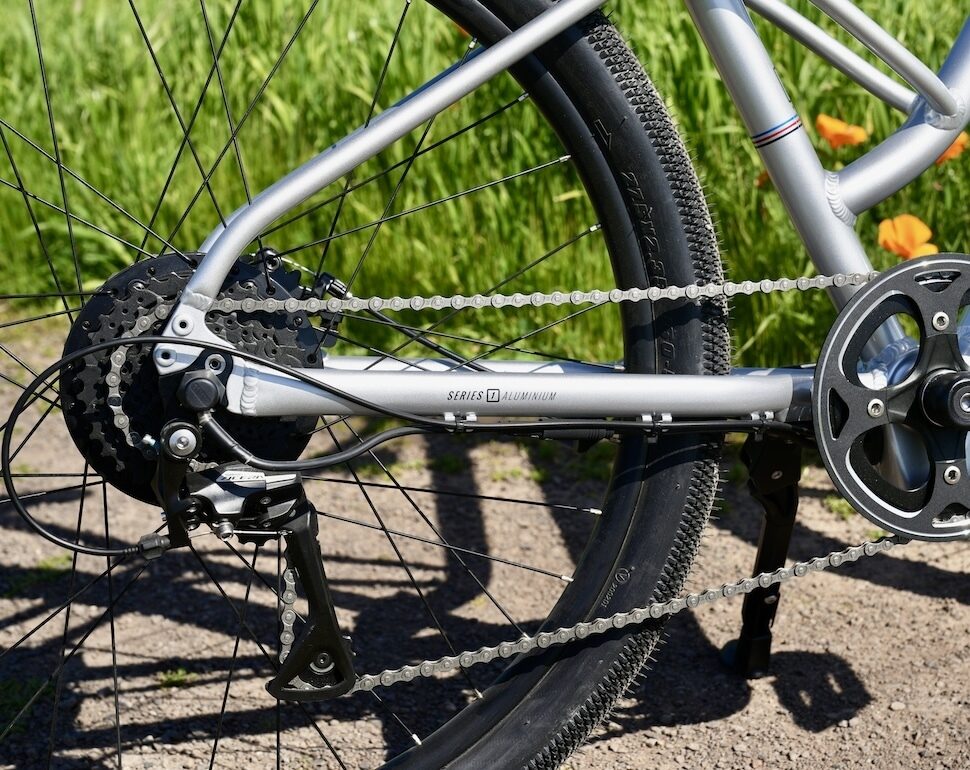

Shimano's stalwart Altus 8-speed drivetrain smoothly and reliably glides between the gearing.

SMOOTH-ROLLING RUBBER

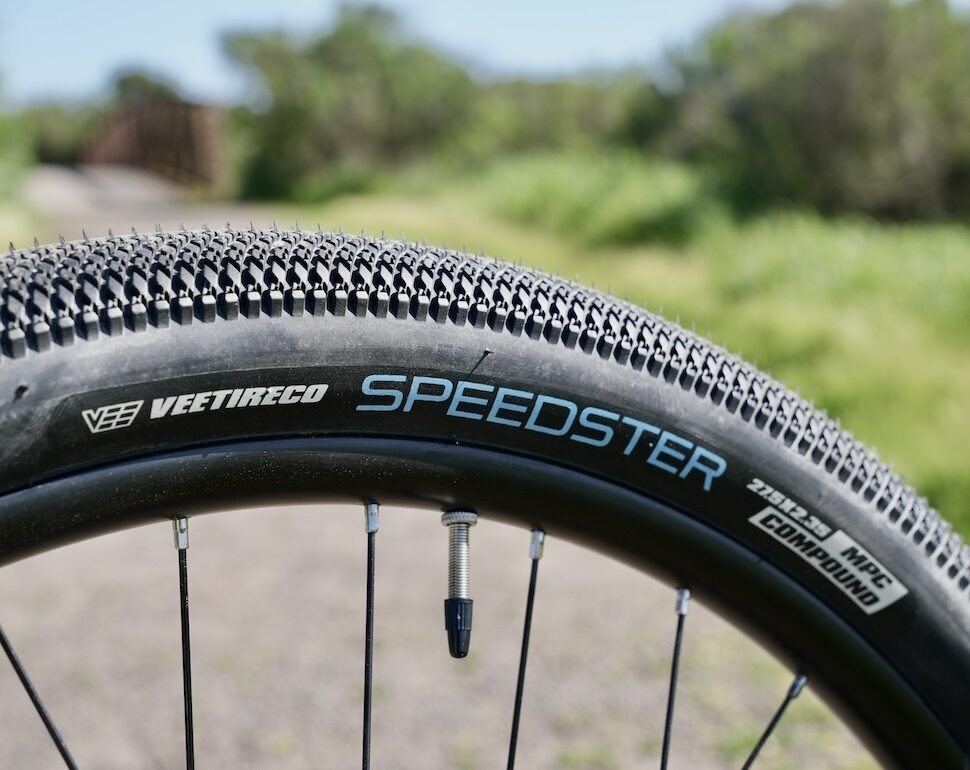

The Stinson E rolls on Vee Tire Co's Speedster 27.5 x 2.35" tires, which feature high volume and low knobs for comfort and efficiency, and lots of gripping edges for control on pavement or improved off-road surfaces.

LIGHTING CONTROL

The Stinson E is equipped to power accessory lighting, with a wiring harness just waiting to be plugged into. Headlamp and taillamps are then controlled by holding down the system controller switch.
