2025 Salsa Cassidy SLX - Tan
SalsaCassidy SLX is built for more than just getting downhill the fastest. Sure, the 6061-T6 aluminum frame is up for all the trail punishment you can put it through. And the RockShox Super Deluxe Select+ shock and ZEB R fork have your back with 165 mm rear and 180 mm of suspension travel on tap. Cassidy's geometry and our Split Pivot suspension design ensure your tires stick to the trail, whether you're hurtling downhill or climbing back up for another lap. Unlike other enduro bikes, Cassidy features on-bike storage, such as a tube strap spot, a top tube mount, and full-size bottle mount. This lets you extend your ride time or just get the sweaty pack off your back. With a Shimano SLX 1 x 12 drivetrain and four-piston brakes, you're equipped for any enduro course or trail day.
WARNING:
This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
SPECIFICATIONS:
Headset:
FSA Orbit 1.5E NO.57E ACB, ZS44/ZS56
Seatpost:
TranzX YSI05, Shimano MT500 lever, 30 mm travel adjust (SM 125 x 409 mm, MD 150 x 459 mm, LG 170 x 499 mm, XL 200 x 559 mm)
Stem:
Salsa Guide Trail 50 mm
Grips/Bar Tape:
Salsa File Tread Lock-on
Saddle:
WTB Volt 250 Steel, 250 x 135
Handlebar:
Race Face Chester 35
Rear Derailleur:
Shimano SLX M7100 SGS
Cassette:
Shimano Deore M6100, 10-51t, 12-speed
Chain:
Shimano Deore M6100
Crankset:
Shimano Deore M6130, 30t
Shifter:
Shimano Deore M6100
Brake Calipers:
Shimano Deore M6120 four-piston
Rotors:
Shimano RT64, Center Lock (203 mm)
Front Wheel:
Shimano MT400-B 15 x 110 mm hub, WTB ST i30 29" rim
Rear Wheel:
Shimano SLX M7130 12 x 157 mm hub, WTB ST i30 29" rim
Front Tire:
Maxxis Assegai 29 x 2.5", Maxx Grip, DD, TR
Rear Tire:
Maxxis Dissector 29 x 2.4", Maxx Grip, DD, TR
Complete Bike:
36 lbs 3 oz for Medium
Frame:
Cassidy Alloy V1
Color:
Tan
Rear Shock:
RockShox Super Deluxe Select+
Suspension Fork:
RockShox ZEB R, 180 mm, 44 mm offset
KEY FEATURES:
Split Pivot Suspension System
- Allows us to tune the pedaling and braking forces independently
- Maximizes pedaling and braking performance without compromising either
- Results in optimal pedaling efficiency and traction when braking
Split Pivot +
- Multiple travel classes in one chassis provides riders with the opportunity to adapt their bikes to various adventures
Flip Chip
- Provides the ability to alternate wheel and tire sizes
- Riders can adjust for their terrain, or desired handling characteristics
Suspension Kinematics
- Lively, responsive ride feel with good bottom-out resistance
- Free, active, and uniform suspension feel under braking
- Efficient pedaling, stellar climbing traction, supple small-bump performance
- Tunable for all riders
Frame Protection
- Our products are built from experience - we've been there enough to know that a carbon fork can benefit from added protection just as much as the downtube on a suspension bike.

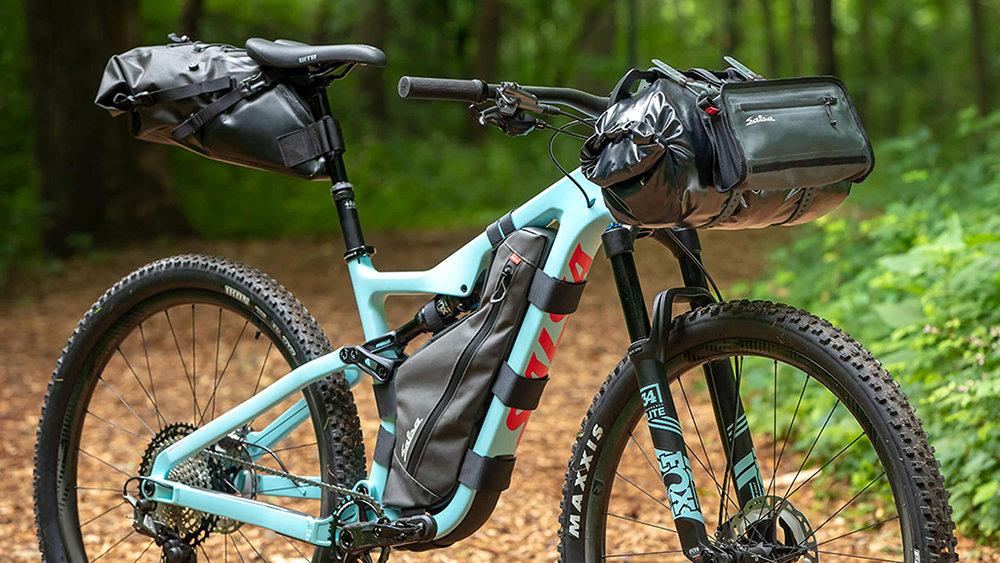

On-Bike Storage
- Adventures require gear and riders should get to choose whether they carry it on their bike or on their body
ADDITIONAL FEATURES:
Split Pivot Rear Suspension
Split Pivot provides a host of impressive suspension characteristics because the system isolates pedaling forces and braking forces from each other, allowing us to tune and optimize the bike for both independently. The concentric rear axle pivot, in conjunction with precise wheel link, brake link, and control link placement, results in excellent bump compliance and pedaling efficiency, smooth and predictable braking throughout travel, and maximum traction
Split Pivot+ Design Methodology
The Split Pivot+ design methodology allows our engineers to optimize a frame for more than one travel class. This means that Cassidy riders can swap control and shock links, in addition to the rear shock and fork, to switch travel to Blackthorn's 140 mm rear and 160 mm front capability. One frame, multiple bikes
Progressive Leverage Rate
Progressive from start to finish, Cassidy's leverage rate is tuned for speed. It delivers supple small-bump action early for a smooth ride at high speed; a consistent and supportive feel through the mid-stroke for popping, pumping, and holding up to high-G corners; and continued progression through the end-stroke to provide plenty of support for big hits and recovering from poor line choices
Flip Chip 2.0
Integrated into the shock link mount, Flip Chip 2.0 allows simple, quick adjustments to bottom bracket height and head tube angle to account for the rider's personal preference, terrain, or wheel size and tire diameter
EPS Carbon Main Triangle with Carbon Seatstays and Aluminum Chainstays
EPS construction allows for greater manufacturing control, smooth surfacing, a simplified bottom bracket junction, and an integrated shock mount. Carbon fiber material offers improved stiffness, better vibration damping, excellent toughness and weight savings compared to other materials. 6066-T6 aluminum heat-treated chainstays add durability
Top Tube Accessory Mounts
Top tube mounts accommodate K-Edge Top Tube Mount for bike computers or the Salsa EXP Series Direct Mount Top Tube Bag
Down Tube Three-Pack Mounts
Three-Pack mounts on down tube accommodate a large water bottle on the lower pair and a frame-mounted pump bracket on the upper pair
Integrated Repair Kit Location
Located in front of the rear shock in the front triangle, we provide a dedicated place for a small repair kit, tube, or bag of gummies. No more loading up your pockets or strapping the essentials to random spots on the frame and damaging the frame finish. Carbon frames feature an integrated reinforced slot and frame protection. Aluminum frames feature a machined strap slot. The slot is sized to accommodate most ¾"- to 1"-wide straps. A Salsa Tube Strap is included with each frame (the Salsa Tube Strap is for use with tubes only)
Accommodates a 26 oz Bottle
All Cassidy sizes accept a standard 26 oz water bottle within the front triangle
Internal Sleeved Cable Routing
Internal tubes guide housing through the frame, simplifying setup and maintenance, and creating a clean bike profile
Stealth Dropper Post Routing
Compatible with 30.9mm dropper posts for true trail bike performance
Molded Frame Protection
Molded rubber down tube, seat tube, chainstay, and seatstay guards protect your frame from impacts and abrasion
Versatile Tire Fit
Spec'd with a 29 x 2.5" tire up front and a 29 x 2.4" in the rear, Cassidy is also capable of running up to 29 x 2.6" or 27.5 x 2.8-3.0" wheels and tires
Chain Guide-Compatible
Cassidy frames features ISCG-05 mounts for chain guides (removable on carbon frames)
Remote Lockout Ready
Cassidy comes equipped for remote lockout, with cable routing to the rear shock via a cable port on the drive side of the downtube that exits between the forward shock mounting plates.
SUPPORTIVE DOCUMENTS:
Click for Bicycle Owner's Manual
Click for Gen 4 Split Pivot Suspension Setup
Click for Main Pivot Instructions
Click for Control Link Pivot Instructions
Click for Rear Axle Pivots and Hanger Instructions
Click for Shock Mount Hardware Instructions
Click for Flip Chip 2.0 Shock Mount Hardware
Click for Blackthorn / Cassidy Conversions
Click for Cable Port Frame Plug Instructions
- Frame Suspension Fork Length (Travel):
- 170-180 mm
- Frame Fork Offset:
- 42-51 mm
- Frame Rear Spacing:
- 157 x 12 mm TA
- Frame Rear Axle Size:
- 12 x 197 mm, TP = 1.75, TL = 20 mm
- Frame Rear Brake (Rotor):
- 74 mm post mount (180-203 mm)
- Frame Headset - Upper:
- ZS44
- Frame Headset - Lower:
- ZS56
- Frame Seatpost:
- 30.9 mm
- Frame Dropper Post Compatible:
- Yes (internal)
- Frame Seatpost Clamp:
- 35.4 mm
- Frame Derailluer Hanger:
- FS2322
- Frame Bottom Bracket:
- 73 mm BSA, threaded
- Frame Crankset (Max Ring):
- Super Boost 157, 55-57 mm chainline (34t)
- Frame Accessory Mounts:
- Top Tube Mounts: Compatible with Salsa EXP Series Direct Mount Top Tube Bag.
- Frame Bottle Mounts:
- 1
- Frame Rear Shock Size:
- 230 x 62.5 mm
- Frame Shock Mount, Fore:
- ø8 x 30mm
- Frame Max Post Insertion:
- SM = 195 mm, MD = 220 mm, LG = 245 mm, XL = 270 mm
- Frame Pivot Kit:
- 1215, 1585, 1587, 1589, 1590, 1592, 1594
- Frame Bearings:
- 17287 (Qty 4), 6801 (Qty 6)
