2025 Salsa Journeyer CUES 1x10 700c - Teal Green
SalsaWhat makes Journeyer one of the most popular gravel bikes? Its aluminum frame and carbon fork put you in a position for comfort and control on any road surface. Set it up for all your adventures with fender, rack, and accessory mounts. Take on any gravel terrain with 700c x 45mm front and 700c x 50mm rear tire clearance. Shimano's CUES 1x10 drivetrain delivers reliable shifting and braking and has enough gear range to get you through the ups and downs of any route. Start your gravel journey with Journeyer and you'll see why it's one of the most popular gravel bikes out there.
WARNING:
This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
SPECIFICATIONS:
Headset:
FSA NO.42/ACB
Seatpost:
Salsa Guide
Stem:
Salsa Guide
Grips/Bar Tape:
Black cork
Saddle:
Volt Medium Steel
Handlebar:
Salsa Cowbell 3
Rear Derailleur:
Shimano CUES U6000, 10/11-speed
Cassette:
Shimano CUES LG300, 11-48t, 10-speed
Chain:
Shimano CUES LG500 LINKGLIDE
Crankset:
Shimano CUES U6030, 42t
Shifter:
Shimano CUES U6030
Brake Levers:
Shimano CUES U6030
Brake Calipers:
Shimano CUES U6030
Rotors:
Shimano RT54 (Center Lock, 160mm front and rear)
Front Tire:
Teravail Washburn 700c x 42mm, wire-bead
Rear Tire:
Teravail Washburn 700c x 42mm, wire-bead
Frame:
Journeyer Drop-Bar Thru-Axle
Color:
Teal Green
Fork:
Waxwing Carbon (aluminum steerer)
Bottom Bracket:
Shimano CUES, 68mm, BSA
Front Hub:
Shimano RS470 12 x 100mm
Rear Hub:
Shimano RS470, 12 x 142mm
Spoke:
14g, black
Rim:
WTB ST i23, TCS 2.0, 28h, 700c
KEY FEATURES:
On-Bike Storage
- Adventures require gear and riders should get to choose whether they carry it on their bike or on their body

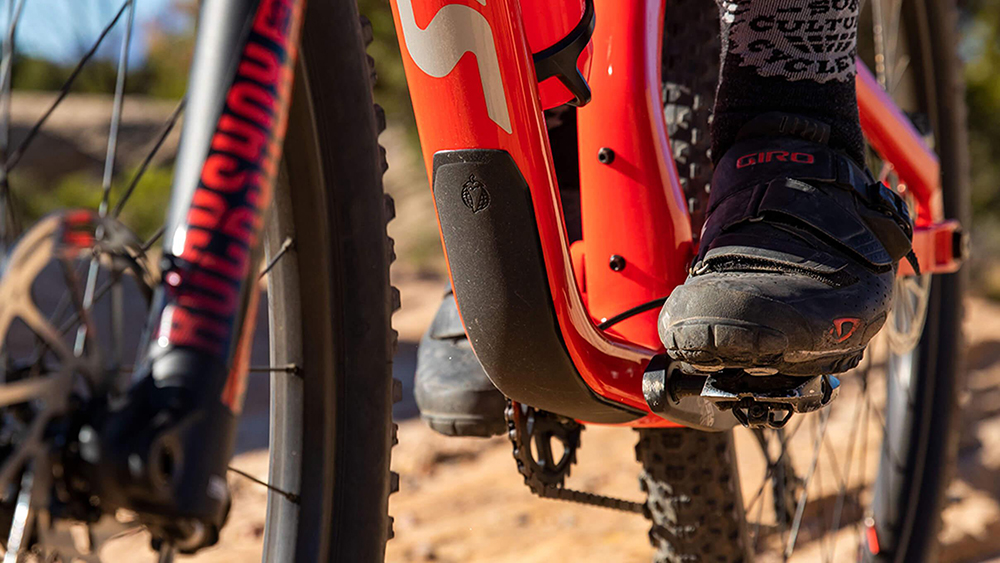

Frame Protection
- Our products are built from experience - we've been there enough to know that a carbon fork can benefit from added protection just as much as the downtube on a suspension bike.
ADDITIONAL FEATURES:
6061-T6 Aluminum Frame
We use alloy tubing developed specifically for the Journeyer frame, which is then heat-treated to T6 alloy standards for extra strength and durability.
12 x 142 mm Thru-Axle Rear
A thru-axle keeps the frame stiff for improved tracking and allows for consistent wheel placement.
Waxwing Carbon Fork
The Waxwing fork features carbon construction with an aluminum steerer. The 12 x 100 mm thru-axle keeps the front end stiff, so it goes where you point it. We designed Waxwing to carry a load, with two sets of Three-Pack mounts and mid-blade rack mounts. Internal Dynamo Hub Cable Routing and fender mounts make it easier to ride in all conditions. 700c x 45mm or 650b x 56.5mm (27.5 x 2.25") tire clearance lets you run a wide range of wheels and tires. An abrasion-resistant plate on the inside of the fork prevents wear from mud and other road debris.
Gravel Geometry
Journeyer feels comfortable and stable whether you're entering your first gravel race, exploring dirt paths around town, or venturing into unfamiliar terrain. It's spirited when you want it to be but relaxed enough to leave you with the energy for long rides.
Internal Cable Routing
Full-length housing improves shifting performance in poor conditions and increases use time between maintenance intervals. Internal routing for a clean, uncluttered look.
Dropper Post Routing
Internal dropper post routing makes it easy to outfit your Journeyer for more technical riding.
Flat-Mount Brakes
Flat-mount brakes offer a clean look, easy setup, and compatibility with most of today's road and gravel brake offerings.
Cargo Capability
Journeyer features front and rear rack mounts, a Three-Pack mount on each fork leg, a top tube mount, down tube mount, and bottle mounts. With this many options, you can load it up however you like.
700c x 42mm Wheels and Tires
700c wheels hold their momentum well, and the durable 42mm Teravail Washburn tires blend straight-line speed with confidence in turns on loose terrain.
Salsa Cowbell Drop Handlebar
Drop bars provide multiple hand positions, increasing comfort and efficiency on long rides. They also provide the rider a more aerodynamic position when stiff headwinds arise. Our Cowbell bars feature a 12° flare that puts your hands, wrists, and arms into a position that feels natural when you're in the drops.
Dual Wheel Size Compatibility
Journeyer fits both 700c and 650b wheel sizes so you can adapt it for any type of gravel or all-road ride.
SUPPORTIVE DOCUMENTS:
Click for Bicycle Owner's Manual
Click for ASTM Riding Conditions Classifications
Click for Salsa Journeyer Drop Bar - Front Triangle Frame Bag Guide
- Frame Rigid Fork Length:
- 402mm length on axis
- Frame Fork Offset:
- 50mm
- Frame Rear Spacing:
- 142mm
- Frame Rear Axle Size:
- 12 x 142mm thru-axle
- Frame Rear Brake (Rotor):
- Flat mount 140 frame standard (160mm max.), 20mm thickness, 27mm bolt length
- Frame Front Brake (Rotor):
- Flat mount 160 frame standard (180mm max.), 35mm thickness, 42mm bolt length
- Frame Headset - Upper:
- IS41
- Frame Headset - Lower:
- IS52
- Frame Front Spacing:
- 100mm
- Frame Front Axle Size:
- M12 x 120mm thru-axle, TP=1.5, TL=12mm
- Frame Steerer Tube:
- 28.6mm / 1 1/8Inches
- Frame Crown Race:
- 40mm
- Frame Seatpost:
- 27.2mm
- Frame Dropper Post Compatible:
- Yes (internal)
- Frame Seatpost Clamp:
- 32.0mm
- Frame Front Derailleur Type:
- 2x, bottom swing
- Frame Derailluer Hanger:
- SRAM UDH
- Frame Bottom Bracket:
- 68mm BSA
- Frame Crankset (Max Ring):
- 1x crankset: 42t max., 2x crankset: 48/33t max
- Frame Accessory Mounts:
- Downtube Accessory Mounts: OneRack Mounts Frame: YesRack Mounts Fork: Yes, low rider
- Frame Bottle Mounts:
- 49cm frame: one in main triangle51-56cm frames: two in main triangle57-60cm frames: three in main triangleFork bottle mounts: two
- Frame Front Fender Mounts:
- Fender Mounts Fork: Yes
- Frame Rear Fender Mounts:
- Fender Mounts Frame: Yes
- Frame Frame Construction:
- Aluminum
- Frame Front Derailleur Clamp:
- 31.8mm OD, bottom pull
- Frame Fork Construction:
- Carbon
