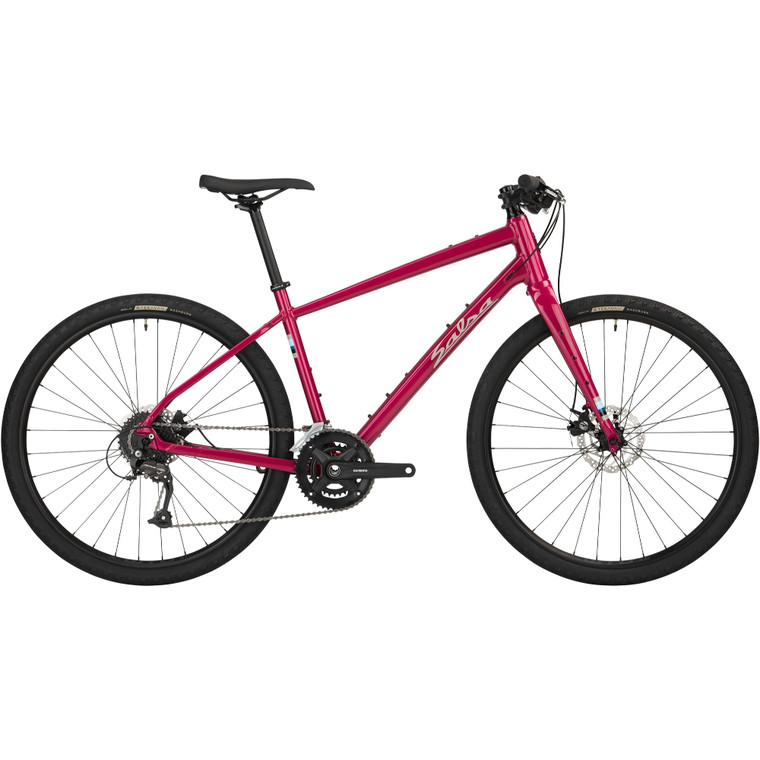

2025 Salsa Journeyer Flat Bar Altus 650b - Red
SalsaJourneyer Flat Bar Altus 650b is a thoughtful gravel bike with the leverage and upright riding position that flat bars afford. Built with an all-new aluminum frame and Fantail aluminum fork, this flat bar adventure bike is suited to sporty gravel rides or roaming far and wide. Rack and fender mounts offer loads of utility, while the Three-Pack mounts, top tube mount, and bottle mounts let you get creative with your pack list.
650b x 47 mm tires ride with cushiony comfort at low pressures and have a wide contact patch for ample grip, no matter the road surface. With Shimano’s reliable Altus 2 x 9 drivetrain, this Journeyer is a flat bar adventure bike that lets you explore your limits.
WARNING:
This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
SPECIFICATIONS:
Headset:
FSA NO.42 ACB IS-2
Seatpost:
Salsa Guide 27.2 x 350 mm, 12 mm offset
Stem:
Salsa Guide 31.8, 6-degree
Grips/Bar Tape:
Salsa File Tread
Saddle:
WTB Volt Medium, Steel, 142 x 265 mm
Handlebar:
Salsa Salt Flat 31.8, 700 mm
Front Derailleur:
Shimano Altus M370-L SGS
Rear Derailleur:
Shimano M200, 11–34t, 9 speed
Cassette:
KMC Z9
Chain:
Shimano MT210 46/30t, Shimano MT500 bottom bracket -OR- FSA VERO PRO ML019 46 S.B Black 46/30t 165L
Crankset:
Shimano Altus M2010
Brake Levers:
Tektro RS360A lever
Brake Calipers:
Tektro MD-U310
Rotors:
Shimano RT10 (160 mm)
Front Wheel:
Shimano TX505 9 x 100 mm QR hub, WTB ST i23 650b rim, 32h
Rear Wheel:
Shimano TX505-8 10 x 135 mm QR hub, WTB ST i23 650b rim, 32h
Front Tire:
Teravail Washburn 650b x 47 mm, 30 tpi, Wire Bead
Rear Tire:
Teravail Washburn 650b x 47 mm, 30 tpi, Wire Bead
Frame:
Journeyer Flat-Bar Quick-Release
Color:
Red
Fork:
Fantail
Rear Shock:
Shimano Acera T3000-2-TS3
Frame Accessory Mounts
Downtube Accessory Mounts: Yes, 1, TopTube Mounts: Yes, Rack Mounts: Rear: yes / Front: yes, low rider, Three-Pack Mounts: XS and SM frames: 1 on down tube, MD, LG, and XL frames: 1 on down tube + 1 on seat tube, All sizes: one per fork leg
KEY FEATURES:
On-Bike Storage
- Adventures require gear and riders should get to choose whether they carry it on their bike or on their body
ADDITIONAL FEATURES:
6061-T6 Aluminum Frame
We use alloy tubing developed specifically for the Journeyer frame, which is then heat-treated to T6 alloy standards for extra strength and durability.
Fantail Aluminum Fork
The Fantail fork is constructed from aluminum alloy and designed for a 9 x 100 mm quick-release axle. Fantail’s two sets of Three-Pack mounts and mid-blade rack mounts let you load up everything you need for your rides. Fender mounts add a touch of all-weather utility, and massive 700c x 56 mm or 650b x 59 mm (27.5 x 2.3") tire clearance lets you choose the wheel and tire setup for your riding conditions.
Gravel Geometry
Journeyer is comfortable, stable and confidence inspiring whether it’s your daily driver, you’re ripping up dirt paths through town, exploring unfamiliar terrain, or entering your first gravel race. Spirited when you want it to be, but relaxed enough to leave you with the energy for long rides.
Internal Cable Routing
Full-length housing improves shifting performance in poor conditions and increases use time between maintenance intervals. Internal routing for a clean, uncluttered look.
Dropper Post Routing
Internal dropper post routing makes it easy to outfit your Journeyer for more technical riding.
Flat-Mount Brakes
Flat-mount brakes offer a clean look, easy setup, and compatibility with most of today’s road and gravel brake offerings.
Cargo Capability
Journeyer features front and rear rack mounts, a Three-Pack mount on each fork leg, a top tube mount, down tube mount, and bottle mounts. With this many options, you can load it up however you like.
650b x 47 mm Wheels and Tires
650b wheels accelerate quickly, and the high-volume 47 mm Teravail Washburn tires blend straight-line speed with confidence in turns on loose terrain.
Salsa Salt Flat Handlebar
Flat handlebars offer excellent leverage and control, especially when riding on surfaces that demand a little extra attention. Flat handlebars also put you in a comfortable upright position. Our Salt Flat handlebar has 11° back sweep, 6° of up sweep, and zero rise for performance that feels natural.
Dual Wheel Size Compatibility
Journeyer fits both 700c and 650b wheel sizes. We offer models in each size so you can choose the one that meets your needs or set up a second wheel set so your Journeyer is ready for any type of ride.
SUPPORTIVE DOCUMENTS:
Click for Bicycle Owner's Manual
Click for ASTM Riding Conditions Classifications
Click for Salsa Journeyer Flat Bar - Front Triangle Frame Bag Guide
- Frame Rigid Fork Length:
- 405 mm axle-to-crown
- Frame Fork Offset:
- 50 mm
- Frame Rear Spacing:
- 135 mm
- Frame Rear Axle Size:
- 10 x 135 mm quick release
- Frame Rear Brake (Rotor):
- Flat mount 140 frame standard (160 mm max.), 20 mm thickness, 27 mm bolt length
- Frame Front Brake (Rotor):
- Flat mount 140 fork standard (160 mm max.)
- Frame Headset - Upper:
- IS41
- Frame Headset - Lower:
- IS52
- Frame Front Spacing:
- 100 mm
- Frame Front Axle Size:
- 9 x 100 mm quick release
- Frame Crown Race:
- 40 mm
- Frame Seatpost:
- 27.2 mm
- Frame Dropper Post Compatible:
- Yes, internal
- Frame Seatpost Clamp:
- 32.0 mm
- Frame Front Derailleur Type:
- 2x, bottom swing
- Frame Derailluer Hanger:
- Salsa 959
- Frame Bottom Bracket:
- 68 mm BSA
- Frame Crankset (Max Ring):
- 1x crankset: 42t max., 2x crankset: 48/33t max.
- Frame Bottle Mounts:
- XS frame: 1 in main triangle, SM frame: 2 in main triangle, MD, LG, and XL frames: 3 in main triangle
- Frame Front Fender Mounts:
- Yes
- Frame Rear Fender Mounts:
- Yes
- Frame Stem Clamp:
- 28.6 mm / 1 1/8Inches
- Frame Front Derailleur Clamp:
- 31.8 mm OD, bottom pull
