2025 Salsa Rangefinder Deore 11 27.5+ - Dark Gray
SalsaWith Rangefinder Deore 11 27.5+, you're equipped to explore your local trails or travel far and wide in search of new ones. Stable trail geometry provides a feeling of confidence when you're pedaling through tough spots, descending steep slopes, or just riding unfamiliar terrain. A 120 mm fork and dropper post improve your control, while 27.5 x 2.8" wheels and tires are good for nimble handling, quick acceleration, and stellar traction. With Shimano's reliable Deore 11-speed drivetrain, you're looking at one of the very best trail hardtail options for aspiring mountain bikers.
WARNING:
This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
SPECIFICATIONS:
Headset:
FSA Orbit NO.57B 1.5 ZS
Seatpost:
TranzX YSP18PLQ 100 x 361 mm XS-SM; 130 x 425 mm MD-XL
Stem:
Salsa Guide 31.8, 60 mm
Grips/Bar Tape:
Salsa File Tread
Saddle:
WTB Volt Medium, Steel, 142 x 265 mm
Handlebar:
Salsa Salt Flat 31.8, 750 mm width XS-SM; Salsa Rustler 31.8, 800 mm width M-XL
Rear Derailleur:
Shimano Deore M5100 SGS
Cassette:
Shimano Deore M5100 11-51t, 11-speed
Chain:
Shimano HG601
Crankset:
FSA Alpha Drive, 30t, FSA 124.5 mm bottom bracket
Shifter:
Shimano Deore M5100
Brake Calipers:
Shimano MT200 OR Promax DSK-925
Rotors:
Shimano RT10 Center Lock rotors (160 mm)
Front Wheel:
Shimano MT400 Center Lock 15 x 110 mm hub, WTB ST i40 32h 27.5" rim
Rear Wheel:
Shimano MT200 Center Lock 10 x 141 mm QR hub, WTB ST i40 32h 27.5" rim
Front Tire:
Maxxis Rekon 27.5 x 2.8", EXO Wire Bead (not tubeless compatible)
Rear Tire:
Maxxis Rekon 27.5 x 2.8", EXO Wire Bead (not tubeless compatible)
Complete Bike:
32 lb 11 oz (with tubes, no pedals) for Medium
Frame:
Rangefinder Aluminum
Color:
Dark Gray
Suspension Fork:
SR Suntour XCR32 Boost, Air, LOR, DS, 120 mm OR RST Aerial 110-15, Air, MLC, 120 mm
KEY FEATURES:

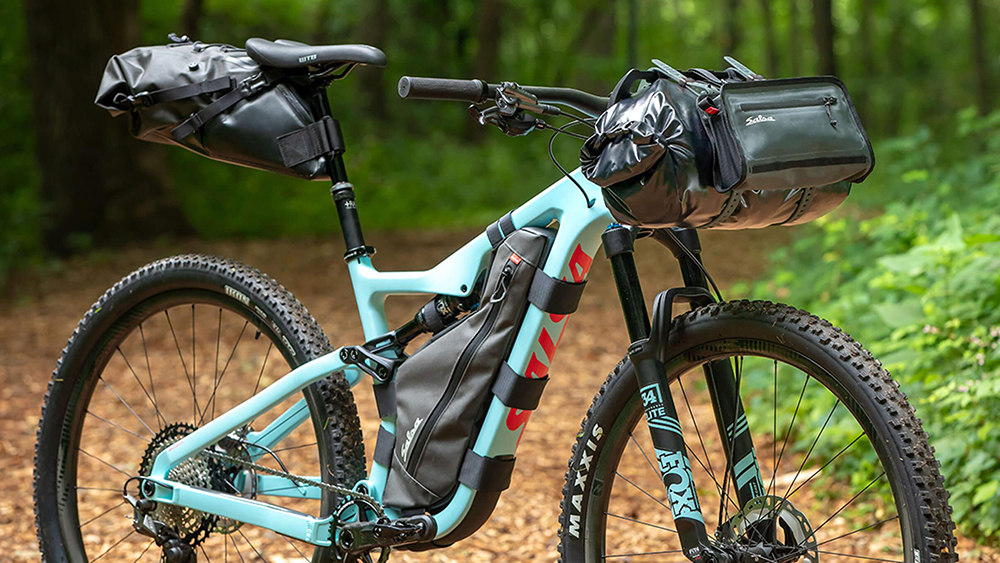

On-Bike Storage
- Adventures require gear and riders should get to choose whether they carry it on their bike or on their body
ADDITIONAL FEATURES:
6061-T6 Aluminum Tube Set
A blend of our proprietary, top-shelf 6061-T6 double- and triple-butted tubing creates a light, responsive, and durable frame with great trail feel
Rangefinder Trail Geometry
Rangefinder's long top tube, short stem, and 439 mm chainstays provide a stable ride to keep you in control on steep and technical terrain
120 mm of Front Suspension Travel
A 120 mm fork soaks up the trail and a thru-axle keeps the front end stiff for precise handling
Dropper Post Included
Drop your saddle at the press of a button to tackle steep descents and technical terrain with the included TranzX dropper post. The Rangefinder frame also provides stealth dropper post cable routing for a clean look
Cargo Capacity
The Rangefinder frame has two bottle cages on the inside of the frame, an accessory mount on the underside of the down tube, and top tube mounts for use with our EXP Series Direct-Mount Top Tube Bag. Rear rack mounting bosses are also included at the dropouts, and with the addition of a 35.0mm Rack-Lock seatpost collar, a rear rack can be fitted
Full-Length Cable Routing
Full-length housing improves shifting in poor conditions and increases the time between maintenance intervals
Dual Wheel Size Compatibility
Rangefinder can fit both 29" (maximum of 29 x 2.6") and 27.5+ (27.5 x 2.8-3.0") wheels and tires
SUPPORTIVE DOCUMENTS:
- Frame Suspension Fork Length (Travel):
- 100-130 mm
- Frame Fork Offset:
- 46 mm
- Frame Rear Spacing:
- 141 x 10 mm QR
- Frame Rear Brake (Rotor):
- 74 mm post mount (160-180 mm rotor)
- Frame Headset - Upper:
- ZS44
- Frame Headset - Lower:
- ZS56
- Frame Seatpost:
- 30.9 mm
- Frame Dropper Post Compatible:
- Yes (internal)
- Frame Seatpost Clamp:
- 35.0 mm
- Frame Derailluer Hanger:
- FS2361
- Frame Bottom Bracket:
- 73 mm BSA, threaded
- Frame Crankset (Max Ring):
- Boost 148 52 mm chainline only (32t max)
- Frame Accessory Mounts:
- Rear Rack Mounts: Yes, Salsa Post-Lock seatpost collar required, Downtube Accessory Mounts: 1, Top Tube Mounts: Yes, compatible with Salsa EXP Series Top Tube bag.
- Frame Bottle Mounts:
- 2
- Frame Front Fender Mounts:
- No
- Frame Rear Fender Mounts:
- No
