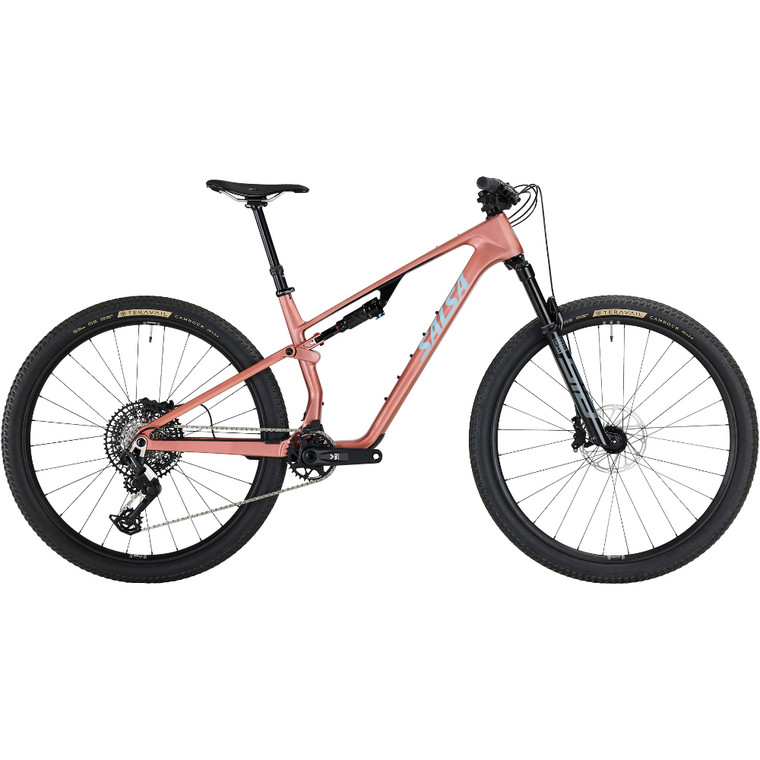

2025 Salsa Spearfish C Eagle 90 Transmission - Dusty Rose
SalsaSpearfish also features on-bike cargo mounts so you can carry two bottles (up to three on MD-XL frames), your multitool, tube, and more for fewer resupply stops. SRAM's Eagle 90 Transmission shifting blends electronic precision and Full Mount derailleur durability for a drivetrain you can trust. Spearfish C Eagle 90 is a carbon XC bike built to make your monumental efforts more manageable.
WARNING:
This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
SPECIFICATIONS:
Headset:
FSA Orbit 1.5E ZS NO.57E
Seatpost:
TranzX YSI08 RAD+ Dropper Post w/ GL Stealth MMX Lever, XS: 125mm travel; SM-MD: 150mm travel; LG-XL: 170mm travel
Stem:
Salsa 35.0 Guide Trail, 50mm
Grips/Bar Tape:
WTB Wavelength Lock-On
Saddle:
WTB Silverado, Medium, Cromoly, DNAx
Handlebar:
Race Face Aeffect
Rear Derailleur:
SRAM Eagle 90 Transmission
Cassette:
SRAM GX Eagle Transmission XS-1275, 10-52t, 12-speed
Chain:
SRAM Eagle 70 Transmisssion Flattop
Crankset:
SRAM Eagle 90, 32t w/MRP 1x SL TR2 28-34t Direct Mount Guide
Shifter:
SRAM Eagle 90, MatchMaker X Clamp
Brake Levers:
SRAM DB8 Stealth
Brake Calipers:
SRAM DB8 Stealth
Rotors:
SRAM CenterLine2.0 (6-bolt, 180mm front and rear)
Front Tire:
Teravail Camrock 29x2.4", Light Trail casing, WTB TCS Sealant included
Rear Tire:
Teravail Camrock 29x2.4", Light Trail casing, WTB TCS Sealant included
Complete Bike:
28lb 14oz
Frame:
Spearfish Carbon
Color:
Dusty Rose
Rear Shock:
RockShox SIDLuxe Select+
Bottom Bracket:
SRAM DUB PF92 MTB Wide
Suspension Fork:
RockShox SID Select+ 2-position, 120mm
Front Hub:
WTB Frequency Sport 15x110mm
Rear Hub:
WTB Frequency Boost 12x148mm
Spoke:
Double-butted Pillar Stainless Steel, black
Rim:
WTB ASYM i30 TCS, 28h
KEY FEATURES:
Split Pivot Suspension System
- Allows us to tune the pedaling and braking forces independently
- Maximizes pedaling and braking performance without compromising either
- Results in optimal pedaling efficiency and traction when braking
Split Pivot +
- Multiple travel classes in one chassis provides riders with the opportunity to adapt their bikes to various adventures
Flip Chip
- Provides the ability to alternate wheel and tire sizes
- Riders can adjust for their terrain, or desired handling characteristics
Suspension Kinematics
- Lively, responsive ride feel with good bottom-out resistance
- Free, active, and uniform suspension feel under braking
- Efficient pedaling, stellar climbing traction, supple small-bump performance
- Tunable for all riders

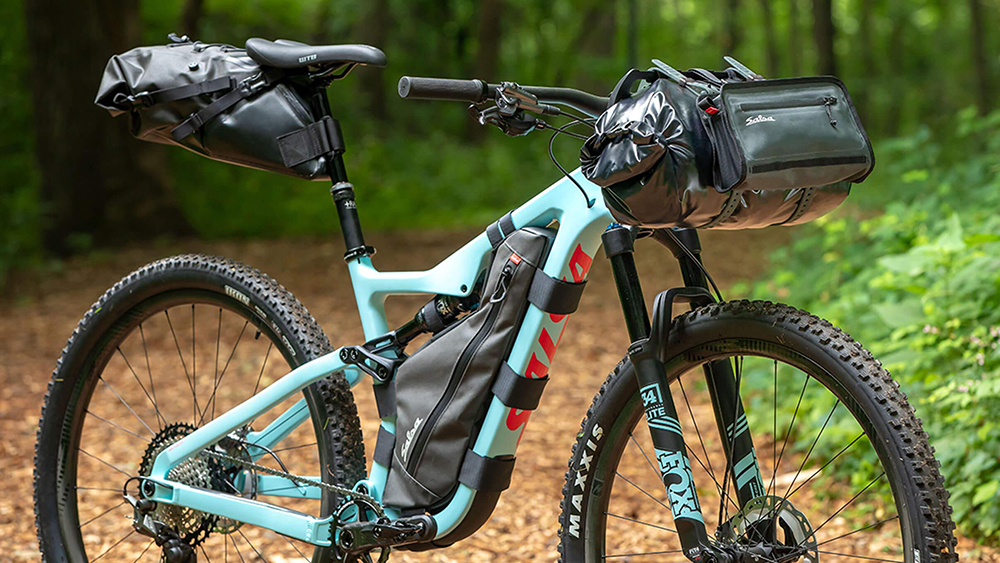

On-Bike Storage
- Adventures require gear and riders should get to choose whether they carry it on their bike or on their body
Frame Protection
- Our products are built from experience - we've been there enough to know that a carbon fork can benefit from added protection just as much as the downtube on a suspension bike.
ADDITIONAL FEATURES:

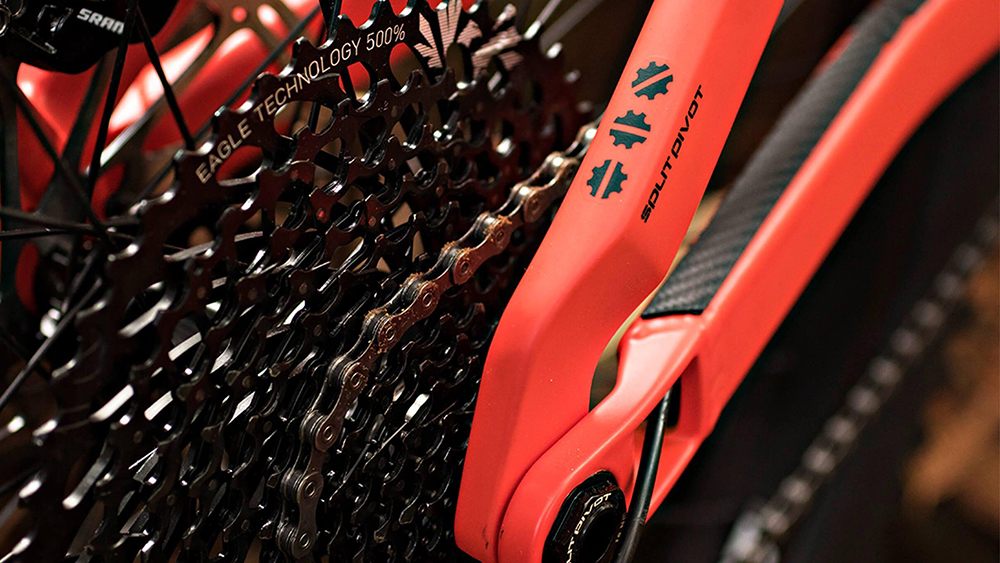

Split Pivot rear suspension design
Split Pivot provides a host of impressive suspension characteristics because the system isolates pedaling forces and braking forces from each other, allowing us to tune and optimize the bike for both independently. The concentric rear axle pivot, in conjunction with precise wheel link, brake link, and control link placement, results in excellent bump compliance and pedaling efficiency, smooth and predictable braking throughout travel, and maximum traction.
Split Pivot + design methodology
The Split Pivot+ design methodology allows our engineers to optimize a frame for more than one travel class. This means that Spearfish riders can adjust rear travel from 100-120mm rear and fit forks from 100-130mm.
Carbon fiber frame
High-modulus carbon fiber frame, seatstays, and chainstays with 6061-T6 aluminum links for durability
Endurance XC geometry
Spearfish is designed on the premise that precision and efficiency equal speed. Spearfish's renowned pedigree in ultra-endurance racing has informed every geometry choice here. The sub 66.3-degree head tube angle combined with 430mm chainstays provide confidence at speed without sacrificing agility, with a flip chip to further tune to your liking. A 77.3-degree seat tube angle maintains a comfortable pedaling position for long days in the saddle.
Flip chip
A flip chip allows a simple and quick 5mm adjustment to bottom bracket height and 0.3-degree adjustment to head tube angle to account for your personal preference, terrain, or tire diameter.
Purpose-tuned suspension

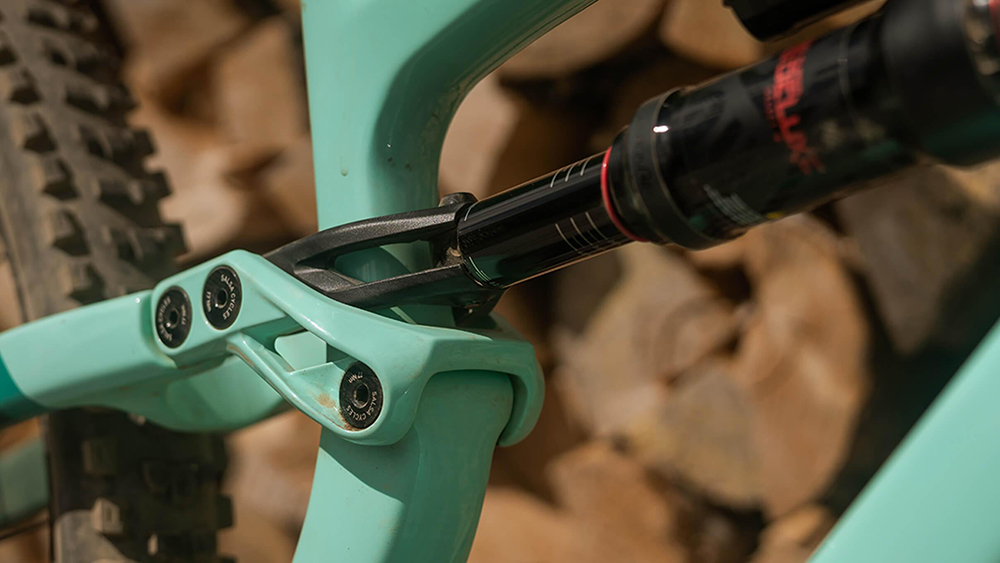

Spearfish-specific control link and shock links optimize the frame geometry and kinematics for its suspension travel, delivering a precise, efficient ride feel.
Maximum bottle capacity
Stay hydrated on long rides with space for two bottles on sizes XS-SM; sizes MD-XL fit three bottles.
Accessory mounts
Spearfish's main triangle features accessory mounts for bolting your repair kit.
Top tube accessory mounts
Top tube mounts accommodate the Salsa EXP-R Series Trillium Top Tube Bag or K-Edge Top Tube Mount for bike computers.

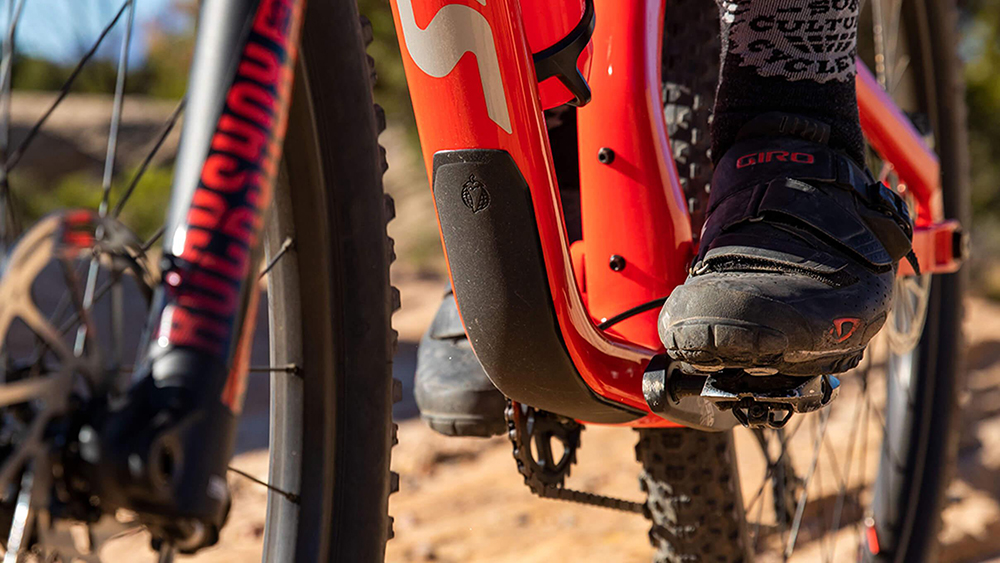

Molded frame protection
Molded rubber down tube, seat tube, chainstay, and seatstay guards protect your frame from impacts and abrasion
SUPPORTIVE DOCUMENTS:
Click for Gen 4 Split Pivot Suspension Setup
- Frame Suspension Fork Length (Travel):
- 130mm
- Frame Fork Offset:
- 44mm
- Frame Axle to Crown:
- 541mm
- Frame Rear Spacing:
- 12 x 148mm
- Frame Rear Axle Size:
- 12 x 188mm, TP=1.0, TL=13mm
- Frame Rear Brake (Rotor):
- 74mm post mount (180-200mm)
- Frame Front Brake (Rotor):
- 74mm post mount (180-200mm)
- Frame Headset - Upper:
- ZS44/28.6
- Frame Headset - Lower:
- ZS56/40
- Frame Front Spacing:
- 15 x 110mm
- Frame Front Axle Size:
- Maxle Stealth: 15 x 158mm, TP=M15x1.5, TL=9
- Frame Steerer Tube:
- 1.125-1.5 tapered"
- Frame Crown Race:
- 59mm
- Frame Seatpost:
- 30.9mm
- Frame Dropper Post Compatible:
- Yes (internal)
- Frame Seatpost Clamp:
- 35.4mm
- Frame Derailluer Hanger:
- SRAM UDH (w/ ø30mm washer)
- Frame Bottom Bracket:
- BB92 press-fit
- Frame Crankset (Max Ring):
- 34t
- Frame Accessory Mounts:
- XS-SM: downtube accessory mount, MD-XL: Three-Pack downtube mount, Top tube accessory mounts on all sizes
- Frame Bottle Mounts:
- XS-SM: two full size bottles, MD-XL: three bottlesXS-XL Configuration For 2 Water BottlesMD Configuration For 3 Water BottlesLG-XL Configuration For 3 Water Bottles
- Frame Max Tire Outer Diameter:
- Frame: 29 x 2.4Fork: Max. tire diameter: 758mm, Max. tire width 66mm"
- Frame Frame Construction:
- Carbon
- Frame Rear Shock Size:
- 190 x 45mmForward Shock Mount: ø8 x 20mmRearward Shock Mount: Standard ø15MM, no bushing
- Frame Max Post Insertion:
- SM: 215mm, MD: 240mm, LG: 265mm, XL: 290mm
