2025 Salsa Stormchaser Frameset - Metallic Black
SalsaThe Stormchaser single speed frameset is designed from the ground-up to take on gravel rides in inclement weather. The lightweight aluminum frame features gravel race geometry similar to Warbird; Class 5™ VRS to absorb road impacts; our all-new sliding Alternator Flat Mount dropouts make single speeding simple, and the included geared dropout plate adds 1x drivetrain compatibility; and extra tire clearance for managing mud. The carbon fiber fork is also prepared for anything—abrasion plates prevent wear from mud-caked tires, Three-Pack mounts add extra storage for water or gear, and internal routing keeps your brake hose and dynamo cable out of the elements. The Stormchaser single speed gravel frameset is a stellar starting point for a bike that performs rain or shine.
WARNING:
This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
SPECIFICATIONS:
Headset:
FSA No.42 ACB
Frame:
5lbs 10oz. for size 56cm, includes fork, headset, and axles
Color:
Metallic Black
Fork:
Stormchaser C
Front Axle:
Salsa Deadbolt UL M12 x 120 mm thru-axle
Rear Axle:
Salsa Deadbolt UL M12 x 167 mm thru-axle
Seatpost Clamp:
Salsa Lip-Lock 32.0 mm seatpost collar
Frame Accessory Mounts
Rear Rack Mounts: Yes, universal rack rear compatible. Salsa Post-Lock seat collar required. Salsa Wanderlust Rack recommended, Downtube Accessory Mounts: One, Top Tube Mounts: Yes, compatible with Salsa EXP Series Top Tube bag, Three-Pack Mounts: One mount per fork leg, Rack Mounts: 165 mm Low-rider compatible. Salsa Down Under rack recommended.
KEY FEATURES:
On-Bike Storage
- Adventures require gear and riders should get to choose whether they carry it on their bike or on their body
Class 5 VRS
- Comfort equates to speed and distance over rough terrain
- Rider benefit is inherent to the design
Frame Protection
- Our products are built from experience — we’ve been there enough to know that a carbon fork can benefit from added protection just as much as the downtube on a suspension bike.
Alternator Dropouts
- Adjustable chainstay length to tune ride characteristics and to allow tire fit flexibility
- Ability to tension chain for single speed use
- Riders have upgrade options
ADDITIONAL FEATURES:

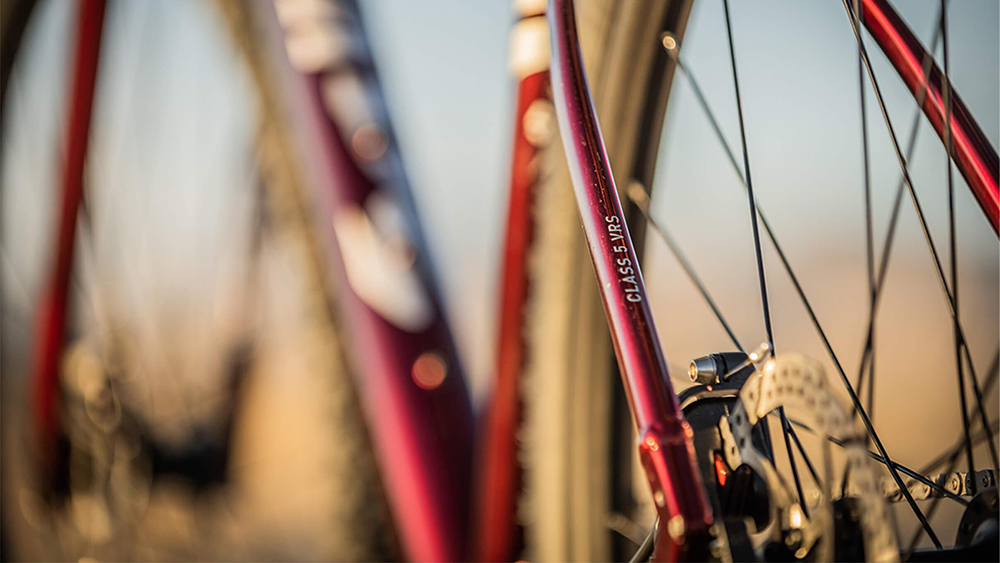

Class 5™ VRS
The Class 5™ Vibration Reduction System has specially shaped seatstays with a tall, thin, vertically oriented profile that promotes vertical compliance by allowing the seatstays to "flex" outwards on impacts. The horizontally oriented chainstays work to resist torque and maintain a laterally stiff rear end. The seatstays and chainstays lack bridges, furthering the full length of the stays to contribute to flexibility. And a rear thru-axle delivers precise tracking while allowing the seatstays to provide that incredible compliance
Gravel Race Geometry
Stormchaser features geometry similar to our Warbird gravel race bike. Stormchaser places the rider in a position that can be maintained for hours on end over bumpy B-roads and loose surfaces, drastically reducing fatigue. A low bottom bracket and stable wheelbase help keep the tires planted and boost confidence. A long top tube paired with a short stem provides increased stability at high speed and on rough descents
Multiple Wheel Size Compatibility
Stormchaser fits up to 700c x 50mm OR 650b x 50 mm wheels/tires. Choose the wheel size that best meets your needs, or set up a second wheel set so your Stormchaser is optimized for the ride at hand
Abrasion Plates on Fork
Integrated plates on the fork minimize abrasion from mud and debris
Extra Mud Clearance
Stormchaser has 40% more mud clearance than Warbird (measured with a 700c x 42 mm tire)
Alternator Flat Mount Dropout
15 mm of dropout adjustability (435–450 mm)
Bottle Capacity
2–3 bottle mounts inside main triangle (57.5 cm and above can accommodate 3), 1 accessory mount on underside of downtube, 2 bottle mounts possible on fork via Three-Pack mounts
Fender Mounts
Full-coverage fenders allow for longer, more pleasant rides in wet weather
Three-Pack Fork Mounts
Two Three-Pack mounts on the fork allow for additional water, food, and accessory storage
Front and Rear Rack Mounts
Mid-blade mounts of the fork allow for front racks such as the Salsa Down Under, designed for carrying touring panniers; also compatible with the Salsa Wanderlust rear rack when used with a Salsa Rack-Lock seatpost collar
Top Tube Accessory Mounts
Top tube bolt-on mounts are designed for Salsa EXP Series Top Tube Bag or K-Edge Top Tube Computer Mount
Internal Cable Routing
Internal tubes guide brake, shift, and dynamo cables through the frame, simplifying setup and maintenance
Stealth Dropper Post Routing
Accommodates 27.2mm dropper posts for more confident descending at high speeds on rough, unpredictable gravel roads
SUPPORTIVE DOCUMENTS:
Click for Bicycle Owner's Manual
- Frame Rigid Fork Length:
- 420 mm
- Frame Fork Offset:
- 51 mm
- Frame Rear Spacing:
- 12 x 142 mm TA
- Frame Rear Axle Size:
- M12 x 167L, TP = 1.5, TL = 20 mm (NOTE, DOES NOT FIT SALSA DEABOLT W/ LEVER. DEADBOLT UL TOOLED AXLE ONLY)
- Frame Rear Brake (Rotor):
- Flat mount frame standard, 20 mm thickness, 27 mm bolt length (140-160 mm rotor)
- Frame Front Brake (Rotor):
- Flat mount frame standard, 35 mm thickness, 42 mm bolt length (160 mm rotor only)
- Frame Headset - Upper:
- IS41
- Frame Headset - Lower:
- IS52
- Frame Front Spacing:
- 12 x 100 mm TA
- Frame Front Axle Size:
- M12 x 120L, TL = 12 mm
- Frame Crown Race:
- Integrated SHIS 40, 36° Angle
- Frame Seatpost:
- 27.2 mm
- Frame Dropper Post Compatible:
- Yes (internal)
- Frame Seatpost Clamp:
- 32.0 mm
- Frame Derailluer Hanger:
- Hanger 465, QBP# FS2322 (Requires geared Alternator Flat Mount Plate, QBP# FS0719, and Hanger Axle/Stud Kit, QBP# FS1181)
- Frame Bottom Bracket:
- 73 mm BSA, threaded
- Frame Crankset (Max Ring):
- Single Speed: 1x crankset, 40t max, Race Face/Easton 51 mm chainline, single speed only, Geared: 1x crankset only, 38t max, 49 mm MTN chainline, 168 Q-factor min.
- Frame Bottle Mounts:
- Frames up to 56 cm: 2 in main triangle. Frames 57.5 cm and larger: 3 in main triangle.
- Frame Front Fender Mounts:
- Yes, required fender hardware included.
- Frame Rear Fender Mounts:
- Yes, required fender hardware included.
- Frame Stem Clamp:
- 28.6 mm
