2025 Salsa Stormchaser GRX 810 1x SUS - Black

Salsa
Availability:
Most in stock items ship within 1-3 business days
$3,549.00
(No reviews yet)
Weight:
45.00 LBS
Width:
58.00 (in)
Height:
10.00 (in)
Depth:
32.00 (in)
Current Stock:
Adding to cart… The item has been added

The Stormchaser GRX 810 1x SUS is a gravel bike with suspension for the most challenging terrain. The 6066-T6 alloy frame with Class 5™ VRS and RockShox Rudy XPLR suspension fork team up to drastically reduce chatter on the roughest roads and trails. Our Alternator Flat Mount dropouts allow for 1x geared drivetrains or easy, solid single speed setups (with single speed plate, sold separately). Mounts for water, food, and accessory storage let you go far and wide in places with few resupply options. If you regularly ride pothole- and rut-ridden gravel or want to weave rugged fire roads into your routes, Stormchaser GRX 810 1x SUS is up for it.

WARNING:

This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

SPECIFICATIONS:

Headset:

FSA No.42 ACB

Seatpost:

TranzX YSP38J, 90 x 360 mm

Stem:

Salsa Guide

Grips/Bar Tape:

XL anti-slip silicone tape

Saddle:

WTB Volt Medium Steel SL

Handlebar:

Salsa Cowchipper Deluxe

Rear Derailleur:

Shimano GRX RX812

Cassette:

Shimano SLX M7000, 11-42t, 11-speed

Chain:

Shimano HG601

Crankset:

Race Face Ride, 38t

Shifter:

Shimano GRX RX810-LA

Brake Calipers:

Shimano GRX RX810

Rotors:

Shimano RT 64 (Center Lock, 160 mm)

Front Wheel:

Shimano RS470 12 x 100 mm hub, WTB ST i25 TCS 2.0 29" rim, 28h

Rear Wheel:

Shimano RS470 12 x 142 mm hub, WTB ST i25 TCS 2.0 29" rim, 28h

Front Tire:

Teravail Rutland 700c x 47 mm, tubeless-ready, Durable casing

Rear Tire:

Teravail Rutland 700c x 47 mm, tubeless-ready, Durable casing

Complete Bike:

24 lbs. 13 oz. for 56cm

Frame:

Stormchaser

Color:

Black

Suspension Fork:

RockShox Rudy XPLR Base, 40 mm, 51 mm offset

KEY FEATURES:

On-Bike Storage

  • Adventures require gear and riders should get to choose whether they carry it on their bike or on their body

Class 5 VRS

  • Comfort equates to speed and distance over rough terrain
  • Rider benefit is inherent to the design

Frame Protection

  • Our products are built from experience - we've been there enough to know that a carbon fork can benefit from added protection just as much as the downtube on a suspension bike.

Alternator Dropouts

  • Adjustable chainstay length to tune ride characteristics and to allow tire fit flexibility
  • Ability to tension chain for single speed use
  • Riders have upgrade options

ADDITIONAL FEATURES:

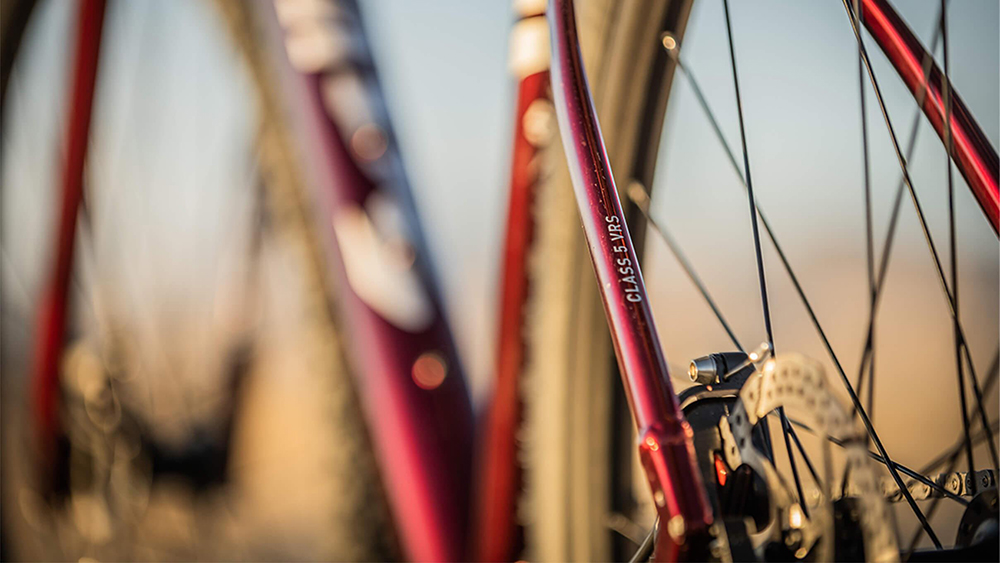

Class 5™ VRS

The Class 5™ Vibration Reduction System has specially shaped seatstays with a tall, thin, vertically oriented profile that promotes vertical compliance by allowing the seatstays to "flex" outwards on impacts. The horizontally oriented chainstays work to resist torque and maintain a laterally stiff rear end. The seatstays and chainstays lack bridges, furthering the full length of the stays to contribute to flexibility. And a rear thru-axle delivers precise tracking while allowing the seatstays to provide that incredible compliance

Gravel Race Geometry

Stormchaser features geometry similar to our Warbird gravel race bike, placing the rider in a position that can be maintained for hours on end over bumpy B-roads and loose surfaces, drastically reducing fatigue. A low bottom bracket and stable wheelbase help keep the tires planted and boost confidence. A long top tube paired with a short stem provides increased stability at high speed and on rough descents

Extra Mud Clearance

Stormchaser has 40% more mud clearance than Warbird (measured with a 700c x 42 mm tire)

Alternator Flat Mount Dropout

15 mm of dropout adjustability (435-450 mm) and capable of 1x geared and single speed drivetrains

Bottle Capacity

2-3 bottle mounts inside main triangle (57.5 cm and above can accommodate 3), 1 bottle or accessory mount on underside of downtube

Fender Mounts

Fenders allow for longer, more pleasant rides in wet weather

Wide Bar Spec

Wider handlebars improve leverage for single speeding and control in poor conditions. Bar width is relative to frame size-49 cm bikes come with 40 cm Cowchippers; 61 cm bikes come with 52 cm Cowchippers

Rear Rack Mounts

Compatible with the Salsa Wanderlust rear rack when used with a Salsa Rack-Lock seatpost collar

Top Tube Accessory Mount

Top tube bolt-on mounts are designed for Salsa EXP Series Top Tube Bag or K-Edge Top Tube Computer Mount

Internal Cable Routing

Internal routing for brake, shift, and dynamo cables reduces maintenance

Stealth Dropper Post Routing

Equipped with a 90 mm dropper post for more confident descending at high speeds on rough, unpredictable gravel roads

Click for Geometrical Chart

SUPPORTIVE DOCUMENTS:

Click for Bicycle Owner's Manual

Click for ASTM 2 Framesheet

Click for Alternator Flat Mount Dropout Instructions

Click for ASTM Riding Conditions Classifications

Frame Suspension Fork Length (Travel):
435mm (40mm)
Frame Rigid Fork Length:
420 mm
Frame Fork Offset:
51 mm
Frame Rear Spacing:
12 x 142 mm TA
Frame Rear Axle Size:
M12 x 167L, TP = 1.5, TL = 20 mm (NOTE, DOES NOT FIT SALSA DEABOLT W/ LEVER. DEADBOLT UL TOOLED AXLE ONLY)
Frame Rear Brake (Rotor):
Flat mount frame standard, 20 mm thickness, 27 mm bolt length (140-160 mm rotor)
Frame Front Brake (Rotor):
Flat mount frame standard, 35 mm thickness, 42 mm bolt length (160 mm rotor only)
Frame Headset - Upper:
IS41
Frame Headset - Lower:
IS52
Frame Front Spacing:
12 x 100 mm TA
Frame Front Axle Size:
M12 x 120L, TL = 12 mm
Frame Crown Race:
Integrated SHIS 40, 36° Angle
Frame Seatpost:
27.2 mm
Frame Dropper Post Compatible:
Yes (internal)
Frame Seatpost Clamp:
32.0 mm
Frame Derailluer Hanger:
Hanger 465, QBP# FS2322 (Requires geared Alternator Flat Mount Plate, QBP# FS0719, and Hanger Axle/Stud Kit, QBP# FS1181)
Frame Bottom Bracket:
73 mm BSA, threaded
Frame Crankset (Max Ring):
Geared: 1x crankset only, 38t max, 49 mm MTN chainline, 168 Q-factor min, Single-Speed: 1x crankset, 40t max, Race Face/Easton 51 mm chainline, single speed only
Frame Accessory Mounts:
Downtube Accessory Mounts: One, Top Tube Mounts: Yes, compatible with Salsa EXP Series Top Tube bagThree-Pack Mounts One mount per fork leg, Rack Mounts: 165 mm Low-rider compatible. Salsa Down Under rack recommended.
Frame Bottle Mounts:
Frames up to 56 cm: 2 in main triangle. Frames 57.5 cm and larger: 3 in main triangle.
Frame Stem Clamp:
28.6 mm
