2025 Salsa Warbird C GRX 610 1x - Gray
SalsaSeeking a carbon gravel bike to elevate your riding? Warbird GRX 610 1x is that bike. Ride with less fatigue thanks to Warbird's carbon fiber frame and Class 5 VRS™ design, which work together to reduce harsh road vibrations. Our gravel race geometry puts you in position to pedal long training miles in comfort or put down the power in pursuit of a podium spot. And you can say goodbye to overstuffed jersey pockets; Warbird's frame and fork cargo mounts are perfect for stashing ride essentials. Shift smoothly mile after mile with the Shimano GRX components, designed for the rigors of gravel riding.
SPECIFICATIONS:
Headset:
FSA NO.42/ACB
Seatpost:
Salsa Guide, zero offset
Stem:
Salsa Guide
Grips/Bar Tape:
Anti-slip, shock-proof silicone tape
Saddle:
WTB Gravelier Medium, Cromoly SL, 142 x 250mm
Handlebar:
Salsa Cowbell
Rear Derailleur:
Shimano GRX RX822 GS
Cassette:
Shimano M7100, 10-45t, 12-speed
Chain:
Shimano M7100
Crankset:
Shimano GRX RX610-1, 40t
Shifter:
Shimano GRX RX610
Brake Levers:
Shimano GRX RX610-1, 40t
Brake Calipers:
Shimano GRX RX400
Rotors:
Shimano RT30 (Center Lock, 160mm front and rear)
Front Tire:
Teravail Cannonball 700c x 42mm, Durable casing, tubeless-ready
Rear Tire:
Teravail Cannonball 700c x 42mm, Durable casing, tubeless-ready
Complete Bike:
21 lb 13 oz for 56cm
Frame:
Warbird
Color:
Gray
Fork:
Waxwing Deluxe V2
Bottom Bracket:
Shimano RS500-PB
Front Hub:
Shimano TC500, 12 x 100 mm
Rear Hub:
Shimano TC500, 12 x 142 mm
Spoke:
2.0/1.8 gauge, black
Rim:
WTB ST 25 mm, TCS 2.0, 28h 700c (taped w/ WTB tubeless valve and sealant included)
KEY FEATURES:
On-Bike Storage
- Adventures require gear and riders should get to choose whether they carry it on their bike or on their body

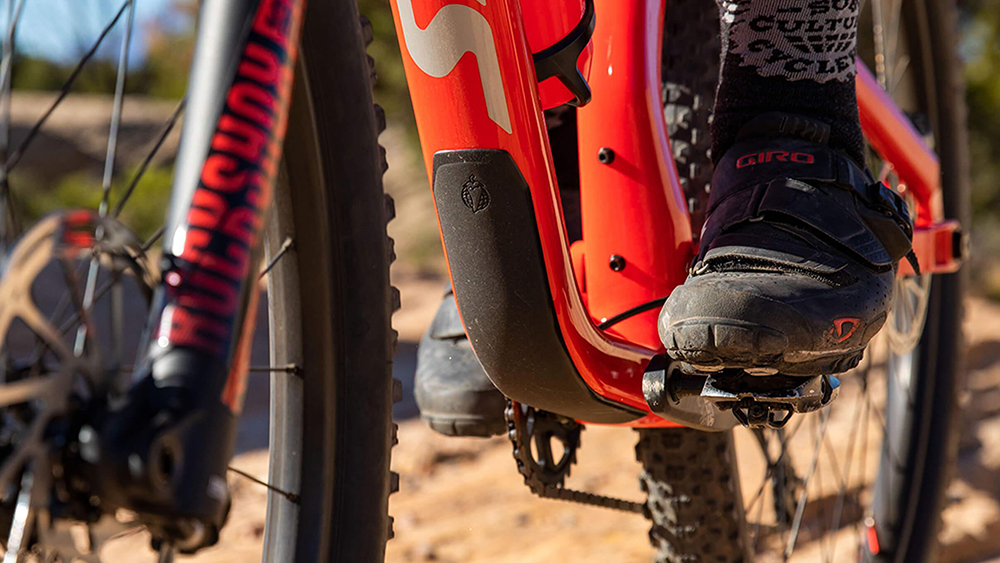

Frame Protection
- Our products are built from experience - we've been there enough to know that a carbon fork can benefit from added protection just as much as the downtube on a suspension bike.
Class 5 VRS
- Comfort equates to speed and distance over rough terrain
- Rider benefit is inherent to the design
ADDITIONAL FEATURES:

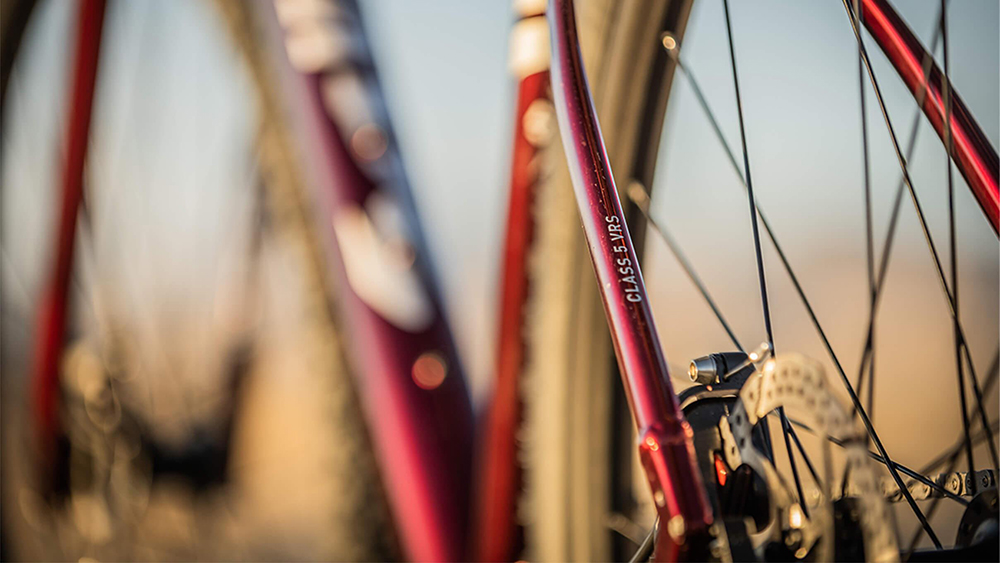

Class 5 VRS
The Class 5™ Vibration Reduction System has specially shaped seatstays with a tall, thin, vertically oriented profile that promotes vertical compliance by allowing the seatstays to "flex" outwards on impacts. The horizontally oriented chainstays work to resist torque and maintain a laterally stiff rear end. The seatstays and chainstays lack bridges, furthering the full length of the stays to contribute to flexibility. And a rear thru-axle delivers precise tracking while allowing the seatstays to provide that incredible compliance
Interior Junction Control Molding Technology
We use internal molds at all the main front triangle junctions during layup and curing. This allows for precise control of wall thickness and inner wall smoothness in these areas. This process increases compaction and reduces voids and wrinkles in critical high stress zones. The end result is a top-quality carbon frame that delivers consistent high performance
Warbird Geometry
Warbird features the latest evolution of our already industry leading gravel racing geometry. Warbird places the rider in a position that can be maintained for hours on end over bumpy B-roads and loose surfaces, drastically reducing fatigue. A low bottom bracket and stable wheelbase help keep the tires planted and boost confidence. Long top tubes paired with short stems provide increased stability at high speed and on rough descents
Waxwing Deluxe V2 Fork
Our Waxwing V2 gravel fork features carbon construction with a carbon steerer and utilizes a 12x100mm thru axle for true tracking and flat-mount brake for quick setup. Waxwing V2 also comes loaded with features. Three-Pack mounts accommodate bottle cages or Anything Cages for increased hydration or cargo capacity. Mid-blade rack mounts allow make it easy to install our Down Under low rider rack for front panniers. Fender mounts let you keep riding comfortably in wet weather
700c x 42 mm Wheel/Tire Spec
For faster acceleration and overall speed
Dual Wheel Size Compatible
Warbird fits up to 700c x 45 mm OR 650b x 2.0" wheels/tires. We offer models with each spec so you can choose the wheel size that best meets your needs, or set up a second wheel set so your Warbird is optimized for the race course at hand
Top tube bag mounts
Bolt on your EXP-R Series Trillium Tube Bag for a secure connection that eliminates strap wear.
Generous Water Bottle Capacity
Helps you stay hydrated during ultra-endurance training rides and races. 2-3 bottle mounts inside main triangle (56 cm and above receive 3), 1 accessory mount on underside of downtube, 2 bottle mounts possible on fork via Three-Pack mounts
Internal Sleeved Cable Routing
Internal tubes guide housing through the frame, simplifying setup and maintenance
Refined Drivetrain Compatibility
Designed to accept 1x, 2x, and current electronic offerings
Stealth Dropper Post Compatible
Accepts 27.2 mm dropper posts for more confident descending at high speeds on rough, unpredicatable gravel roads. Internal stealth routing when running 1x setups
Fender Mounts
Fenders allow for longer, more pleasant rides in wet weather
Rear Rack Friendly
Compatible with the Salsa Wanderlust Rack when using the optional Salsa Rack-Lock seat collar
SUPPORTIVE DOCUMENTS:
Click for Bicycle Owner's Manual
Click for Warbird Cable Routing Instructions
- Frame Suspension Fork Length (Travel):
- 436.7mm A2C (40mm travel)
- Frame Rigid Fork Length:
- 405mm A2C
- Frame Fork Offset:
- 50mm
- Frame Rear Spacing:
- 142mm
- Frame Rear Axle Size:
- M12 x 167mm, TP=1.5, TL=20
- Frame Rear Brake (Rotor):
- Flat mount 140, 140-160mm, flat mount frame standard 20mm thickness, 27mm bolt length
- Frame Headset - Upper:
- IS41
- Frame Headset - Lower:
- IS52
- Frame Front Spacing:
- 100mm
- Frame Front Axle Size:
- M12 x 120mm, TL=12
- Frame Steerer Tube:
- 28.6mm
- Frame Crown Race:
- Integrated SHIS 40, 36° angle
- Frame Seatpost:
- 27.2mm
- Frame Seatpost Clamp:
- 32.0mm
- Frame Derailluer Hanger:
- 465, (QBP# FS2322)
- Frame Bottom Bracket:
- BB86 press fit
- Frame Crankset (Max Ring):
- 1x: 44t max, 2x: 52/36t max, 46/30t minimum
- Frame Accessory Mounts:
- Downtube Accessory Mounts: Yes, one, Rack Mounts Frame: Yes, Fender Mounts Frame: Yes, required fender hardware included
- Frame Bottle Mounts:
- Frame: Frames up to 54cm: 2 in main triangle, frames 56cm and larger: 3 in main triangle, Fork: Yes, two
- Frame Max Tire Outer Diameter:
- 700c: 716mm / 650b: 696mm (Some front derailleurs may reduce tire clearance. Check manufacturer's specifications to confirm clearance before installing.)
- Frame Frame Construction:
- Carbon
- Frame Fork Mounts:
- Rack Mounts Fork: Yes, low-rider, Fender Mounts Fork: Yes
- Frame Fork Construction:
- Carbon
