2025 Santa Cruz Stigmata RF 2X RSV image

2025 Santa Cruz Stigmata RF 2X RSV

Santa Cruz
Availability:
Most in stock items ship within 1-3 business days
$6,999.00
(No reviews yet)
Weight:
45.00 LBS
Width:
58.00 (in)
Height:
10.00 (in)
Depth:
32.00 (in)
Current Stock:
Adding to cart… The item has been added
Description

The Stigmata blurs the lines between free-roading drop bar singletrack slicer and buckled down race-winning gravel machine. It's designed for the rider lining up for The Big Event, escaping via the road less traveled or who can't help themselves from finding the hardest way there. Whether your style is baggy or zipped up, the Stigmata is the fast and loose riding partner that's always ready to rise to the occasion.

  • Carbon CC Frame
  • Carbon Fork
  • SRAM Force AXS Drivetrain with SRAM Red Shifters
  • Reserve 25|GR 700c Carbon Wheels

Specifications

  • Carbon: CC
  • Rear (MM): 0
  • Wheel Size: 700C
  • Weight (lbs): 8.48
  • Weight (kg): 18.71

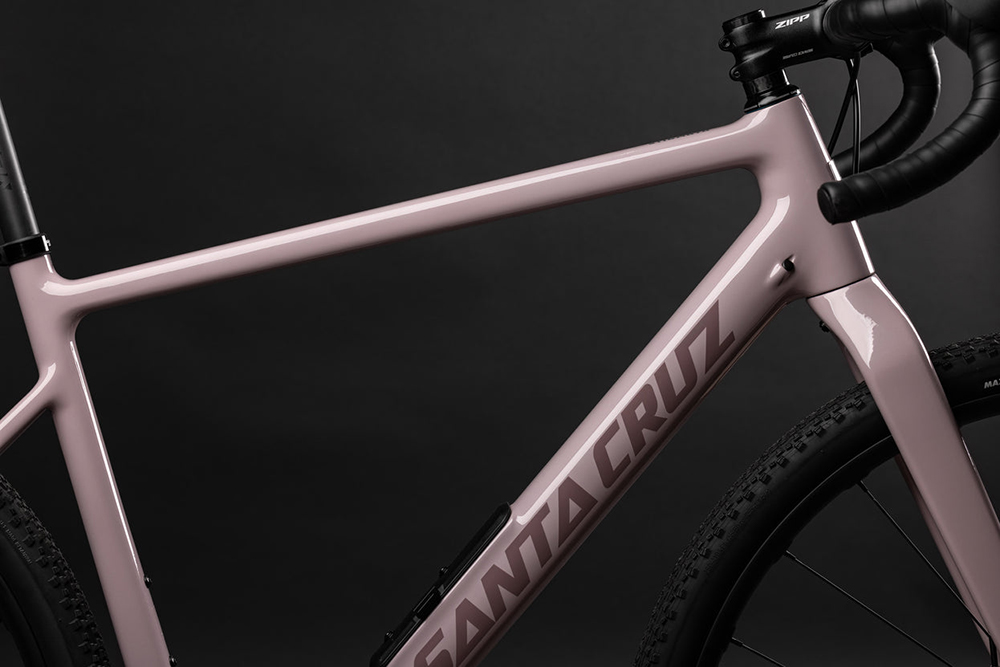

01: CC Carbon Frame

02: Progressive Geometry

03: Low Profile Fender Mounts

04: Glovebox

Click for Geometry

Click for Santa Cruz Bicycles User Manual

Additional Information
Weight:
18.71 lbs / 8.48 kg
Wheel Size:
700C
Fork:
Carbon
Bottom Bracket:
SRAM DUB 68mm Road Wide BB
Cassette:
SRAM XG1270, 10-36t
Chain:
SRAM Force, 12spd
Crankset:
SRAM Force Wide 43/30t
Rear Derailleur:
SRAM Force AXS
Right Shifter:
SRAM Red AXS
Front Rotor:
Avid Centerline, Centerlock, 160mm
Rear Rotor:
Avid Centerline, Centerlock, 160mm
Grips / Bar Tape:
Velo Bar Tape
Handlebars:
Zipp Service Course SL-70 XPLR Bar
Headset:
IS 41 /IS52
Saddle:
WTB Silverado Fusion, CroMo SL
Seatpost:
Easton EC70, 27.2, Zero Offset, 350mm
Stem:
Zipp Service Course Stem, 70mm
Front Rim:
Reserve 25|GR 700c Carbon
Front Hub:
DT Swiss 350, 12x100, Centerlock, 24h
Front Tire:
Maxxis Rambler, 700x45c, DC, EXO
Rear Rim:
Reserve 25|GR 700c Carbon
Rear Hub:
DT Swiss 350, 12x142, XDr, Centerlock, 36t, 24h
Rear Tire:
Maxxis Rambler, 700x45c, DC, EXO
Bottom Bracket Shell:
BSA Threaded 68
Rear Brake Mount:
Flatmount 160mm Direct
Fork Compatibility:
40mm
Fork Offset:
45mm
Front Derailleur Mount:
Braze-on w/included clamp adapter
Max Chainring Size:
42t (1x), 50/36t (2x)
Max Tire Clearance:
50mm (1x), 45mm (2x)
Rear Spacing:
142mm
Material:
Carbon CC
UDH Compatible:
Yes
Fork Axle to Crown:
430
Front Derailleur:
SRAM Force Wide eTap AXS, 12spd
