2025 Santa Cruz V10 FRAME image

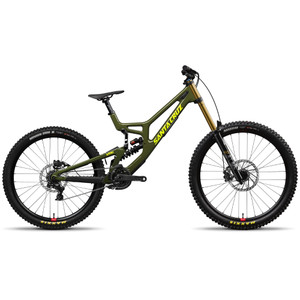

2025 Santa Cruz V10 FRAME

Santa Cruz
Availability:
Most in stock items ship within 1-3 business days
$3,799.00
(No reviews yet)
Weight:
45.00 LBS
Width:
58.00 (in)
Height:
10.00 (in)
Depth:
32.00 (in)
Current Stock:
Adding to cart… The item has been added
Description

The V10 is the same bike ridden by the Syndicate to World Cup victories. Fully refined, not redefined, the new V10 is for riders looking to just imitate their heroes on Sunday afternoon or find the best lines in the bike park. The kind of rider who knows there's no replacement for a proper downhill bike. Lap after lap, day after day nothing stands up to the abuse or gives the thrills a downhill bike can. Nothing.

Specifications

  • Carbon: CC
  • Front (MM): 200
  • Rear (MM): 208
  • Wheel Size: MX S, M, L 29 XL
  • Weight (lbs): 4.41
  • Weight (kg): 9.73

01: Rear Axle Flip Chip

02: Reach Adjust Headset Cups

03: Lower Link Flip Chip

04: VPP™ Suspension

05: CC Carbon Frame

Click for Geometry

Click for Santa Cruz Bicycles User Manual

Additional Information
Material:
Carbon CC
Travel:
208mm
Weight:
9.73 lbs / 4.41 kg
Wheel Size:
MX (S, M, L) 29 (XL)
Shock:
Fox DHX2 Factory Coil
Bottom Bracket Shell:
83mm Threaded
Rear Brake Mount:
200mm or 220mm Post
Shock Length:
250mm
Fork Offset:
52mm
Front Derailleur Mount:
No compatibility
Headset:
IS41 upper/ IS41 lower (Reach Adjust)
Max Chainring Size:
36t
Max Tire Clearance:
2.5Inches
Rear Spacing:
12x157mm
Rear Travel:
208mm
Seat Clamp Diameter:
36.4mm
Seat Post Diameter:
31.6mm
Shock Bushing Size Front:
30x8
Shock Bushing Size Rear:
30x8
Shock Stroke:
75mm
Suspension System:
VPP
