2025 Scott Voltage eRIDE 920 Bike

Imagine giving the world's best trail bike a secret weapon. With the Voltage eRIDE, that's just what we did. Designed for existing MTB enthusiasts who crave an agile, lightweight and capable trail bike with the addition of a compact and quiet motor, the all-new Voltage eRIDE overdelivers trail after trail... after trail.

Features

• Voltage eRIDE Carbon HMF Frame
• Marzocchi Z2 Air 150mm Fork
• FOX Float Custom, 150mm, TwinLoc
• Shimano XT-Deore 12Sp
• SRAM DB8 4 Piston Disc Brakes
• Maxxis Tires

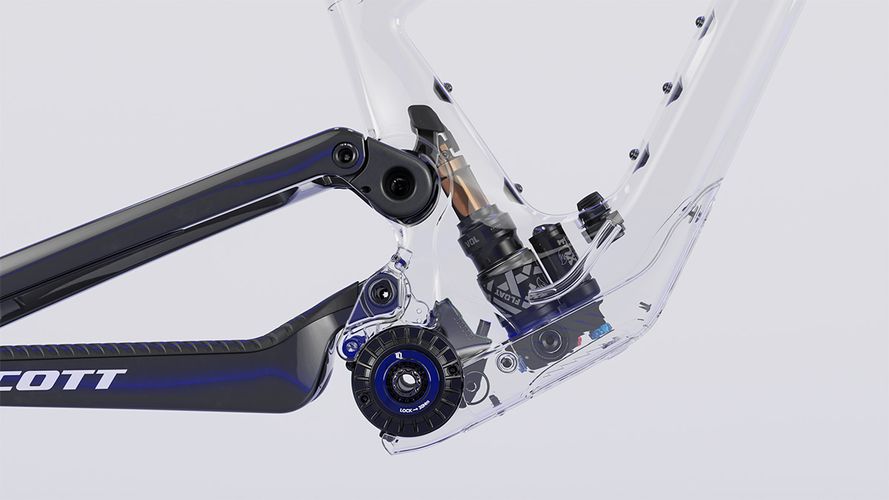

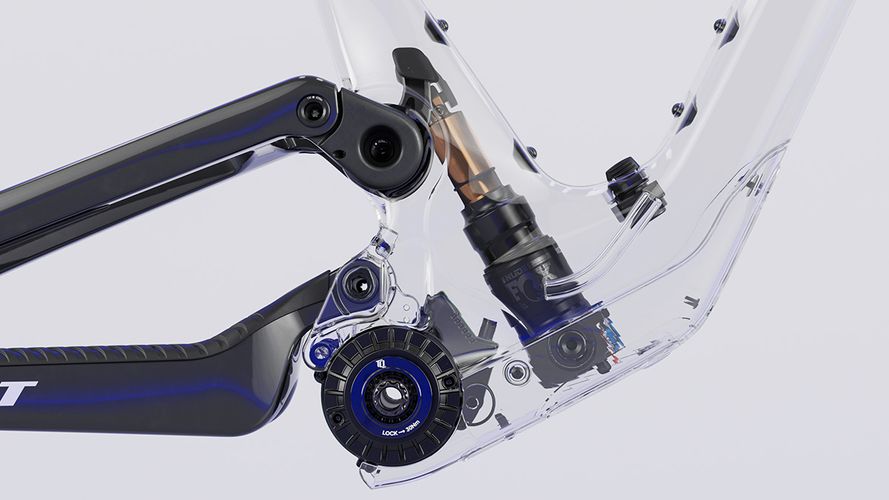

INTEGRATED SUSPENSION TECHNOLOGY

The Voltage applies our patented Integrated Suspension Technology. Not only does this make for a fantastic looking bike, but it also allows us to improve the bike's suspension performance.

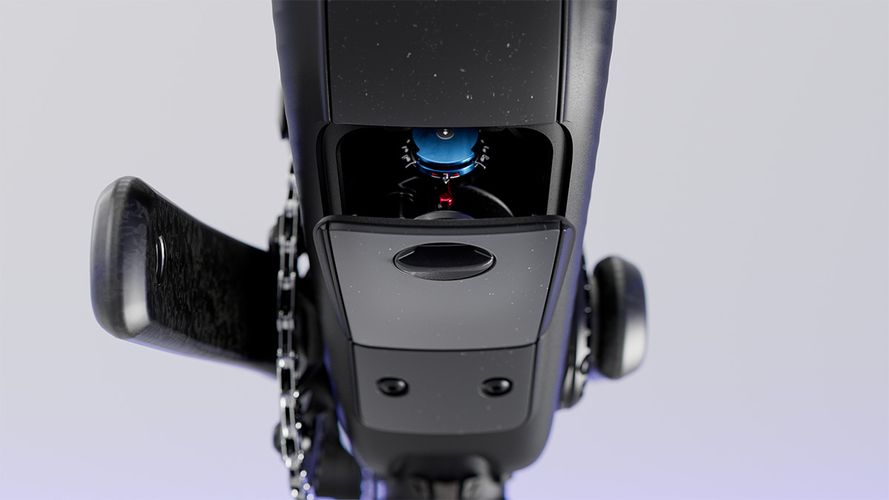

EASY SHOCK ACCESS

With the Voltage, accessing our patented integrated shock is easier than ever. Just push the button, pop off the cover, and access is yours. From here, adjusting rebound, air pressure, etc. is a mere button push away.

When you're done, just pop the cover back on until you hear a click and off you go.

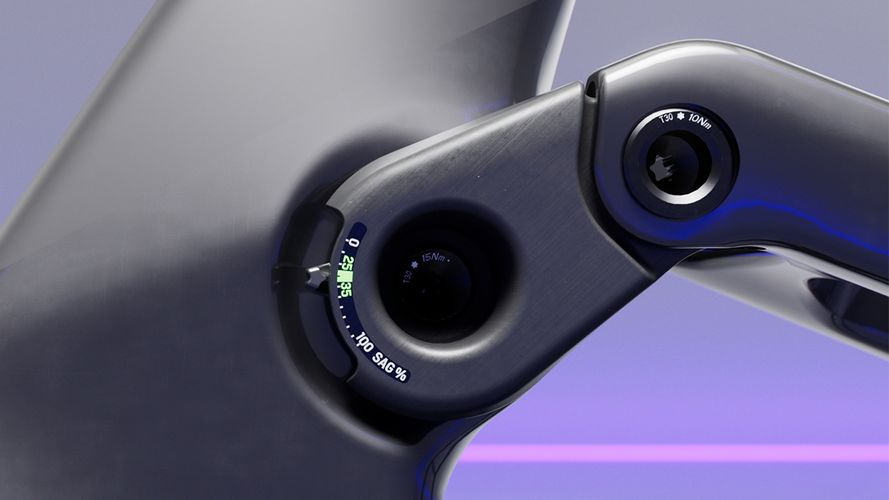

EXTERNAL SAG INDICATOR

Setting sag and checking travel use is easier than ever before with the Voltage. An external indicator on the link allows the end user to easily set sag and to identify how much travel they're using.

FLOAT X NUDE SUSPENSION

The Voltage Tuned model features our NUDE Suspension technology with the Float-X NUDE shock from FOX paired with a fork that favors more adjustability. When you pedal up to have the most fun on the way down, you want a shock that gives you full factory performance when things point downwards, but also a shock that won't slow you down when you need to ride back up. This is where the Float-X NUDE shines.

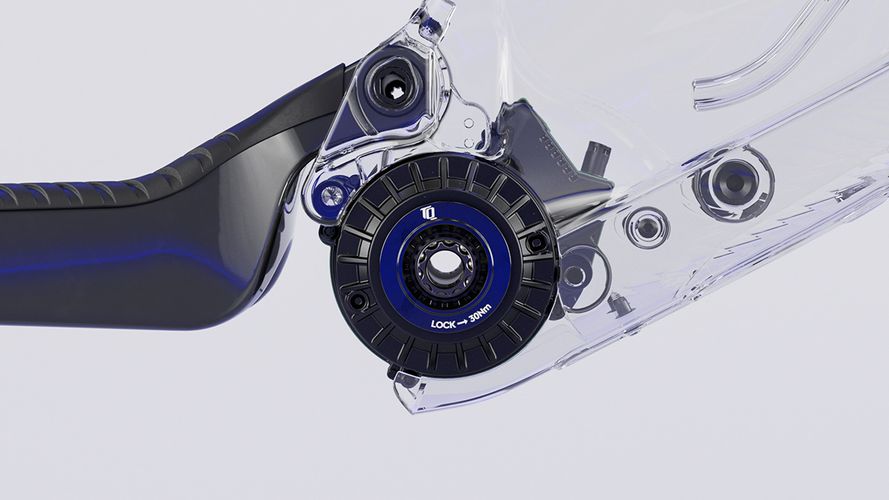

TQ HPR50 MOTOR

TQ is a German company founded in 1994 who specialize in electric components across a range of industries. With the HPR50, they simply rewrote the rules, delivering an unprecedented weight/power ratio of 1.8 kg for 50Nm. With a diameter of 8 cm, TQ has innovated by using a harmonic gear system. This allows for a reduction of size, while also increasing the accuracy of the system. This results in a lighter bike, better integration, while reducing backlash for a more natural pedalling sensation. This technology also allows for the reduction in system noise for a truly natural experience. After all, you are in the outdoors to, well, enjoy the outdoors.

TQ HPR 360Wh Battery

The Voltage features a 360Wh internal battery which can be further complemented by a 160Wh external range extender. Thanks to TQ's electronic expertise, the HPR50 battery, when combined with the range extender, guarantees maximum performance right through until empty. TQ use specific battery cells to ensure both the battery and range extender continue at full output, even as it reaches low capacity. The system can be charged with the range extender in place, the smart charger, prioritising the main battery's charge first, so you'll never be caught short when heading out to ride.

TQ HPR RANGE EXTENDER

The Voltage features a 360Wh internal battery which can be further complemented by a 160Wh external range extender. Easily fixed to the front water bottle mount with our unique SCOTT designed quick release mount, the range extender features a slim design and low weight, meaning minimal impact on the bike's handling.

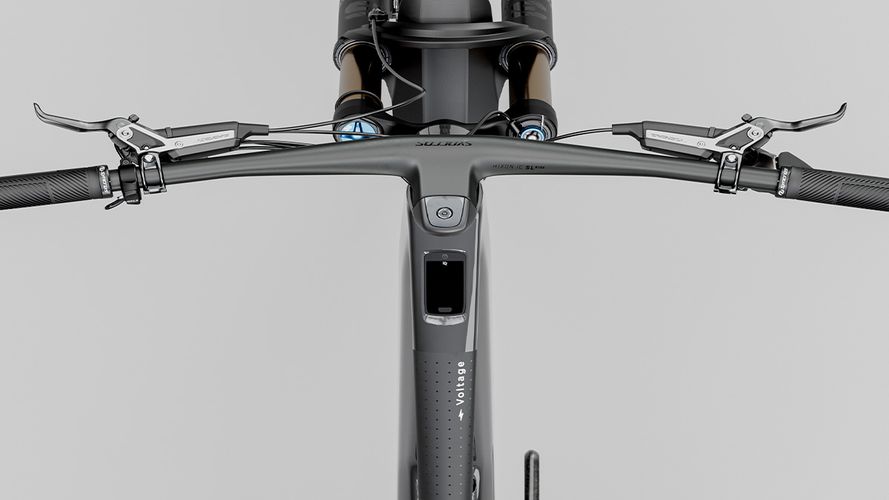

TQ HPR Display

To maintain a clean cockpit, the TQ system puts the focus on a minimalistic display located in the top tube paired to a discrete shifter on the handlebar. At a glance, the LED display provides all the essential info, such as the battery level %, remaining KM range and even Watts, thanks to an integrated power meter. Want more? Link up your phone and dive deep using the TQ E-Bike app, available through the Apple App or Google Play Store. With an automatic Bluetooth connection, you can track your ride and customize your modes. Want to use it with a bike computer? That's no problem. Utilizing the built in ANT+, the system easily connects with a bike computer such as a Garmin, Hammerhead or Wahoo unit.

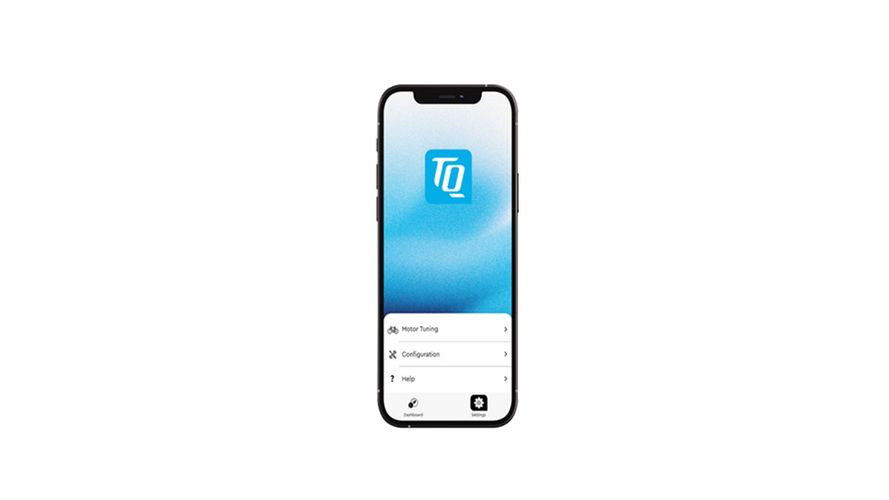

TQ HPR App

The TQ app offers real benefit and is easy to use. It's easy to connect, customize and control your TQ-powered e-bike with the TQ E-Bike app. The bike comes with a suggested SCOTT motor tune, with the app you can further tune your drive unit to either save battery life or maximise the power output. You can alter the pedal response either for a faster motor uptake or to slow it down for a more natural feeling. Lastly, you can customize the display, altering the order and number of screens available, turn on and off control sounds, etc.

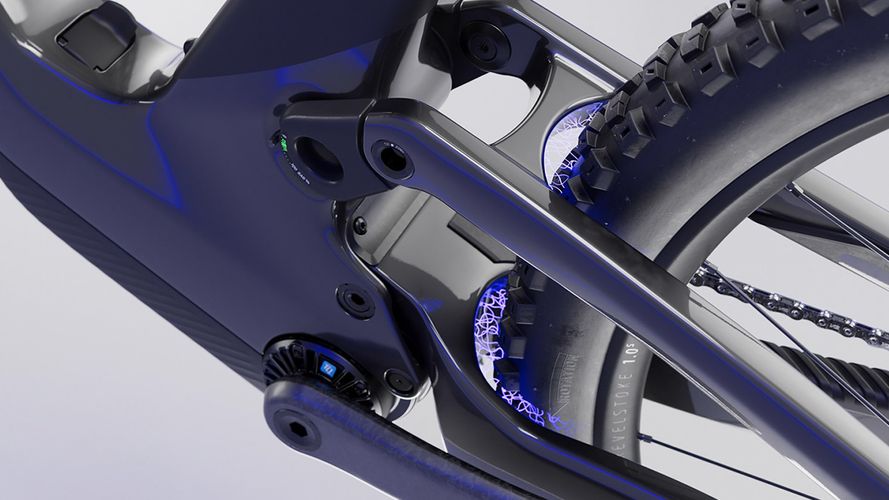

CLEARANCE

The TQ motor allows us to keep a standard Q-factor with a 55mm chain line. This allows us to do a few interesting things. Firstly, we can guarantee great tire clearance while not sacrificing stiffness, which is key when it comes to power transfer. Secondly, it gives you the exact same rider stance and pedal width as on a regular bike.

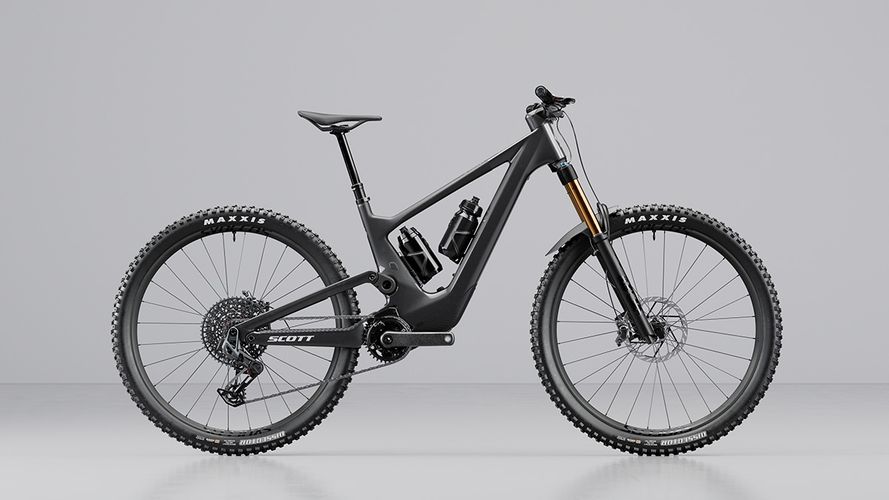

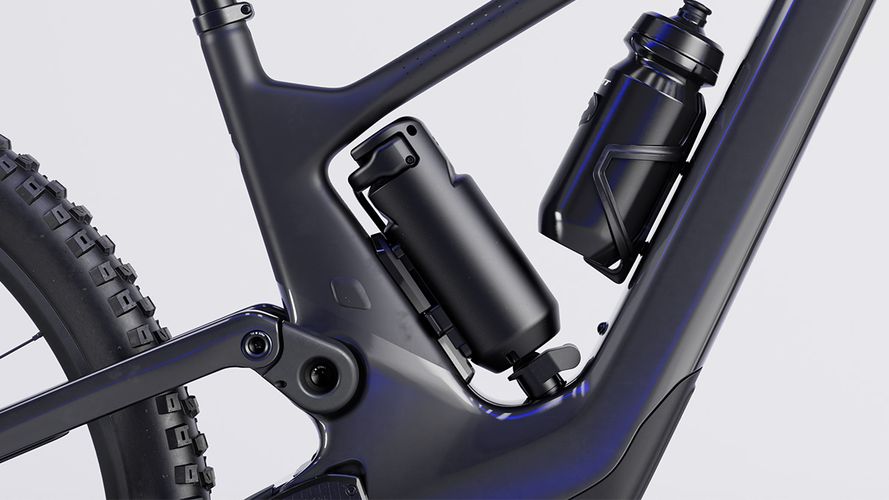

DUAL WATER BOTTLE

Unlike most full suspension E-Bikes, on the Voltage there is no need to choose between the range extender or a water bottle - between longer rides and staying hydrated. Thanks to the integrated shock there is space for both an external battery and water. An optional sliding mount system also allows an easy switch between the seat tube water bottle and the range extender, allowing both to be easily transported when out on longer rides.

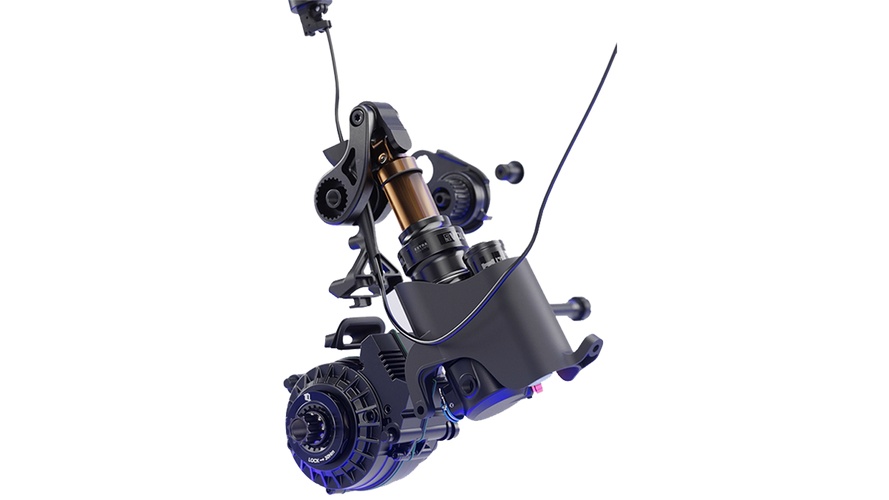

CABLE MANAGEMENT

It's no secret that there is a lot going on inside the modern eMTB, with dropper cable, drive unit and battery cables, and a rear shock discreetly tucked away inside the frame. We have developed a dropper cable channelling device and a shock sleeve that ensure these components are well placed, easy to manage and kept safely away from any moving parts. These neat solutions also result in clean and unobstructed access to the rear shock settings when working on the bike.

Specifications

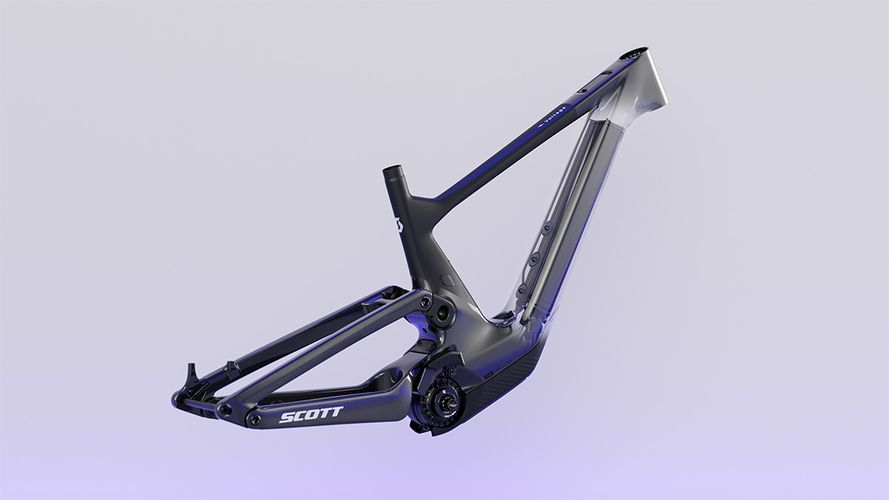

Frame

• Carbon HMF
• Integrated Suspension Technology
• Virtual 4 Link kinematic / Adjustable head angle
• Syncros Cable Integration System
• TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline
• Range Extender Ready

Fork

• Marzocchi Z2 Air Rail
• 3 modes / 15x110mm QR axle / tapered steerer
• 44mm offset / Reb. Adj. / Lockout / 150mm travel

Rear Derailleur

• Shimano XT RD-M8100 SGS
• Shadow Plus / 12 Speed

Shifters

• Shimano Deore SL-M6100-IR / Rapidfire Plus
• I-spec EV clamp

Crankset

• FSA Alloy crankset / 175mm / 34T

Chain

• Shimano CN-M6100

Cassette

• Shimano CS-M6100 / 10-51 T

Brakes

• SRAM DB8 4 Piston Disc

Rotor

• SRAM Centerline CL Rotors F&R 200mm

Handlebar

• Syncros Hixon 2.0 Alloy 6061 D.B.
• 12mm Rise / back sweep 8° / 780mm
• Syncros Endurance lock-on grips

Seatpost

• Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm
• S size 140mm / M size 180mm / L & XL size 210mm

Seat

• Syncros Tofino 2.0 Regular

Headset

• Syncros - Acros Angle adjust & Cable Routing HS System
• Stainless / +-0.6° head angle adjustment
• ZS56/28.6 - ZS56/40 MTB

Front Tire

• Maxxis Dissector / 29x2.6" / 60TPI Wire Bead
• EXO
• Dual

Rear Tire

• Maxxis Dissector / 29x2.6" / 60TPI Wire Bead
• EXO
• Dual

Approx weight in KG

• 19.3 (with tubes)

Approx weight in LBS

• 42.55 (with tubes)

Max. System Weight

• 128kg
• The overall weight includes the bike, the rider, the equipment, and possible additional luggage.

H'stem

• Syncros AM 2.0
• Syncros Cable Integration System
• 4° rise / 6061 Alloy / 31.8mm / 1 1/8"

Spokes

• Stainless Black 15G / 1.8mm

Drive Unit

• TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph

Battery

• TQ Internal 360Wh

Display

• TQ HPR
• Bluetooth / ANT+ / Dedicated Smartphone app

Charger

• TQ 100-240V-4A

Hub (Front)

• Formula CL-811 / 15x110mm

Hub (Rear)

• Formula CL-148M / 12x148mm

Rims

• Syncros X-30S / 32H / 30mm / Sleeve Joint
• Tubeless ready

Rear Shock

• FOX Float Custom EVOL Performace Trunnion
• 3 modes / Lockout-Trail-Descend
• DPS / Reb. Adj.
• Travel 155mm / T185X55mm

Remote System

• SCOTT TwinLoc 2 Technology
• Suspension & Dropper Remote
• 3 Suspension modes

Chainguide

• e*thirteen / e*spec Slider

Travel

• Front: 150mm / Rear: 155mm

Chainring

• Scott custom spider / FSA 12Speed 34T chainring
