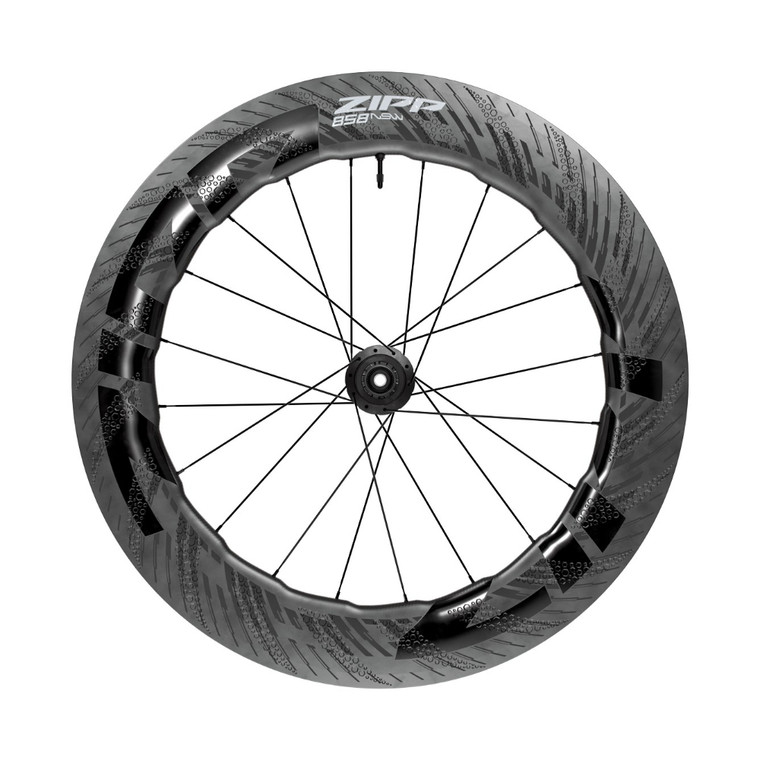

2025 Zipp 858 NSW Tubeless Disc - Brake - D1
ZIPPZipp's ultimate aero weapon is faster than ever, thanks to our proprietary Total System Efficiency technology. With TSE, the 858 NSW Carbon Tubeless Disc-brake wheelset features a tubeless and hookless rim profile for seamless tire interface and huge drop in weight. The 858 gives you the benefits of our deep rims at weight typically associated with rims that are 20mm shallower. The wheel's internal width is 23mm, ideal for running wider tires with lower pressures for decreased rolling resistance. That's how TSE technology helps you conquer the four barriers to speed: Wind Resistance, Gravity, Rolling Resistance, and Vibration Losses. The 858 NSW's undulating 82mm-85mm deep rim shape, our patented Sawtooth profile, is our highest performing design for aero efficiency and crosswind stability. The result is the pure speed, especially for triathletes, time trial specialist, and any other speed freak. What's more, while this wheelset is optimized for tubeless tires, you still have the option to run tubeless ready tires with tubes. The 858 NSW is fastest with a 28mm tire. In triathlon, running wider tubeless tires at lower pressure makes you faster while also smoothing out the ride so your body is fresher for the run. Disc brakes also offer more reliable speed modulation and braking power in all weather conditions. The 858 NSW features the premium ZR1 SL hubset with ceramic bearings and 66 points of engagement.
Features
- Zipp's most advanced and fastest deep-rim wheel for road, triathlon, and time trialing
- Weighs 30 g lighter than previous model
- Optimized for 30mm tires
- TSE for greater efficiency and reduced rolling resistance
- Sawtooth rim with Hyperfoil nodes and HexFin ABLC dimple pattern for top aero and crosswind-stability performance with an undulating rim depth
- ZR1 SL hubset with ceramic bearings
- Ships with 12mm front and rear end caps
- Center locking rotor interface. Lockring is included with the wheels
- Zipp graphics applied using Zipp's ImPress direct-print technology
- Minimum 28mm tire width
- 1500 g
- Lifetime Warranty
Technical Features
Hyperfoil
Hyperfoil is the name given to the individual nodes on Zipp NSW variable depth Sawtooth rims. Each of these patented structures features our HexFin ABLC dimples that help to stabilize handling in gusting wind by increasing wind vortex shedding frequency. The higher frequency vortex shedding produced by Sawtooth creates a greater number of smaller, less powerful, yet more predictable vortices leading to greater wheel stability. This added stability translates into greater rider control, thereby saving energy that is typically expended trying to hold a line in gusting wind. The result is a faster, more confident riding experience whether you are laying down power or descending sinuous mountain roads.
HexFin ABLC
HexFin ABLC dimples are the hexagonally shaped depressions found at each Hyperfoil of our Sawtooth shaped NSW rims. The angular shape of each dimple increases boundary layer mixing to help keep airflow attached to the rim for reduced aerodynamic drag and improved stability in crosswinds. To further improve the effectiveness of the hexagonal dimples, they are arranged in fin-shaped clusters made up of variable sized dimples that work in concert with each Hyperfoil of a Sawtooth rim.
TSE Technology
Zipp’s TSE Technology (Total System Efficiency) was developed by our engineers in the Nest Advanced Development Lab in Indy. This approach to carbon-wheel manufacturing means the Firecrest’s precise rim layup results in greater all-around efficiency for greater speed through reduced: Wind resistance, rolling resistance, gravity (weight + durability), vibration losses.
ImPress
We’ve employed Zipp’s ImPress graphics technology, which prints graphics directly on the wheel, to help allow the dimples to do what they were design to do – help control vortex shedding, the rate at which air sheds off the wheel. Managing this is crucial to stability.
SawTooth
SawTooth is the name given to Zipp NSW’s patented variable depth 53/58mm rims. Developed utilizing the principles of the emerging science of biomimicry, Zipp engineers began the rigorous aero development process of SawTooth utilizing the wind tunnel, CFD, and real-world testing. The result is a rim shape that takes nature’s most elegant design solutions and combines engineering precision to deliver a wheel that performs unlike any made before. This patented new rim shape achieves something conventional aero wheels cannot; it simultaneously reduces both aerodynamic drag and side force for the ultimate in AeroBalance. Sawtooth accomplishes this with a series of patented fin-shaped Hyperfoil nodes along the inner diameter of the rim that work together with our new HexFin ABLC dimples for improved airflow. The result is Zipp’s highest performing wheelset ever realized with both aero-drag reduction and reduced side force at all wind yaw angles. This is important because higher wind yaw angles are where bike handling is most affected by the wind.
Click for Zipp Wheel Specifications
Click for Mountain Wheel User Manual
- Size (wheels):
- 700c
- Rim construction:
- Carbon - Hookless
- Tire compatibility:
- ISO/TSS Compatible tubeless tires (28-32c) tube or sealant
- Rim depth:
- 85mm
- Brake compatibility:
- Disc (Center Lock)
- Rim - inside width:
- 23mm
- Rim profile:
- Symmetrical
- Rim finish:
- UD fiber, Impress technology
- Hub:
- ZR1 SL
- Driver body type:
- n/a, SRAM XDR, SRAM/Shimano Road
- Bearings:
- Custom Hybrid Ceramic - 61803, Custom Hybrid Ceramic - 61803/61903
- Max tire pressure:
- 73psi/5.0bar
- Max recommended system weight:
- 250lbs/114kg
- Spoke Length DS:
- 220mm, 230mm
- Spoke Length NDS:
- 232mm
- Max outside width:
- 27mm
