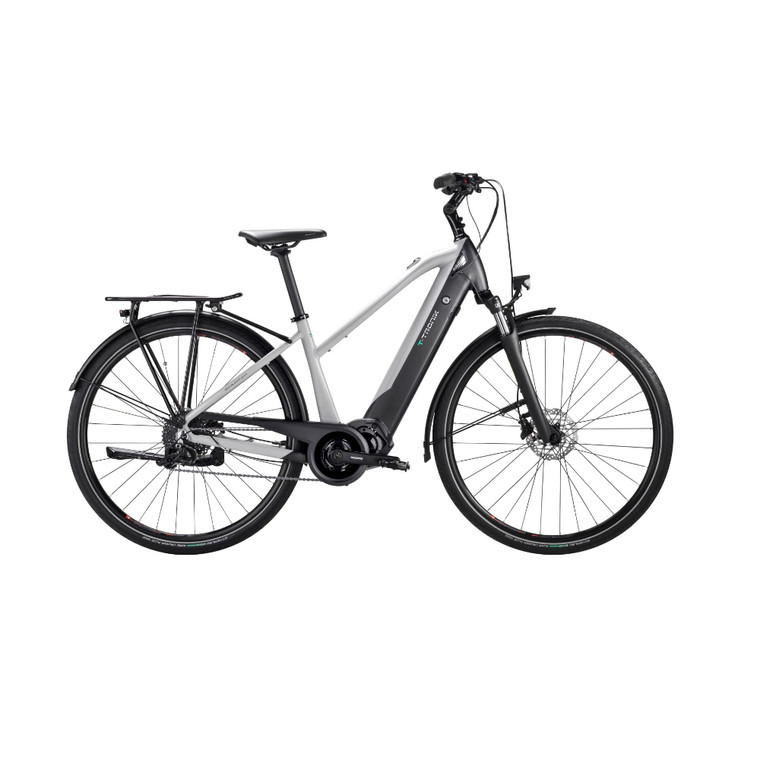

2026 Bianchi T-Tronik T-Type Step-Through Sunrace 9SP YRBT9

Bianchi
Availability:
Most in stock items ship within 1-3 business days. Inventory updates frequently and may not reflect real-time stock. If your item is not available we will contact you and issue a prompt refund.
€2,103.66
(No reviews yet)
Weight:
45.00 LBS
Width:
58.00 (in)
Height:
10.00 (in)
Depth:
32.00 (in)
Current Stock:
Adding to cart… The item has been added
Description

Specifications

Frame

T-Tronik T-Type Frame 28" Tourer Step-through, Suspended fork geometry, Alu PG 6061 32/37 Max shell, disc brake, O.L.D.135mm, D/T battery, size: 43/47

Fork

"Suntour SF15-NEX-E25-DS-700C-63 PostMount disc brake, 1.1/8"", travel 63mm, compatible with fender, OLD 100mm, Quick relase type"

Headset

FSA 1.1/8" 44H-N10P

Shifters

SRAM X5 1x9SP

Rear Derailleur

Sunrace, 9sp, max 42T

Crankset

Shimano FC-E6100, 170MM CHAINRING, SM-CRE61, 38T, FOR CHAIN LINE 46.5MM

Bottom Bracket

included in the motor

Chain

KMC E9s EPT

Brakes

Radius, BH-M960, 900mm hose length, Direct Mount, w/adapter Radius BH-M960, 1700mm hose length, Direct Mount, w/ J-kit, w/ adapter

Rotor

Radius Rotors RT900, 160mm, center lock

Tire

Chaoyang E-Liner City 700x45C, 60tpi

Stem

Velomann, 28,6 mm steerer ID Clamp, 31,8 mm barbore

Handlebar

Velomann 31.8/680mm, RISE 20MM, SWEEP 15°

Grips / Extensions

Herrmans GRIPset Oxy DD29BR/BL 130mm/130mm black-black,d.22mm

Seatpost

Velomann, lenght 350mm, diam.31,6mm, 0mm seatback, Al2014 shaft + alloy head

Saddle

Selle Royal, Essenza

Pedals

VP black aluminum, w/reflector

Motor

Shimano E6100 250W, torque 60Nm

Battery

417Wh Phylion integrated battery

Mudguards

SKS Mudguard profile A60S, internal cable routing on the rear mudguard, secuclip/esc clip, protector on front and rear tail, protector on front mudguard

Front Light

Herrmans Mr GO

Rear Light

Axa Juno

Kickstand

Ursus R81 WAVE REAR, 28" - 40mm fixing plate (load 35kg)

Rear Carrier

Racktime, RT Eco 2.0, 28", black w/ roundstay 350mm
