2026 Marin 2024 Alcatraz
Marin
$1,399.00
(No reviews yet)
Write a Review
Marin

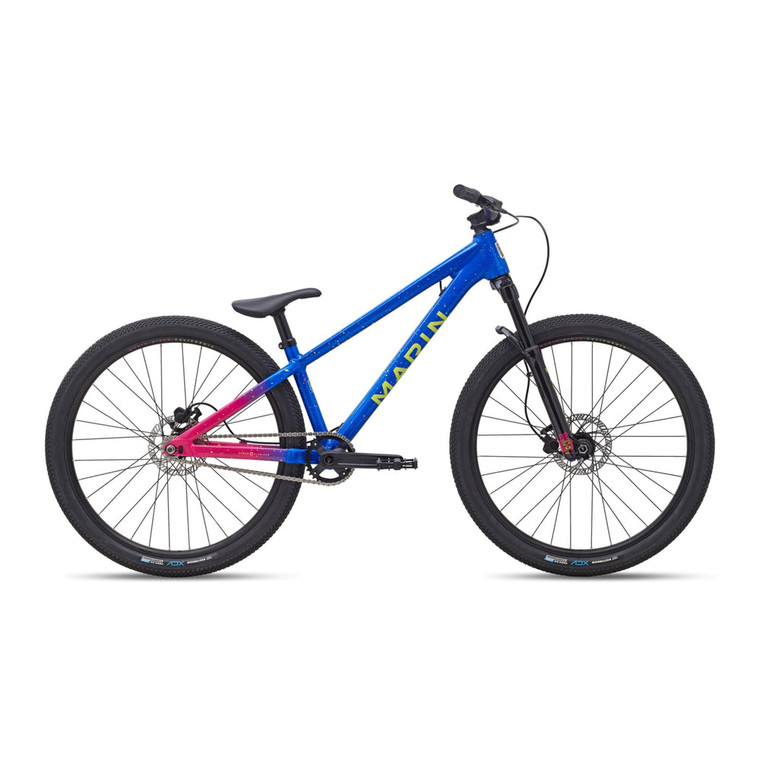

2026 Marin 2024 Alcatraz
The Alcatraz was designed from the ground up to be the best dirt jump and slopestyle bike you have ever ridden. We worked hand- in-hand with Matt Jones to define the exact needs of a modern dirt jump frame, and are proud to release the complete Alcatraz into the world. The 6061 Series 3 aluminum alloy frame is stiff and overbuilt for abuse, with a tapered headtube and 135x10mm horizontal drop outs. Available solely as a complete bike, so there is less time between you and throwing big whips and flips.
- Frame:
- All New Series 3 6061 Aluminum Frame, 26 Wheels, 135x10mm Horizontal Dropouts, 73mm Threaded BB, ISCG 05 Tabs"
- Rim:
- Marin Custom Extrusion, 27mm Inner, Pinned Joint
- Hub Rear:
- Forged Alloy, 135x10mm, Bolt-On, Quad Sealed Bearings, Disc, 32H
- Hub Front:
- Forged Alloy, 110x20mm, Disc, 32H
- Spokes:
- 14g Black Stainless Steel
- Tires:
- Vee Tire, XCV 26x2.25, LSG Compound, Wire Bead"
- Crankset:
- Marin Forged Alloy, Alloy 32T Chainring, 104mm BCD
- Bottom Bracket:
- External Sealed Cartridge Bearings
- Chain:
- KMC HL-1
- Cassette:
- 14T Single Speed Cog
- Brakes Front:
- Tektro HDM275 Hydraulic Disc Brake, 160mm Rotor
- Brakes Rear:
- Tektro HDM275 Hydraulic Disc Brake, 160mm Rotor
- Brake Levers:
- Tektro HDM275
- Handlebar:
- Marin Riser, 6061 Double Butted Aluminum, 38mm Rise, 750mm Width, 4º Up, 9º Back
- Stem:
- Marin 3D Forged Alloy, 40mm
- Grips:
- Marin Single Clamp Locking
- Headset:
- FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8 x 1 1/2""
- Seatpost:
- Marin Alloy, 30.9mm
- Saddle:
- Marin DJ Saddle
- Extras:
- All New Marin Chain Tension Device
- Fork:
- Manutou Circus Expert, 26, 100mm Travel, Coil Spring, Taper Steerer Tube, 20x110mm Thru Axle"
- Pedals:
- Alloy Platform
