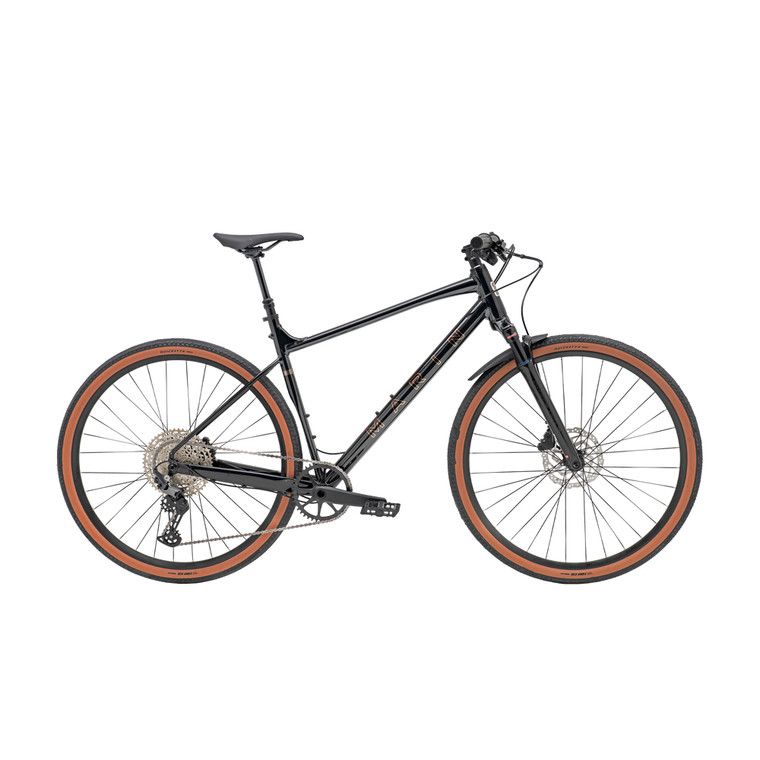

2026 Marin DSX FS - Black/ Orange image

2026 Marin DSX FS - Black/ Orange

Marin
Availability:
Most in stock items ship within 1-3 business days. Inventory updates frequently and may not reflect real-time stock. If your item is not available we will contact you and issue a prompt refund.
€1,562.79
(No reviews yet)
Weight:
60.00 LBS
Width:
58.00 (in)
Height:
10.00 (in)
Depth:
32.00 (in)
Current Stock:
Adding to cart… The item has been added
Description

Is it a gravel bike? Is it a mountain bike? Well, it's both - the Marin DSX FS breaks the gravel bike mold even further by adding a 60mm SR/Suntour front suspension fork for hard-charging, off-road adventures. There's also a 12-speed 1X Shimano SLX drivetrain, Vee Tire Co tires, Shimano hydraulic brakes and plenty of reliable Marin components.

Technologies

Shimano 12 Speed Gears

Dropper Post Compatible

Series 3 Aluminum Frame

Shimano Hydraulic Brakes

Click for Geometrical Chart

Click for Specifications

Additional Information
Frame:
Series 3 DSX, Suspension Adjusted Geometry, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Front Suspension:
SR Suntour GVX LOR, 60mm Travel, Air Spring, Rebound Adjust, Lockout, Integrated Fender Mounts
Rim:
Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible
Hub Rear:
Forged Aluminum, 142x12mm, Disc Specific, 32H
Hub Front:
Forged Aluminum, 100x12mm, Disc Specific, 32H
Spokes:
14g Black Stainless Steel
Tires:
Vee Tire Co., QuikStyk, 700x45, Folding Bead, Tubeless Compatible
Derailleur Rear:
Shimano Deore, RD6100, 12-Speed
Shift Lever:
Shimano Deore, SLM6100, 12-Speed
Crankset:
Forged Aluminum, 42T Steel Narrow Wide Chainring
Bottom Bracket:
Sealed Outboard Bearing
Chain:
KMC X12
Cassette:
Shimano Deore, CSM6100, 12-Speed, 10-51T
Brakes Front:
Shimano BR-MT201/R300, Hydraulic, Flat Mount, 160mm Rotor
Brakes Rear:
Shimano BR-MT201/R300, Hydraulic, Flat Mount, 160mm Rotor
Brake Levers:
Shimano Hydraulic
Handlebar:
Marin MiniRiser
Stem:
Marin 3D Forged Alloy
Grips:
Marin MTB
Headset:
FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8 x 1 1/2""
Seatpost:
TranzX YSP38J, Size S 70mm, Size M-XL 110mm Travel, 27.2mm
Saddle:
Marin DSX
Pedals:
Nylon Platform
