Click for Geometrical Chart

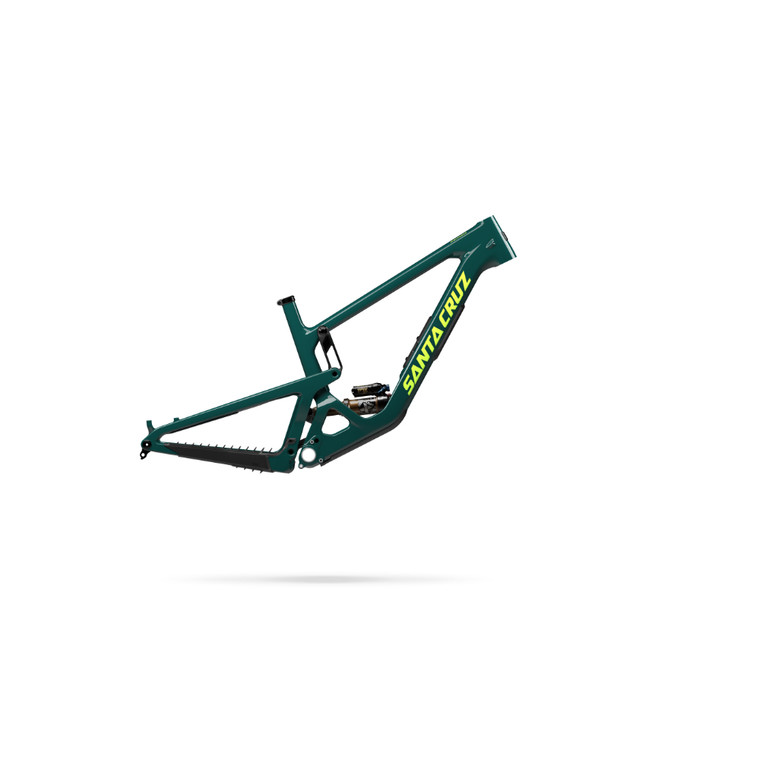

2026 Santa Cruz Hightower Frame CC
Santa Cruz
$4,049.00
(No reviews yet)
Write a Review
Santa Cruz
2026 Santa Cruz Hightower Frame CC
Big on wheels, short on fuss, this is the pinnacle of go-anywhere-anytime bikes. A balance of travel, wheel size and attitude makes this a true MTB for modern mountain biking. Whether that includes the rarefied air of the alpine or just local trailheads, built and burly trails or sublime natural singletrack, the Hightower is an all-terrain thriller.
- Material=CC
- Front (MM)=160
- Rear (MM)=150
- Wheel Size=29"
- Weight (lbs)=6.84
- Weight (kg)=3.1
Owners Club
Get access to the exclusive SCB Owners Club which gives you access to added levels of rider support, treats, opportunities and benefits. Join the club today for free! It takes just five minutes to receive a lifetime of membership perks.
Lifetime Warranty
We build Santa Cruz bicycles to be durable and long lasting, and then back them up with legendary support and a warranty of the highest standard.
Free Bearing Replacement
Santa Cruz Bicycles offers free replacement pivot bearings to the original owner for as long as they own their bike.
01
CC Carbon Frame
02
C Carbon Frame
03

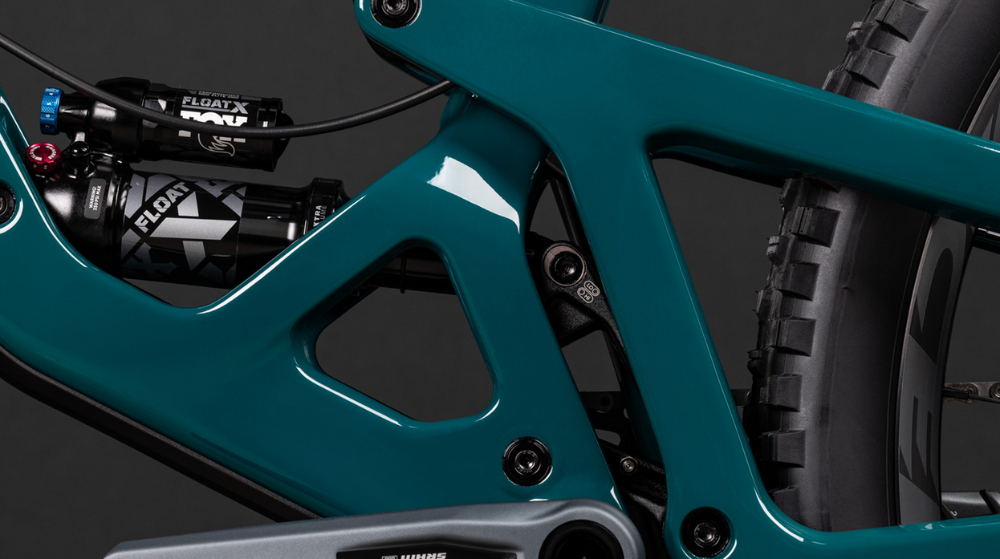

VPP™ Suspension
04
Flip Chip
05

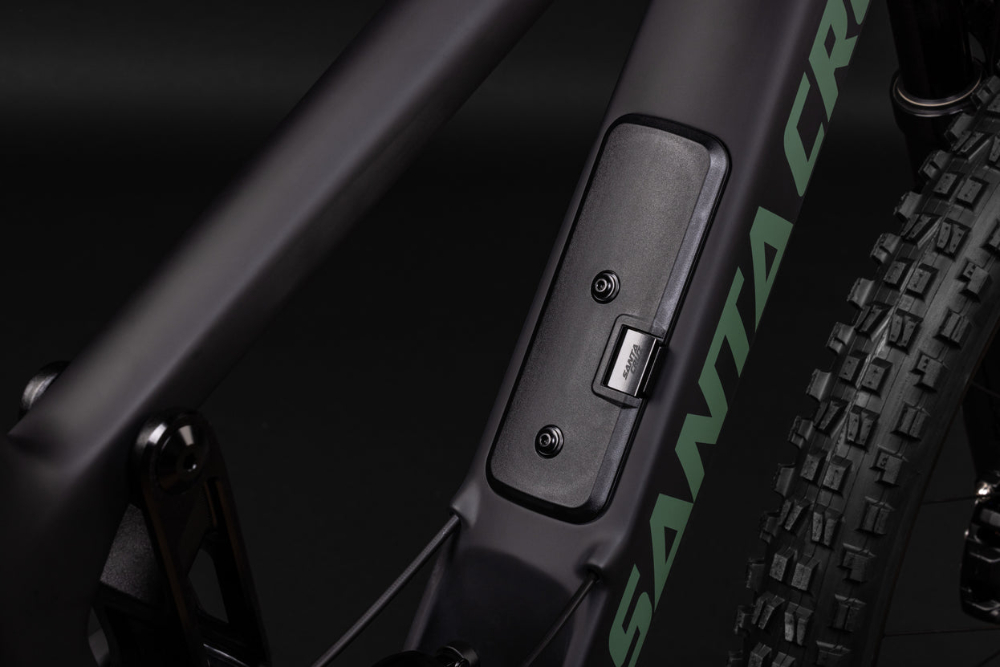

Glovebox
- Material:
- Carbon CC
- Travel:
- 150mm
- Weight:
- 6.84 lbs / 3.1 kg
- Wheel Size:
- 29";Shock=FOX Float X Factory, 230x57.5"
- Bottom Bracket Shell:
- 73mm Threaded
- Rear Brake Mount:
- 180 PM
- Shock Length:
- 230mm
- Fork Offset:
- 44mm
- Headset:
- Integrated (IS41/52)
- Max Chainring Size:
- 36t
- Max Tire Clearance:
- 2.5";Seat Clamp Diameter=36.4mm"
- Seat Post Diameter:
- 31.6mm
- Shock Bushing Size Front:
- 40x10 (standard bushing)
- Shock Bushing Size Rear:
- 30x8 (roller bearing)
- Shock Stroke:
- 57.5mm
- Suspension System:
- VPP
- Water Bottle Mounts:
- 1
- Front Derailleur Mount:
- No compatibility
- Max Rotor Size:
- 223mm
- Recommended Sag:
- 30% (17.25mm)
