2026 Santa Cruz V10 Frame
Santa Cruz
$3,949.00
(No reviews yet)
Write a Review
Santa Cruz
2026 Santa Cruz V10 Frame
The V10 is the same bike ridden by the Syndicate to World Cup victories. Fully refined, not redefined, the new V10 is for riders looking to just imitate their heroes on Sunday afternoon or find the best lines in the bike park. The kind of rider who knows there's no replacement for a proper downhill bike. Lap after lap, day after day nothing stands up to the abuse or gives the thrills a downhill bike can. Nothing.
- Material=CC
- Front (MM)=200
- Rear (MM)=208
- Wheel Size=MX S, M, L 29 XL
- Weight (lbs)=9.73
- Weight (kg)=4.41
Owners Club
Get access to the exclusive SCB Owners Club which gives you access to added levels of rider support, treats, opportunities and benefits. Join the club today for free! It takes just five minutes to receive a lifetime of membership perks.
Lifetime Warranty
We build Santa Cruz bicycles to be durable and long lasting, and then back them up with legendary support and a warranty of the highest standard.
Free Bearing Replacement
Santa Cruz Bicycles offers free replacement pivot bearings to the original owner for as long as they own their bike.
01

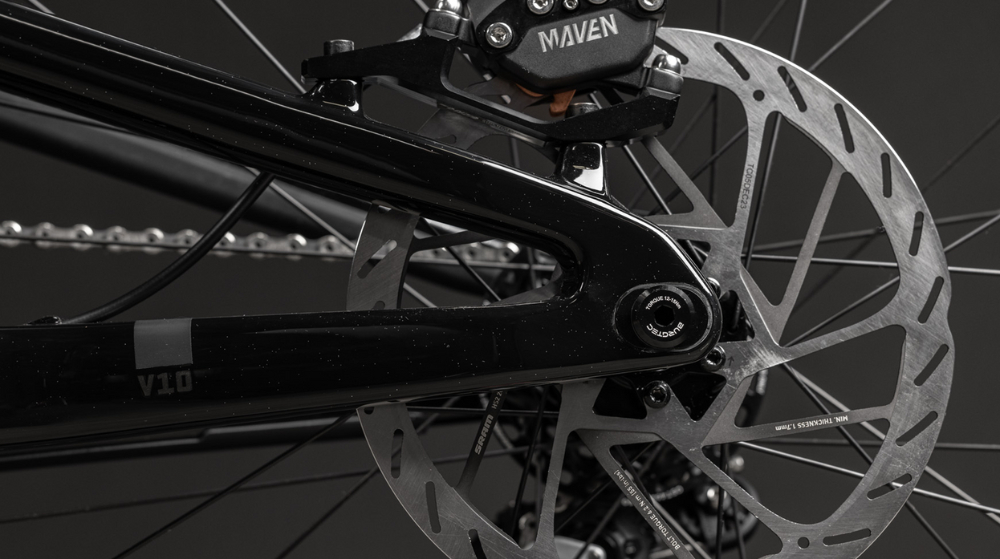

Rear Axle Flip Chip
02

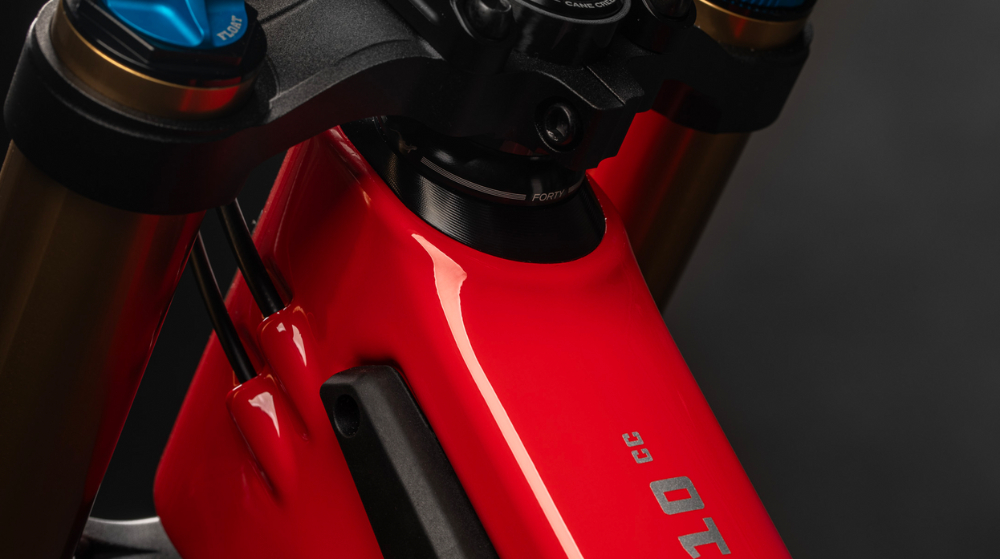

Reach Adjust Headset Cups
03
Lower Link Flip Chip
04

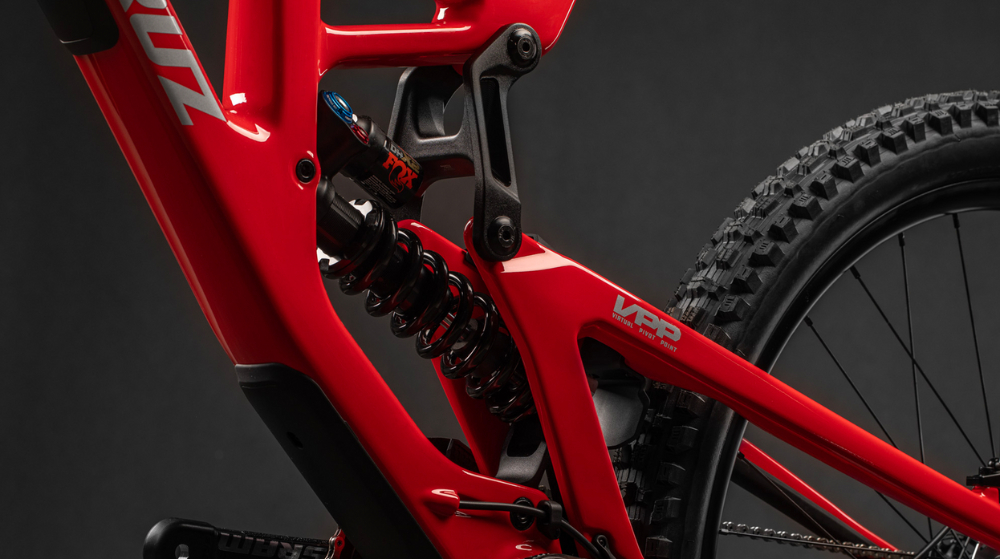

VPP™ Suspension
05

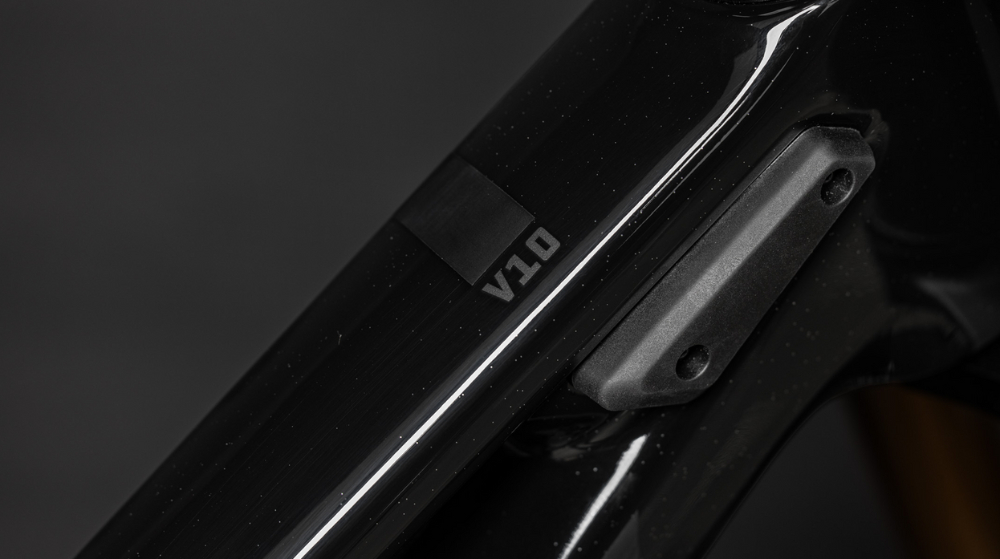

CC Carbon Frame
- Material:
- Carbon CC
- Travel:
- 208mm
- Weight:
- 9.73 lbs / 4.41 kg
- Wheel Size:
- MX (S, M, L) 29 (XL)
- Shock:
- Fox DHX2 Factory Coil
- Bottom Bracket Shell:
- 83mm Threaded
- Rear Brake Mount:
- 200mm or 220mm Post
- Shock Length:
- 250mm
- Fork Compatibility:
- 200-203mm
- Fork Offset:
- 52mm
- Headset:
- IS41 upper/ IS41 lower (Reach Adjust)
- Max Chainring Size:
- 36t
- Max Tire Clearance:
- 2.5";Seat Clamp Diameter=36.4mm"
- Seat Post Diameter:
- 31.6mm
- Shock Bushing Size Front:
- 30x8
- Shock Bushing Size Rear:
- 30x8
- Shock Stroke:
- 75mm
- Suspension System:
- VPP
- Front Derailleur Mount:
- No compatibility
- Rear Spacing:
- 12x157mm
- Rear Travel:
- 208mm
