2026 Scott Scale 940 Black Bike
SCOTT
$1,999.99
(No reviews yet)
Write a Review
SCOTT
2026 Scott Scale 940 Black Bike
- Scale Carbon HMF Frame
- RockShox Judy 100mm Fork
- RideLoc 2 Remote
- SRAM NX-SX Eagle 12 Speed
- Shimano Disc Brakes
- Schwalbe Smart Sam Tires
Balancing the Scale’s DNA , we’ve created a whole new breed in the world of hardtail mountain bikes. A racing inspired geometry, coupled with a straightforward and sharp design provides the all-new Scale 900 line with its distinctive character and aggressive look - a bike that proudly flaunts its definitive characteristics. This rig is ready for just about anything, are you?
Please note that bike specifications are subject to change without prior notice
Features:

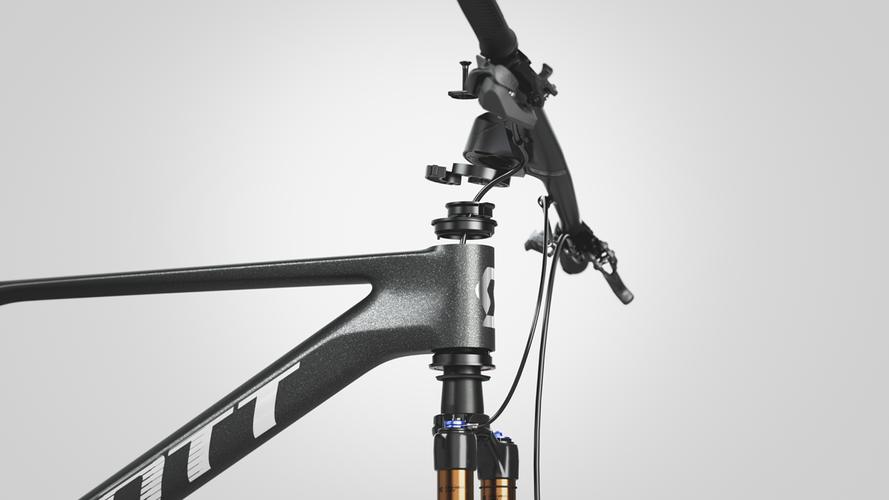

Adjustable Head Angle
With the new Scale RC, you can adjust the head angle by 0.6 degrees slacker or steeper. This can be done without cutting cables or bleeding brakes. All you must do is disassemble the bar, rotate the headset cups 180 degrees, and reassemble.
Design
The new Scale’s design was uncompromisingly subjected to our pursuit of perfection and drive for pure efficiency, strictly following the guiding principle of “Form follows Function”. In our search for the ultimate, yet most simple construction, we’ve centered the design around the essentials by balancing the bike’s DNA in order to create a whole new breed of XC bike. The result is a straightforward and clear design, which provides the all-new Scale with its distinctive character and aggressive look: a bike that proudly shows off its characteristics.

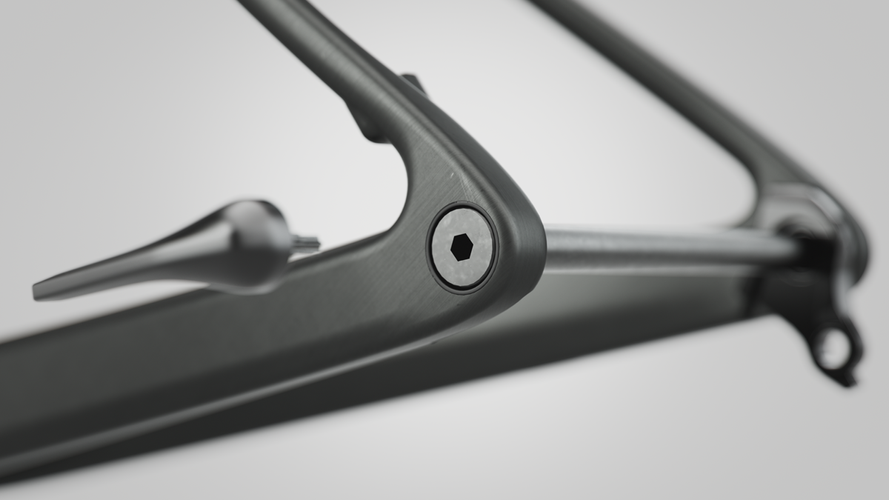

Hollow Dropout Construction
The dropout feature an advanced, hollow construction, which allows the axle head to clamp against the inner surface of the dropout and leaves the
head flush with the surface. This enables the lightest possible construction approach and a clean looking design from the outside. While being able to directly shave off 7.5g with the new dropout construction, the optimized design favors a narrower construction of the rear triangle area, which in turn enables a reduction of 20g in this area of the frame (HMX-SL).
Monocoque Construction
The new Scale RC’s monocoque construction enables a production using only one mold for the main section of the bike, the front triangle. Applying our carbon expertise, the new Scale therefore consists of only 3 separate pieces molded together. This directly translates into an increased level of efficiency due to the reduced number of junctions required therefore decreasing weight while keeping the superior stiffness – something we’re always aiming for with hardtail race bikes. With the full frame constructed as a system, the monocoque design enables the frame to handle forces as a whole.
Service Door
A little service door, which is accessible through a downtube cover, allows easy access to the interior of the frame without the need to remove the Bottom Bracket. Frame maintenance is made easy with regards to cable routing.
Specifications
Frame
Scale Carbon HMF
Adjustable head angle / Syncros Cable Integration System
Advanced Shock & Standing Damping System
BB92 / UDH Interface / 12x148mm with 55mm Chainline
Fork
RockShox Judy Silver TK Solo Air
15x110mm QR axle / 42mm offset / Tapered Steerer
Reb. Adj. / Lockout / 100mm travel
Remote System
SCOTT RideLoc 2 Remote
Rear Derailleur
SRAM NX Eagle 12 Speed
Shifters
SRAM SX Eagle Trigger
Crankset
SRAM SX Eagle DUB
55mm CL / 32T
BB-Set
SRAM DUB PF 92 MTB Wide / shell 41x92mm
Chain
SRAM CN SX Eagle
Cassette
SRAM SX-PG1210 / 11-50 T
Brakes
Shimano MT200 Disc Brake
Rotor
Shimano SM-RT10 CL / 180/F and 160/R
Handlebar
Syncros Alloy 6061
T shape Flat / 9° / 740mm
Syncros Performance XC lock-on grips
H'stem
Syncros Alloy 6061
oversized 31.8mm / 1 1/8" / 6° angle
Seatpost
Syncros / 31.6x400mm
Seat
Syncros Belcarra Regular 2.5
Headset
Syncros - Acros Angle adjust & Cable Routing HS System
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB
Hub (Front)
Formula CL-811 / 15x110mm
Hub (Rear)
Formula CL-3248 / 12x148mm
Spokes
Stainless Black 15G / 1.8mm
Rims
Syncros X-30SE / 32H / 30mm
Tubeless ready
Front Tire
Schwalbe Smart Sam 29x2.35" / Active line
Rear Tire
Schwalbe Smart Sam 29x2.35" / Active line
Approx weight in KG
12.7 (with tubes)
Approx weight in LBS
28 (with tubes)
Max. System Weight
128kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
Click for SCOTT General Manual_EN
Click for SCOTT Scale Manual_EN
