2026 Scott Scale Gravel 20 Bike - Kaki Green/Carbon Black
SCOTT
$1,599.99
(No reviews yet)
Write a Review
SCOTT
2026 Scott Scale Gravel 20 Bike - Kaki Green/Carbon Black
- Scale Alloy 6061 Frame
- Scale Rigid HMF Fork
- SRAM Eagle 70 Transmission 12 Speed Drivetrain
- Shimano Hyd. Disc Brakes
- Syncros X-28TR Rims
- Maxxis Aspen Foldable Tires
- Syncros Parts
The Scale Gravel was put on this planet for going on adventures with attitude. Designed to go the distance over any and all types of terrain, the Scale Gravel is lightweight with agile handling and features multiple mounting options.
Please note that bike specifications are subject to change without prior notice
Features:
Monocoque Construction
The new Scale RC’s monocoque construction enables a production using only one mold for the main section of the bike, the front triangle. Applying our carbon expertise, the new Scale therefore consists of only 3 separate pieces molded together. This directly translates into an increased level of efficiency due to the reduced number of junctions required therefore decreasing weight while keeping the superior stiffness – something we’re always aiming for with hardtail race bikes. With the full frame constructed as a system, the monocoque design enables the frame to handle forces as a whole.

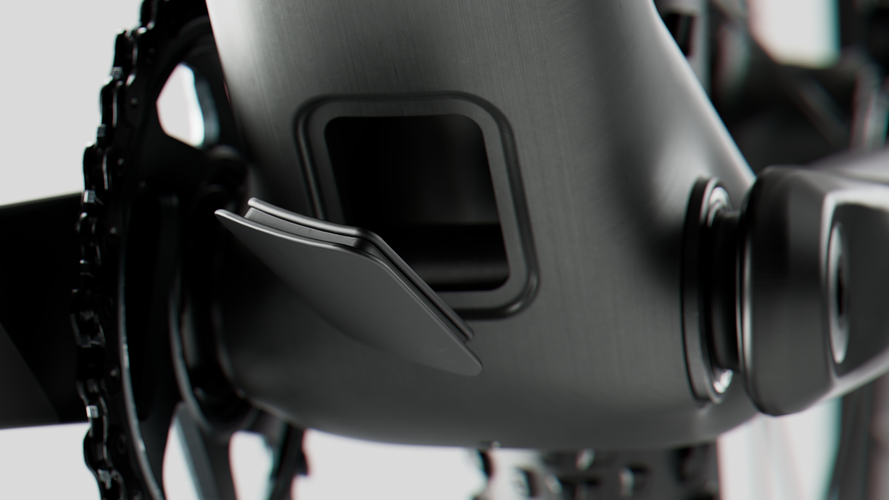

Service Door
A little service door, which is accessible through a downtube cover, allows easy access to the interior of the frame without the need to remove the Bottom Bracket. Frame maintenance is made easy with regards to cable routing.

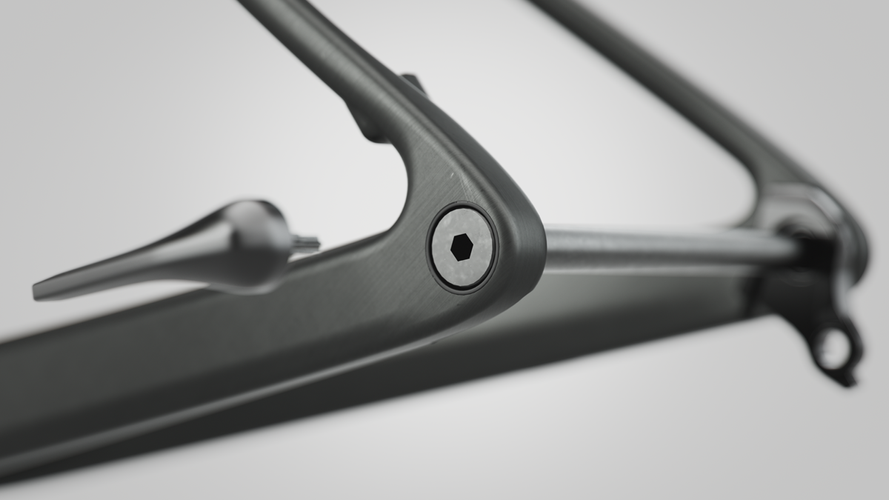

Hollow Dropout Construction
The dropout feature an advanced, hollow construction, which allows the axle head to clamp against the inner surface of the dropout and leaves the
head flush with the surface. This enables the lightest possible construction approach and a clean looking design from the outside. While being able to directly shave off 7.5g with the new dropout construction, the optimized design favors a narrower construction of the rear triangle area, which in turn enables a reduction of 20g in this area of the frame (HMX-SL).
Specifications
Frame
Scale Alloy 6061 Custom Butted Tubing, Syncros Cable Integration System
BB92, UDH Interface, 12x148mm with 55mm Chainline
Fork
Scale Rigid HMF
Postmount Disc Standard
Tapered Carbon steerer
Rear Derailleur
SRAM Eagle 70 Transmission 12 Speed
Shifters
SRAM Eagle 70 Trigger
Crankset
SRAM Eagle 70 Transmission
DUB, 55mm CL, 34T
Chainguide
SCOTT custom
BB-Set
SRAM DUB PF 92 MTB Wide, shell 41x92mm
Chain
SRAM CN Eagle 70 Transmission
Cassette
SRAM Eagle XS 1270 V2 Transmission 10-52
Brakes
Shimano MT401 Disc Brake
Rotor
Shimano SM-RT10 CL, 180/F and 160/R
Handlebar
Syncros Alloy 6061
T shape Flat, 9°, 740mm
Syncros Performance XC lock-on grips
H'stem
Syncros DC 3.0
Syncros Cable Integration System
0° rise, 6061 Alloy, 31.8mm, 1 1/8"
Seatpost
Syncros, 31.6x400mm
Seat
Syncros Belcarra V2.5 Cut Out
Headset
Syncros - Acros OE Cable Routing HS System
OD 50/62mm, ID 42/56mm
Hub (Front)
Formula CL-811, 15x110mm
Hub (Rear)
Formula CL-3248, 12x148mm
Spokes
Stainless Black 15G, 1.8mm
Rims
Syncros X-28, 28H, Tubeless ready
Front Tire
Maxxis Aspen, 29x2.4", 120TPI Foldable Bead
Tubeless Ready, EXO
Rear Tire
Maxxis Aspen, 29x2.4", 120TPI Foldable Bead
Tubeless Ready, EXO
Accessories
Spirgrips+ Inner Bar ends
Approx weight in KG
11.4 (Tubless setup without pedals)
Approx weight in LBS
25.13 (Tubless setup without pedals)
Max. System Weight
120kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
Click for Rigid Fork Manual_multilingual
Click for SCOTT General Manual_EN
Click for MTB_MTB-Pedelec Manual_EN
