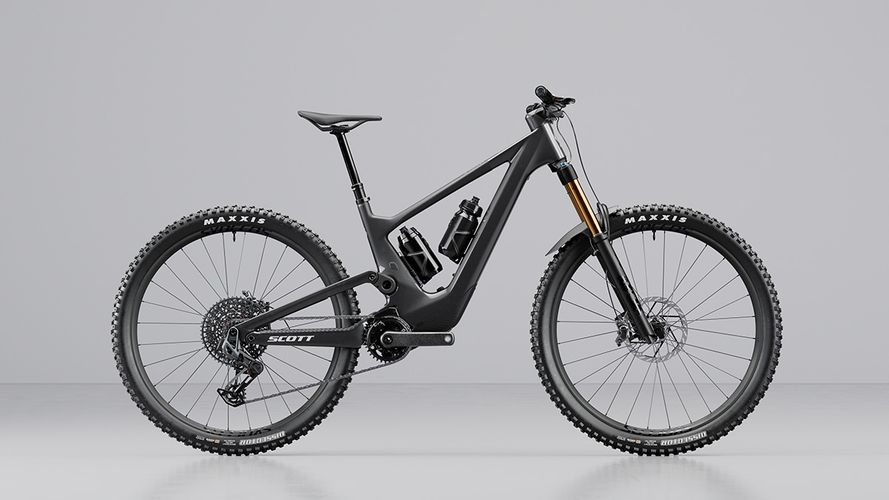

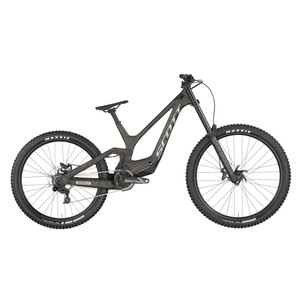

2026 Scott Voltage 920 Bike - Carbon Black/Crackle Bronze

• Carbon Main Frame, Alloy Rear Triangle
• TQ HPR60, 360Wh + RE 160Wh Engine System
• Marzocchi Z2 Air 150mm Fork
• X-Fusion Nude, TracLoc, 155mm Shock
• SRAM Eagle 70, 12 Speed Drivetrain
• SRAM DB4 4 Piston Disc Brakes
• Syncros X-30S TR Rims
• Maxxis Foldable Tires
• Syncros Dropper Post and Parts

Voltage 920 is our long-travel e-MTB with a carbon front and alloy rear triangle for riders who want all the heart-pumping excitement of a top-tier trail bike without the top-tier price tag. With its lightweight design, 160mm front and 155mm rear travel suspension, and an updated, high-performance motor unit, Voltage 920 is the ideal big riding, epic sending, e-rig that handles its own shuttle laps.

Power is boosted to 60Nm compared to the 50Nm on the previous Voltage thanks to TQ's new HPR60 motor, which leaves you feeling like there's no switchback too tight and no obstacle is too challenging. Range is also upgraded also with an included Range Extender Battery. It attaches with a quick-release mount and supplies 160 additional watt hours to the 360Wh main battery. It's the assist you need to enjoy bigger days on the trails, and it's small enough to pack if you want to have it along on any given ride.

Our NUDE Suspension technology with the X-Fusion NUDE shock that favors more adjustability. When you pedal up to have the most fun on the way down, you want a shock that gives you full factory performance when things point downwards, but also a shock that won't slow you down when you need to ride back up.

This Voltage also comes with SRAM's Transmission groupset and SRAM DB4 Stealth 4-Piston Disc brakes to give you the range and the stopping power to make every ride one to remember.

Please note that bike specifications are subject to change without prior notice

Features:

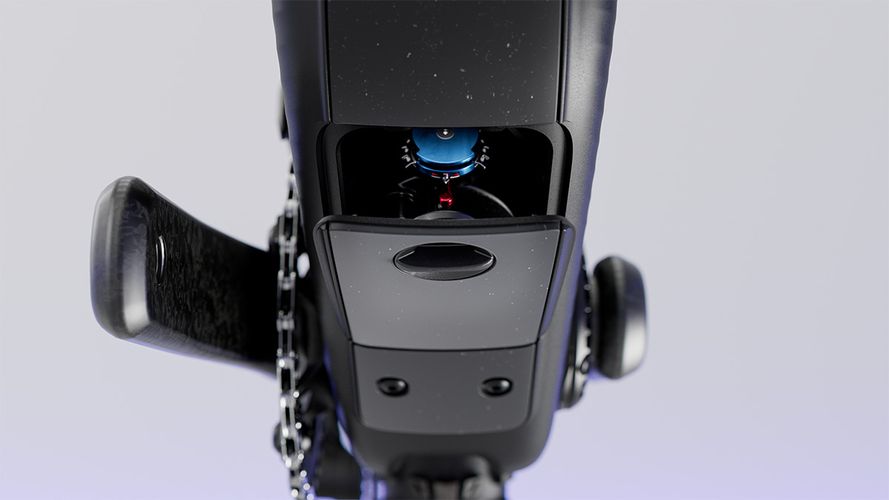

EASY SHOCK ACCESS

With the Voltage, accessing our patented integrated shock is easier than ever. Just push the button, pop off the cover, and access is yours. From here, adjusting rebound, air pressure, etc. is a mere button push away.

When youre done, just pop the cover back on until you hear a click and off you go.

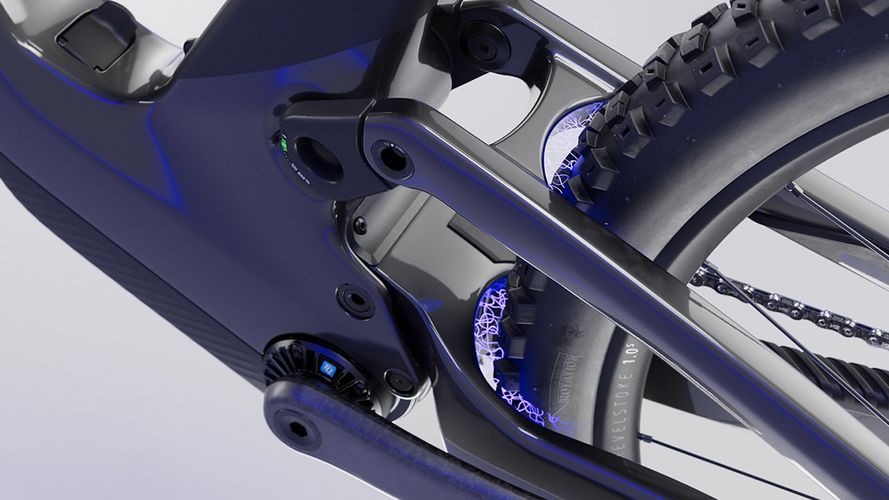

EXTERNAL SAG INDICATOR

Setting sag and checking travel use is easier than ever before with the Voltage. An external indicator on the link allows the end user to easily set sag and to identify how much travel theyre using.

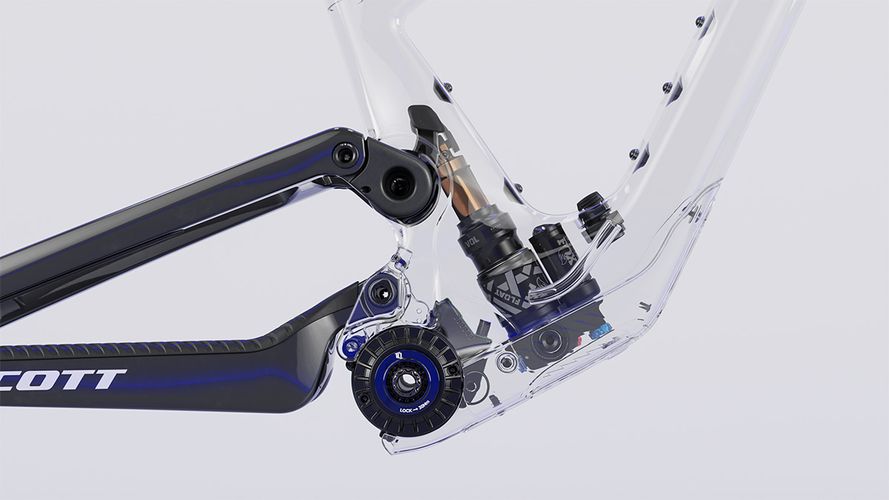

FLOAT X NUDE SUSPENSION

The Voltage Tuned model features our NUDE Suspension technology with the Float-X NUDE shock from FOX paired with a fork that favors more adjustability. When you pedal up to have the most fun on the way down, you want a shock that gives you full factory performance when things point downwards, but also a shock that won't slow you down when you need to ride back up. This is where the Float-X NUDE shines.

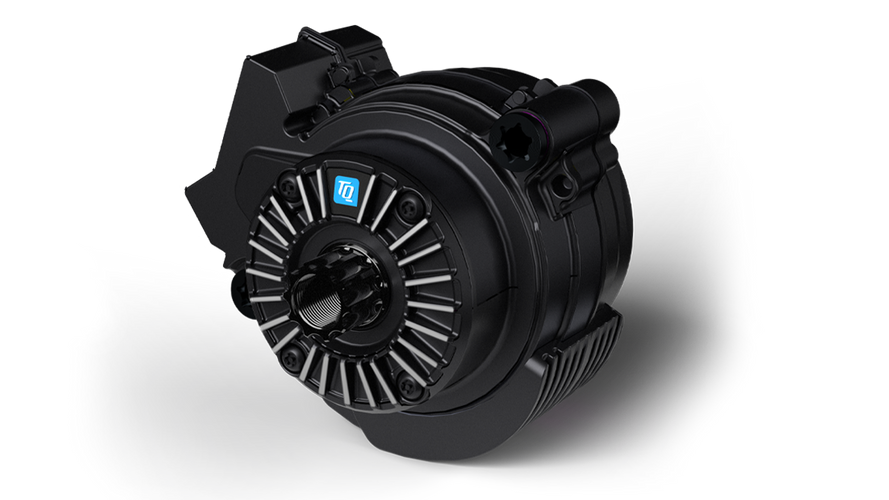

TQ HPR60 Motor

TQ is a German company founded in 1994 who specialize in electric components across a range of industries. The latest generation of the Harmonic Pin Ring from TQ (HPR) - the HPR60, delivers an unprecedented weight/power ratio of 1910g for 60Nm. TQ can make a reduction of drive unit size, while also increasing the accuracy of the system. This results in a lighter bike, better integration, while reducing backlash for a more natural pedalling sensation. This technology also allows for the reduction in system noise for a truly natural experience. After all, you are in the outdoors to, well, enjoy the outdoors.

TQ HPR 360Wh Battery

The Voltage features a 360Wh internal battery which can be further complemented by a 160Wh external range extender. Thanks to TQs electronic expertise, the HPR50 battery, when combined with the range extender, guarantees maximum performance right through until empty. TQ use specific battery cells to ensure both the battery and range extender continue at full output, even as it reaches low capacity. The system can be charged with the range extender in place, the smart charger, prioritising the main batterys charge first, so youll never be caught short when heading out to ride.

TQ HPR RANGE EXTENDER

The Voltage features a 360Wh internal battery which can be further complemented by a 160Wh external range extender. Easily fixed to the front water bottle mount with our unique SCOTT designed quick release mount, the range extender features a slim design and low weight, meaning minimal impact on the bikes handling.

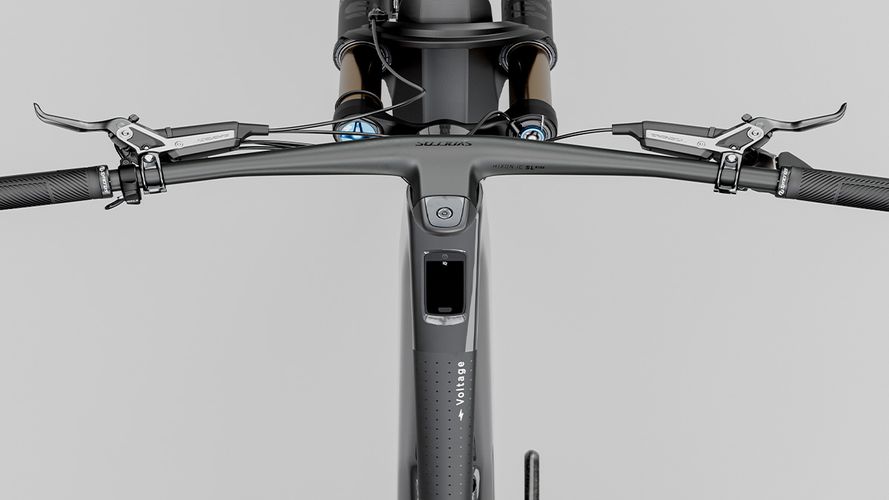

TQ HPR Display

To maintain a clean cockpit, the TQ system puts the focus on a minimalistic display located in the top tube paired to a discrete shifter on the handlebar. At a glance, the LED display provides all the essential info, such as the battery level %, remaining KM range and even Watts, thanks to an integrated power meter. Want more? Link up your phone and dive deep using the TQ E-Bike app, available through the Apple App or Google Play Store. With an automatic Bluetooth connection, you can track your ride and customize your modes. Want to use it with a bike computer? Thats no problem. Utilizing the built in ANT+, the system easily connects with a bike computer such as a Garmin, Hammerhead or Wahoo unit.

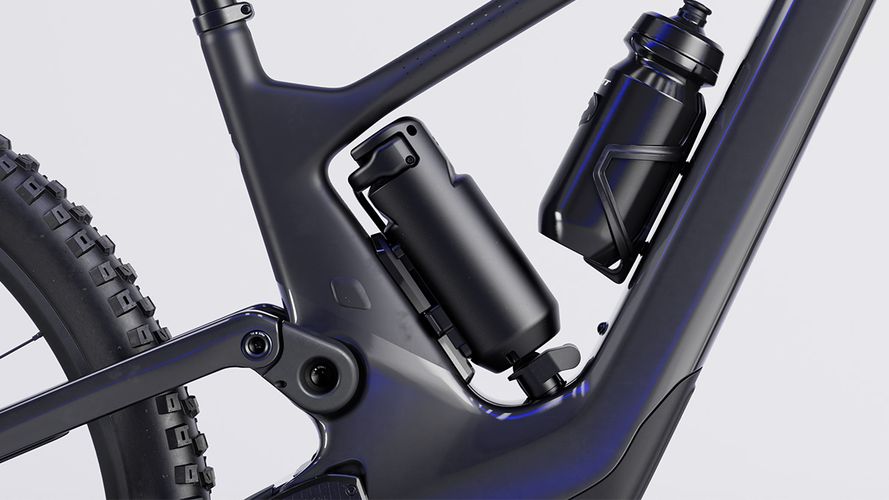

DUAL WATER BOTTLE

Unlike most full suspension E-Bikes, on the Voltage there is no need to choose between the range extender or a water bottle - between longer rides and staying hydrated. Thanks to the integrated shock there is space for both an external battery and water. An optional sliding mount system also allows an easy switch between the seat tube water bottle and the range extender, allowing both to be easily transported when out on longer rides.

CLEARANCE

The TQ motor allows us to keep a standard Q-factor with a 55mm chain line. This allows us to do a few interesting things. Firstly, we can guarantee great tire clearance while not sacrificing stiffness, which is key when it comes to power transfer. Secondly, it gives you the exact same rider stance and pedal width as on a regular bike.

Specifications

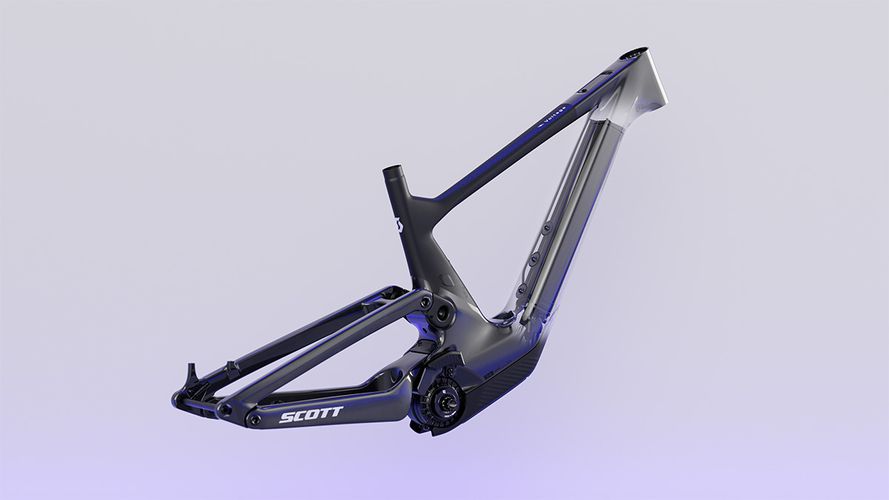

Frame

Carbon HMF Main Frame, Alloy SST-CST

Integrated Suspension Technology

Virtual 4 Link kinematic, Adjustable head angle

Syncros Cable Integration System

TQ HPR60, UDH Interface, 12x148mm with 55mm Chainline

Travel

Front: 150mm, Rear: 155mm

Fork

Marzocchi Z2 Air Rail, Sweep Adj, 15x110mm QR axle, tapered steerer

44mm offset, Reb. Adj., Lockout, 150mm travel

Rear Shock

X-Fusion NUDE 5 RLX Trunnion

SCOTT custom w. travel, geo adj.

3 modes: Lockout-Traction Control-Descend

Reb. Adj.

Travel 155-100-Lockout, T185X55mm

Remote System

SCOTT TracLoc 2 Technology

Suspension & Dropper Remote

3 Suspension modes

Drive Unit

TQ HPR60 Mid Motor drive 60Nm max Torque, EU: 25kmh, US: 20mph

Battery

TQ Internal 360Wh + TQ Range Extender 160Wh

Display

TQ HPR

Bluetooth, ANT+, Dedicated Smartphone app

Charger

TQ 100-240V-4A

Rear Derailleur

SRAM Eagle 70 Transmission 12 Speed

Shifters

SRAM Eagle 70 Shifter

Crankset

Praxis Alloy

Chainguide

e*thirteen, e*spec Slider

Chainring

Praxis alloy spider, SRAM Eagle Transmission 34T chainring

Chain

SRAM CN Eagle 70 Transmission

Cassette

SRAM Eagle XS 1270 Transmission 10-52

Brakes

SRAM DB4 Stealth 4-Piston Disc

Rotor

SRAM HS2 Rotors F&R 200mm

Handlebar

Syncros Hixon 2.0 Alloy 6061

Size S & M 15mm rise, Size L & XL 25mm rise, back sweep 8°, 780mm

Syncros Endurance lock-on grips

H'stem

Syncros AM 2.0

Syncros Cable Integration System

4° rise, 6061 Alloy, 31.8mm, 1 1/8"

Seatpost

Syncros Duncan Dropper Post 1.5s, Travel Adjust, 31.6mm

S size 140mm, M size 180mm, L size 180mm, XL size 210mm

Seat

Syncros Tofino 2.0 Regular

Headset

Syncros - Acros Angle adjust & Cable Routing HS System

Stainless, +-0.6° head angle adjustment

ZS56/28.6-ZS56/40 MTB

Hub (Front)

Formula CL-811, 15x110mm

Hub (Rear)

Formula CL-148S, 12x148mm

Spokes

Stainless Black 15G, 1.8mm

Rims

Syncros X-30S, 32H, 30mm, Sleeve Joint

Tubeless ready

Front Tire

Maxxis Assegai, 2.5", 60TPI Foldable

Tubeless Ready, EXO+ 3C Maxx Terra

Rear Tire

Maxxis Dissector, 2.5", 60TPI Foldable

Tubeless Ready, EXO+ 3C Maxx Terra

Approx weight in KG

19.8 Tubless setup without RE (1.1kg)

Approx weight in LBS

43.65 Tubless setup without RE (1.1kg)

Max. System Weight

130kg

The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
