2025 Salsa Timberjack SLX 29 - Terracotta Orange
SalsaWith Timberjack, we set out to design the most versatile hardtail mountain bike around. Timberjack SLX 29 starts with an aluminum frame built on progressive trail geometry that’s plenty sendy on descents without feeling awkward pedaling back up. The 140 mm RockShox Psylo Silver RC fork handily manages trail chatter for a controlled ride. With ample on-bike storage, you can leave the backpack or hip pack at home. Our Alternator 2.0 dropouts are adjustable to allow for many different drivetrain options and ride characteristics. 29 x 2.5" wheels and tires offer a nice blend of grip and rolling efficiency. Shimano’s SLX 1 x 12 drivetrain hits the sweet spot of functionality and affordability.
WARNING:
This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
SPECIFICATIONS:
Headset:
FSA Orbit 1.5E ACB
Seatpost:
TranzX YSI05 RAD+, Shimano MT500 lever, 30 mm travel adj
Stem:
Salsa Guide Trail
Grips/Bar Tape:
Salsa File Tread
Saddle:
WTB Solano Medium
Handlebar:
Race Face Chester 35
Rear Derailleur:
Shimano SLX M7100 SGS
Cassette:
Shimano Deore M6100-12, 10–51t, 12-speed
Chain:
Shimano Deore M6100
Crankset:
Shimano MT510, 30t
Shifter:
Shimano Deore M6100 I-SPEC EV
Brake Levers:
Shimano MT420 4-piston brakes
Rotors:
Shimano RT30 rotors (Center Lock, 203mm front, 180 mm rear)
Front Wheel:
Shimano MT400-B 15 x 110 mm hub, WTB ST i30 32h 29" rim
Rear Wheel:
Shimano MT410-B Micro Spline 12 x 148 mm hub, WTB ST i30 32h 29" rim
Front Tire:
Teravail Clifty 29 x 2.5", Durable casing. Tubeless accessorites: WTB TCS Rim Strip, tubeless tape, valves, and 8oz tire sealant included
Rear Tire:
Teravail Clifty 29 x 2.5", Durable casing. Tubeless accessorites: WTB TCS Rim Strip, tubeless tape, valves, and 8oz tire sealant included
Complete Bike:
32 lbs 14 oz (size Medium)
Frame:
Timberjack Alloy V2
Color:
Terracotta Orange
Fork:
RockShox Psylo Silver RC, 140mm, 44mm offset
Frame Accessory Mounts
Accessory Mounts: Yes, one pair, Downtube Accessory Mounts: Yes, one pair, Rack Mounts: Yes, uses Alternator 2.0 plates, requires Salsa Rack-Lock, TopTube Mounts: Yes, compatible with Salsa EXP Series Direct Mount Top Tube Bag
KEY FEATURES:
On-Bike Storage
- Adventures require gear and riders should get to choose whether they carry it on their bike or on their body

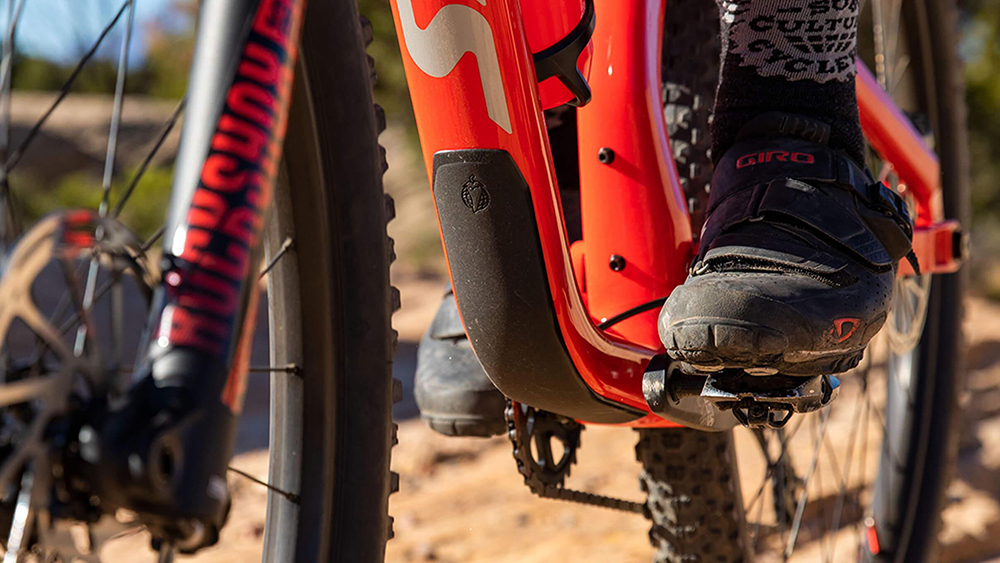

Frame Protection
- Our products are built from experience — we’ve been there enough to know that a carbon fork can benefit from added protection just as much as the downtube on a suspension bike.
Alternator Dropouts
- Adjustable chainstay length to tune ride characteristics and to allow tire fit flexibility
- Ability to tension chain for single speed use
- Riders have upgrade options
ADDITIONAL FEATURES:
6061-T6 Aluminum Tubing
Timberjack is built from our proprietary, top-shelf 6061-T6 aluminum tubing, which is double- and triple-butted in the main triangle for a light, responsive, and durable frame with great trail feel.
Timberjack Geometry
Our second-generation Timberjack geometry is longer, lower, and slacker for aggressive riding. A 66-degree head tube and long wheelbase make for a stable ride, while a long reach and steep (75-degree) seat tube balance weight distribution for efficient pedaling. Short chainstays (adjustable from 420–437 mm) keep the rear end nimble for responsive handling.
140 mm Suspension Fork
Soak up the harshness of gnarly roots, rock gardens, drops, or whatever’s in your path with 140 mm of suspension travel up front. Timberjack accommodates forks with up to 150 mm of travel.
Adjustable TranzX dropper post
Get your saddle out of the way for steep descents and technical sections with the included dropper post. 30 mm of tool-free travel adjustment lets you dial in the right travel for your fit and riding style.

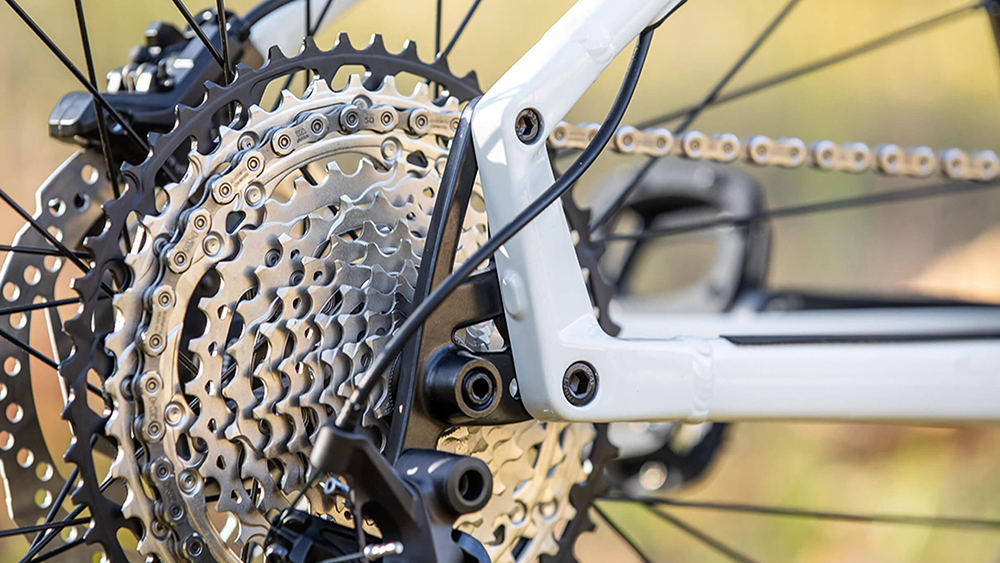

Alternator 2.0 Dropouts
Our adjustable Alternator dropout system lets you run Timberjack geared or single-speed and accommodates multiple hub standards. Built-in adjustability gives you 17 mm of wheelbase travel so you can dial in your preferred ride characteristics.
Bottle & Accessory Mounts
SM–XL frames have two bottle mounts—including a Three-Pack mount on the downtube—in the main triangle (XS frames have only the Three-Pack mount on the downtube). All sizes feature an accessory mount on the underside of the down tube, plus top tube mounts for our EXP Series Direct Mount Top Tube Bag means room for more ride essentials. Rear rack mounts open up possibilities for larger loads.
Full-Length Internal Routing
Full-length internal routing for brake lines and shift cable housing means more reliable performance in sloppy conditions, simplified maintenance, and a better fit for frame bags.
Wheel and Tire Options
Timberjack is compatible with both 27.5 x 2.8" and 29 x 2.1–2.6" wheel and tire combinations.
SUPPORTIVE DOCUMENTS:
Click for Bicycle Owner's Manual
Click for Alternator Dropout Instructions
Click for Salsa Timberjack V2 Front Triangle Frame Bag Guide
- Frame Suspension Fork Length (Travel):
- 511-563 mm (100-150 mm travel)
- Frame Rigid Fork Length:
- 483-501 mm
- Frame Fork Offset:
- 42-51 mm
- Frame Rear Spacing:
- 148 mm
- Frame Rear Axle Size:
- M12 x 180L, TP = 1.5, TL = 20
- Frame Rear Brake (Rotor):
- IS mount (180 mm max)
- Frame Headset - Upper:
- ZS44
- Frame Headset - Lower:
- ZS56
- Frame Seatpost:
- 30.9 mm
- Frame Dropper Post Compatible:
- Yes (internal)
- Frame Seatpost Clamp:
- 35 mm
- Frame Derailluer Hanger:
- Alternator 2.0 Swing Plate
- Frame Bottom Bracket:
- 73 mm BSA
- Frame Crankset (Max Ring):
- 52 mm Boost chainline 1x only (34t)
- Frame Bottle Mounts:
- XS = 1, SM-XL = 2
- Frame Front Fender Mounts:
- NOT COMPATIBLE
- Frame Rear Fender Mounts:
- NOT COMPATIBLE
- Frame Max Tire Outer Diameter:
- 760.5 mm (29.95)"
- Frame Front Derailleur Clamp:
- NOT COMPATIBLE
