Click for Geometry Chart

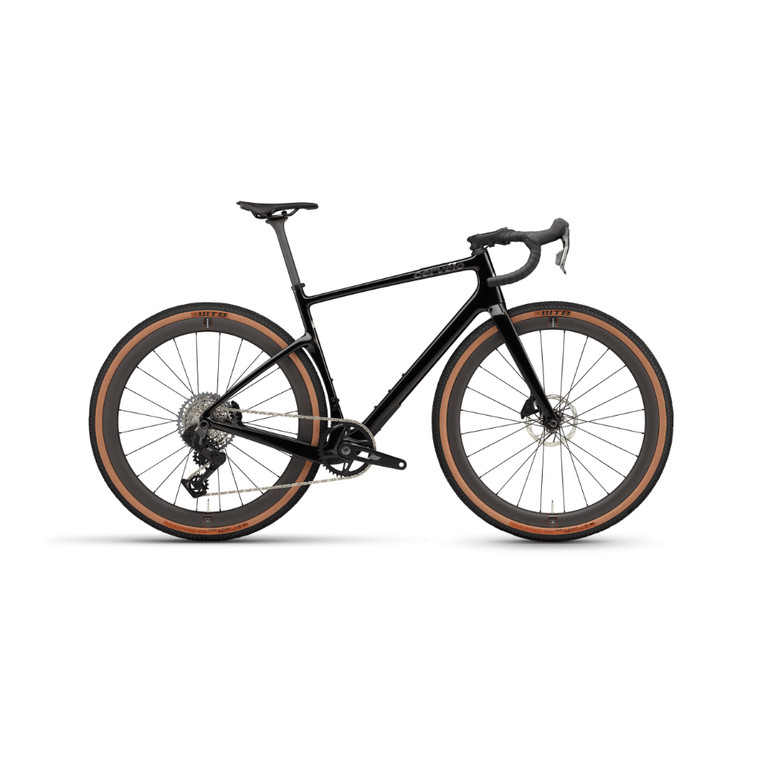

2026 Cervelo Aspero Rival XPLR AXS 1 - Blk/Charcoal - 61
Cervelo
£4,364.50
(No reviews yet)
Write a Review
Cervelo
2026 Cervelo Aspero Rival XPLR AXS 1 - Blk/Charcoal - 61
- Carbon handlebar | carbon seatpost
- 40T | 10-46T | 13-speed
- Reserve 40|44TA GR carbon wheelset | DT Swiss 370 hubs
HAUL ASS, NOT CARGO
In 2019, Áspero took the gravel world by storm, heralding a “new era of speed in gravel.” Fun, but flat out. The new Áspero remains true to its original brief, but with some improvements: a threaded BB shell, neater cable routing, and a UDH-compatible derailleur hanger for those who want to use SRAM’s Transmission drivetrains. And it’s more aero, of course. In the case of Áspero, aerodynamic performance is less about pure speed as a result of drag reduction, and more about conservation of energy. After a big day in a headwind, the three watts saved over the previous Aspero might add up to one less energy gel your stomach has to digest—WORTH IT.
In addition to the drag reduction, we also dropped the seat stays to give a bit more compliance out back, and reduced front-end stiffness slightly to make the last hours of a long race less painful. Between those dropped seat stays, we added in a bit more clearance for mud, too, taking what we learned from R5-CX (and the Unbound mudfest in 2023). It’s a lot of seemingly small improvements, but they add up to a lot. The result is a bike that feels a lot like the original Áspero, but is faster, more comfortable, and more versatile.

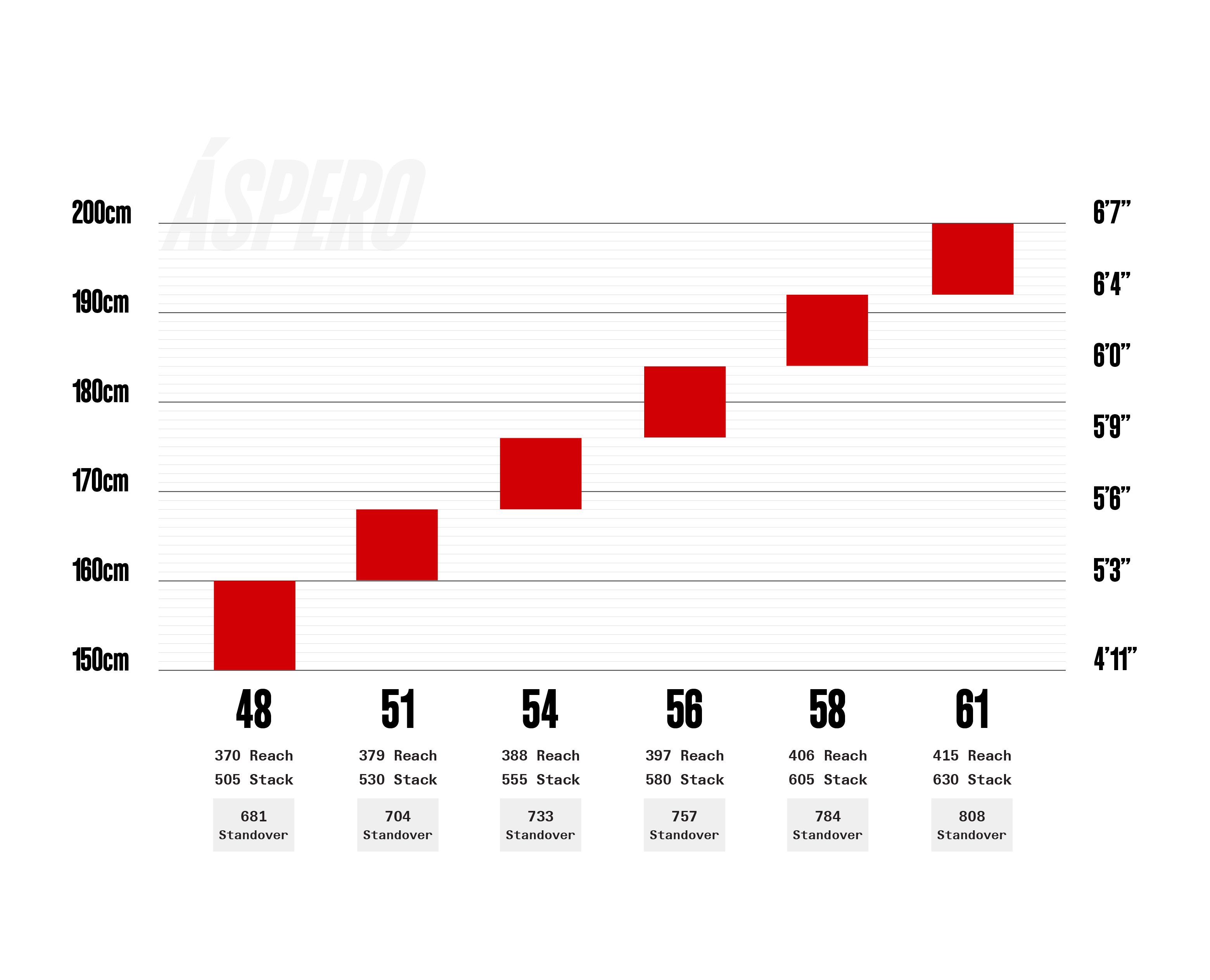

Frame Sizing
How do I determine what bike size I need?
The age-old question, isn’t it? There are many factors that go into bicycle sizing and fit, particularly for high-performance bikes. Without being able to measure you and see you on a bike, precise fit information is difficult to supply. It’s also not unusual for someone to be able to ride two different sizes depending on their goals, flexibility, and fit tolerance. That said, we have some fantastic retailers, and we’d encourage you to go start a conversation with them about what you want from your new bike. You can find the retailer closest to you on our Dealer Locator.
2026 Cervelo Aspero Rival XPLR AXS 1 - Blk/Charcoal - 61 - Specifications
Rival XPLR AXS 1 | |
| Sizes | 48cm, 51cm, 54cm, 56cm, 58cm, 61cm |
| Weight | 8.68 kgs |
| Fork | Cervélo All-Carbon, Tapered Aspero Fork |
| Handlebar | Cervélo AB09 Carbon, 31.8mm clamp, 16 degree flare |
| Handlebar Sizing | Size 48 - 36cm Size 51 - 38cm Size 54 - 40cm Size 56 - 40cm Size 58 - 42cm Size 61 - 42cm |
| Stem | Cervélo ST36 Alloy |
| Stem Sizing | Size 48 - 70mm Size 51 - 80mm Size 54 - 90mm Size 56 - 90mm Size 58 - 100mm Size 61 - 100mm |
| Seatpost | Cervélo SP19 Carbon 27.2 |
| Seatpost Sizing | Size 48 - 0mm Size 51 - 0mm Size 54 - 0mm Size 56 - 0mm Size 58 - 0mm Size 61 - 15mm |
| Saddle | Prologo Nago R4 PAS Steel |
| Bottom Bracket | SRAM DUB Wide, T47 BBright |
| Headset | FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45° |
| Front Thru Axle | Cervélo Aero Thru Axle Front, M12x1.5mm, 127mm length |
| Rear Thru Axle | Cervélo Aero Thru Axle Rear, M12x1.0mm, 169mm length |
| Front Wheel | Reserve 40TA GR, DT Swiss 370, 12x100mm, 24H centerlock, tubeless compatible |
| Rear Wheel | Reserve 44TA GR, DT Swiss 370,12x142mm, MS freehub, 24H, centerlock, tubeless compatible |
| Tires | WTB Vulpine TCS Light Fast Rolling Dual DNA SG 120tpi 700x45c |
| Shifter/Brake Levers | SRAM Rival AXS E1 |
| Crankset | SRAM Rival 1 AXS E1, 40T DUB Wide |
| Crank Sizing | Size 48 - 165mm SRAM, 170mm Shimano Size 51 - 165mm SRAM, 170mm Shimano Size 54 - 170mm Size 56 - 170mm Size 58 - 172.5mm Size 61 - 172.5mm |
| Chain | SRAM Rival E1 |
| Cassette | SRAM Rival XPLR E1, 10-46T, 13-Speed |
| Rear Derailleur | SRAM Rival XPLR AXS E1 |
| Brake Rotors | SRAM Paceline Centerlock |
| Accessories | - Cervélo Front Computer/Accessory Mount 810 - Cervélo Rear Accessory Mount - Cervélo Smartpak Top Tube Storage Bag 400A |
- Sizes:
- 48cm, 51cm, 54cm, 56cm, 58cm, 61cm
- Fork:
- Cervelo All-Carbon, Tapered Aspero Fork
- Handlebar Sizing:
- Size 48 - 36cm, Size 51 - 38cm, Size 54 - 40cm, Size 56 - 40cm, Size 58 - 42cm, Size 61 - 42cm
- Stem Sizing:
- Size 48 - 80mm, Size 51 - 80mm, Size 54 - 90mm, Size 56 - 90mm, Size 58 - 100mm, Size 61 - 100mm
- Seatpost:
- Cervelo SP19 Carbon 27.2
- Seatpost Sizing:
- Size 48 - 0mm, Size 51 - 0mm, Size 54 - 0mm, Size 56 - 0mm, Size 58 - 0mm, Size 61 - 15mm
- Saddle:
- Prologo Nago R4 PAS Steel
- Bottom Bracket:
- SRAM DUB Wide, T47 BBright
- Headset:
- FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45°
- Front Thru Axle:
- Cervelo Aero Thru Axle Front, M12x1.5mm, 127mm length
- Rear Thru Axle:
- Cervelo Aero Thru Axle Rear, M12x1.0mm, 169mm length
- Front Wheel:
- Reserve 40TA GR, DT Swiss 370, 12x100mm, 24H centerlock, tubeless compatible
- Rear Wheel:
- Reserve 44TA GR, DT Swiss 370,12x142mm, MS freehub, 24H, centerlock, tubeless compatible
- Tires:
- WTB Vulpine TCS Light Fast Rolling Dual DNA SG 120tpi 700x45c
- Shifter/Brake Levers:
- SRAM Rival AXS E1
- Crankset:
- SRAM Rival 1 AXS E1, 40T DUB Wide
- Crank Sizing:
- Size 48 - 165mm SRAM, 170mm Shimano, Size 51 - 165mm SRAM, 170mm Shimano, Size 54 - 170mm, Size 56 - 170mm, Size 58 - 172.5mm, Size 61 - 172.5mm
- Chain:
- SRAM Rival E1
- Cassette:
- SRAM Rival XPLR E1, 10-46T, 13-Speed
- Rear Derailleur:
- SRAM Rival XPLR AXS E1
- Brake Rotors:
- SRAM Paceline Centerlock
- Accessories:
- Cervelo Front Computer/Accessory Mount 810, Cervelo Rear Accessory Mount, Cervelo Smartpak Top Tube Storage Bag 400A
- Max Tire Width (Actual):
- 700c - 45mm / 650c - 47mm
- Handlebar:
- Cervelo AB09 Carbon, 31.8mm clamp, 16 degree flare
- Stem:
- Cervelo ST36 Alloy
