2026 HED Vanquish

Vanquish V45 & V62

Designed by the same minds and handmade by the same hands that created the Vanquish Pro series, this wallet-friendly option offers the same aerodynamic rim profile and performance edge as our pro line at a price point that saves room in the budget for a few equally fast kits. Going fast is about drag reduction AND predictability.

Get ready to turn heads at the next group ride.

FEATURES:

• Handmade in the USA
• Rim depth options of 45mm and 62mm
• 22.4mm Internal Width, 30.9mm External Width Rims
• HED GP Performance Centerlock Disc Brake Hubs
• Tubeless Compatible

Additional Feature:

Vanquish Benefits

• Stable crosswind handling characteristics were retained to greater than 70% of typical cycling yaw angles
• 25mm-28mm tires are optimal for performance

Technical Notes:

1. For all types of bicycle wheels, a hard strike on the rim is likely to result in rim damage. At the point of impact, an aluminum rim will dent, and a carbon rim may delaminate - both are unsafe conditions that require rim replacement.

2. Tire pressure = 70psi MAX

3. We do NOT recommend hanging a bike equipped with Vanquish wheels from hooks - this can damage the carbon skin and will not be covered under warranty.

What's In The Box?

• Tubeless Tape (applied from factory)
• Tubeless Valves

Tire Pressure Information:

Max Use:

• 25mm tire: 72 psi / 5 bar
• 28mm tire: 72 psi / 5 bar

Vanquish 45 Specifications:

Vanquish 45 Overview:

• Intended Use: Road Race/All-Road
• Tubeless Compatible
• Inner rim width: 22.4mm
• Optimal Tire Size: 28c

Rim Specs:

• Rim Weight: 453g
• Internal Width: 22.4mm
• External Width: 30.9mm
• Depth: 45mm
• Hole Count: 24
• ERD (Includes Washers): 555

Wheelset Build:

Hubs:

• Front Hub: 12x100mm axle. Centerlock
• Bearing: EZO Japan 6902RS x 2
• Rear Hub: 12x142mm axle. Centerlock.
• Freehub: 4 pawl: 13 degree engagement.
• Bearing: EZO Japan 6902RS x 4

Spokes:

• Sapim Sprint, hooked

Wheelset Weights:

• Front: 757g
• Rear: 896g
• Wheelset:1653g ± 30g

Vanquish 62 Specifications:

V62 Overview:

• Intended Use: Road Race / TT / Triathlon
• Tubeless Compatible
• Inner rim width: 22.4mm
• Optimal Tire Size: 28c

Rim Specs:

• Rim Weight: 518g
• Internal Width: 22.4mm
• External Width: 31.1mm
• Depth: 62mm
• Hole Count: 24
• ERD (Includes Washers): 524

Wheelset Build:

Hubs:

• Front Hub: 12x100mm axle. Centerlock brake
• Bearing: EZO Japan 6902RS x 2
• Rear Hub: 12x142mm axle. Centerlock brake
• Freehub: 4 pawl: 13 degree engagement.
• Bearing: EZO Japan 6902RS x 4

Spokes:

• Sapim Sprint, hooked

Wheelset Weights:

• Front: 789g
• Rear: 930g
• Wheelset: 1719g ± 30g

HED Engineering Team:

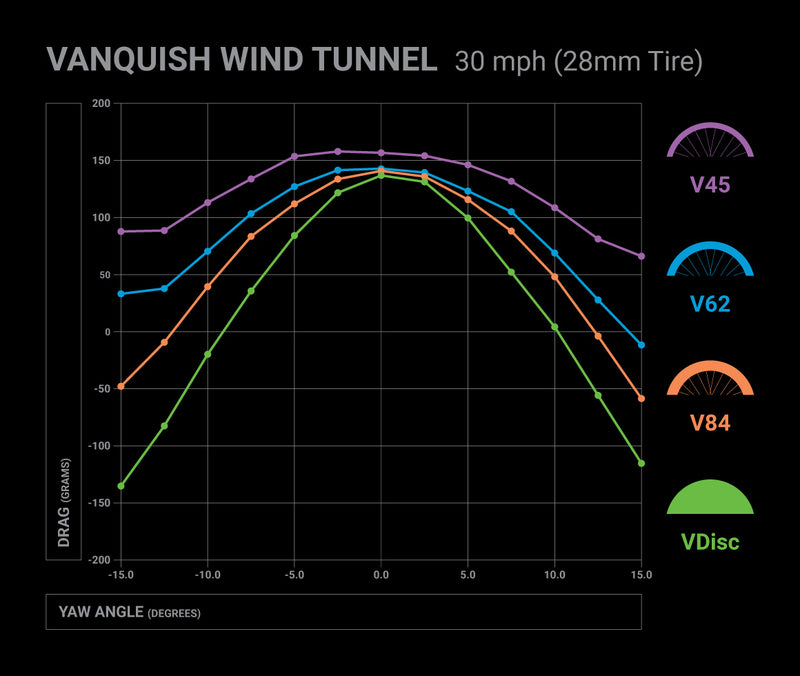

The next generation of Vanquish wheels performed remarkably in the wind tunnel. Across the line we saw improvements in stability while keeping drag to a minimum. Riders can expect a consistent push forward from their new wheels and at the same time count on stable crosswind handling characteristics.
