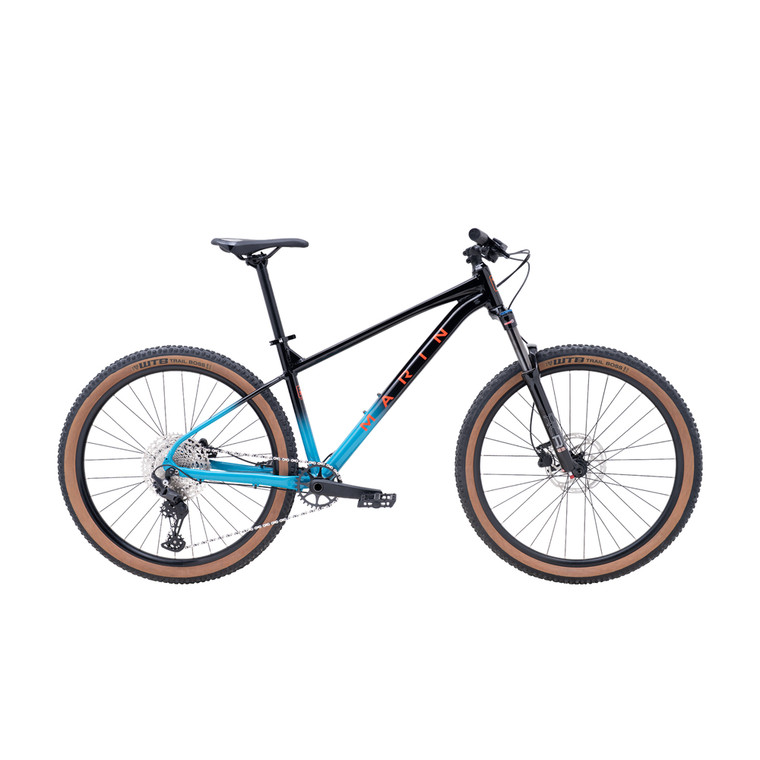

2026 Marin Bobcat Trail 5 - Blue Black image

2026 Marin Bobcat Trail 5 - Blue Black

Marin
Availability:
Most in stock items ship within 1-3 business days. Inventory updates frequently and may not reflect real-time stock. If your item is not available we will contact you and issue a prompt refund.
$999.00
(No reviews yet)
Weight:
60.00 LBS
Width:
58.00 (in)
Height:
10.00 (in)
Depth:
32.00 (in)
Current Stock:
Adding to cart… The item has been added
Description

The best of the Bobcat family, the Marin Bobcat Trail 5 is our chance to really push what our bang-for-buck MTB can do. Fast, comfy and fun Series 2 aluminum frame? Check. 1X drivetrain? You got it. SR/Suntour XCR fork? You bet. Shimano CUES 11-speed shifting, Tektro hydraulic brakes and trendy tan wall WTB tires? Damn straight! And, of course, your choice of 27.5” or 29” wheels.

Product Specification

Frame Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing
Front Suspension SR Suntour XCR LOR-DS, Thru-Axle, 120mm Travel, Hydraulic Lockout, Damping Adjustment, 42mm (27.5") and 46mm (29") Offsets
Rims Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Hub, Rear Forged Alloy, Disc, 32H
Hub, Front Forged Alloy, Disc, 32H
Tires Delium, Versatile, Triple Compound Tread, Tubeless-Compatible Wire Bead, 27.5/29x2.4"
Derailleur, Rear Shimano Deore RDM5100, 11-speed, w/Clutch
Shift Lever Shimano Deore SLM5100, 11-Speed
Crankset Alloy Crank, Steel Narrow-Wide Chainring, 32T
Chain KMC X11
Brake, Front Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
Brake, Rear Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
Brake Levers Shimano BL-MT201
Handlebar Marin 31.8 Riser, 12mm Rise, 780mm Width
Stem Marin Alloy, 31.8mm Clamp, 45mm
Grip Marin MTB, Closed End
Headset FSA No.10-P
Seatpost Marin Alloy, 30.9
Saddle Marin MTB
Pedals Nylon Platform

Technologies

  • Shimano 11 Speed Transmission
  • Series 2 Aluminum Frame
  • SR Suntour XCR Suspension Fork

Click for Geometry Chart

Additional Information
Frame:
Series 2 6061 Aluminum, 27.5 or 29" Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing"
Front Suspension:
SR Suntour XCR LOR-DS, Thru-Axle, 120mm Travel, Hydraulic Lockout, Damping Adjustment, 42mm (27.5) and 46mm (29") Offsets"
Rim:
Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Hub Rear:
Forged Alloy, Disc, 32H
Hub Front:
Forged Alloy, Disc, 32H
Spokes:
14g Black Stainless Steel
Tires:
Delium, Versatile, Triple Compound Tread, Tubeless-Compatible Wire Bead, 27.5/29x2.4";Derailleur Rear=Shimano Deore RDM5100, 11-speed, w/Clutch"
Shift Lever:
Shimano Deore SLM5100, 11-Speed
Crankset:
Alloy Crank, Steel Narrow-Wide Chainring, 32T
Bottom Bracket:
Sealed Cartridge Bearings, Square Taper
Chain:
KMC X11
Cassette:
Shimano CSM5100, 11-Speed, 11-51T
Brakes Front:
Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
Brakes Rear:
Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
Brake Levers:
Shimano BL-MT201
Handlebar:
Marin 31.8 Riser, 12mm Rise, 780mm Width
Stem:
Marin Alloy, 31.8mm Clamp, 45mm
Grips:
Marin MTB, Closed End
Headset:
FSA No.10-P
Seatpost:
Marin Alloy, 30.9
Saddle:
Marin MTB
Pedals:
Nylon Platform
