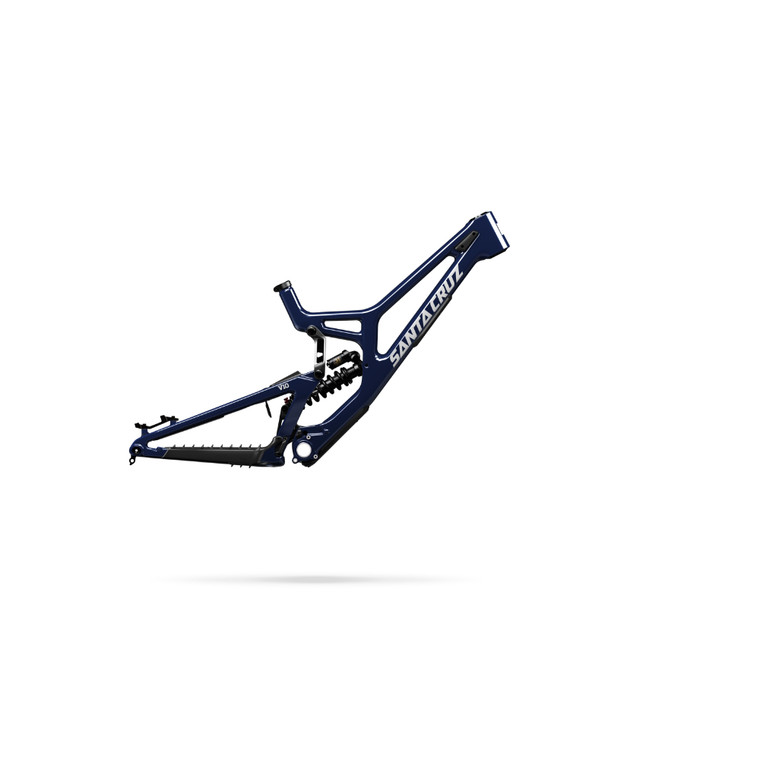

2026 Santa Cruz V10 Frame image

2026 Santa Cruz V10 Frame

Santa Cruz
Availability:
Most in stock items ship within 1-3 business days. Inventory updates frequently and may not reflect real-time stock. If your item is not available we will contact you and issue a prompt refund.
$3,949.00
(No reviews yet)
Weight:
45.00 LBS
Width:
58.00 (in)
Height:
10.00 (in)
Depth:
32.00 (in)
Current Stock:
Adding to cart… The item has been added
Description
  • Carbon CC Frame
  • Fox DHX2 Factory Coil

Dimension

Material: CC

Front (MM): 200

Rear (MM): 208

Wheel Size: MX/29"

Weight (lbs): 9.73

Weight (kg): 4.41

The V10 is the same bike ridden by the Syndicate to World Cup victories. Fully refined, not redefined, the new V10 is for riders looking to just imitate their heroes on Sunday afternoon or find the best lines in the bike park. The kind of rider who knows there's no replacement for a proper downhill bike. Lap after lap, day after day nothing stands up to the abuse or gives the thrills a downhill bike can. Nothing.

Features

01

CC Carbon Frame

02

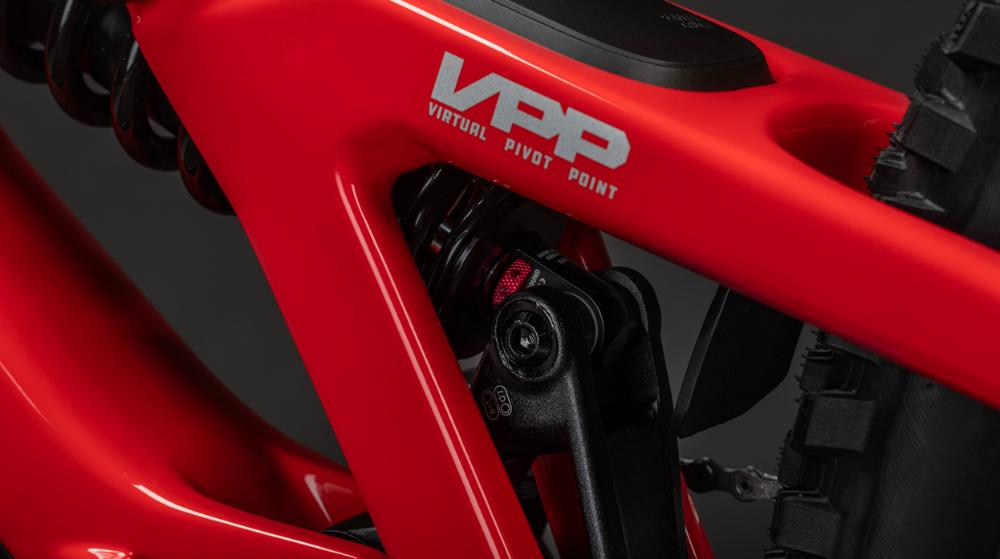

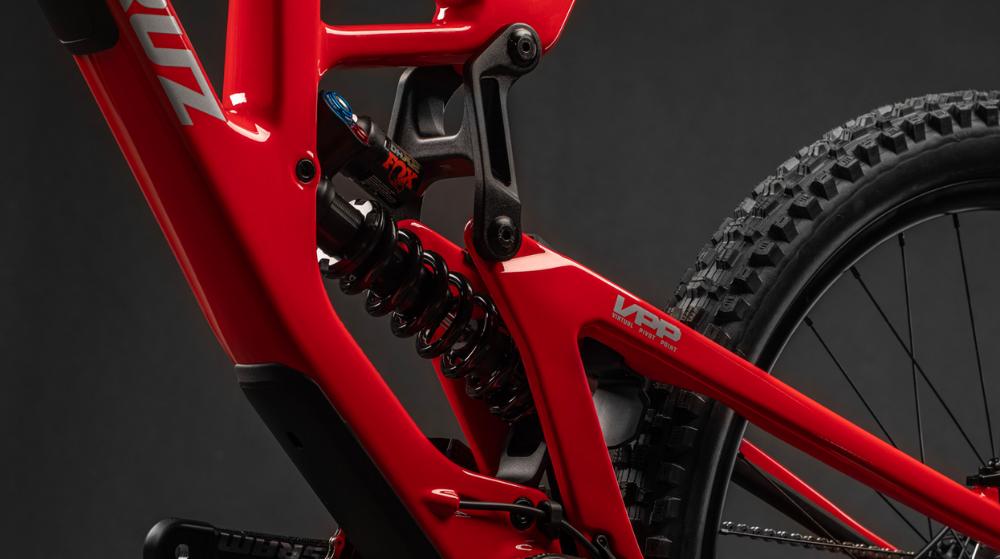

VPP™ Suspension

03

Reach Adjust Headset Cups

04

Rear Axle Flip Chip

05

Lower Link Flip Chip

Owners Club

Get access to the exclusive SCB Owners Club which gives you access to added levels of rider support, treats, opportunities and benefits. Join the club today for free! It takes just five minutes to receive a lifetime of membership perks.

Lifetime Warranty

We build Santa Cruz bicycles to be durable and long lasting, and then back them up with legendary support and a warranty of the highest standard.

Free Bearing Replacement

Santa Cruz Bicycles offers free replacement pivot bearings to the original owner for as long as they own their bike.

Click for Size Chart

Click for Geometry

Click for Santa Cruz Bicycles User Manual 2025

Click for V10 8 Headset Instructions translated

Click for 57 30237 EN17406 Payload Safety MY27.1 Feb 26 EU

Additional Information
Material:
CC
Front (MM):
200
Rear (MM):
208
Wheel Size:
MX/29";Weight (lbs)=9.73"
Weight (kg):
4.41
Material:
Carbon CC
Travel:
208 mm
Weight:
9.73 lbs / 4.41 kg
Shock:
RockShox Vivid Select+ Coil S: 400, M: 450lb, L: 500lb, XL: 550lb
Bottom Bracket Shell:
Threaded 83mm
Rear Brake Mount:
200mm or 220mm PM
Shock Length:
250mm
Fork Offset:
52mm
Headset:
IS41 upper/ IS41 lower (Reach Adjust)
Max Chainring Size:
36t
Max Tire Clearance May vary according to tire and rim model:
2.5";Seat Clamp Diameter=36.4mm"
Shock Bushing Size Front:
30x8
Shock Bushing Size Rear:
30x8
Shock Stroke:
75mm
Suspension System:
VPP
Frame:
Carbon CC MX 208mm Travel VPP™
Front Derailleur Mount:
None
Chainguide Standard:
ISCG05
Max Rotor Size:
220mm
Rear Spacing:
157mm
Rear Travel:
208mm
Recommended Sag:
30%
