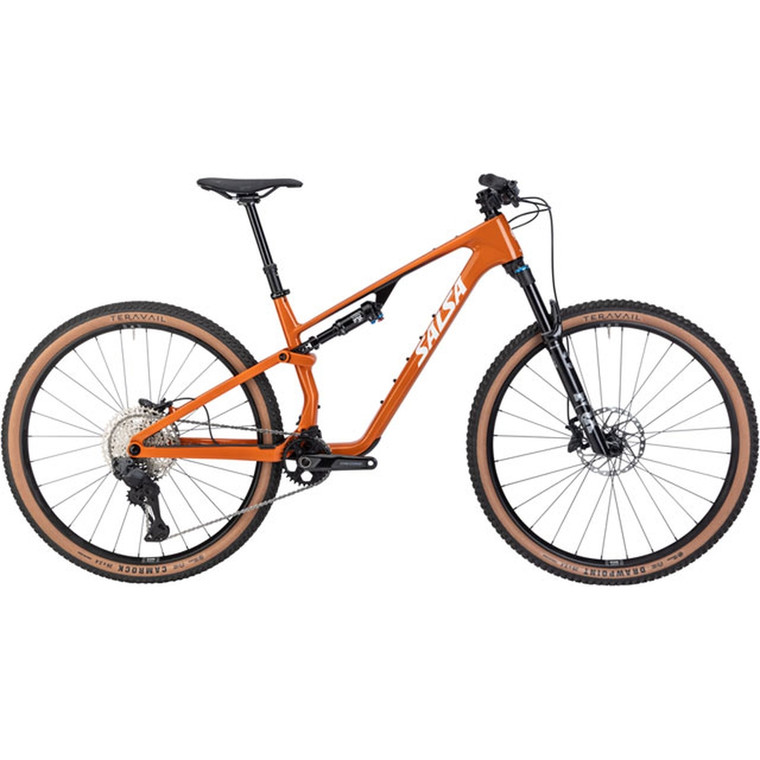

2027 Salsa Spearfish C Deore Di2 29 - Amber

Spearfish is Salsa's endurance XC bike. It's built to thrive in the world's toughest single- and multi-day races, from Marji Gesick to the Arizona Trail Race. Spearfish is lightweight, efficient, and capable - a formula that makes all the difference in the 11th hour.

• Carbon fiber frame, seatstays, and chainstays with carbon fiber links for weight, stiffness, and durability
• Split Pivot suspension design features 120mm of travel that's responsive when putting down power, fully active under braking, and supportive throughout the middle and end of its stroke, paired with a 120mm suspension fork
• Split Pivot + design philosophy lets riders adjust rear travel from 100-120mm; compatible with 100-130mm forks
• Endurance XC geometry with 66.3-degree head tube angle and 77.3-degree seat tube angle
• Rear flip chip adjusts the head tube angle and bottom bracket height to accommodate varying terrain and personal preference
• Sizes XS-SM fit two full-size bottles, plus accessory mount; sizes MD-XL fit three full-size bottles
• Top tube mounts for use with EXP-R Series Trillium Top Tube Bag or K-Edge computer mounts
• Tool and tube mount location
• Clearance for up to 29 x 2.4" tires
• Molded frame protection

Specifications

• Color: Amber
• Wheel Size: 29"
• Brake Type: Disc
• Platform: Spearfish
• Fork Type: Suspension
• Rear Axle: 12mm Thru x 148mm
• Frame Material: Carbon
• TT (Effective): 567.8 | X-Small, 584.9 | Small, 606.9 | Medium, 629 | Large, 651.1 | X-Large
• Defined Color: Orange
• Front Axle: 15mm Thru x 110mm
• Frame Type: Suspension

Build Kit

Frameset

• Frame: Spearfish Carbon
• Fork: Fox 34 SL Performance Elite GRIP X, 44mm offset, 120mm
• Rear Shock: Fox Float SL Performance Elite, LV, 190 x 45mm
• Color: Amber

Drivetrain

• Crankset: Shimano Deore M6120-1, 32t
• Front Derailleur: N/A
• Rear Derailleur: Shimano Deore M6260 SGS Di2
• Cassette: Shimano Deore M6100-12, Hyperglide+, 10-51t, 12-speed
• Chain: Shimano Deore M6100

Components

• Grips / Bar Tape: WTB Wavelength Lock-On
• Handlebar: Race Face Aeffect 35.0mm
• Stem: Salsa Guide 35.0
• Headset: FSA Orbit 1.5E ZS NO.57E
• Shifter: Shimano Deore M6250-R
• Brakes & Rotors: Shimano Deore M6100 Levers, Shimano Deore M6120 4-piston Calipers, Shimano RT64 Rotors (Center Lock, 180mm front and rear)
• Saddle: WTB Silverado Steel Fusion Form, medium
• Seatpost: TranzX YSI08 RAD+ adjustable-travel dropper, Shimano MT500 lever, XS: 125mm; SM-MD: 150mm; LG: 170mm; XL: 200mm

Wheels

• Front Wheel: Shimano TC500 15 x 110mm hub, WTB KOM Team i30 TCS, 28h, 29" rim
• Rear Wheel: Shimano TC500 12 x 148mm hub, WTB KOM Team i30 TCS, 28h, 29" rim
• Tires: Front: Teravail Drawpoint 29 x 2.4", 120TPI Light Trail casing, tan wall / Rear: Teravail Camrock 29 x 2.4", 120TPI Light Trail casing, tan wal
• Tubeless Accessories: WTB TCS Sealant and valve included

Other

• Pedals: not included
