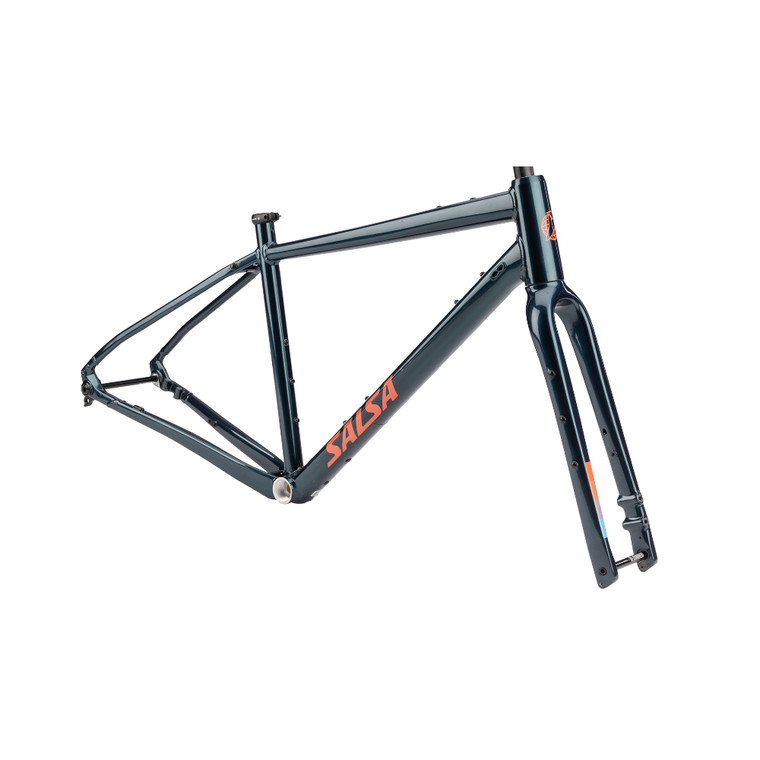

2026 Salsa Journeyer Frameset - Midnight Blue

The Salsa Journeyer frameset has worlds of versatility built in. With an aluminum frame and our Waxwing carbon fork, massive tire clearance, and adaptable cargo options, you can build it into the best all-around bike ever. Journeyer's gravel geometry keeps you comfortable and confident as you take on gravel roads, doubletrack, harsh pavement, and more.

Use the Three-Pack mounts, top tube mount, and down tube accessory mount for a svelte gravel or bikepacking setup. Add racks and fenders for a fun and functional commuter that can handle any road or bike path. The Journeyer frameset lets you choose your journey.

Features

On-Bike Storage

• Adventures require gear and riders should get to choose whether they carry it on their bike or on their body

Frame Protection

• Our products are built from experience - we've been there enough to know that a carbon fork can benefit from added protection just as much as the downtube on a suspension bike.

Frame Specs

• Design Wheel/Tire Sizes 700c x 38mm
• Alternate Wheel/Tire Sizes 700c x 32-50mm; 650b x 47-50mm
• Frame Construction Aluminum
• Fork Construction Carbon
• Rigid Fork Length 402mm length on axis
• Fork Offset 50mm
• Rear Spacing 142mm
• Rear Axle Size 12 x 142mm thru-axle
• Rear Brake (Rotor) Flat mount 140 frame standard (160mm max.), 20mm thickness, 27mm bolt length
• Front Brake (Rotor) Flat mount 160 frame standard (180mm max.), 35mm thickness, 42mm bolt length
• Headset - Upper IS41
• Headset - Lower IS52
• Front Spacing 100mm
• Front Axle Size M12 x 120mm thru-axle, TP=1.5, TL=12mm
• Steerer Tube 28.6mm / 1 1/8"
• Crown Race 40mm
• Seatpost 27.2mm
• Dropper Post Compatible Yes (internal)
• Seatpost Clamp 32.0mm
• Front Derailleur Clamp 31.8mm OD, bottom pull
• Front Derailleur Type 2x, bottom swing
• Derailluer Hanger Salsa 959
• Bottom Bracket 68mm BSA
• Crankset (Max Ring) 1x crankset: 42t max.; 2x crankset: 48/33t max.
• Accessory Mounts Downtube Accessory Mounts: One
  Rack Mounts Frame: Yes
  Rack Mounts Fork: Yes, low rider
• Bottle Mounts 49cm frame: one in main triangle
  51-56cm frames: two in main triangle
  57-60cm frames: three in main triangle
  Fork bottle mounts: two
• Front Fender Mounts Fender Mounts Fork: Yes
• Rear Fender Mounts Fender Mounts Frame: Yes

Additional Features

6061-T6 Aluminum Frame

We use alloy tubing developed specifically for the Journeyer frame, which is then heat-treated to T6 alloy standards for extra strength and durability.

12 x 142 mm Thru-Axle Rear

A thru-axle keeps the frame stiff for improved tracking and allows for consistent wheel placement.

Waxwing V2 Carbon Fork

The Waxwing V2 fork features full-carbon construction. The 12 x 100 mm thru-axle keeps the front end stiff, so it goes where you point it. We designed Waxwing to carry a load, with two sets of Three-Pack mounts and mid-blade rack mounts. Internal Dynamo Hub Cable Routing and fender mounts make it easier to ride in all conditions. 700c x 50mm or 650b x 56.5mm (27.5 x 2.25") tire clearance lets you run a wide range of wheels and tires. An abrasion-resistant plate on the inside of the fork prevents wear from mud and other road debris.

Gravel Geometry

Journeyer feels comfortable and stable whether you're entering your first gravel race, exploring dirt paths around town, or venturing into unfamiliar terrain. It's spirited when you want it to be but relaxed enough to leave you with the energy for long rides.

Internal Cable Routing

Full-length housing improves shifting performance in poor conditions and increases use time between maintenance intervals. Internal routing for a clean, uncluttered look.

Dropper Post Routing

Internal dropper post routing makes it easy to outfit your Journeyer for more technical riding.

Flat-Mount Brakes

Flat-mount brakes offer a clean look, easy setup, and compatibility with most of today's road and gravel brake offerings.

Cargo Capability

Journeyer features front and rear rack mounts, a Three-Pack mount on each fork leg, a top tube mount, down tube mount, and bottle mounts. With this many options, you can load it up however you like.

Dual Wheel Size Compatibility

Journeyer fits both 700c and 650b wheel sizes so you can adapt it for any type of gravel or all-road ride.

Click for Geometrical Chart

Click for Build Kit
